Instruction Sheet

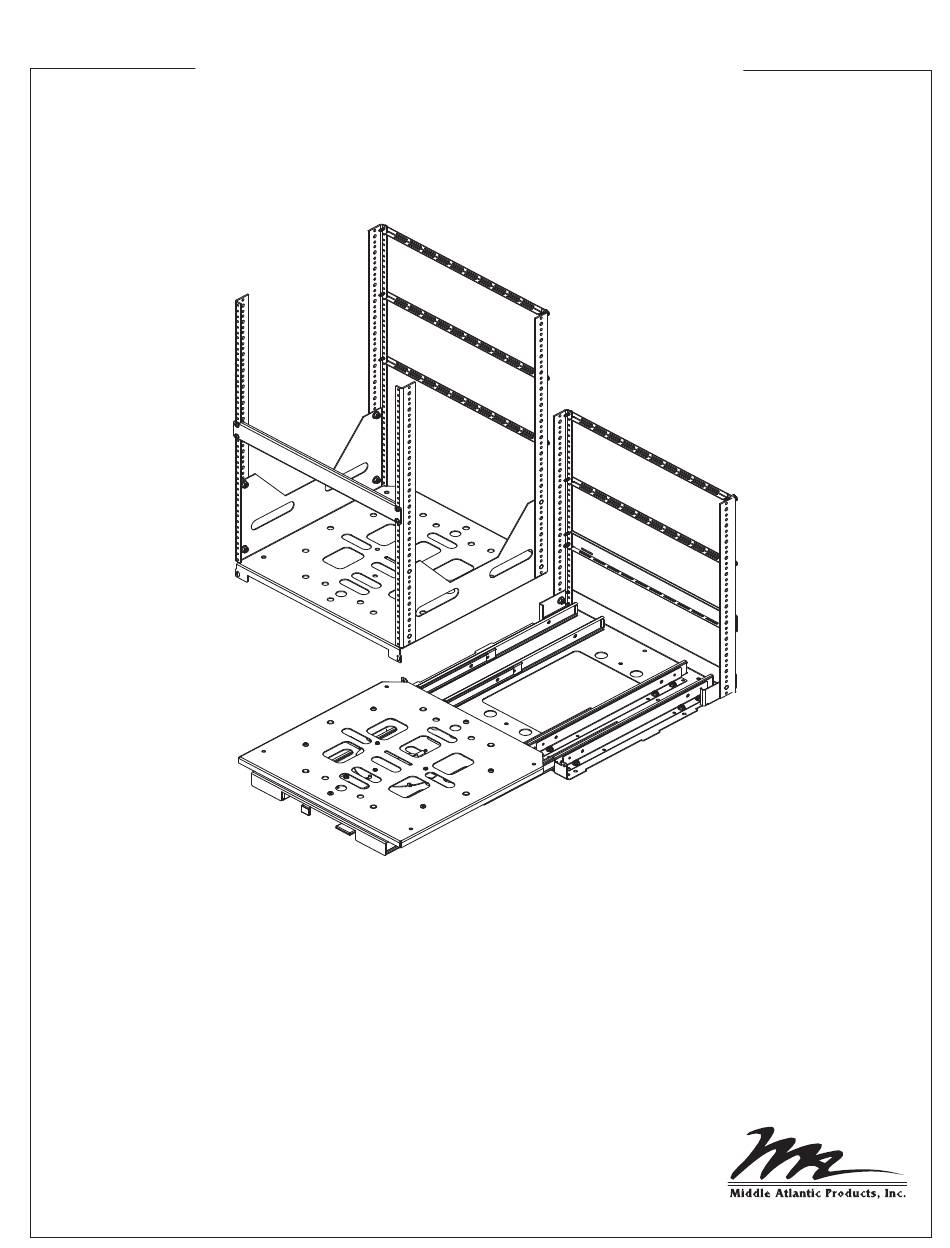

SRSR SERIES

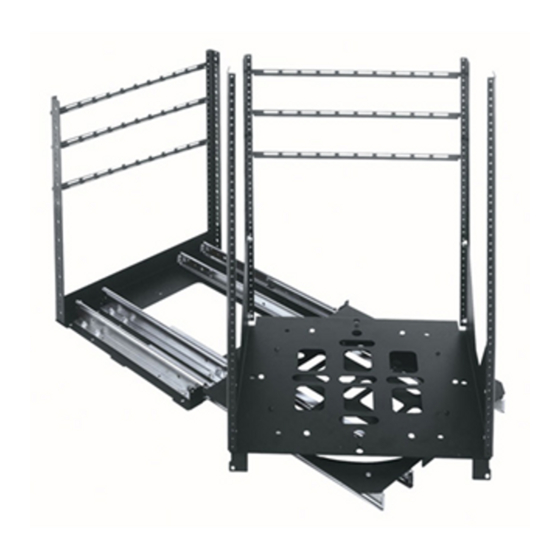

Rotating Sliding Rail System
THANK YOU
Thank you for purchasing the SRSR Series Rotating Sliding Rail System. Please
read these instructions thoroughly before installing / assembling this product.
PRODUCT FEATURES
- Provides easy access to rear equipment connections
- Ideal for millwork, cabinets and flush in-wall installations
- Rack frame removes for in-shop integration and on-site installation
I-00162 Page 1 of 7 Rev B
12-28-06
Advertisement
Related Manuals for Middle Atlantic SRSR Series
Summary of Contents for Middle Atlantic SRSR Series
- Page 1 SRSR SERIES Rotating Sliding Rail System THANK YOU Thank you for purchasing the SRSR Series Rotating Sliding Rail System. Please read these instructions thoroughly before installing / assembling this product. PRODUCT FEATURES - Provides easy access to rear equipment connections...
- Page 2 6) Position and center the SRSR base in millwork with setback desired. Please refer to Middle Atlantic Products A & E spec sheet # 96-985 for complete millwork dimensions. Maximum suggested functional setback is 2" (more setback reduces usable depth).
- Page 3 FIGURE B 7) Using 2 preliminary mounting holes and installer's choice of hardware, attach the SRSR base to millwork (See FIGURE B). Remove the “Locking Trim Panel” and carefully test the sliding operation of the system. Preliminary To close, use lockout lever. Should interference in the mounting millwork occur it may be necessary to fine tune the holes...
-
Page 4: Cable Management
SRSR ROTATING SLIDING RAIL SYSTEM instructions To rotate, pull rotating tab. Bay conveniently locks from center position at 60 o and 90 o to keep open in service position, and at 0 o to orient for closure. To slide closed, first push down the lockout lever. - Page 5 SRSR SERIES ROUGH-IN PAN mounting point locations SRSR-2, SRSR-4 18.125 [460] Preliminary Mounting Holes 12.125 [308] 17.34 [440] 15.78 [401] 13.97 [355] 11.0 .281 dia. [7] [279] 19.23 [488] [203] 2.78 [71] 1.59 [40] 3.78 [96] 0.00 [0] 9.59 [244] (from trim) 19.19 [487] FRONT...
-
Page 6: Gasket Installation
INSTALLING OPTIONAL GASKET MODEL # BG17 IMPORTANT NOTE: GASKET INSTALLATION When using the gasket, the minimum millwork 1) When using the optional gasket rough opening width to fill gaps between the rack and is 19-5/8" millwork, remove dust and debris from rack surface with included wipes. -
Page 7: Warranty
WARRANTY Middle Atlantic Products, Inc. (the "Company") warrants the SRSR Rotating Sliding Rail System to be free from defects in material or workmanship under normal use and conditions for a period of (3) three years from date of shipment by the Company.
