Instruction Sheet
C5-D SRSR Series

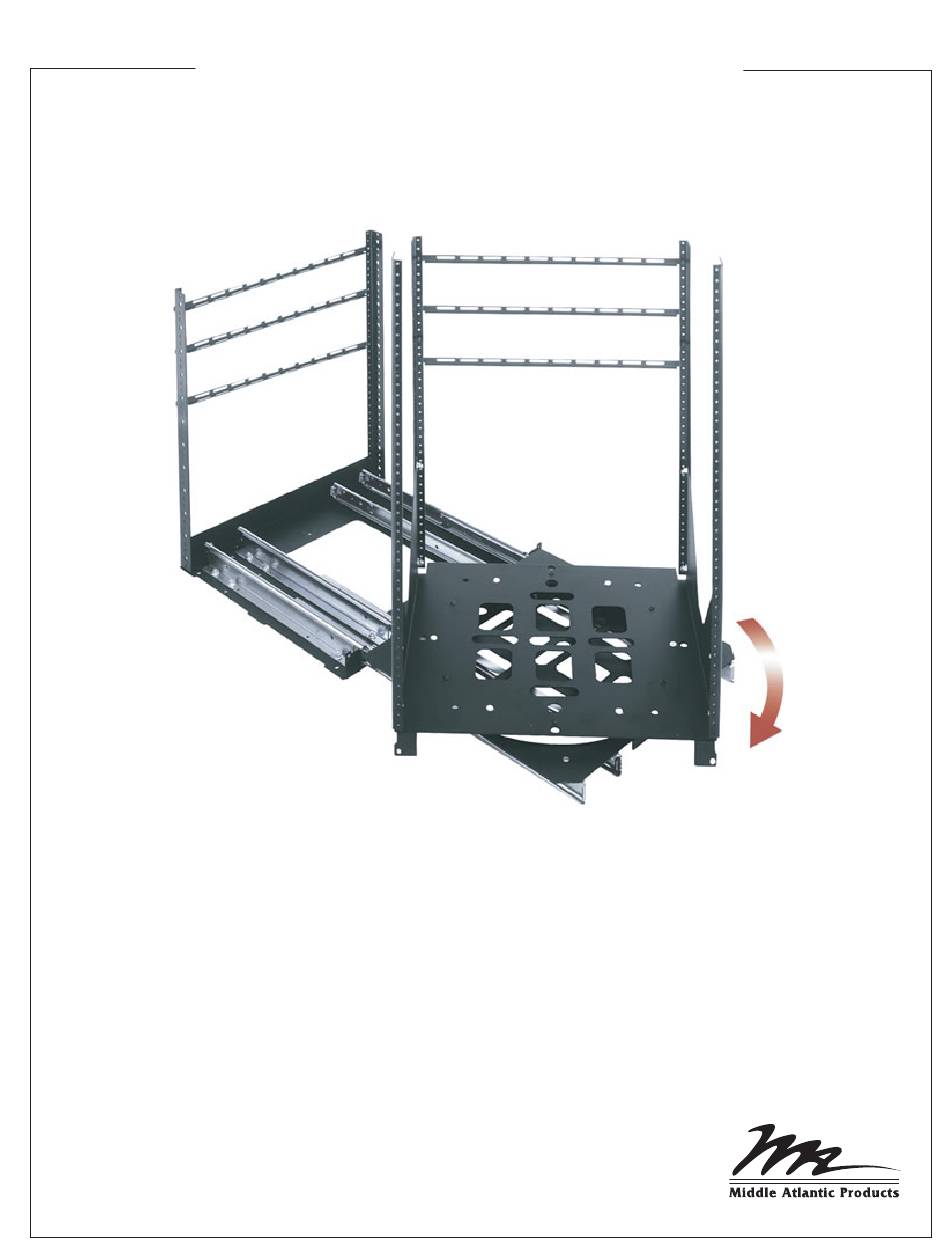

Rotating Sliding Rail System
For C5-D Deep Credenza Rack
THANK YOU
Thank you for purchasing the C5-D SRSR Series Rotating Sliding Rail System. Please read these
instructions thoroughly before assembling this product.
PRODUCT FEATURES
- Provides easy access to rear equipment connections within the C5-D Series Deep Credenza
- Rack frame removes for in-shop integration and on-site installation
- Features anti-tip feet that automatically extend and retract when rack slides in and out of credenza
- Weight Capacity of 125 lbs
I-00573
Rev B
Advertisement
Related Manuals for Middle Atlantic C5-D SRSR Series
Summary of Contents for Middle Atlantic C5-D SRSR Series
- Page 1 Rotating Sliding Rail System For C5-D Deep Credenza Rack THANK YOU Thank you for purchasing the C5-D SRSR Series Rotating Sliding Rail System. Please read these instructions thoroughly before assembling this product. PRODUCT FEATURES - Provides easy access to rear equipment connections within the C5-D Series Deep Credenza...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: A WARNING alerts you to a situation that could CAUTION: A CAUTION alerts you to a situation that may result in serious personal injury or death. result in minor personal injury or damage to the product and /or property. - Page 3 ASSEMBLY CABLE MANAGEMENT 1) Install both cable management supports to SRSR base LACER SUPPORTS (2) using one (1) 5/16” - 18 flange nut and two (2) #10-32 x 1/2” hex head screws per side. (FIGURE A) 2) Using provided #10-32 rack screws, install lacer bars to cable management supports with flat side facing up and edge on outside of supports as shown.
- Page 4 ASSEMBLY (CONTINUED) 6) Remove two (2) #10-32 rack screws securing locking trim panel to SRSR base. (FIGURE E) RACK SCREWS #10-32 (2) HANDLES RACK FRAME FIGURE E LOCKING TRIM PANEL 7) Extend the sliding carriage on the SRSR base. (FIGURE F) SRSR BASE 8) Remove four (4) wing nuts beneath SLIDING...
- Page 5 ASSEMBLY (CONTINUED) 10) With sliding carriage extended, position the SRSR base inside the credenza for mounting. (FIGURE G) 11) Align SRSR base mounting holes with credenza mounting holes and secure SRSR base to credenza using eight (8) 1/4” - 20 machine screws and eight (8) 1/4” - 20 flange nuts. (FIGURE G) CAUTION! Failure to install all required hardware may result in damage to the equipment and possible injury to the user.
- Page 6 SRSR ROTATING SLIDING RAIL SYSTEM To rotate the sliding carriage, pull rotating tab as shown below (FIGURE H). The sliding carriage conveniently locks in the 60º and 90º positions for servicing. The the 0º position locks for closure. ROTATING LOCKOUT LEVER FIGURE H NOTE: When opening and extending the rack bay,...
- Page 7 CABLE MANAGEMENT TIPS • Route cables in the direction of the rack rotation as shown. (FIGURE J) • Select one side of rack for signal cables, and the opposite side for power cables. • Lace cables as shown, ensuring cables are fairly taut. This ensures that the service loop will be the correct length and not be pinched when closing the rack.
-
Page 8: Warranty
WARRANTY Middle Atlantic Products (the "Company") warrants the C5-D SRSR Series Rotating Sliding Rail System for C5-D Deep Credenza Rack to be free from defects in material or workmanship under normal use and conditions for a period of (3) three years from date of shipment by the Company.
