Rider
Assembly
Seat & Safety Switch Assembly
1. Mount the seat (A, Figure 3) and spacers (B) to the
seat plate (C) using two shoulder bolts (D) in the rear
and two knobs, washers, and lockwashers (E) in front.
2. Connect the seat switch wire harness (D, Figure 2) to
the seat switch.

Install Ground Speed Control Levers

1. Mount the left upper control arm (F, Figure 4) and
right upper control arm (D) to the lower control arms
(E) using four 5/16-18 x 1 capscrews, lockwashers,
and washers.
NOTE: The ground speed control levers and seat must
be adjusted to fit the operator. See SEAT ADJUST-
MENTS and GROUND SPEED CONTROL LEVER
ADJUSTMENTS in the Adjustments section.
9/2003

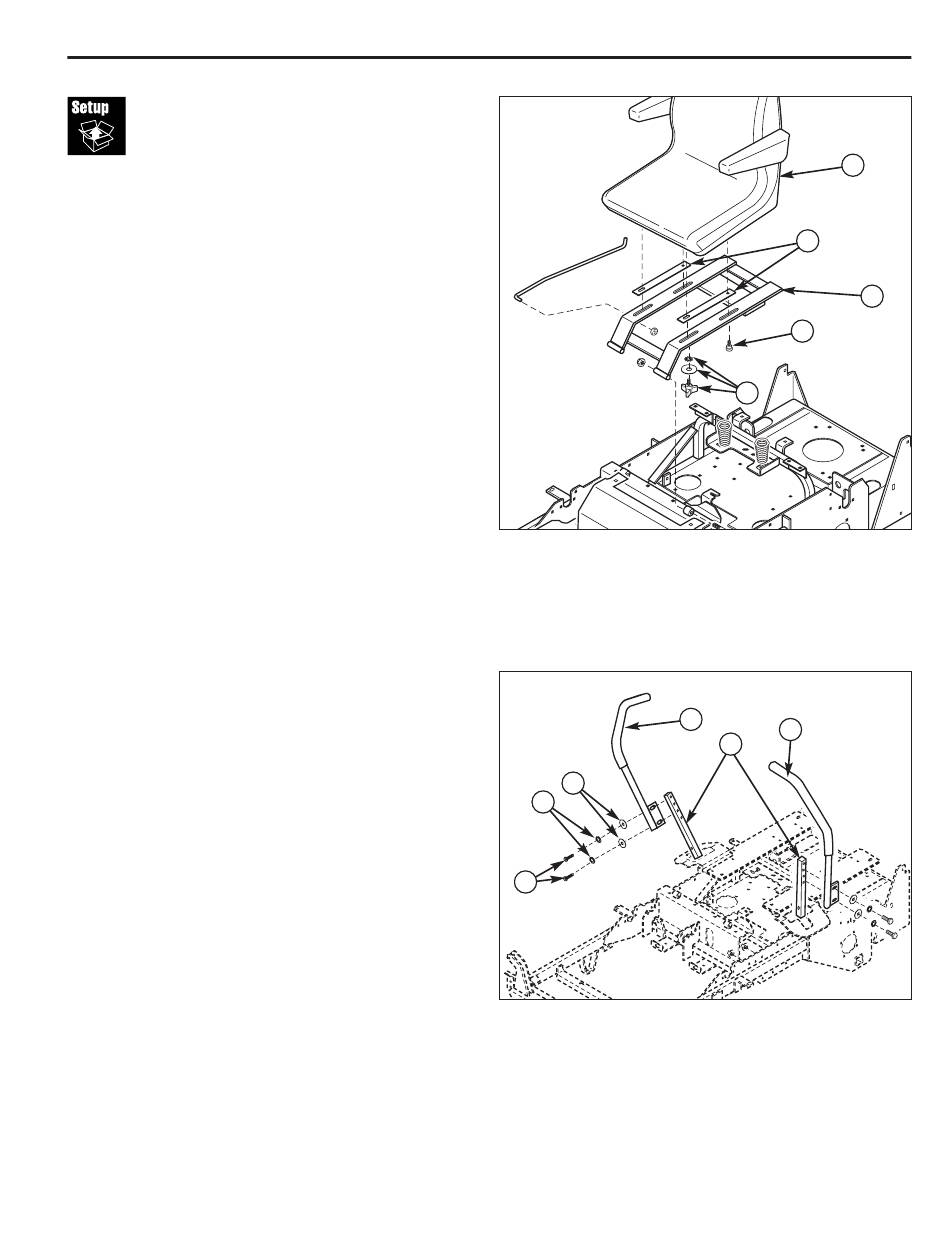

Figure 3. Seat Installation
A. Seat
B. Spacers
C. Seat Plate
D. Shoulder Bolt
E. Knob, Washer, and Internal/External Lockwasher
C
B
A
Figure 4. Install Control Levers
A. 5/16-18 x 1 Capscrews
B. 5/16 Lockwashers
C. 5/16 Washers
D. Right Upper Control Arm
E. Lower Control Arms
F. Left Upper Control Arm
