Mower Belt Replacement - Simplicity SNAPPER ZT18440KH Dealer Setup & Adjustment Instructions Manual

Champion Series

Mower Belt Replacement

To avoid damaging belts, DO NOT
PRY BELTS OVER PULLEYS.
1. Park the rider on a smooth, level surface such as a
concrete floor. Disengage the PTO, engage the
parking brake, turn off the engine, and remove the
ignition key.
2. Remove the capscrews securing the left and right
belt covers (A, B Figure 27) and remove the covers.
3. Raise the mower deck to transport position. Use the
lever (D, Figure 26) to release tension on the mower
belt and remove the belt from the PTO pulley (C).
4. Remove the old drive belt and install the new one as
shown in Figure 26. Note that the back of the drive
belt must ride against the back-side idler pulleys (B).
Use the belt tension lever (D) to release tension on
the idler pulley for installation.
P R O D U C T S , I N C .
McDonough, GA., 30253
www.snapper.com
M A N U F A C T U R I N G , I N C .
500 N Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA
www.simplicitymfg.com
A
B
A
D

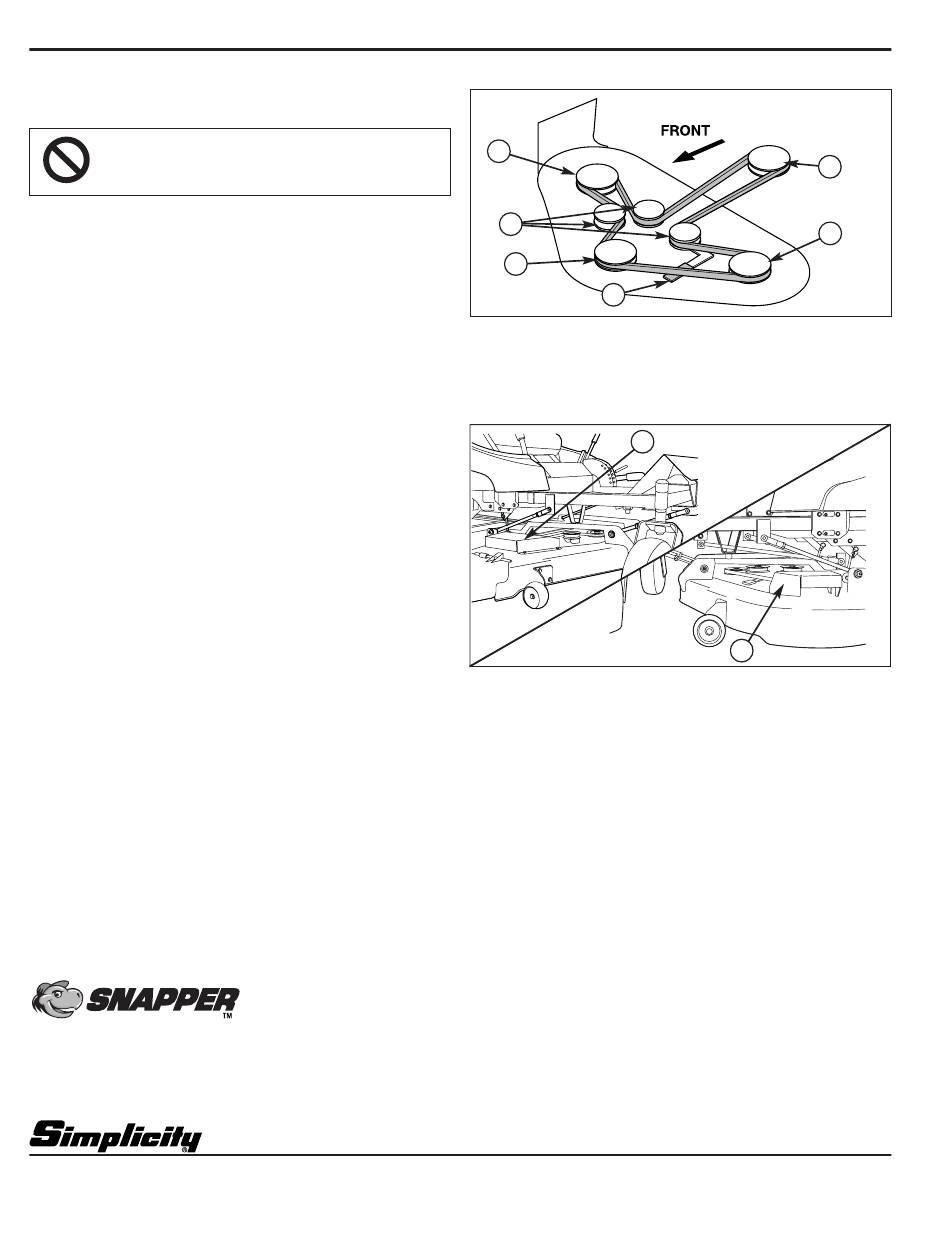

Figure 26. Mower Belt Routing
A. Arbor Pulleys
B. Back-Side Idler Pulleys
C. PTO Pulley
D. Belt Tension Release Lever
A
Figure 27. Belt Covers
A. Right Side Belt Cover
© 2003 Simplicity Manufacturing, Inc. All Rights Reserved
C
A
B
B. Left Side Belt Cover
