DENE HI-FLO
B a r M i xe r
REGISTER ONLINE
ENTER A PRIZE DRAW
WIN
£100
LOVE2SHOP VOUCHERS
VISIT OUR WEBSITE TODAY
TRITONSHOWERS.CO.UK/REGISTER
PRODUCT REGISTRATION IS ONLY AVAILABLE
TO UNITS PURCHASED & INSTALLED IN THE UK
FOR YOUR SERVICE REFERENCE
NOTE DOWN THE PRODUCT CODE BELOW
(FROM THE FRONT OR TOP OF THE BOX)
ALTERNATIVELY REGISTER BY TEL: 024 7637 8321
INSTALLATION AND OPERATING INSTRUCTIONS
Please read this book thoroughly and familiarise yourself with all instructions before commencing
installation and keep it for future reference.
The mixer shower installation MUST be carried out by a suitably qualified person, in the sequence
of this instruction book.
IMPORTANT SAFETY ADVICE
The shower head and hose supplied with
this product are a safety critical part of your
shower. Failure to use genuine Triton parts may
cause injury and invalidate your guarantee.
2181110J - January 2021
86004420

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DENE HI-FLO and is the answer not in the manual?

Questions and answers

Related Manuals for Triton DENE HI-FLO

Summary of Contents for Triton DENE HI-FLO

  • Page 1 The shower head and hose supplied with (FROM THE FRONT OR TOP OF THE BOX) this product are a safety critical part of your shower. Failure to use genuine Triton parts may cause injury and invalidate your guarantee. ALTERNATIVELY REGISTER BY TEL: 024 7637 8321...

  • Page 2: Table Of Contents

    GUARANTEE, SERVICE POLICY, ETC.......... rear cover nstallers please note these InstructIons are to be left wIth the user To check the product suitability for commercial and multiple installations, please contact Triton’s speci cation advisory service before installation. Please see back of book for contact information.

  • Page 3: Main Components

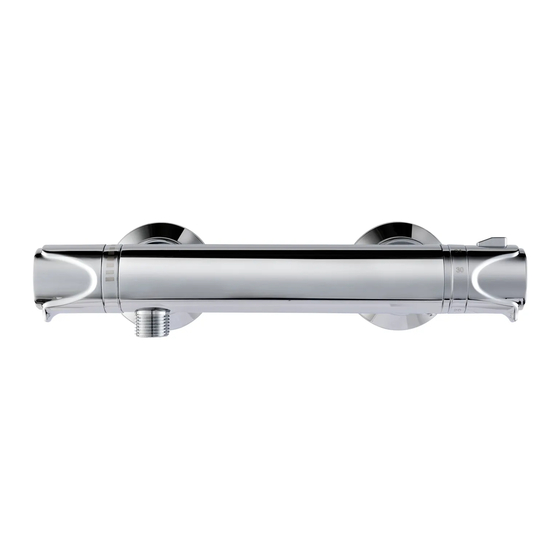

    Bar Mixer Shower MAIN COMPONENTS Fig.1 A. Thermostatic bar mixer valve B. Push-fit connector x2 (with trims) All dimensions listed in this fitting book regarding the product and installation are approximate.
