NRS Healthcare F19739 Product/Technical Bulletin

Product Range

F19739 Adjustable Height Stool
Adjustable Height Stool with Armrests
F19741
Adjustable Height Stool with Armrests & Backrest
F19893
L33236 Adjustable Height Stool with Armrests & Padded Backrest
F21541 Adjustable Height Stool with Padded Armrests & Padded Backrest
L63344 Extra Low Adj. Height Stool with Armrests & Padded Backrest
L63356 Extra Low Adj. Height Stool with Padded Armrests & Padded Backrest
Product Description & Intended Purpose
These stools are specifically designed to allow users to sit at a comfortable height in the kitchen,
bathroom or shower. The padded vinyl seat provides greater comfort and is angled to enable the user to
sit and rise with greater ease. The stool is also available with padded vinyl arm rests and back support.

Product Features


Splayed legs fitted with rubber ferrules provide stability on all floor surfaces.
Dependent on Selected Model

Padded vinyl seat, arm rests and back support to provide greater comfort.

Height adjustable mild steel frame.

Technical Specification


Seat Height: 685mm max x 535mm min

Width between arms, top: 470mm

Width between arms, bottom: 435mm

Backrest height from seat:270 to base of tube

Seat: 335 x 290mm

Backrest: 285 X 140mm
Installation Information (Note: for detailed information refer to User Instructions)

For height adjustment, remove 'e-clips', slide tube to desired position, align holes and re-insert 'e-
clips'.

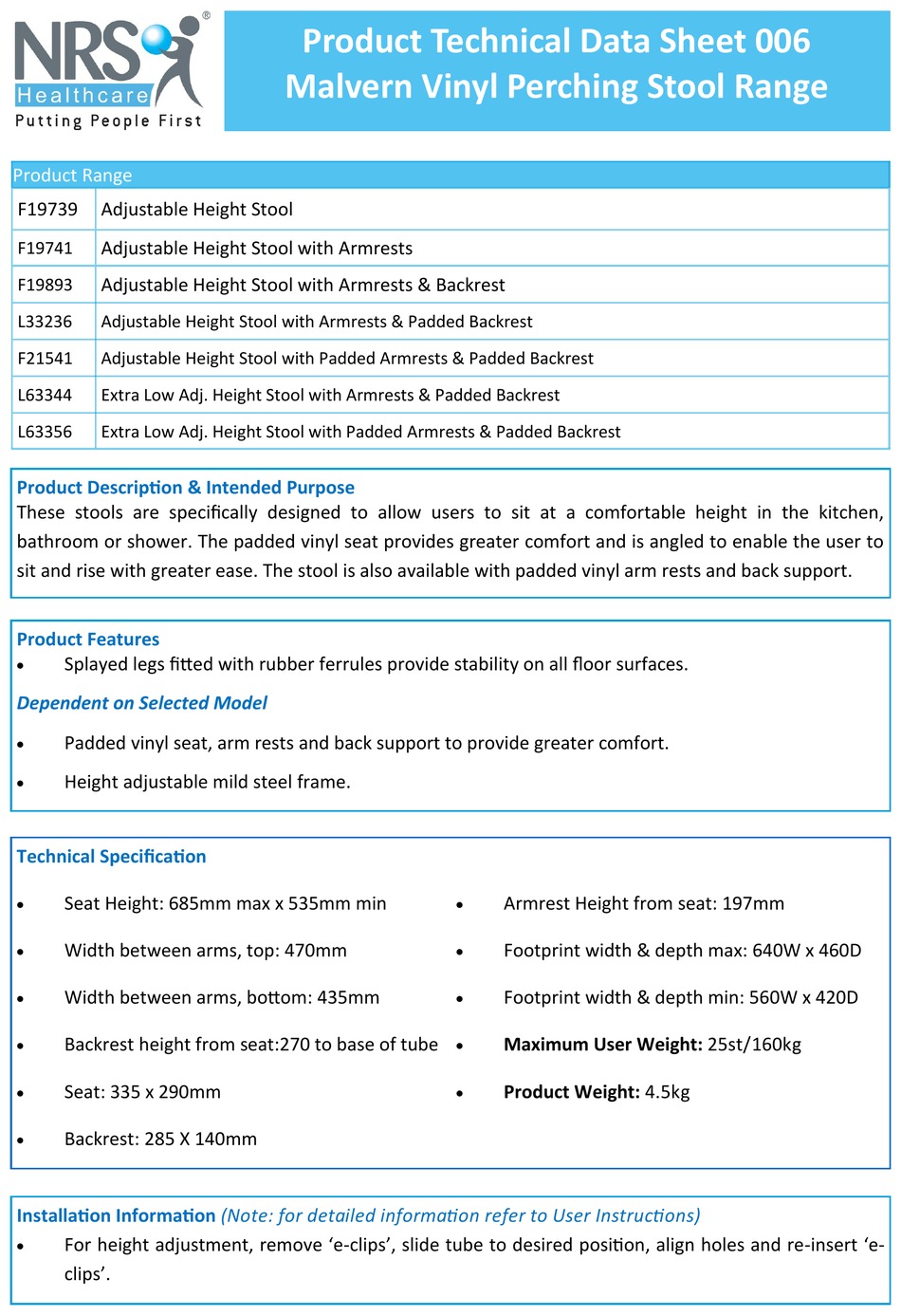

Product Technical Data Sheet 006
Malvern Vinyl Perching Stool Range

Armrest Height from seat: 197mm

Footprint width & depth max: 640W x 460D

Footprint width & depth min: 560W x 420D

Maximum User Weight: 25st/160kg

Product Weight: 4.5kg
