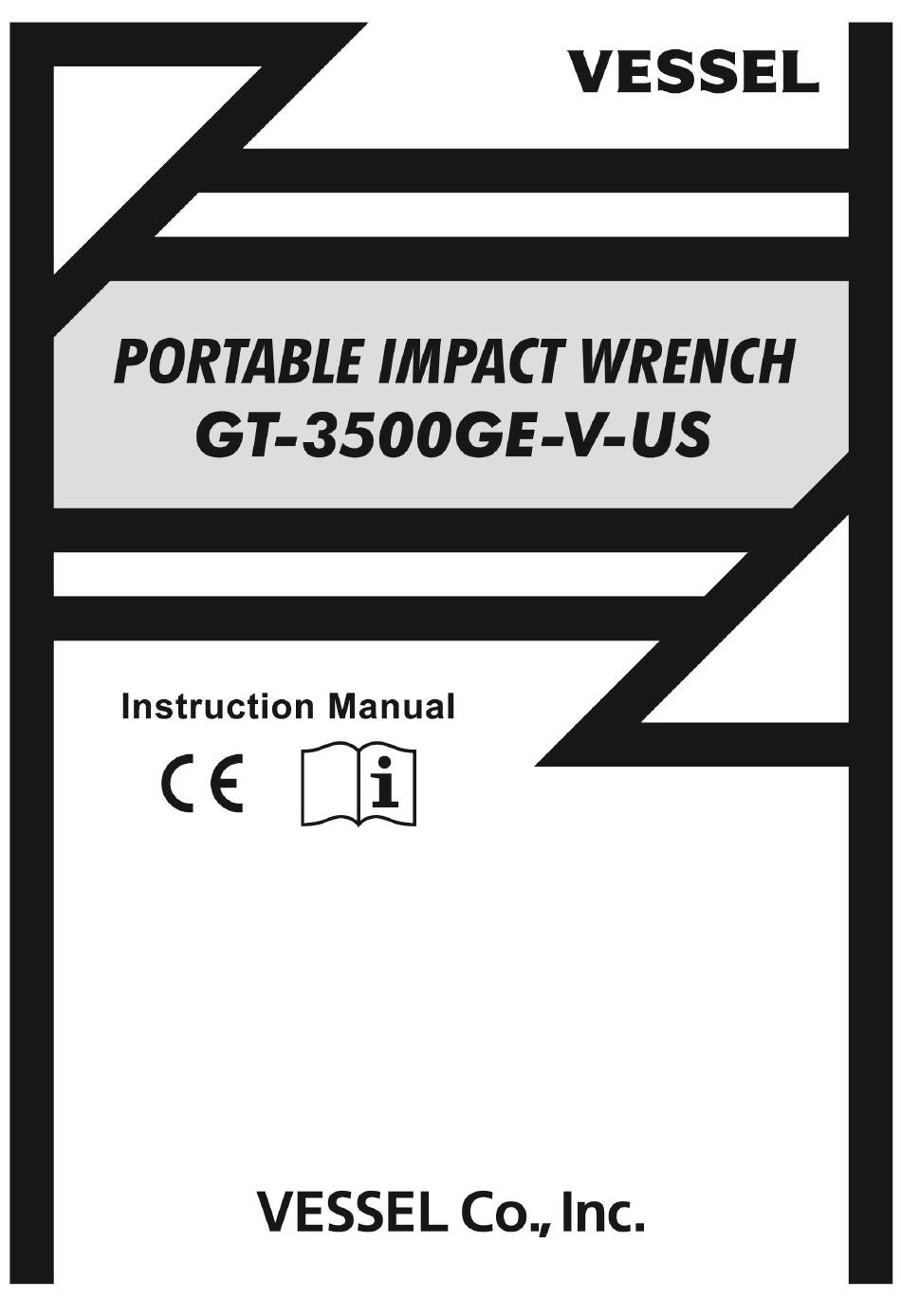

Vessel GT-3500GE-V-US Instruction Manual

Portable impact wrench
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT-3500GE-V-US and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vessel GT-3500GE-V-US

Summary of Contents for Vessel GT-3500GE-V-US

  • Page 5: Chapter 1 For Safe Use

    Thank you for purchasing the gasoline engine type impact wrench GT-3500GE – V - US. GT-3500GE-V-US is a high-power two- stroke engine which can be used in places where power supply is not available. Please be sure to read this manual carefully and fully understand the contents before using the product, to ensure safe use Warning: Please read this manual after fully understanding the following terms ■The safety precautions are listed below.
  • Page 6 safety shoes, and other work protective equipment according to the work ■ When using an impact wrench Warning ●Keep hands and cloths away from moving parts It is extremely dangerous during use. Do not bring your hands or cloths near any moving parts. ●Keep the grips clean of oil, fuel and dirt.
  • Page 7 Before use, be sure to check for loose screws and damage to components. Not only may it cause performance degradation or failure, but it can also be dangerous. ●Be sure to perform maintenance and inspection For safe and efficient work, do not neglect maintenance and inspection. ●...
  • Page 8 〔m/s²〕 With damper 14.7 * Vibration value ahv = 3- axis composite value of frequency correction vibration acceleration execution value 〒537-0001 Vessel Co., Inc． Fukaekita 2 -chome, 17 -25, Higashinari ku, Osaka, Japan Product name Portable impact wrench Model name...

  • Page 9: Specifications

    CHAPTER2 Specifications Engine Engine model CER420 Type 2 -stroke, air-cooled 〕 Engine exhaust amount〔cm 41.5 〕 2500-3000 Idling speed〔m Maximum engine output〔kw〕 1.57 (ISO8893) Guaranteed engine output 1.54 〔kw〕 (ISO8893) Mixed gasoline Use only non-leaded regular petrol. two-stroke oil mix 50~25:1 ratio must be approved for air-cooled engines.

  • Page 10: Before Use

    CHAPTER3 Before use Warning ・Be sure to follow the instructions in the operation manual. ・The following use are prohibited. * Tip is not properly installed or is not the right size. * Working posture is unstable, cannot be held properly, and cannot be operated. * Slippery, unstable environment.
  • Page 11 9. Do not touch “spark plug cable” and “spark plug cap” during the engine operation. There is risk of electric shock. 10. Never use replacement parts that are not approved by VESSEL. 11. Use the right tool for the job. Do not use this engine for any job that is not recommended by VESSEL.
  • Page 12 CHAPTER4 How to use Caution How to operate the engine ● Before starting the engine 1. Please check whether there is any abnormal (damage, loose bolt, missing parts…) 2. Create the mix fuel-oil and fill the fuel tank according to the instruction manual. 3.
  • Page 13 CHAPTER4 How to use Caution ● Adjusting idling speed The carburetor of the engine of this product cannot be adjusted. Only idle speed can be adjusted. The rotation speed is about 2500-3000rpm when idling To adjust the idling speed, slowly turn the adjusting screw while idling.

  • Page 14: Maintenance And Inspection

    CHAPTER5 Maintenance and inspection Caution ● Air filter (Fig. 5-1) Maintenance intervals ・Clean every 100 hours and more often if used in a dusty working environment. FILTER COVER How to clean the air filter Remove the filter cover and the foam element. Rinse with warm soapy water.
  • Page 15 CHAPTER5 Maintenance and inspection Caution ●CYLINDER COOLING FINS MAINTENANCE INTERVAL • The cylinder cooling fins should be cleaned after every 25 hours of operation, once a week, whichever comes first. • Air must flow freely around and through the cylinder cooling fins to prevent engine overheating.

  • Page 16: Maintenance Interval

    CHAPTER5 Maintenance and inspection Maintenance Interval •The spark arrester should be inspected and cleaned after every 25 hours of operation. Replace the screen if it cannot be thoroughly cleaned or if it is damaged. ●Spark Arrester Maintenance Tail pipes and adjustable tail pipes are very dangerous as they become hot after use.Wait for the temperature to decrease before servicing the spark arrester.

  • Page 17: Maintenance Period

    CHAPTER5 Maintenance and inspection MAINTENANCE PERIOD CHAPTER6 Trouble shooting Caution Symptoms Cause treatment <Fuel system> Fuel tank is empty Refuel the mixed gasoline. Insufficient pressing of priming pump Press Priming pump for several and send the fuel. Fuel pipe bent or damaged Fix or replace of fuel pipe.

  • Page 18: Exploded View Parts List

    CHAPTER7 Exploded view / parts list ● Engine exploded view 1...
  • Page 19 CHAPTER7 Exploded view / parts list One-unit Part No. EDP No. Parts name Size quantity 848502 Cylinder 848503 Gasket 848504 Hexagon socket head bolt M5 × 25 848505 Insulator 848506 Gasket 848507 Hexagon socket head bolt M5 × 25WSW 848508 Muffler 848509 Gasket...
  • Page 20 CHAPTER7 Exploded view / parts list 848546 Hexagon socket head bolt M4 × 25WSW 848547 Spark plug BPMR8Y 848548 Grommet 848549 Lead 848550 Stop switch assembly 848551 Stay 848552 Small hexagon nut M8 × 1 848553 Recoil starter assembly (Part No. 554-No. 568 built-in) <...
  • Page 21 CHAPTER7 Exploded view / parts list ● Engine exploded view2 rt No. EDP No. Parts name Size One unit quantity 848601 Carburetor assembly (Built-in parts No.102-No.118) < 602 > 848602 Pump body (Part No. 101 built-in part) < 603 > 848603 Cover Plate (Part No.
  • Page 22 CHAPTER7 Exploded view / parts list < 613 > 848613 Washer (Part No. 601 built-in part) < 614 > 848614 Swivel (Part No. 601 built-in part) < 615 > 848615 Packing (Part No. 601 built-in part) < 616 > 848616 Screw (Part No.
  • Page 23 CHAPTER7 Exploded view / parts list ●Exploded view of 3500GE-V Impact part...
  • Page 24 CHAPTER7 Exploded view / parts list Part No. EDP No. Parts name Size One-unit quantity 845171 Hammer case (Built-in parts No.172-No.173) < 172 > 845172 Oil seal (Part No. 171 built-in part) VB type 35 × 50 × 5 < 173 > 845173 Hammer case press-fit bush (Part No.
  • Page 25 CHAPTER7 Exploded view / parts list < 226 > 845226 Spiral pin (Part No.225 internal parts) Fai 5 × 26 (Orbis powerful type) 845227 O-ring 845228 Gear flange 845229 Gear flange packing 845230 Hexagon socket head bolt M5 × 10 845231 Serrated spring washers with knurls 2L-M5...
  • Page 26 CHAPTER7 Exploded view / parts list ●3500GE-V handle section exploded view Part No. EDP No. Parts name Size One unit quantity 845258 Vibration-proof auxiliary handle (With rubber) 845262 Hex U nut M5 U-nut 845263 Spring washer...
  • Page 27 CHAPTER7 Exploded view / parts list 845264 Plate for Handle 845265 Hex Socket Button Bolt M5 × 16 845266 Hex U nut M5 U-unit 845267 Spring washer 845268 Auxiliary handle bracket 845269 Hex Socket Button Bolt M5 × 14 845270 Hex U nut M5 U-unit 845271...
  • Page 28 CHAPTER7 Exploded view / parts list ●3500GE-V damper unit exploded view...
  • Page 29 CHAPTER7 Exploded view / parts list One-unit Part No. EDP No. Parts name Size quantity 848360 Anti-vibration handle base 848361 Exhaust cover 848362 Hex Socket Button Bolt M5 × 14 848363 Serrated spring washers with knurls 848364 Hex U nut 845400 Anti-vibration D handle receiver 845401...
  • Page 32 GT-3500GE-V-US 8, avenue Johannes Gutenberg 78310 Maurepas FRANCE Tel : +33 (0)1 69 19 17 42 Fax : +33 (0)1 69 19 42 20 info.vessel-europe@vessel.co.jp...
