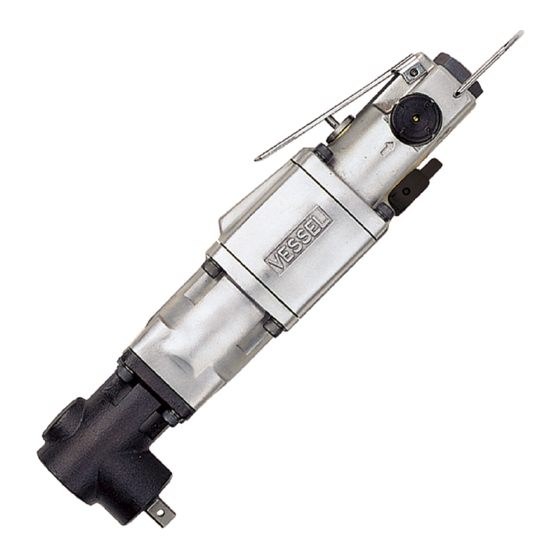

For Safe Use Thank you very much for having purchased the "VESSEL Air Impact Wrench / Screwdriver GT-S6CD, S60CW, S600C." Please read this manual carefully and understand its contents for the safe and correct use of the air tool. Description The air impact wrench is a hand-held pneumatic tool that is driven by compressed air.
Page 3
For Safe Use Excessive air pressure may lead to serious accidents or property damages. Install proper equipment including a pressure gauge and a reduction valve in order to keep the dynamic pressure at the tool end within the specified range. ●Only compressed air should be applied.
Page 4
For Safe Use they may be caught in them. ●Keep a good posture while working. Keep a good posture and hold the tool firmly in case of an unexpected situation. ●Avoid accidental start-up. Make sure the trigger is released before connecting the air hose to the unit.
Page 5
For Safe Use Caution ■Basic precautions for operating air tools ●Pay attention. Stay alert while using the air tool and do not act thoughtlessly. Also, avoid using the tool when you are tired or under the influence of drug, alcohol, or medication. ●Keep bystanders away.
Page 6
For Safe Use and consult a physician. Caution ■Maintenance, inspections and repairs ●Check before use. Make sure the unit has no loose screws/bolts and fittings and no damaged parts. If the unit is operated despite such problems, it could lead to a hazardous situation as well as decrease the performance.
Page 7
Applications ・This product is an air tool that uses compressed air as its power source and has been designed and developed for tightening and loosening bolts/nuts. This air tool should not be operated; * if the application is outside the specified operating range. * if any part of it has been modified or altered.
How to use PIPING MODEL Filter Oiler Air Compressor Air Tool Regulator Drain Tap SPECIFICATIONS GT-S6CD GT-S60CW GT-S600C 88.5 89.8 89.8 〔dB〕 Sound Level 99.5 100.8 100.8 〔dB〕 Vibrations Level 29.89 23.5 23.5 〔m/s²〕 Uncertainty K 2.11 3.84 3.84 〔m/s²〕...
How to use ・For operating the tool, make sure to follow the procedures described in this instruction manual. ・Do not use the tool: * if the socket/bit is not properly mounted or not compatible in size. * if the work environment does not allow you to keep a stable posture, secure a firm grip on the tool or to operate the tool properly.
Page 10
How to use ●Air coupling When using the air coupling included in the package, purchase a compatible connector. When connecting a hose directly to this product, purchase a hose connection coupling. In both cases, check the size of the connected hoses. ●Before the first operation after purchase When this air tool has been newly installed or the air hose has been replaced, blow and clean the inside of the hose and piping.
How to use the tool How to use the tool ●Starting and stopping 1.Connecting the air coupling. 2.Supply air with a compressor. 3.Press the throttle lever to start the unit. 4.Release the throttle lever to stop the unit. 5. Rotation speed can be controlled by the throttle lever.
How to use the tool If it is not securely attached, the socket or bit may detach and fly off. Do not attach the socket or bit when the tool is idling. About handling * Do not touch any rotating parts. It is very dangerous and could lead to injury.
Page 13
Maintenance / Repairs ●Anvil ( drive part on the tip) … Worn out It will deteriorate the performance and decrease efficiency. Early replacement of parts is recommended. ….. Cracks Stop using and seek professional help for repair. ●Socket Worn out square and hexagonal heads ………..…...
Troubleshooting Troubleshooting Trouble Cause Action Air is not provided. Turn on the air. The hose is twisted. Straighten the hose. Adjust the air Air pressure is low. pressure. Parts are rusted due to a lack 1. No rotation Lubricate the unit. of lubrication.
Page 15
Troubleshooting Spare parts came loose. Request overhaul Worn out and damaged Request parts bearings. replacement Request parts Damage to the hammer case and impact part. replacement 8.Abnormal noise Worn out and damaged rotor Request parts blade. replacement The rotor blade does not Request parts come out at rotating.
Page 16
Air Hose Inner Dia. 6.35 6.35 6.35 Air Coupling Accessories ● Double End Bit(B39㊉2×23H) 1 pc 1 pc VESSEL Air Coupling (BPB-2) GT-S6CD ● 1 pc “L” Wrench(A/F 4mm) ● VESSEL Air Coupling (BPB-2) ● 1 pc GT-S60CWU “L” Wrench(A/F 4mm)...
Page 18
Exploded diagram drawing & Parts list Number Index Description Size Required EDP No. per unit 831701 Corner Head Complete (S6CD) 〈2〉 831702 Spring, Bit Retainer (S6CD) (Installed No. 1) 〈3〉 831703 Ball, Bit Retainer (S6CD) ※3.5mml(Installed No. 1) 831704 Corner Head Complete (S60CW) 831705 Corner Head Complete...
Page 19
Exploded diagram drawing & Parts list 831733 Rear Gasket, Motor Housing 831734 Throttle Housing Complete 831735 Washer, Spring ※M5 831736 Hex Cap Bolt ※M5×18 Lever, Throttle 831737 831738 Pin, Throttle Lever ※SP3×22 831739 Pin, Throttle 831740 Valve, Reverse 831741 O-ring, Reverse Valve ※S12.5 〈42〉...
