DS-K1F600-D6E Series Enrollment Station
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K1F600-D6E Series and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-K1F600-D6E Series

Summary of Contents for HIKVISION DS-K1F600-D6E Series

  • Page 1 DS-K1F600-D6E Series Enrollment Station User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K1F600-D6E Series Enrollment Station User Manual Available Model Product Name Model Description Enrollment Station DS-K1F600-D6E Supports enroll face and card DS-K1F600-D6E-F Supports enroll face, fingerprint, and card No.
  • Page 5 DS-K1F600-D6E Series Enrollment Station User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K1F600-D6E Series Enrollment Station User Manual or dispose of it at designated collection points. For more information see: www.recyclethis.info 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information.
  • Page 7 DS-K1F600-D6E Series Enrollment Station User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K1F600-D6E Series Enrollment Station User Manual • The device cover for indoor use shall be kept from rain and moisture. • Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause fire danger).

  • Page 9: Table Of Contents

    DS-K1F600-D6E Series Enrollment Station User Manual Contents Chapter 1 Overview ........................1 Chapter 2 Appearance ........................ 2 Chapter 3 Activation ........................3 3.1 Activate via Device ......................... 3 3.2 Activate via SADP ........................4 Chapter 4 Enroll via Device ......................5 4.1 Enroll Face via Device ......................
  • Page 10 DS-K1F600-D6E Series Enrollment Station User Manual 6.5.4 Other Settings ......................25 6.5.5 Set Biometric Parameters ................... 26 6.6 Data Management ....................... 27 6.6.1 Import User ......................... 27 6.6.2 Export Enrolled Data ....................28 6.6.3 Clear Enrolled Data ..................... 29 6.7 System Maintenance ......................29 Appendix A.

  • Page 11: Chapter 1 Overview

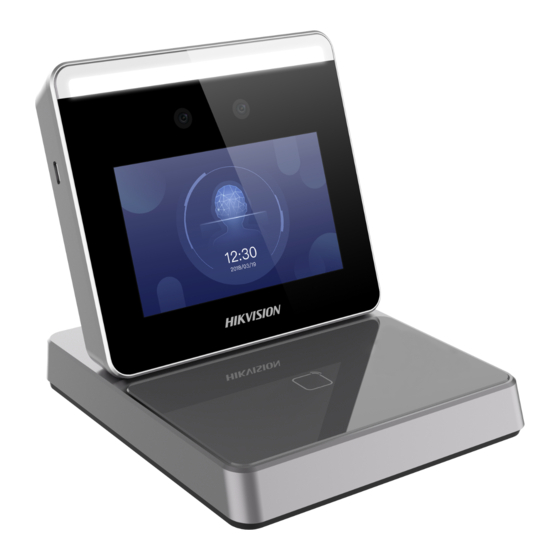

    DS-K1F600-D6E Series Enrollment Station User Manual Chapter 1 Overview Introduction Figure 1-1 Product Appearance The enrollment station can realize multiple user information's enrollment on one device. It supports enrolling face picture, fingerprint, 13.56 MHz IC card No., and 125KHz ID card No.

  • Page 12: Chapter 2 Appearance

    DS-K1F600-D6E Series Enrollment Station User Manual Chapter 2 Appearance Figure 2-1 Appearance Table 2-1 Appearance Description Description PSAM3 Card Slot (Reserved) PSAM4 Card Slot (Reserved) Screen Camera Supplement Light Camera USB Interface Network Interface Power Interface PSAM Card Slot PSAM Card Slot...

  • Page 13: Chapter 3 Activation

    DS-K1F600-D6E Series Enrollment Station User Manual Chapter 3 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.

  • Page 14: Activate Via Sadp

    • Get the SADP software from the supplied disk or the official website http:// www.hikvision.com/en/ , and install the SADP according to the prompts. • The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 15: Chapter 4 Enroll Via Device

    DS-K1F600-D6E Series Enrollment Station User Manual Chapter 4 Enroll via Device 4.1 Enroll Face via Device Before You Start • Power on and activate the device. For details about the activation, see Activation . • Enable Face Required in Set Enrollment Rule after logging in the device backend.

  • Page 16: Enroll Fingerprint Via Device

    DS-K1F600-D6E Series Enrollment Station User Manual Note For details about face recognition, see Tips When Collecting/Comparing Face Picture . 5. Optional: Tap to edit the employee ID. 4.2 Enroll Fingerprint via Device Before You Start • Power on and activate the device. For details about the activation, see Activation .

  • Page 17: Enroll Card Via Device

    DS-K1F600-D6E Series Enrollment Station User Manual 4) Optional: Tap the enrolled fingerprint (in blue) and tap OK in the dialogue box to clear the enrolled data and enroll a new fingerprint. 5. Optional: Tap to edit the employee ID. 4.3 Enroll Card via Device Before You Start •...

  • Page 18: Chapter 5 Enroll Via Client Software

    DS-K1F600-D6E Series Enrollment Station User Manual Chapter 5 Enroll via Client Software 5.1 Enroll Face via Client Software Before You Start • Download and install the client software on your computer before enrollment. • Power on and activate the device. For details about the activation, see Activation .
  • Page 19 DS-K1F600-D6E Series Enrollment Station User Manual The added organizations will be displayed in the list on the left of the page. 5. Add person. 1) Select an organization from the list on the left. 2) Click Add on right panel.

  • Page 20: Enroll Fingerprint Via Client Software

    DS-K1F600-D6E Series Enrollment Station User Manual - Click Add and New to add the person and continue to add other persons. 5.2 Enroll Fingerprint via Client Software Before You Start • Download and install the client software on your computer before enrollment.
  • Page 21 DS-K1F600-D6E Series Enrollment Station User Manual Figure 5-5 Add Organization 3) Create an organization name. Note Up to 10 levels of organizations can be added. The added organizations will be displayed in the list on the left of the page.
  • Page 22 DS-K1F600-D6E Series Enrollment Station User Manual Figure 5-6 Add Person Note Once the person information is expired, the credentials and access control settings of the person will be invalid and the person will have no authorization to access the doors.

  • Page 23: Enroll Card Via Client Software

    DS-K1F600-D6E Series Enrollment Station User Manual 8. Set the enrollment station's information. 1) Click Settings and set the enrollment station's IP address, port No., user name and password. 2) Click OK. 9. Enroll the fingerprint. 1) Click Start to start enrollment.
  • Page 24 DS-K1F600-D6E Series Enrollment Station User Manual Figure 5-9 Add Organization 3) Create an organization name. Note Up to 10 levels of organizations can be added. The added organizations will be displayed in the list on the left of the page.
  • Page 25 DS-K1F600-D6E Series Enrollment Station User Manual Figure 5-10 Add Person Note Once the person information is expired, the credentials and access control settings of the person will be invalid and the person will have no authorization to access the doors.

  • Page 26: Get Person Information From Enrollment Station

    DS-K1F600-D6E Series Enrollment Station User Manual This card is used for the inspection staff to check the their attendance of inspection. By swiping the card on the specified card reader, the person is marked as on duty of inspection at that time.
  • Page 27 DS-K1F600-D6E Series Enrollment Station User Manual 2. Select an organization to import the person. 3. Click Get from Device. 4. Select Enrollment Station from the drop-down list. 5. Configure the enrollment station's information. 1) Click Settings. 2) Set the enrollment station's IP address, port, user name of the device administrator, and password.

  • Page 28: Chapter 6 Basic Operation

    DS-K1F600-D6E Series Enrollment Station User Manual Chapter 6 Basic Operation 6.1 Login Login the device backend to set the device basic parameters. You should enter the device activation password for the first login. Or if you have add an administrator's face picture, you can login via the added face picture.

  • Page 29: Login By Administrator

    DS-K1F600-D6E Series Enrollment Station User Manual Note The device will be locked for 30 minutes after 5 failed password attempts. 5. Optional: Tap to exit the page and be back to the initial page. 6.1.2 Login by Administrator Login the device backend to set the device basic parameters. If you have add an administrator's face picture, you can login via the added face picture.

  • Page 30: Add Administrator

    DS-K1F600-D6E Series Enrollment Station User Manual 3. Optional: Tap and you can enter the added admin user name and password to login. 4. Optional: Tap and you can exit the page and be back to the initial page. 6.2 Add Administrator The administrator can login the device backend and configure the device parameters.

  • Page 31: Communication Settings

    DS-K1F600-D6E Series Enrollment Station User Manual 4. Tap to save the settings. Note • By default, the system contains a super administrator. You cannot edit its No., name, and type. and you cannot delete it. • The administrator's No. and name cannot be edited.

  • Page 32: Manage Enrollment

    DS-K1F600-D6E Series Enrollment Station User Manual After enabling WLAN, you should select a Wi-Fi for connection. Enter the Wi-Fi's password, IP address, subnetmask, and gateway. Tap to save the settings. Or enable DHCP and enter the Wi-Fi's password to connect. Tap to save the settings.

  • Page 33: System Settings

    DS-K1F600-D6E Series Enrollment Station User Manual 6.5 System Settings 6.5.1 Set Time You can set the device time format and the current time. Long tap on the initial page for 3 s and login the device home page. Tap System → Time .

  • Page 34: Set Enrollment Rule

    DS-K1F600-D6E Series Enrollment Station User Manual Note The available volume range is from 0 to 10. The larger the value, the louder the volume. 0 represents disable the voice prompt function. 6.5.3 Set Enrollment Rule Set the enrollment rules before data enrollment.

  • Page 35: Other Settings

    DS-K1F600-D6E Series Enrollment Station User Manual When enter a name in the enroll user page, the system will compare the name with all names in the database to avoid name duplication. Face Required You must enroll the person's face when enrolling a person's information.

  • Page 36: Set Biometric Parameters

    DS-K1F600-D6E Series Enrollment Station User Manual 25 frames per second. Suitable for mainland China, Hong Kong (China), the Middle East countries, Europe countries, etc. NTSC 30 frames per second. Suitable for the USA, Canada, Japan, Taiwan (China), Korea, the Philippines, etc.

  • Page 37: Data Management

    DS-K1F600-D6E Series Enrollment Station User Manual Parameter Description Yaw Angle The maximum yaw angle when starting face authentication. By default, the angle is 45°. Pupillary Distance The minimum resolution between two pupils when starting face recognition. The actual resolution should be larger than the configured value.

  • Page 38: Export Enrolled Data

    DS-K1F600-D6E Series Enrollment Station User Manual or JPG. The resolution should be more than 640 × 480 pixel. The picture size should be between 60 KB and 200 KB. 5. Tap Import User. Note Up to 20,000 users can be imported.

  • Page 39: Clear Enrolled Data

    DS-K1F600-D6E Series Enrollment Station User Manual 6.6.3 Clear Enrolled Data Delete all enrolled data in the device, including all face pictures, fingerprints, card, etc. Long tap on the initial page for 3 s and login the home page. Tap Data.
  • Page 40 DS-K1F600-D6E Series Enrollment Station User Manual Capacity You can view the number of administrator, user, face picture, card, and event. Note Parts of the device models support displaying the fingerprint number. Refers to the actual page for details. Restore to Default All parameters, except for the communication settings, remotely imported user information, will be restored to the default settings.

  • Page 41: Appendix A. Tips When Collecting/Comparing Face Picture

    DS-K1F600-D6E Series Enrollment Station User Manual Appendix A. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Expression • Keep your expression naturally when collecting or comparing face pictures, just like the expression in the picture below.

  • Page 42: Appendix B. Tips For Scanning Fingerprint

    DS-K1F600-D6E Series Enrollment Station User Manual Appendix B. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 43 DS-K1F600-D6E Series Enrollment Station User Manual Others If your fingerprint is shallow, or it is hard to scan your fingerprint, we recommend you to use other authentication methods. If you have injuries on the scanned finger, the scanner may not recognize. You can change another...
  • Page 44 UD16571B...

This manual is also suitable for:

Ds-k1f600-d6eDs-k1f600-d6e-f
