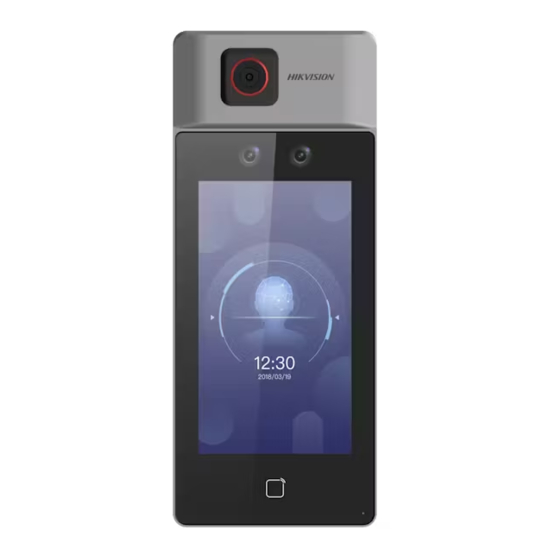

Face recognition terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DS-K1T673-T Series Face Recognition
Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K1T673-T Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-K1T673-T Series

Summary of Contents for HIKVISION DS-K1T673-T Series

  • Page 1 DS-K1T673-T Series Face Recognition Terminal User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K1T673-T Series Face Recognition Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-K1T673-T Series Face Recognition Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K1T673-T Series Face Recognition Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 7 DS-K1T673-T Series Face Recognition Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K1T673-T Series Face Recognition Terminal User Manual Cautions: Do not drop the device or subject it to physical shock, and do not expose it to high ● electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
  • Page 9 DS-K1T673-T Series Face Recognition Terminal User Manual Available Models Product Name Model Face Recognition Terminal DS-K1T673TM-3XF DS-K1T673TDX-T DS-K1T673M-3XFIR DS-K1T673TMW-3XFIR DS-K1T673TMG-3XFIR DS-K1T673MG-3XFIR DS-K1T673MG-3XF DS-K1T673M-3XF DS-K1T673MW-3XF DS-K1T673TMW-3XF DS-K1T673TMG-3XF Use only power supplies listed in the user instructions: Model Manufacturer Standard C2000IC12.0-24P-DE MOSO Power Supply Technology Co., Ltd.

  • Page 10: Table Of Contents

    DS-K1T673-T Series Face Recognition Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 1.2.1 Features ........................1 Chapter 2 Appearance ........................ 3 Chapter 3 Installation ......................... 4 3.1 Installation Environment ......................4 3.2 Flush Mounting with Gang Box ....................
  • Page 11 DS-K1T673-T Series Face Recognition Terminal User Manual 6.6 Set Administrator ......................... 32 Chapter 7 Basic Operation ......................34 7.1 Login ............................ 34 7.1.1 Login by Administrator ....................34 7.1.2 Login by Activation Password ..................37 7.1.3 Forgot Password ......................38 7.2 Communication Settings ......................
  • Page 12 DS-K1T673-T Series Face Recognition Terminal User Manual 7.5.2 Authenticate via Multiple Credential ................56 7.6 Basic Settings ........................57 7.7 Set Biometric Parameters ....................58 7.8 Preference Settings ......................60 7.9 Set Access Control Parameters .................... 62 7.10 Time and Attendance Status Settings ................64 7.10.1 Disable Attendance Mode via Device ...............
  • Page 13 DS-K1T673-T Series Face Recognition Terminal User Manual 9.3 Person Management ......................81 9.4 Search Event ........................82 9.5 Configuration ........................82 9.5.1 View Device Information ..................... 82 9.5.2 Set Time ........................82 9.5.3 Set DST ........................83 9.5.4 Change Administrator's Password ................84 9.5.5 View Device Arming/Disarming Information ..............
  • Page 14 DS-K1T673-T Series Face Recognition Terminal User Manual 10.2.1 Add Device ......................116 10.2.2 Reset Device Password ................... 118 10.2.3 Manage Added Devices ..................119 10.3 Group Management ......................120 10.3.1 Add Group ....................... 120 10.3.2 Import Resources to Group ..................120 10.4 Person Management ......................

  • Page 15: Chapter 1 Overview

    DS-K1T673-T Series Face Recognition Terminal User Manual Chapter 1 Overview 1.1 Overview The face recognition terminal is a kind of access control device integrated with temperature screening function. It can fast taking skin-surface temperature and upload abnormal temperature event to the center, which can be widely applied in multiple scenarios, such as enterprises, stations, dwellings, factories, schools, campus and so on.
  • Page 16 DS-K1T673-T Series Face Recognition Terminal User Manual The built-in card reader module adopts the design of swiping the card under the screen to ● support the identification of M1 card (IC card) in places with high security levels such as public...

  • Page 17: Chapter 2 Appearance

    DS-K1T673-T Series Face Recognition Terminal User Manual Chapter 2 Appearance Refer to the following contents for detailed information of the face recognition terminal: Figure 2-1 Face Recognition Terminal Diagram...

  • Page 18: Chapter 3 Installation

    DS-K1T673-T Series Face Recognition Terminal User Manual Chapter 3 Installation 3.1 Installation Environment Avoid backlight, direct sunlight, and indirect sunlight. ● For better face recognition, there should be light source in or near the installation environment. ● Sunlight, wind, hot/cool air from air conditioner and other external factors, which may affect ●...
  • Page 19 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 3-1 Install Gang Box 2. Secure the mounting plate on the gang box with 2 supplied screws (SC-K1A4X24_5).
  • Page 20 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 3-2 Install Mounting Plate 3. Route the cable through the cable hole, wire the cables and insert the cables in the gang box. Figure 3-3 Secure Device Note Apply Silicone sealant among the cable wiring area to keep the raindrop from entering.
  • Page 21 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 3-4 Secure Device 5. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen.

  • Page 22: Chapter 4 Wiring

    DS-K1T673-T Series Face Recognition Terminal User Manual Chapter 4 Wiring The device supports connecting to the RS-485 terminal, the door lock, the exit button, the alarm output/input devices, the Wiegand card reader, the access controller, and the power supply. You can wire the peripherals according to the descriptions below.
  • Page 23 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 4-1 Terminal Diagram The descriptions of the terminals are as follows:...

  • Page 24: Wire Normal Device

    DS-K1T673-T Series Face Recognition Terminal User Manual Table 4-1 Terminal Descriptions Group Function Color Name Description Group A Power Input +12 V 12 VDC Power Supply Black Ground Group B Alarm Input Yellow/Blue Alarm Input 1 Black Ground Yellow/Orange IN2...

  • Page 25: Wire Secure Door Control Unit

    DS-K1T673-T Series Face Recognition Terminal User Manual Figure 4-2 Device Wiring Note You should set the face recognition terminal's Wiegand direction as Input to connect to a ● Wiegand card reader. If connects to an access controller, you should set the Wiegand direction as Output to transmit authentication information to the access controller.

  • Page 26: Wire Fire Module

    DS-K1T673-T Series Face Recognition Terminal User Manual Figure 4-3 Secure Door Control Unit Wiring Note The secure door control unit should connect to an external power supply separately. The suggested external power supply is 12V, 0.5A. 4.4 Wire Fire Module 4.4.1 Wiring Diagram of Door Open When Powering Off...
  • Page 27 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 4-4 Wire Device Figure 4-5 Wire Secure Door Control Unit Type 2 Note The fire system (NO and COM, normally open when powering off) is connected with the lock and the power supply in series. When an fire alarm is triggered, the door remains open. In normal...

  • Page 28: Wiring Diagram Of Door Locked When Powering Off

    DS-K1T673-T Series Face Recognition Terminal User Manual Figure 4-6 Wiring Device Figure 4-7 Wiring Secure Door Control Unit 4.4.2 Wiring Diagram of Door Locked When Powering Off Lock Type: Cathode Lock, Electric Lock, and Electric Bolt (NC) Security Type: Door Locked When Powering Off...
  • Page 29 DS-K1T673-T Series Face Recognition Terminal User Manual Scenario: Installed in Entrance/Exit with Fire Linkage Note The Uninterpretable Power Supply (UPS) is required. ● The fire system (NC and COM, normally closed when powering off) is connected with the lock ●...
  • Page 30 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 4-9 Wiring Diagram...

  • Page 31: Chapter 5 Activation

    DS-K1T673-T Series Face Recognition Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.
  • Page 32 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 5-1 Activation Page Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least...

  • Page 33: Activate Via Web Browser

    DS-K1T673-T Series Face Recognition Terminal User Manual characters) in order to increase the security of your product. And we recommend you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product.

  • Page 34: Activate Via Sadp

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 35: Activate Device Via Ivms-4200 Client Software

    DS-K1T673-T Series Face Recognition Terminal User Manual Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.
  • Page 36 DS-K1T673-T Series Face Recognition Terminal User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 37: Chapter 6 Quick Operation

    DS-K1T673-T Series Face Recognition Terminal User Manual Chapter 6 Quick Operation 6.1 Select Language You can select a language for the device system. After the device activation, you can select a language for the device system.
  • Page 38 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 6-1 Select System Language By default, the system language is English. Note After you change the system language, the device will reboot automatically.

  • Page 39: Set Password Change Type

    DS-K1T673-T Series Face Recognition Terminal User Manual 6.2 Set Password Change Type After activating the device, you can set the password change type as reserved email address or security questions. Once you forgot the device password, you can change the password via the selected change type.
  • Page 40 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 6-2 Password Change Page Change via Security Questions If you need to change password via security questions, you can tap Change to Security Questions on the right corner. Select the security questions and enter the answers. Click Next.

  • Page 41: Set Network Parameters

    DS-K1T673-T Series Face Recognition Terminal User Manual Note You can only select one type to change password. If you need, you can enter the web page to set both of the changing types. 6.3 Set Network Parameters After activation and select application mode, you can set the network for the device.
  • Page 42 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 6-3 Select Network Note Disconnect the wired network before connecting a Wi-Fi. 2. Tap Next. Wired Network Note Make sure the device has connected to a network.

  • Page 43: Access To Platform

    DS-K1T673-T Series Face Recognition Terminal User Manual If enable DHCP, the system will assign the IP address and other parameters automatically. If disable DHCP, you should set the IP address, the subnet mask, and the gateway. Wi-Fi Select a Wi-Fi and enter the Wi-Fi's password to get connected.
  • Page 44 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 6-4 Access to Hik-Connect 2. Tap Next. 3. Optional: Tap Skip to skip the step. 4. Optional: Tap Previous to go to the previous page.

  • Page 45: Privacy Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual Note If you tap Previous to return to the Wi-Fi configuration page, you need to tap the connected Wi- Fi or connect another Wi-Fi to enter the platform page again. 6.5 Privacy Settings After activation, selecting application mode, and selecting network, you should set the privacy parameters, including the picture uploading and storage.

  • Page 46: Set Administrator

    DS-K1T673-T Series Face Recognition Terminal User Manual Save Registered Pic. (Save Registered Picture) The registered face picture will be saved to the system if you enable the function. Upload Pic. After Linked Capture (Upload Picture After Linked Capture) Upload the pictures captured by linked camera to the platform automatically.
  • Page 47 DS-K1T673-T Series Face Recognition Terminal User Manual 3. Select a credential to add. Note Up to one credential should be added. : Face forward at the camera. Make sure the face is in the face recognition area. Click capture and click to confirm.

  • Page 48: Chapter 7 Basic Operation

    DS-K1T673-T Series Face Recognition Terminal User Manual Chapter 7 Basic Operation 7.1 Login Login the device to set the device basic parameters. 7.1.1 Login by Administrator If you have added an administrator for the device, only the administrator can login the device for device operation.
  • Page 49 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 7-1 Admin Login 2. Authenticate the administrator's face, fingerprint or card to enter the home page.
  • Page 50 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 7-2 Home Page Note The device will be locked for 30 minutes after 5 failed fingerprint or card attempts. 3. Optional: Tap and you can enter the device activation password for login.

  • Page 51: Login By Activation Password

    DS-K1T673-T Series Face Recognition Terminal User Manual 7.1.2 Login by Activation Password You should login the system before other device operations. If you do not configure an administrator, you should follow the instructions below to login. Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture to enter password entering page.

  • Page 52: Forgot Password

    DS-K1T673-T Series Face Recognition Terminal User Manual Figure 7-3 Home Page 7.1.3 Forgot Password If you forget the password during authentication, you can change the password.

  • Page 53: Communication Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual Steps 1. Hold the initial page for 3 s and slide to the left/right by following the gesture and log in the page. 2. Optional: If you have set an administrator, tap in the pop-up admin authentication page.
  • Page 54 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 7-4 Wired Network Settings 3. Set IPv4/IPv6 IP Address, Subnet Mask, and Gateway. - Enable DHCP, and the system will assign IP address, subnet mask, and gateway automatically. - Disable DHCP, and you should set the IP address, subnet mask, and gateway manually.

  • Page 55: Set Wi-Fi Parameters

    DS-K1T673-T Series Face Recognition Terminal User Manual Note The device's IP address and the computer IP address should be in the same IP segment. 4. Set the DNS parameters. You can enable Auto Obtain DNS, set the preferred DNS server and the alternate DNS server.
  • Page 56 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 7-5 Wi-Fi Settings 3. Enable the Wi-Fi function. 4. Configure the Wi-Fi parameters. - Select a Wi-Fi from the list, and enter the Wi-Fi's password. Tap OK. - If the target Wi-Fi is not in the list,tap Add Wi-Fi. Enter the Wi-Fi's name and password. And...

  • Page 57: Set Rs-485 Parameters

    DS-K1T673-T Series Face Recognition Terminal User Manual Note Only digits, letters, and special characters are allowed in the password. 5. Set the Wi-Fi's parameters. - By default, DHCP is enable. The system will allocate the IP address, the subnet mask, and the gateway automatically.

  • Page 58: Set Wiegand Parameters

    DS-K1T673-T Series Face Recognition Terminal User Manual 7.2.4 Set Wiegand Parameters You can set the Wiegand transmission direction. Steps 1. Tap System → Comm. (Communication Settings) on the Home page to enter the Communication Settings page. 2. On the Communication Settings page, tap Wiegand to enter the Wiegand tab.
  • Page 59 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 7-7 ISUP Settings 2. Enable the ISUP function and set the ISUP server parameters. ISUP Version Set the ISUP version according to your actual needs. Central Group Enable central group and the data will be uploaded to the center group.

  • Page 60: Platform Access

    DS-K1T673-T Series Face Recognition Terminal User Manual IP Address Set the ISUP server's IP address. Port No. Set the ISUP server's port No. Note Port No. Range: 0 to 65535. Device ID Set device serial no. Password If you choose V5.0, you should create an account and ISUP key. If you choose other version, you should create an ISUP account only.

  • Page 61: User Management

    DS-K1T673-T Series Face Recognition Terminal User Manual 7.3 User Management On the user management interface, you can add, edit, delete and search the user. 7.3.1 Add Administrator The administrator can log in the device backend and configure the device parameters.

  • Page 62: Add Face Picture

    DS-K1T673-T Series Face Recognition Terminal User Manual Note Numbers, upper case letters, lower case letters, and special characters are allowed in the user ● name. Up to 32 characters are allowed in the user name. ● 5. Optional: Add a face picture, fingerprints, cards, or Pin for the administrator.
  • Page 63 DS-K1T673-T Series Face Recognition Terminal User Manual Note Numbers, upper case letters, lower case letters, and special characters are allowed in the user ● name. The suggested user name should be within 32 characters. ● 5. Tap the Face Picture field to enter the face picture adding page.

  • Page 64: Add Fingerprint

    DS-K1T673-T Series Face Recognition Terminal User Manual Note Make sure your face picture is in the face picture outline when adding the face picture. ● Make sure the captured face picture is in good quality and is accurate. ● For details about the instructions of adding face pictures, see Tips When Collecting/ ●...

  • Page 65: Add Card

    DS-K1T673-T Series Face Recognition Terminal User Manual Note Numbers, upper case letters, lower case letters, and special characters are allowed in the user ● name. The suggested user name should be within 32 characters. ● 5. Tap the Fingerprint field to enter the Add Fingerprint page.

  • Page 66: View Pin Code

    DS-K1T673-T Series Face Recognition Terminal User Manual Note Numbers, upper case letters, lower case letters, and special characters are allowed in the user ● name. The suggested user name should be within 32 characters. ● 6. Tap the Card field and tap +.

  • Page 67: Set Authentication Mode

    DS-K1T673-T Series Face Recognition Terminal User Manual Note Numbers, upper case letters, lower case letters, and special characters are allowed in the user ● name. The suggested user name should be within 32 characters. ● 5. Tap the PIN code to view the PIN code.

  • Page 68: Data Management

    DS-K1T673-T Series Face Recognition Terminal User Manual Search User On the User Management page, Tap the search area to enter the Search User page. Tap Card on the left of the page and select a search type from the drop-down list. Enter the employee ID, card No., or the user name for search.

  • Page 69: Export Data

    DS-K1T673-T Series Face Recognition Terminal User Manual The imported pictures should be saved in the folder (named enroll_pic) of the root directory ● and the picture's name should be follow the rule below: Card No._Name_Department_Employee ID_Gender.jpg If the folder enroll_pic cannot save all imported pictures, you can create another folders, ●...

  • Page 70: Authenticate Via Multiple Credential

    DS-K1T673-T Series Face Recognition Terminal User Manual Face forward at the camera and start authentication via face. Fingerprint Place the enrolled fingerprint on the fingerprint module and start authentication via fingerprint. Card Present the card on the card presenting area and start authentication via card.

  • Page 71: Basic Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual 7.6 Basic Settings You can set the shortcut key, theme, voice settings, time settings, sleeping (s), community No., building No., Unit No., and beauty. Long tap on the initial page for 3 s and slide to the left/right by following the gesture and login the device home page.

  • Page 72: Set Biometric Parameters

    DS-K1T673-T Series Face Recognition Terminal User Manual Voice Settings You can enable/disable the voice prompt function and adjust the voice volume. Note You can set the voice volume between 0 and 10. Time Settings Set the time zone, the device time and the DST.
  • Page 73 DS-K1T673-T Series Face Recognition Terminal User Manual Table 7-1 Face Picture Parameters Parameter Description Application Mode Select either others or indoor according to actual environment. Face Liveness Level After enabling face anti-​ s poofing function, you can set the matching security level when performing live face authentication.

  • Page 74: Preference Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual Parameter Description Set the matching threshold when authenticating via ECO mode 1:N matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate Face with Mask...
  • Page 75 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 7-11 Preference Settings Shortcut Key Choose the shortcut key that displayed on the authentication page, including the QR code function, the call function, call type, and the password entering function. Note You can select call type from Call Room, Call Center, Call Specified Room No. and Call APP.

  • Page 76: Set Access Control Parameters

    DS-K1T673-T Series Face Recognition Terminal User Manual Call Room When you tap the call button on the authentication page, you should dial a room No. to call. Call Center When you tap the call button on the authentication page, you can call the center directly.
  • Page 77 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 7-12 Access Control Parameters The available parameters descriptions are as follows: Table 7-2 Access Control Parameters Descriptions Parameter Description Terminal Auth. Mode (Terminal Select the face recognition terminal's authentication mode. You Authentication Mode)

  • Page 78: Time And Attendance Status Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual Parameter Description Note Only the device with the fingerprint module supports the ● fingerprint related function. Biometric recognition products are not completely applicable ● to anti-spoofing environments. If you require a higher security level, use multiple authentication modes.

  • Page 79: Disable Attendance Mode Via Device

    DS-K1T673-T Series Face Recognition Terminal User Manual 7.10.1 Disable Attendance Mode via Device Disable the attendance mode and the system will not display the attendance status on the initial page. Tap T&A Status to enter the T&A Status page. Figure 7-13 Disable Attendance Mode Set the Attendance Mode as Disable.

  • Page 80: Set Auto Attendance Via Device

    DS-K1T673-T Series Face Recognition Terminal User Manual Figure 7-14 Manual Attendance Mode 3. Enable the Attendance Status Required. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.
  • Page 81 DS-K1T673-T Series Face Recognition Terminal User Manual Steps 1. Tap T&A Status to enter the T&A Status page. 2. Set the Attendance Mode as Auto. Figure 7-15 Auto Attendance Mode 3. Enable the Attendance Status function. 4. Enable a group of attendance status.

  • Page 82: Set Manual And Auto Attendance Via Device

    DS-K1T673-T Series Face Recognition Terminal User Manual Example If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's authentication from Monday 11:00 to 12:00 will be marked as break. 7.10.4 Set Manual and Auto Attendance via Device Set the attendance mode as Manual and Auto, and the system will automatically change the attendance status according to the configured schedule.

  • Page 83: Temperature Measurement Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual 6. Set the status' schedule. 1) Tap Attendance Schedule. 2) Select Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, or Sunday. 3) Set the selected attendance status's start time of the day. 4) Tap OK.

  • Page 84: System Maintenance

    DS-K1T673-T Series Face Recognition Terminal User Manual If the measured temperature is higher/lower than the actual object's temperature, you can set the compensation temperature here. Available range: -99 to 99. Note You can select the unit as celsius degree or fahrenheit degree.
  • Page 85 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 7-17 Maintenance Page System Information You can view the device model, serial No., versions, address, production data, QR code, and open source code license. Note The page may vary according to different device models. Refers to the actual page for details.

  • Page 86: Video Intercom

    DS-K1T673-T Series Face Recognition Terminal User Manual Plug the USB flash drive in the device USB interface. Tap Upgrade, and the device will read the digicap.dav file in the USB flash drive to start upgrading. Unlink APP Account After unlinking APP account, you cannot operate via APP.

  • Page 87: Call Center From Device

    DS-K1T673-T Series Face Recognition Terminal User Manual 7.13.2 Call Center from Device Steps 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts. 2. Run the client software and the control panel of the software pops up.

  • Page 88: Call Room From Device

    DS-K1T673-T Series Face Recognition Terminal User Manual 7. Click Start Two-Way Audio to start two-way audio between the device and the client software. 7.13.4 Call Room from Device Steps 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts.

  • Page 89: Chapter 8 Quick Operation Via Web Browser

    DS-K1T673-T Series Face Recognition Terminal User Manual Chapter 8 Quick Operation via Web Browser 8.1 Select Language You can select a language for the device system. Click in the top right of the web page to enter the Device Language Settings page. You can select a language for the device system from the drop-down list.

  • Page 90: Privacy Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual Steps 1. Click in the top right of the web page to enter the wizard page. After setting device language and time, you can click Next to enter the Environment Settings page. 2. Select Indoor.

  • Page 91: And System Network

    DS-K1T673-T Series Face Recognition Terminal User Manual Note You should select at least one credential. 1) Click Add Face to upload a face picture from local storage. Note The uploaded picture should be within 200 K, in JPG、JPEG、PNG format. 2) Click Add Card to enter the Card No. and select the property of the card.
  • Page 92 DS-K1T673-T Series Face Recognition Terminal User Manual Set the device community No. Building No. Set the device building No. Unit No. Set the device unit No.

  • Page 93: Chapter 9 Operation Via Web Browser

    DS-K1T673-T Series Face Recognition Terminal User Manual Chapter 9 Operation via Web Browser 9.1 Login You can login via the web browser or the remote configuration of the client software. Note Make sure the device is activated. For detailed information about activation, see Activation .
  • Page 94 DS-K1T673-T Series Face Recognition Terminal User Manual Door Status Click to view the device live view. Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds. You can capture image when starting live view.

  • Page 95: Person Management

    DS-K1T673-T Series Face Recognition Terminal User Manual 9.3 Person Management Click Add to add the person's information, including the basic information, certificate, authentication and settings. Add Basic Information Click Person Management → Add to enter the Add Person page. Add the person's basic information, including the employee ID, the person's name, gender, and person type.

  • Page 96: Search Event

    DS-K1T673-T Series Face Recognition Terminal User Manual 9.4 Search Event Click Event Search to enter the Search page. Figure 9-2 Search Event Enter the search conditions, including the event type, the employee ID, the name, the card No., the start time, and the end time, and click Search.

  • Page 97: Set Dst

    DS-K1T673-T Series Face Recognition Terminal User Manual Figure 9-3 Time Settings Click Save to save the settings after the configuration. Time Zone Select the device located time zone from the drop-down list. Time Sync. You should set the NTP server's IP address, port No., and interval.

  • Page 98: Change Administrator's Password

    DS-K1T673-T Series Face Recognition Terminal User Manual Figure 9-4 DST Page 2. Enable DST. 3. Set the DST start time, end time and bias time. 4. Click Save to save the settings. 9.5.4 Change Administrator's Password Steps 1. Click Configuration → System → User Management .

  • Page 99: Network Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual 9.5.6 Network Settings Set TCP/IP, port, Wi-Fi parameters, ISUP, and platform access. Note Some device models do not support Wi-Fi or mobile data settings. Refer to the actual products when configuration. Set Basic Network Parameters Click Configuration →...
  • Page 100 DS-K1T673-T Series Face Recognition Terminal User Manual If uncheck the function, you should set the IPv4 address, IPv4 subnet mask, IPv4 default gateway, IPv6 mode, IPv6 address, IPv6 subnet prefix length, IPv6 default gateway, Mac address, and MTU. If you check the function, the system will allocate the IPv4 address, IPv4 subnet mask, the IPv4 default gateway, IPv6 mode, IPv6 address, IPv6 subnet prefix length, and IPv6 default gateway automatically.
  • Page 101 DS-K1T673-T Series Face Recognition Terminal User Manual 1) Set the IP address, subnet mask, and default gateway. Or enable DHCP and the system will allocate the IP address, subnet mask, and default gateway automatically. 5. Set the DNS server. Set the preferred DNS server and alternate DNS server. Or enable DHCP and the system will allocate the preferred DNS server and alternate DNS server automatically.
  • Page 102 DS-K1T673-T Series Face Recognition Terminal User Manual RTSP It refers to the port of real-time streaming protocol. Click Configuration → Network → Device Access → SDK Server . SDK Server It refers to the port through which the client adds the device.

  • Page 103: Set Video And Audio Parameters

    DS-K1T673-T Series Face Recognition Terminal User Manual 4. Set the ISUP listening parameters, including ISUP alarm center IP address/domain name, ISUP alarm center URL, and ISUP alarm center port. 5. Click Save. 9.5.7 Set Video and Audio Parameters Set the image quality, resolution, audio prompt etc.

  • Page 104: Osd Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual Enable or disable the WDR function. When there are both very bright and very dark areas simultaneously in the view, WDR balances the brightness level of the whole image and provide clear images with details.

  • Page 105: Access Control Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual 9.5.10 Access Control Settings Set Authentication Parameters Click Configuration → Access Control → Authentication Settings . Note The functions vary according to different models. Refers to the actual device for details. Figure 9-7 Set Authentication Parameters Click Save to save the settings after the configuration.
  • Page 106 DS-K1T673-T Series Face Recognition Terminal User Manual You can set the authentication interval of the same person when authenticating. The same person can only authenticate once in the configured interval. A second authentication will be failed. Alarm of Max. Failed Attempts Enable to report alarm when the card reading attempts reach the set value.
  • Page 107 DS-K1T673-T Series Face Recognition Terminal User Manual Door Open Timeout Alarm An alarm will be triggered if the door has not been closed within the configured time duration. Door Contact You can set the door contact as Remain Open or Remain Closed according to your actual needs.
  • Page 108 DS-K1T673-T Series Face Recognition Terminal User Manual If you select RS-485, make sure you have connected the device to the elevator controller with RS-485 wire. If you select Network Interface, enter the elevator controller's IP address, port No., user name, and password for communication.
  • Page 109 DS-K1T673-T Series Face Recognition Terminal User Manual Set Wiegand Parameters You can set the Wiegand transmission direction. Steps Note Some device models do not support this function. Refer to the actual products when configuration. 1. Click Configuration → Access Control → Wiegand Settings .

  • Page 110: Video Intercom Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual You can set Working Mode as Access Control Mode. The access control mode is the device normal mode. You should authenticate your credential for accessing. You can enable Remote Verification according to your actual needs. After enabling, you can verify remotely.
  • Page 111 DS-K1T673-T Series Face Recognition Terminal User Manual The device can be used as a door station or outer door station. Select a device type from the drop-down list. Note If you change the device type, you should reboot the device.

  • Page 112: Card Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual Click Save to save the settings after the configuration. SIP Setting Steps 1. Click Configuration → Intercom → Linked Network Settings to enter the settings page. 2. Configure the SIP parameters. 3. Click Save to enable the settings.

  • Page 113: Set Privacy Parameters

    DS-K1T673-T Series Face Recognition Terminal User Manual DESFire Card Read Content After enable the DESFire card content reading function, the device can read the DESFire card content. Enable FeliCa Card The device can read the data from FeliCa card when enabling the FeliCa card function.

  • Page 114: Time And Attendance Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual Authentication Settings Display Authentication Result You can check Face Picture, Name, and Employee ID, to display the authentication result. Name De-identification You can check Name De-identification, and the whole name will not be displayed.
  • Page 115 DS-K1T673-T Series Face Recognition Terminal User Manual Disable Attendance Mode via Web Disable the attendance mode and the system will not display the attendance status on the initial page. Steps 1. Click Configuration → T&A Status to enter the settings page.
  • Page 116 DS-K1T673-T Series Face Recognition Terminal User Manual Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required. Result You should select an attendance status manually after authentication. Note If you do not select a status, the authentication will be failed and it will not be marked as a valid attendance.

  • Page 117: Set Biometric Parameters

    DS-K1T673-T Series Face Recognition Terminal User Manual 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required. 6. Set the status' schedule. Refers to Set Schedule Template for details.
  • Page 118 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 9-11 Smart Settings Page Click Save to save the settings after the configuration. Face Anti-spoofing Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not.
  • Page 119 DS-K1T673-T Series Face Recognition Terminal User Manual Select either other or indoor according to actual environment. Face Recognition Mode Normal Mode Recognize face via the camera normally. Deep Mode The device can recognize a much wider people range than the normal mode. This mode is applicable to a more complicated environment.
  • Page 120 DS-K1T673-T Series Face Recognition Terminal User Manual None The function is disabled. The device will not detect whether a person is wearing a face mask or not. Reminder of Wearing Face Mask If the person do not wear the face mask when authenticating, the device will pop up a prompt and the door will open.

  • Page 121: Preference Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual Click Save to save the settings. 9.5.16 Preference Settings Set the theme, notice publication, prompt schedule, custom prompt, and authentication result text. Set Preference You can set the display theme and the sleep time for the device.
  • Page 122 DS-K1T673-T Series Face Recognition Terminal User Manual Welcome Message If you select welcome message, you can set the template, content, font size and color of main and sub title. You can also custom the background picture. Standard If you select standard, you can set the background color and picture.

  • Page 123: Temperature Measurement Settings

    DS-K1T673-T Series Face Recognition Terminal User Manual 5) Optional: Click to delete the configured time duration. 7. Click Save to save the settings. Customize Prompt Voice You can customize prompt voices for the device. Steps 1. Click Configuration → Preference → Custom Prompt .
  • Page 124 DS-K1T673-T Series Face Recognition Terminal User Manual Capture White Light Picture After enabling Temperature Measurement Only, you can enable Capture White Light Picture. After enabling this function, the device will capture white light picture. Unit Select a temperature unit according to your preference.

  • Page 125: Upgrade And Maintenance

    DS-K1T673-T Series Face Recognition Terminal User Manual Click Configuration → Temperature → Temperature Measurement Area . Drag the block or enter values of the left, right, top and bottom margin to draw a temperature measurement area. Click Save. 9.5.18 Upgrade and Maintenance Reboot device, restore device parameters, and upgrade device version.

  • Page 126: Device Debugging

    DS-K1T673-T Series Face Recognition Terminal User Manual Import Config File Click and select the file to import. Click Import to start importing configuration file. 9.5.19 Device Debugging You can set device debugging parameters. Steps 1. Click Maintenance and Security → Maintenance → Device Debugging .

  • Page 127: Certificate Management

    DS-K1T673-T Series Face Recognition Terminal User Manual Illegal Login Lock After enabling Illegal Login Lock, the device will be locked if it is logged in illegally. 9.5.22 Certificate Management It helps to manage the server/client certificates and CA certificate. Note The function is only supported by certain device models.
  • Page 128 DS-K1T673-T Series Face Recognition Terminal User Manual Install CA Certificate Before You Start Prepare a CA certificate in advance. Steps 1. Go to Maintenance and Security → Security → Certificate Management . 2. Create an ID in the Import CA Certificate area.

  • Page 129: Chapter 10 Client Software Configuration

    DS-K1T673-T Series Face Recognition Terminal User Manual Chapter 10 Client Software Configuration 10.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 10-1 Flow Diagram of Configuration on Client Software 10.2 Device Management...

  • Page 130: Add Device

    DS-K1T673-T Series Face Recognition Terminal User Manual Example You can control entrance & exit and manage attendance after adding access control devices to the client; you can perform video intercom with the indoor stations and door stations. 10.2.1 Add Device The client provides three device adding modes including by IP/domain, IP segment, and ISUP protocol.
  • Page 131 DS-K1T673-T Series Face Recognition Terminal User Manual you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product. Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

  • Page 132: Reset Device Password

    DS-K1T673-T Series Face Recognition Terminal User Manual Address Edit the address of the device. Port Enter the device port number. The default port number is 8000. User Name Enter the device user name. By default, the user name is admin.

  • Page 133: Manage Added Devices

    DS-K1T673-T Series Face Recognition Terminal User Manual Note For the following operations for resetting the password, contact our technical support. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 134: Group Management

    DS-K1T673-T Series Face Recognition Terminal User Manual 10.3 Group Management The client provides groups to manage the added resources in different groups. You can group the resources into different groups according to the resources' locations. Example For example, on the 1st floor, there mounted 16 doors, 64 alarm inputs, and 16 alarm outputs. You can organize these resources into one group (named 1st Floor) for convenient management.

  • Page 135: Person Management

    DS-K1T673-T Series Face Recognition Terminal User Manual Note You can click to switch the resource display mode to thumbnail view or to list view. 6. Click Import to import the selected resources to the group. 10.4 Person Management You can add person information to the system for further operations such as access control, video intercom, time and attendance, etc.
  • Page 136 DS-K1T673-T Series Face Recognition Terminal User Manual Import Person Information You can enter the information of multiple persons in a predefined template (CSV/Excel file) to import the information to the client in a batch. Steps 1. Enter the Person module.
  • Page 137 DS-K1T673-T Series Face Recognition Terminal User Manual Note The (folder of) face pictures should be in ZIP format. ● Each picture file should be in JPG format and should be no larger than 200 KB. ● Each picture file should be named as "Person ID_Name". The Person ID should be the same ●...

  • Page 138: Get Person Information From Access Control Device

    DS-K1T673-T Series Face Recognition Terminal User Manual Note The exported file is in ZIP format. ● The exported face picture is named as "Person ID_Name_0" ("0" is for a full-frontal face). ● 10.4.3 Get Person Information from Access Control Device...

  • Page 139: Report Card Loss

    DS-K1T673-T Series Face Recognition Terminal User Manual 3. Optional: Enter key words (name or person ID) in the input box to filter the person(s) that need issuing cards. 4. Optional: Click Settings to set the card issuing parameters. For details, refer to Issue a Card by Local Mode.

  • Page 140: Configure Schedule And Template

    DS-K1T673-T Series Face Recognition Terminal User Manual Local Mode: Issue Card by Card Enrollment Station Connect a card enrollment station to the PC running the client. You can place the card on the card enrollment station to get the card number.

  • Page 141: Add Holiday

    DS-K1T673-T Series Face Recognition Terminal User Manual 10.5.1 Add Holiday You can create holidays and set the days in the holidays, including start date, end date, and holiday duration in one day. Steps Note You can add up to 64 holidays in the software system.
  • Page 142 DS-K1T673-T Series Face Recognition Terminal User Manual Steps Note You can add up to 255 templates in the software system. 1. Click Access Control → Schedule → Template to enter the Template page. Note There are two default templates: All-Day Authorized and All-Day Denied, and they cannot be edited or deleted.

  • Page 143: Set Access Group To Assign Access Authorization To Persons

    DS-K1T673-T Series Face Recognition Terminal User Manual 4) Optional: Select a selected holiday in the right list and click to remove the selected one, or click Clear to clear all the selected holiday(s) in the right list. 7. Click Save to save the settings and finish adding the template.
  • Page 144 DS-K1T673-T Series Face Recognition Terminal User Manual Figure 10-2 Display the Selected Person(s) and Access Point(s) 8. After adding the access groups, you need to apply them to the access control device to take effect. 1) Select the access group(s) to apply to the access control device.

  • Page 145: Configure Advanced Functions

    DS-K1T673-T Series Face Recognition Terminal User Manual Note If you change the persons' access information or other related information, you will view the prompt Access Group to Be Applied on the right corner of the client. You can click the prompt to apply the changed data to the device. You can select either Apply Now or Apply Later.
  • Page 146 DS-K1T673-T Series Face Recognition Terminal User Manual Configure Parameters for Access Control Device After adding the access control device, you can configure its parameters, including overlaying user information on picture, uploading pictures after capturing, saving captured pictures, etc. Before You Start Add access control device to the client.
  • Page 147 DS-K1T673-T Series Face Recognition Terminal User Manual Press Key to Enter Card Number If you enable this function, you can input the card No. by pressing the key. Wi-Fi Probe If you enable this function, the device can probe the surrounding communication devices' MAC address and upload the MAC address to the system.
  • Page 148 DS-K1T673-T Series Face Recognition Terminal User Manual You can set the exit button as remaining closed or remaining open. Usually, it is remaining open. Door Locked Time After swiping the normal card and relay action, the timer for locking the door starts working.
  • Page 149 DS-K1T673-T Series Face Recognition Terminal User Manual Steps 1. Click Access Control → Advanced Function → Device Parameter . 2. In the device list on the left, click to expand the door, select a card reader and you can edit the card reader's parameters on the right.
  • Page 150 DS-K1T673-T Series Face Recognition Terminal User Manual Select the fingerprint recognition level in the drop-down list. Default Card Reader Authentication Mode View the default card reader authentication mode. Fingerprint Capacity View the maximum number of available fingerprints. Existing Fingerprint Number View the number of existed fingerprints in the device.
  • Page 151 DS-K1T673-T Series Face Recognition Terminal User Manual user cannot authenticate via the fake face within 5 minutes. Within the 5 minutes, the user can authenticate via the real face twice continuously to unlock. Application Mode You can select indoor or others application modes according to actual environment.

  • Page 152: Configure Device Parameters

    DS-K1T673-T Series Face Recognition Terminal User Manual Passing Mode Select the controller which will control the barrier status of the device. If you select According to Lane Controller's DIP Settings, the device will follow the lane ● controller's DIP settings to control the barrier. The settings on the software will be invalid.
  • Page 153 DS-K1T673-T Series Face Recognition Terminal User Manual 2. On the navigation bar on the left, enter Advanced Function → More Parameters . 3. Select an access control device in the device list and click Face Recognition Terminal. 4. Set the parameters.
  • Page 154 DS-K1T673-T Series Face Recognition Terminal User Manual 5. Set the baud rate, data bit, the stop bit, parity type, communication mode, working mode, and connection mode in the drop-down list. Note When the connection mode is Connect Access Control Device, you can select Card No. or Person ID as the output type.

  • Page 155: Door/Elevator Control

    DS-K1T673-T Series Face Recognition Terminal User Manual 1. Enter the Access Control module. 2. On the navigation bar on the left, enter Advanced Function → More Parameters . 3. Select an access control device in the device list and click M1 Card Encryption to enter the M1 Card Encryption page.

  • Page 156: Check Real-Time Access Records

    DS-K1T673-T Series Face Recognition Terminal User Manual Note For Remain All Unlocked and Remain All Locked, ignore this step. 4. Click the following buttons to control the door. Unlock When the door is locked, unlock it and it will be open for once. After the open duration, the door will be closed and locked again automatically.
  • Page 157 DS-K1T673-T Series Face Recognition Terminal User Manual Before You Start You have added person(s) and access control device(s) to the client. For details, refer to Person Management and Add Device . Steps 1. Click Monitoring to enter monitoring module. Real-time access records are displayed on the bottom of the page. You can view record details, including card No., person name, event time, door location, temperature, authentication type...
  • Page 158 DS-K1T673-T Series Face Recognition Terminal User Manual 7. Optional: Click to view details (including person's detailed information and the captured picture). Note In the pop-up window, you can click to view details in full screen.

  • Page 159: Appendix A. Tips For Scanning Fingerprint

    DS-K1T673-T Series Face Recognition Terminal User Manual Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 160 DS-K1T673-T Series Face Recognition Terminal User Manual Environment The scanner should avoid direct sun light, high temperature, humid conditions and rain. When it is dry, the scanner may not recognize your fingerprint successfully. You can blow your finger and scan again.

  • Page 161: Appendix B. Tips When Collecting/Comparing Face Picture

    DS-K1T673-T Series Face Recognition Terminal User Manual Appendix B. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.3 m) Expression Keep your expression naturally when collecting or comparing face pictures, just like the ●...
  • Page 162 DS-K1T673-T Series Face Recognition Terminal User Manual Size Make sure your face is in the middle of the collecting window.

  • Page 163: Appendix C. Tips For Installation Environment

    DS-K1T673-T Series Face Recognition Terminal User Manual Appendix C. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Avoid backlight, direct and indirect sunlight...

  • Page 164: Appendix D. Dimension

    DS-K1T673-T Series Face Recognition Terminal User Manual Appendix D. Dimension Figure D-1 Dimension...
  • Page 165 UD31890B-A...

This manual is also suitable for:

Ds-k1t673tm-3xfDs-k1t673tdx-tDs-k1t673m-3xfirDs-k1t673tmw-3xfirDs-k1t673tmg-3xfirDs-k1t673mg-3xfir ... Show all

Table of Contents
