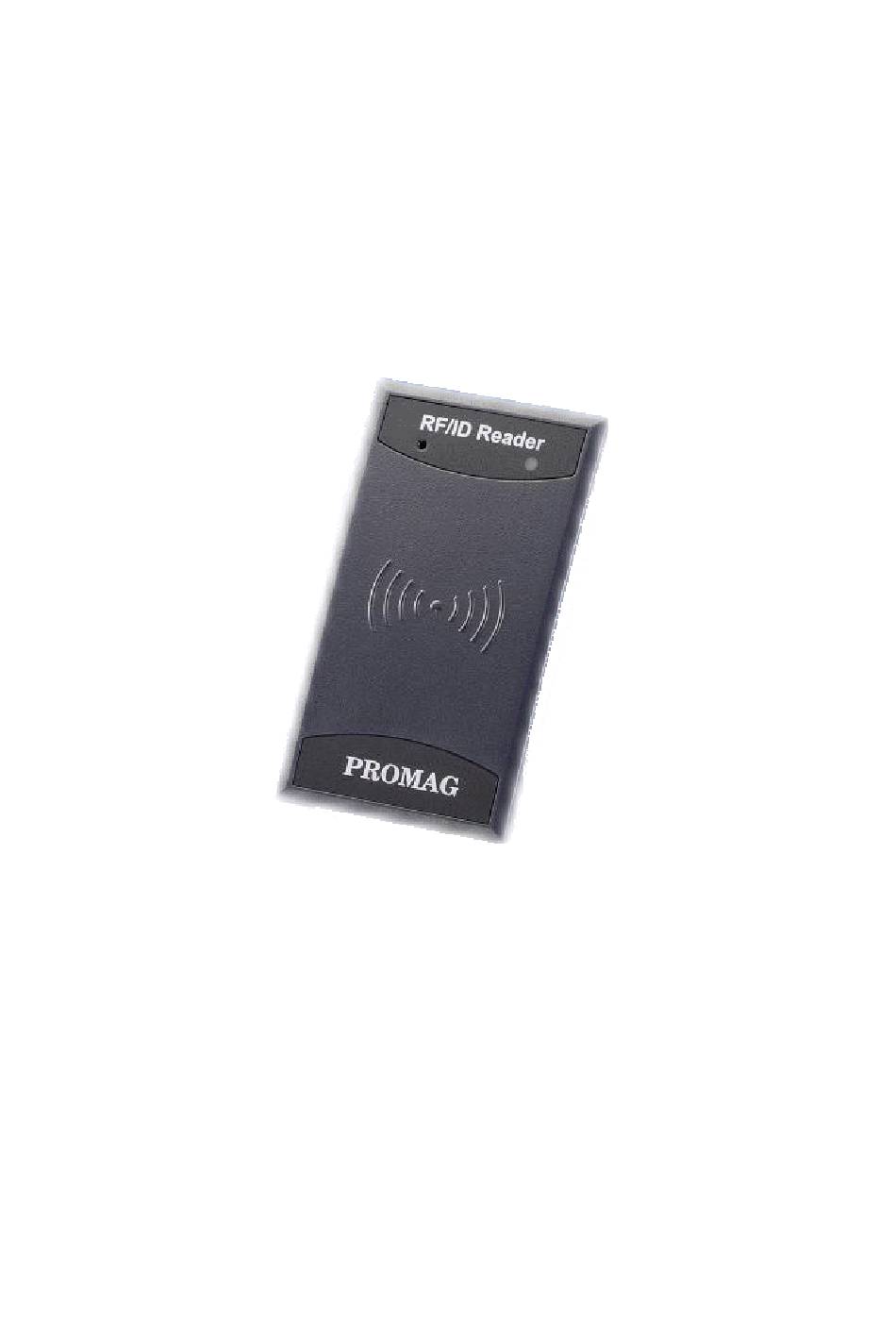

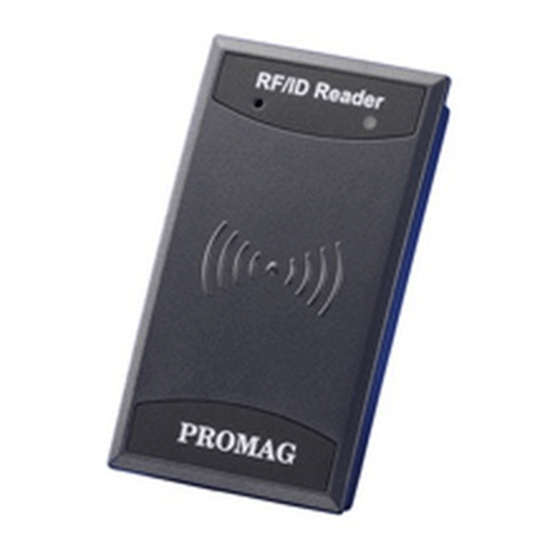

Mifare
/DESFire
Reader
User's Manual
(For DF7XX Series)
REV.E
May 26, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mifare DESFire DF7 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Promag Mifare DESFire DF7 Series

Summary of Contents for Promag Mifare DESFire DF7 Series

  • Page 1 ™ ™ Mifare /DESFire Reader User’s Manual (For DF7XX Series) REV.E May 26, 2016...

  • Page 2: Table Of Contents

    DF7XX PROMAG REV.E Table of Contents 1.  Introduction ................................3  1. 1 General ................................... 4  1. 2 Product Description ............................... 5  1.2.1 Reader Description ............................. 5  1.2.2 Reader Appearance ............................5  ™ 1. 3 Mifare Application Directory (MAD) Support ....................6 ...

  • Page 3: Introduction

    DF7XX PROMAG REV.E 1. Introduction...

  • Page 4: General

    9. RS232 output packet can be set with header, reader ID and trailer. ™ 10. Serves as a versatile configurable reader bundled with a utility developed by Promag engineering teams which is easy to set up for buzz or LED color indication.

  • Page 5: Product Description

    DF7XX PROMAG REV.E 1. 2 Product Description 1.2.1 Reader Description F7XX series are available for user’s end configuration by applying Mifare sector and Mifare DESFire technology. They can be configured to read Mifare or Mifare DESFire card with MAD1/MAD2 or MAD3 standard in a Mifare application open system, or can be configured to read the user-defined sector data (Non-MAD) in a user defined closed system.

  • Page 6: Mifare ™ Application Directory (Mad) Support

    DF7XX PROMAG REV.E ™ 1. 3 Mifare Application Directory (MAD) Support DF7XX reader supports the MAD format card, the MAD (Mifare application directory) standard proposes the introduction of common data structures for card application directory entries. DF7XX reader should take advantage of this feature using those sector pointers instead of physical sector number.

  • Page 7: User-Data Format

    DF7XX PROMAG REV.E 1. 4 User-Data Format DF7XX reader will send out the data following the format as below, the user data length defined by the data-info. At Wiegand output format, the data output length is fixed (defined by number of bits), so the user data would be cut if longer than number of bits, or the user data would be appended with zero “0”...

  • Page 8: Specification

    DF7XX PROMAG REV.E 2. Specification...

  • Page 9: Hardware Specification

    DF7XX PROMAG REV.E 2.1 Hardware Specification DF7XX reader ™ ™ Major Feature Mifare /DESFire Application Directory Reader Access Control & Security ™ Card Type ISO14443A, Mifare Classic 1K/4K for MAD1/MAD2, ™ Mifare Pro, ™ Mifare DESFire 2k/4K/8K RF Frequency 13.56MHz DC Power DC 7.5~24V /125mA@12V...

  • Page 10: Preparation

    DF7XX PROMAG REV.E 3. Preparation...

  • Page 11: Wires Assignment

    DF7XX PROMAG REV.E 3.1 Wires Assignment Color Symbol Description Power Input : DC 7.5V~24V Black Power Ground White DATA 1 Wiegand Data 1 Signal / ABA TK2 Clock (Strobe) Green DATA 0 Wiegand Data 0 Signal / ABA TK2 Data...
  • Page 12 PROMAG REV.E DF710/DF760(K) ™ Connect Yellow (T+) and Blue (T-) to RS485 Converter to PC. (Recommend using Promag USB485A-00.) An example for DF710/DF760(K)use USB485A-00 as below picture. Note: Reader-kit and USB485A-00 are connection kit. They are optional items for purchasing.

  • Page 13: Webisp - Firmware Update Utility

    DF7XX PROMAG REV.E 3.2 WebISP - Firmware Update Utility DF7XX reader also supports the ISP (In-System Program) function to upgrade the reader’s firmware. Install the WebISP (included in CD-ROM) in your Windows System first (It may need to reboot your system) and follow the steps as below: (First of all, you need to connect the reader or programmer to PC, and make sure they were power-on.)

  • Page 14: Setting Reader

    DF7XX PROMAG REV.E 3.3 Setting Reader Mifare/DesFire Reader Utility: Install Mifare/DesFire Reader Utility software (included in CD-ROM) in your PC, and connect the reader to PC. *Remark: Please check the connection of PC-to-reader is correctly. 1. Connection Method 1: Click [Auto Scan] to search all COM ports and to find the available device.

  • Page 15: Mifare Settings

    DF7XX PROMAG REV.E 2. Instruction Mifare Settings MAD-AID: (default=4703) ™ MAD Application Identifier number is authorized and assigned by Mifare.net upon the customer’s request for registered Application Identifier in a Mifare application open system (AID:0000h~FFFFh).Or it is also possible for the user to define the AID himself for the application in user defined closed system without registering into MAD group.
  • Page 16 DF7XX PROMAG REV.E Used Card (Not issued by "Mifare Card Issuer") You have to indicate the data position in the card, when the card is not issued by "Mifare Card Issuer" software. And you must set the "Offset" (Max 255, and base from zero) from the beginning of sector and set your data "Length"...

  • Page 17: Desfire Settings

    DF7XX PROMAG REV.E DESFire Settings MAD-AID: (default=F47030) ™ MAD Application Identifier number is authorized and assigned by Mifare.net upon the customer’s request for registered Application Identifier in a Mifare application open system (AID:000000h~FFFFFFh).Or it is also possible for the user to define the AID himself for the application in user defined closed system without registering into MAD group.

  • Page 18: Reader Settings

    DF7XX PROMAG REV.E Reader Settings Reader ID: (default=0) DF7XX reader ID for multi link application. (ID: 0~63) Interface: (default=Wiegand) DF7XX reader can be set as Wiegand, RS232 or ABA-TK2 output. Read Modes: (default=Card Data Only) 1. Card Data Only Read card sector data only. If any error occurs (ex: App. key incorrect.), the reader will represent "Card Invalid"...
  • Page 19 DF7XX PROMAG REV.E Output Modes: (default= Once) 1. Once Read card sector data only. If any error occurs (ex: App. key incorrect.), the reader will represent "Card Invalid" status. 2. Continue Keeping sending data (or CSN) to host till card remove. Only for the Mifare card.

  • Page 20: Keypad Settings

    DF7XX PROMAG REV.E Keypad Settings Output: (default= Wiegand 8Bits) Wiegand 4, 6, 8：Send Wiegand signal pre key pressing. ASCII Hex Code：Send ASCII code pre key pressing. Buffering(Decimal) ： Press 0~65535 numbers and press "#" to send decimal numbers.("*" to cancel) Buffering (BCD)：Press 0~ 99999999 numbers and press "#"...

  • Page 21: Led / Buzzer Settings

    DF7XX PROMAG REV.E LED / Buzzer Settings DF7XX supports LED/Alarm configure. Set the LED/Buzzer to indicate the system status for end-user. Enable RS232 Command Set Control: Enable this setting if you need to control LED/Buzzer by software command set. Remark: If “Enable RS232 Command...
  • Page 22 All LED ON (Orange) Enable Two Wires Control LED: ™ (Only for Promag reader of baud rate=19200, n, 8, 1) Set up the "Brown Wire Active Level", and Brown wire and Orange wire will follow the setting. Example: "Brown Wire Active Level"=High; Green light on when brown wire level was high. The red LED light on when orange wire level high.
  • Page 23 DF7XX PROMAG REV.E Read Idle: Show LED color after power on or idle state. Brown Wire = PULSE (Internal: Card is Valid): Show LED color and beeps to indicate the end-user when brown wire inputted pulse signal, or card was passed by reader.

  • Page 24: Wiegand Setting

    DF7XX PROMAG REV.E Wiegand Setting Add Reader ID: (default=Disable) Set Wiegand output data to include the Reader ID when it is checked. Custom Premable: (default=Disable) Set the Wiegand output data to include premable code when it is enabled. This code only combines with CSN output.

  • Page 25: Aba-Tk2 Settings

    DF7XX PROMAG REV.E ABA-TK2 Settings Number of Digital: (default=10) Set the number of digital codes for TK2 output. Add Reader ID: (default=Disable) Add Reader ID into TK2 data. Output Data Order (default=MSB First): Set the TK2 data sequence order. Data Conversion (default= BIN to DEC): Select card data format to convert.

  • Page 26: Rs232/485 Output Setting

    DF7XX PROMAG REV.E RS232/485 Output Setting Baud rate: (default=9600) The working range can be set from 2400 to 57600 (depends on the device). Heart beat: (default = disabled) Click to select the interval time of periodically sending the heart beat data to host.
  • Page 27 DF7XX PROMAG REV.E Note: (1).Wiegand output data packet with Reader ID: Standard Reader ID (MSB) Data Bits (LSB) Parity(Even) Parity(Odd) Reverse Reader ID (LSB) Data Bits (MSB) Parity(Odd) Parity(Even) (2).RS232/RS485 output data packet with Header, Reader ID and Trailer: Header...
  • Page 28 DF7XX PROMAG REV.E...

  • Page 29: Configured Card

    DF7XX PROMAG REV.E Configured Card Configured Card Enabled: (default=Enable) Can allow your reader change configuration by Mifare Card. Key: (default=000000000000) Is the Mifare Key A for allowed the configured card.

  • Page 30: Create Configured Card

    DF7XX PROMAG REV.E 3.4 Create Configured Card DF7XX reader supports updating the reader by reading Configured Card. This function is specially using when stand alone system. The following steps indicate you to create a configure card: Step 1: Configure the reader.
  • Page 31 DF7XX PROMAG REV.E Remark: The corresponding series are “DF700/DF750 Series” and “DF750K Series”. Step 3: Configure all settings as normal. Click [Configure Card]...
  • Page 32 DF7XX PROMAG REV.E Step 4: Put a Mifare card in the PCR310 cassette. Type in: “MAD Admin Key” and “Configured Key” (which has been updated to the corresponding reader.) Click [Create]. Step 5: Take this card to approach the reader for configured settings.

  • Page 33: Data Output

    DF7XX PROMAG REV.E 4. Data Output...

  • Page 34: Reader Test

    DF7XX PROMAG REV.E 4.1 Reader Test After reader’s configurations have been updated success, you can use [Test] function to check reader’s configurations have been correctly stored. Use to “decode with parity” when Wiegand interface not with parity. Click to clear...

  • Page 35: Test Read Card After Update

    DF7XX PROMAG REV.E 4.2 Test Read Card After Update The following steps indicate you to test read card: 1. After set configurations in the Reader Utility software, you can click [Update Reader] to update the currently configurations to the reader.

  • Page 36: Test Key Pad After Update

    DF7XX PROMAG REV.E 4.3 Test Key Pad After Update 4.3.1 Simply Output “1234” – RS232 Interface RS232 interface – Settings: RS232 interface – Output: Press “1234” + “#” Result=1234...

  • Page 37: Simply Output "1234" - Aba-Tk2 Interface

    DF7XX PROMAG REV.E 4.3.2 Simply Output “1234” – ABA-TK2 Interface ABA-TK2 interface – Settings: ABA-TK2 interface – Output: Press “1234” + “#” Result=1234...

  • Page 38: Simply Output "1234" -Wiegand Interface

    DF7XX PROMAG REV.E 4.3.2 Simply Output “1234” –Wiegand Interface Wiegand interface – Settings: Wiegand interface – Output: Press “1234” + “#” Result=1234...

  • Page 39: Appendix

    DF7XX PROMAG REV.E Appendix...

  • Page 40: Annex A. Wiegand Interface

    DF7XX PROMAG REV.E ANNEX A. Wiegand Interface The Data 1 and Data 0 signals are held at a logic high level unit, the reader is ready to send a data stream. The reader places data as asynchronous low-going pulses on the Data 1 or Data 0 lines to transmit the data stream to Host.

  • Page 41: Annex B. Aba-Tk2 Interface

    DF7XX PROMAG REV.E ANNEX B. ABA-TK2 Interface The timing for card present, clock (strobe) and data, example as below: /CARD PRESENT Leading Zero Data Trailing Zero /DATA /STROBE (CLOCK) 0 . . . 0 1 . . . STROBE Width Approximately 25~50% Of Bit Time...

  • Page 42: Annex C. Rs232 Interface

    DF7XX PROMAG REV.E ANNEX C. RS232 Interface Connect the RS232 wires, example as below: HOST/Terminal 7.5~24VDC (Red) Reader TXD (Yellow) GND (Black) Optional: External LED/Buzzer Control (Brown)

  • Page 43: Annex D. External Led/Buzzer Control

    DF7XX PROMAG REV.E ANNEX D. External LED/Buzzer Control DF7XX reader supports the external LED/Buzzer control for Terminal (or Host) to prompt end-user the card data is invalid or valid. Use Brown wire to control the LED/Buzzer of DF7XX reader. Examples as below: (Active High)

  • Page 44: Annex E. History

    DF7XX PROMAG REV.E ANNEX E. History Rev A: February 12, 2009 Issue DF7XX Reader. Rev B: October 29, 2009 Fix power supply 7.5V~24VDC Rev C: November 30, 2011 (Kylie) Update Mifare Reader Utility Pics. Modify Reader ID to 0~63. Add “Source Data Order”. (P.14) Modify “Sequence Order”...
  • Page 45 DF7XX PROMAG REV.E NOTE!!! Hereby, GIGA-TMS INC., declares that the radio equipment type DF700 is in compliance with Directive 2014/53/EU. GIGA-TMS INC., Address: 8F, NO.31, LANE 169, KANG-NING ST., HIS-CHIH, NEW TAIPEI CITY, 22180 TAIWAN R.O.C. The operating frequency bands and the maximum RF power (target power) transmitted in each band of DF700 is following: DF700: 13.56MHz band -2.20 dBuA.
  • Page 46 DF7XX PROMAG REV.E...
