Test results

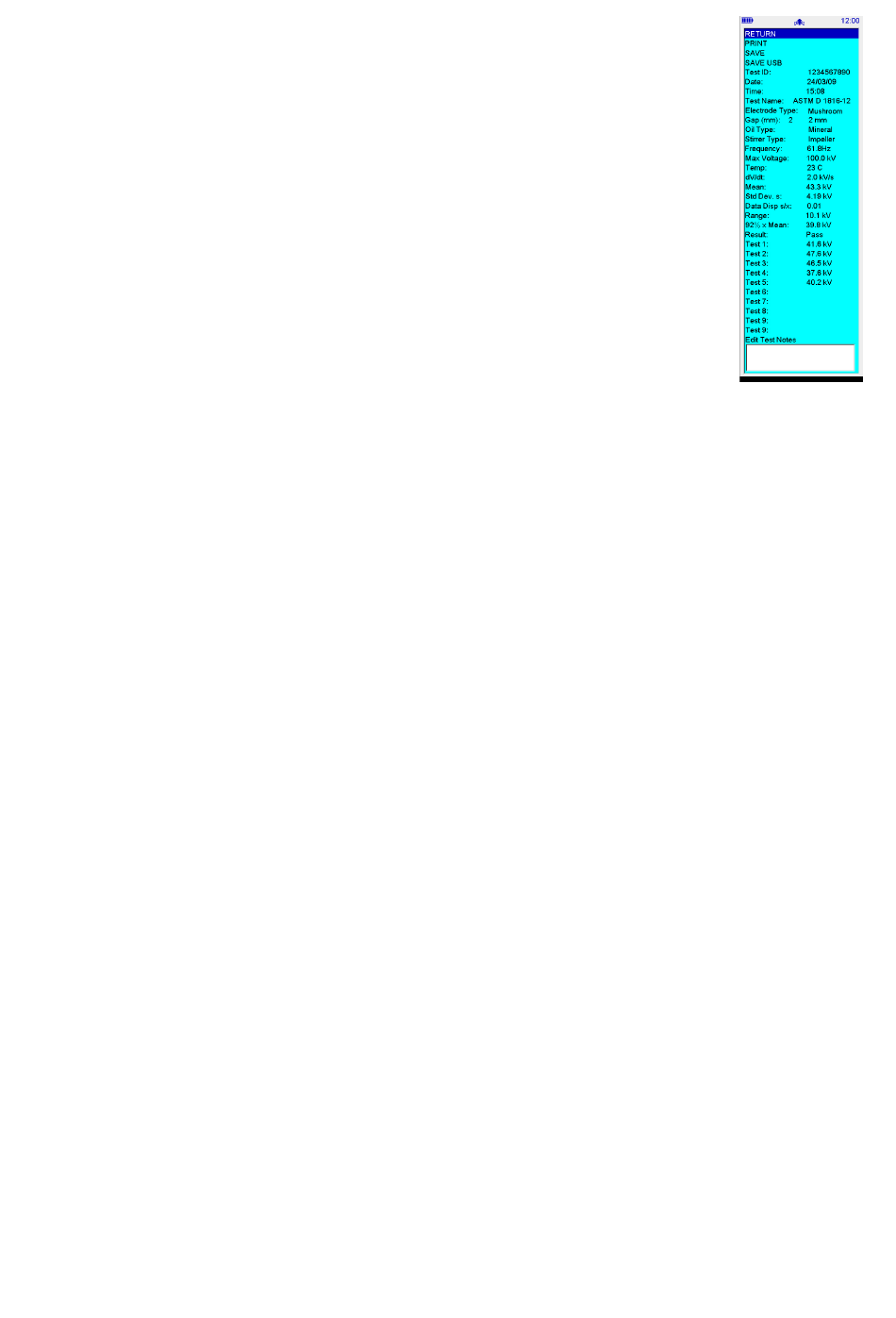

At the end of any test results are shown on the screen. A typical example is the ASTM D 1816-12
test. This image shows the complete on-screen information presented to the user however the
screen size is naturally smaller so a slider function enables the user to navigate through the result
and print it if required.
All screen based test results accommodate 10 tests but tests with less than 10 results use only the
relevant data to produce statistics i.e. statistics of mean breakdown voltage, data dispersion, range
and standard deviation.
Printing a result can be selected as default or from the PRINT function within the results window.
