Operating instructions

Top level tabs

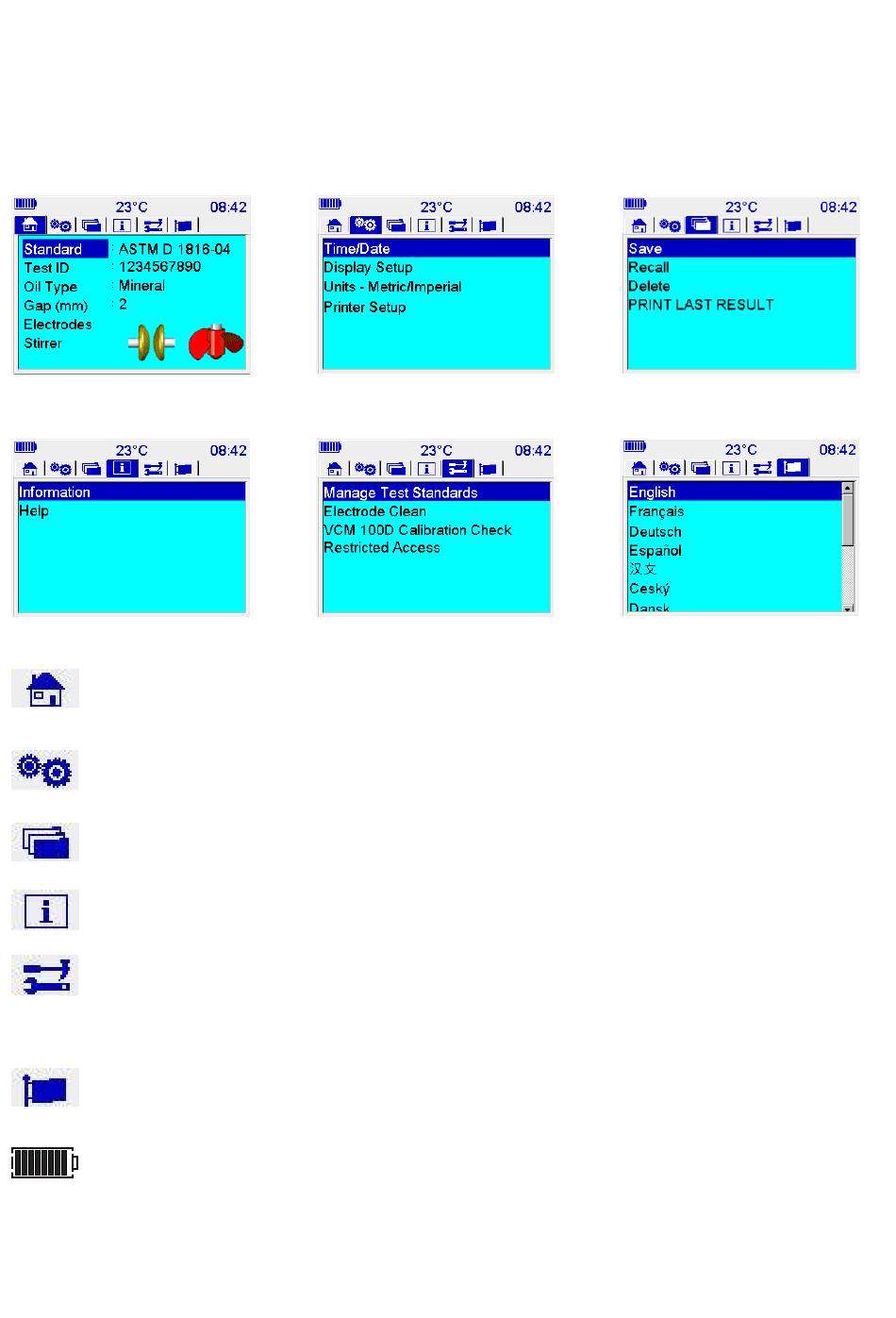

The user is presented with a set of six tabbed, top level windows as depicted below which facilitate instrument control.
Left and right arrow keys navigate between tabs.
Home
Information
The home tab contains summary information for each showing the selected automatic test standard, ID of
the asset the insulating liquid comes from, the type of insulator, electrode gap and the stirrer if required.
This is the main screen from which tests are run.
Setup window offers instrument settings of language (can also be set from language window – overcomes
difficulty when instrument is set to unknown languages), time/date, display, units, printer and a setting to
select fast detection of breakdown.
Users can print, save, recall, delete and download results to a USB drive from the file window.
The Information window offers details about the instrument software configuration/version as well as a help
function that serves as an indexed user guide.
The tools window offers the ability to manage test standards including the ability to define custom tests,
favorite tests and add and remove new standards and standard upgrades via USB disk. An automatic
electrode clean function is included as a means of removing deposits from electrode surfaces. This window
also runs a test using the VCM100D/VCM80D voltage testers to check output voltage at the electrode
barrier.
The flag symbol is used as an icon representing language option. Simply use the right arrow button to
navigate to across the tabs tot he language symbol. Then up/down arrow buttons to select the required
language and press 'OK'.
The battery symbol will be shown on PB models only.
14
Setup
Tools
File
Language
