Ojmar OCS SMART Assembly Instructions page 3

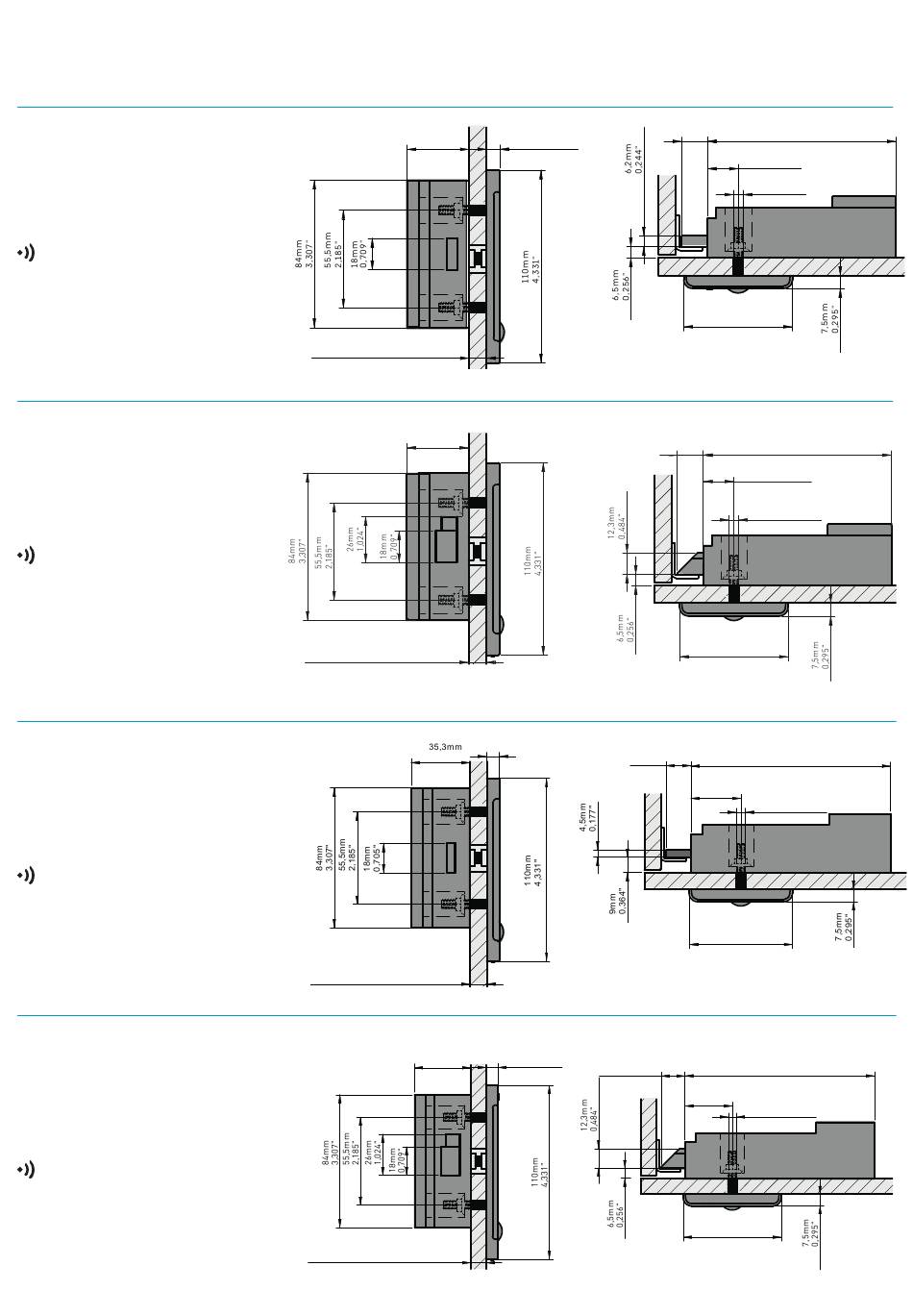

TECHNICAL DRAWINGS
OCS SMART
®
TOUCH LOCK
E-17,5 FREE
OCS SMART
®
TOUCH LOCK
E-17,5 FIXED
OCS SMART
®
TOUCH LOCK
E-30 FREE
OCS SMART
®
TOUCH LOCK
E-30 FIXED
side view
vista perfil
35,3mm
1,390"
Specify Door Thickness
slide view
35,3mm
1,390"
Specify Door Thickness
slide view
1,390"
OCS E-30 Fixed
Specify Door Thickness
side view
slide view
35,3mm
1,390"
Specify Door Thickness
OCS E-17,5 Free
top view
7,5mm
0,295"
top view
OCS E-30 Free
top view
7,6mm
0,299"
15mm
0,591"
top view
7,5mm
15mm
0,295"
0,591"
top view
15mm
107,5mm
0,584"
4,232"
17,5mm
0,689"
5,2mm
0,205"
62mm
2,441"
15mm
107,5mm
0,584"
4,232"
17,5mm
0,689"
5,2mm
Ø
0,205"
62mm
2,441"
120mm
4,724"
30mm
1,181"
5,2mm
Ø
0,206"
62mm
2,441"
top view
120mm
4,724"
30mm
1,181"
5,2mm
Ø 0,206"
62mm
2,441"
