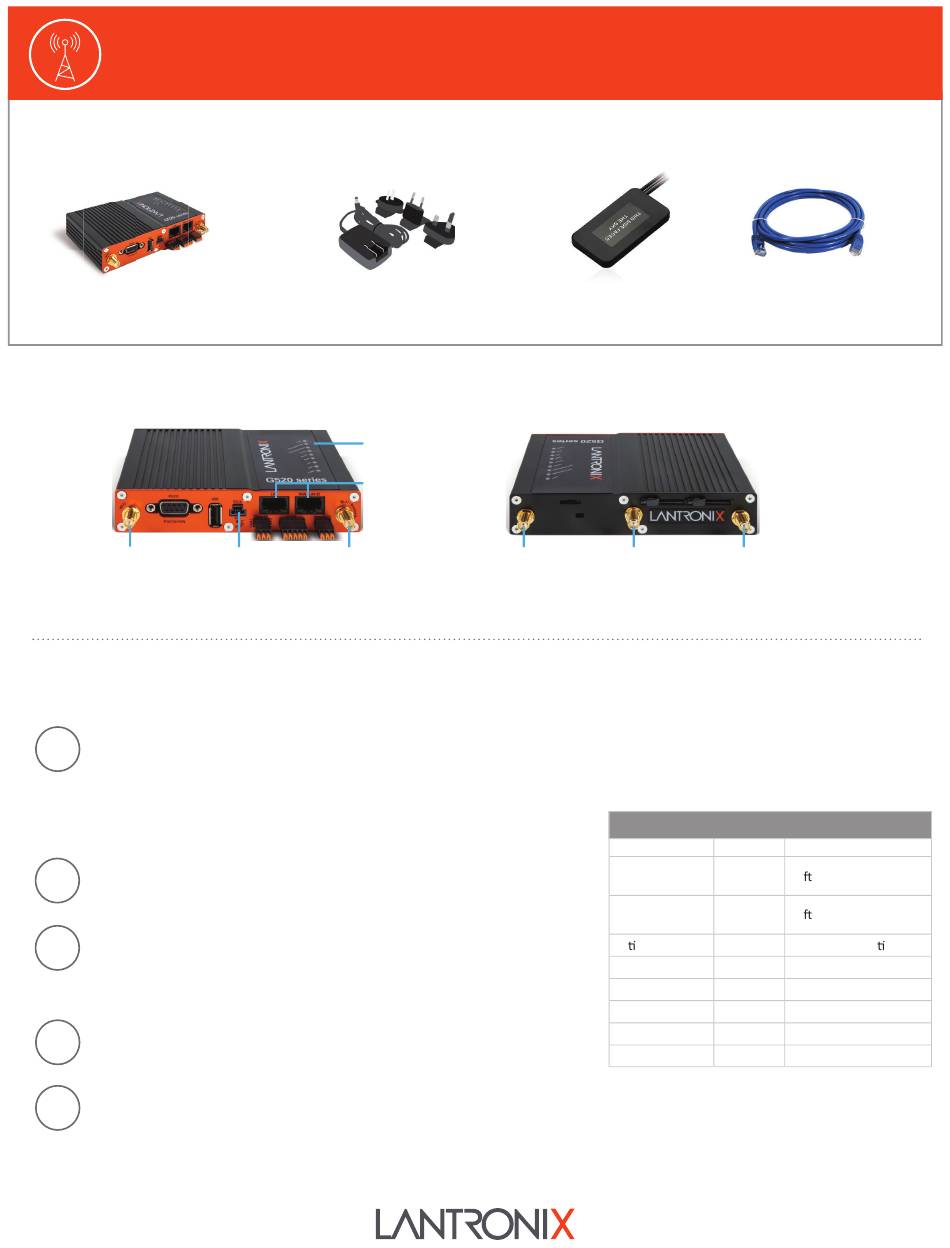

Lantronix G520 LTE Quick Start Manual

G520 LTE Connectivity Kit Quick Start Guide
WHAT'S IN THE BOX

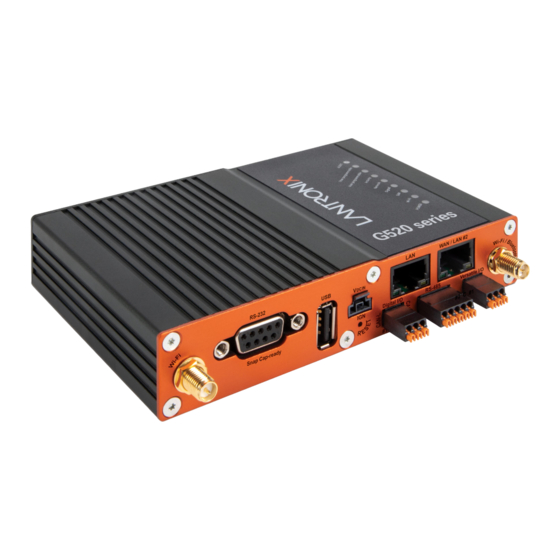

G520 Series
(G526GP1AS1)

1. HARDWARE OVERVIEW

Front View
Wi-Fi
*No RS-485 serial port available
The Ethernet connection will be used to attach to your SLC 8000 Console Manager or SLB Branch Office Manager.
2. INSTALLING THE SIM CARD(S) & ANTENNA
NOTE: For full information on G520 series gateway setup, see the G520 Quick Start Guide.
Remove the SIM card from its packaging. Locate the SIM
1
1 slot on the unit. To insert the SIM card, slide the latch for
SIM 1 slot to the left and gently push the SIM card (contact
side down) all the way into the slot. Release the latch.
Note: The SIM card is pre-activated by Lantronix, but the APN
may need to be configured in the software. See Quick Setup.
2
Attach the cellular / GNSS antenna to the antenna connectors.
Connect the power cord to the power supply. Attach
3
the 3-pin plug on the power cord to the DC input on
the unit. Connect the AC plug on the power supply to a
standard AC receptacle.
4
Observe that the Power LED is lit.
The Lantronix G520 series (G52x) gateway must be
5
configured before it can be used as the fail-over gateway.
The default admin user password must be changed to a new
password, and the DHCP server must be disabled. Please see
G520 User Guide for more information on how to change the
password.
AC Power Supply
LEDs
Ethernet (LAN,
WAN/LAN #2)
DC input Wi-Fi /Bluetooth
Antenna
Back View
SIM 2
GNSS
Cellular
diversity
Alert
User
Programmable 1
User
Programmable 2
Ac vity
Network
Signal
SIM
Wi-Fi
Power
RJ45 to RJ45 CAT5
SIM 1
Cellular
main
LEDs
Red Device alerts
Blue So ware configurable
Blue So ware configurable
Amber Cellular data ac vity
Amber Cellular network status
Amber Cellular signal strength
Blue SIM in use
Blue Wi-Fi network status
Green Power On or Off
