Summary of Contents for RS PRO RS 1107-UT

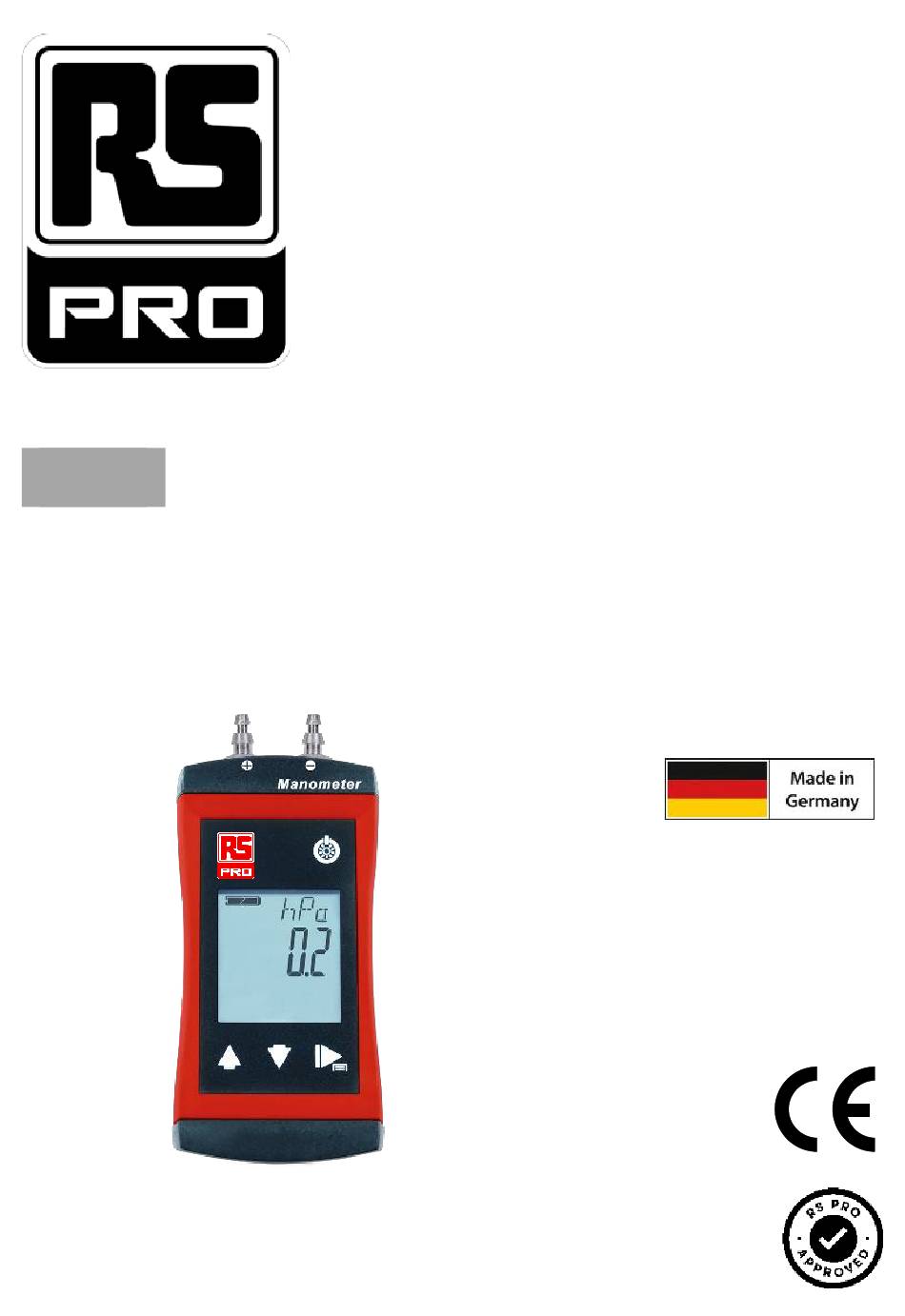

- Page 1 H88.0.2X.DK2RS-1.0 Operating Manual RS 1107-UT Stock number: 205-0963 RS 1113-UT Stock number: 205-0964 rspro.com...
-
Page 2: Table Of Contents
page 2 of 24 Operating Manual RS 1107, RS 1113 Table of contents About this documentation ............4 Purpose of the document ..............4 Legal notices .................. 4 Further information ................. 4 Safety ..................5 Explanation of safety symbols ............5 Foreseeable misuse ............... - Page 3 Operating Manual RS 1107, RS 1113 page 3 of 24 6.2.1 Battery indicator................17 6.2.2 Changing battery ................17 Error and system messages ..........18 Technical data ............... 20 RS 1107 ..................20 RS 1113 ..................22 Service ................... 24 Manufacturer ................
-
Page 4: About This Documentation
page 4 of 24 Operating Manual RS 1107, RS 1113 About this documentation Purpose of the document – This document is intended as a quick reference option. Legal notices This document is entrusted to the recipient for personal use only. Any impermissible transfer, duplication, translation into other languages or excerpts from this operating manual are prohibited. -
Page 5: Safety
Operating Manual RS 1107, RS 1113 page 5 of 24 Safety Explanation of safety symbols DANGER This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance. -
Page 6: Safety Instructions
page 6 of 24 Operating Manual RS 1107, RS 1113 Safety instructions NOTE This product does not belong in children's hands! Intended use The device is designed as a manometer and measures even the smallest pressure differential pressures of up to ±200 hPa with a maximum resolution of up to 0.1 Pa in air or in non-corrosive/non-ionising gases between the two pressure connections. -
Page 7: The Product At A Glance

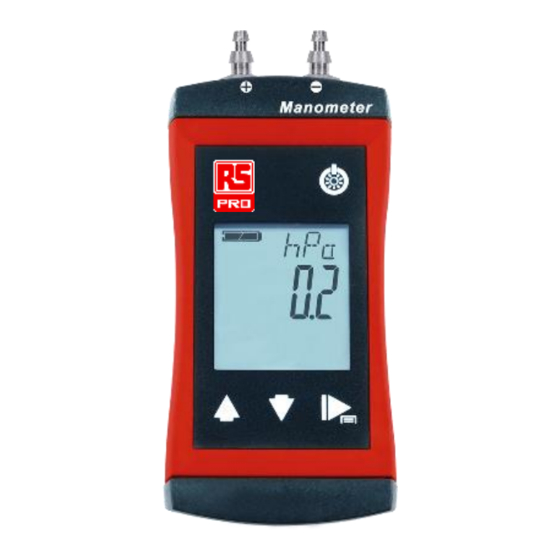

Operating Manual RS 1107, RS 1113 page 7 of 24 The product at a glance The RS 1100 manometer series Top view LCD Display Front view Display elements Display Battery indicator Evaluation of the battery status Unit display Display of the units or Min/Max/Hold information text Main display Measurement of the current pressure or value for... -
Page 8: Operating Elements
page 8 of 24 Operating Manual RS 1107, RS 1113 Operating elements On / Off button Press briefly Switch on the product Activate / deactivate lighting Long press Switch off the product Reject changes in a menu Up / Down button Press briefly Display of the min/max value Change value of the selected parameter... -
Page 9: Connections
Operating Manual RS 1107, RS 1113 page 9 of 24 Function key Press briefly Freeze measurement (Hold) Return to measurement display Call up next parameter Start menu configuration, (ONF appears in the Long press, 2s display Close menu, changes are saved Long press, 4s Depending on the selected special function: Activa- tion of the Tare function NVLL, high-resolution... -
Page 10: Operation
page 10 of 24 Operating Manual RS 1107, RS 1113 Operation Opening the configuration menu Press the Function key for 2 seconds to open the Configuration menu. (ONF appears in the display. Release the Function key. Parameter Values Meaning Display unit UN,T (only at RS 1107 ) mBaR... - Page 11 Operating Manual RS 1107, RS 1113 page 11 of 24 Measuring rate RATE Selection of the measurement speed Slow FAST Fast Resolution RANG Selection display resolution AVTO Automatic switchover Adjusted to the highest value, e.g. -200.0 .. +200.0 hPa (RS 1107) -2000 ..
-
Page 12: Open The Adjustment Menu
page 12 of 24 Operating Manual RS 1107, RS 1113 Factory settings IN,T Use current configuration Reset product to factory settings. IN,T DONE appears in the display Open the adjustment menu The product is switched off Press and hold the Down button. Press the On/Off button to switch on the product. -
Page 13: Measurement Basics
Operating Manual RS 1107, RS 1113 page 13 of 24 Measurement Basics CAUTION Air pressure at port variant UT! With higher pressures greater than 1 bar, the hoses must be secured to prevent unintended loosening. Suitable hose clamps are used for this purpose. –... -
Page 14: Nvll Tare Function
page 14 of 24 Operating Manual RS 1107, RS 1113 NVLL Tare function 5.1.1 The special function FVNC NVLL has been selected in the configuration menu. The display can be zeroed by pressing the Function key for 4 s. If the tare function is activated, NVLL blinks in the lower display. -
Page 15: F,Ne High-Resolution Measurement With 1 Pa (Rs 1113)
Operating Manual RS 1107, RS 1113 page 15 of 24 F,NE High-resolution measurement with 1 Pa (RS 1113) 5.1.3 High-resolution measurement for the finest adjustment work and many other applica- tions with the finest adjustment of pressure. In the Configuration menu, the special function FVNC F,NE has been selected. The high-resolution measurement can be activated by pressing and holding the Func- tion key for 4 s. -
Page 16: Avr 0:02 / Avr 0:05 / Avr 0: 10
page 16 of 24 Operating Manual RS 1107, RS 1113 AVR 0:02 / AVR 0:05 / AVR 0: 10 5.1.4 Fast measurement with mean value over 2 s / 5 s / 10 s Mean value mode for measurement of heavily fluctuating pressures. In the Configuration mode, a special function AVR 0:02, AVR 0:05 or AVR 0: 10 has been selected. -
Page 17: Operation And Maintenance
Operating Manual RS 1107, RS 1113 page 17 of 24 Operation and maintenance Operating and maintenance notices NOTE Pressure connections must be protected from soiling. Battery 6.2.1 Battery indicator If the empty frame in the battery display blinks, the batteries are depleted and must be replaced. -
Page 18: Error And System Messages
page 18 of 24 Operating Manual RS 1107, RS 1113 NOTE This symbol indicates processes, which can have a direct influence on operation or can trigger an unforeseen reaction in case of non-observance. NOTE Read the following handling instructions before replacing batteries and follow them step by step. - Page 19 Operating Manual RS 1107, RS 1113 page 19 of 24 No display, Battery depleted Battery depleted Replace battery unclear System error Error in the product Send in for repair characters or no re- Product is defective Product is defective sponse when but- tons are pressed...
-
Page 20: Technical Data
page 20 of 24 Operating Manual RS 1107, RS 1113 Technical data RS 1107 Measuring range Measuring range (Hi) Measuring range (Lo) -2000 .. +2000 Pa -200.0 .. +200.0 hPa -20.00 .. +20.00 hPa (mbar) (mbar) -2.900 .. +2.900 PSI -150.0 .. - Page 21 Operating Manual RS 1107, RS 1113 page 21 of 24 Housing Break-proof ABS housing Protection rating IP67 (pressure connections must be protected from soiling and moisture) Dimensions 108 * 54 * 28 mm without pressure connection L*W*H [mm] and 150 g incl. battery weight Operating conditions -20 to +50 °C;...
- Page 22 page 22 of 24 Operating Manual RS 1107, RS 1113 RS 1113 Measuring range Measuring range (Hi) Measuring range (Lo) -2000 .. +2000 hPa -200.0 .. +200.0 hPa (mbar) (mbar) -2.000 .. +2.000 bar -29.00 .. +29.00 PSI -1500 .. +1500 mmHg -200.0 ..
- Page 23 Operating Manual RS 1107, RS 1113 page 23 of 24 Housing Break-proof ABS housing Protection rating IP67 (pressure connections must be protected from soiling and moisture) Dimensions 108 * 54 * 28 mm without pressure connection L*W*H [mm] and 150 g incl. battery weight Operating conditions -20 to +50 °C;...
-
Page 24: Service
page 24 of 24 Operating Manual RS 1107, RS 1113 Service Manufacturer If you have any questions, please do not hesitate to contact us: Contact RS Components Limited Birchington Road Corby Northamptonshire NN17 9RS WEE/GF0002ZR rspro.com...
