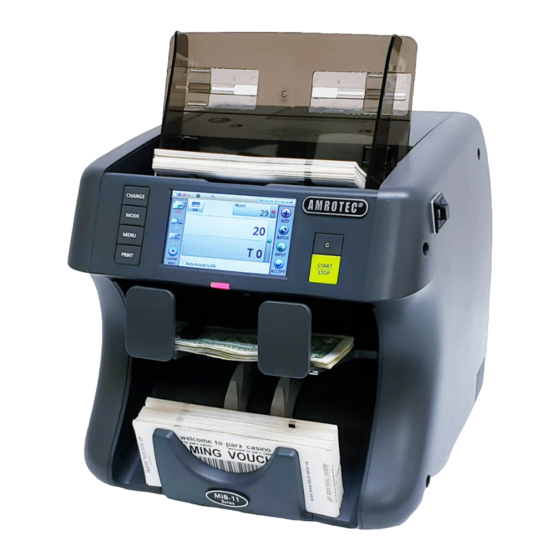

Amrotec MIB-11V Manual
  1. Manuals
  2. Brands
  3. Amrotec Manuals
  4. Cash Counters & Coin Sorters
  5. MiB-11V
  6. Manual

Amrotec MIB-11V Manual

2 pocket discriminator
Hide thumbs Also See for MIB-11V:
1
2
3
4
5
6

Advertisement

Table of Contents

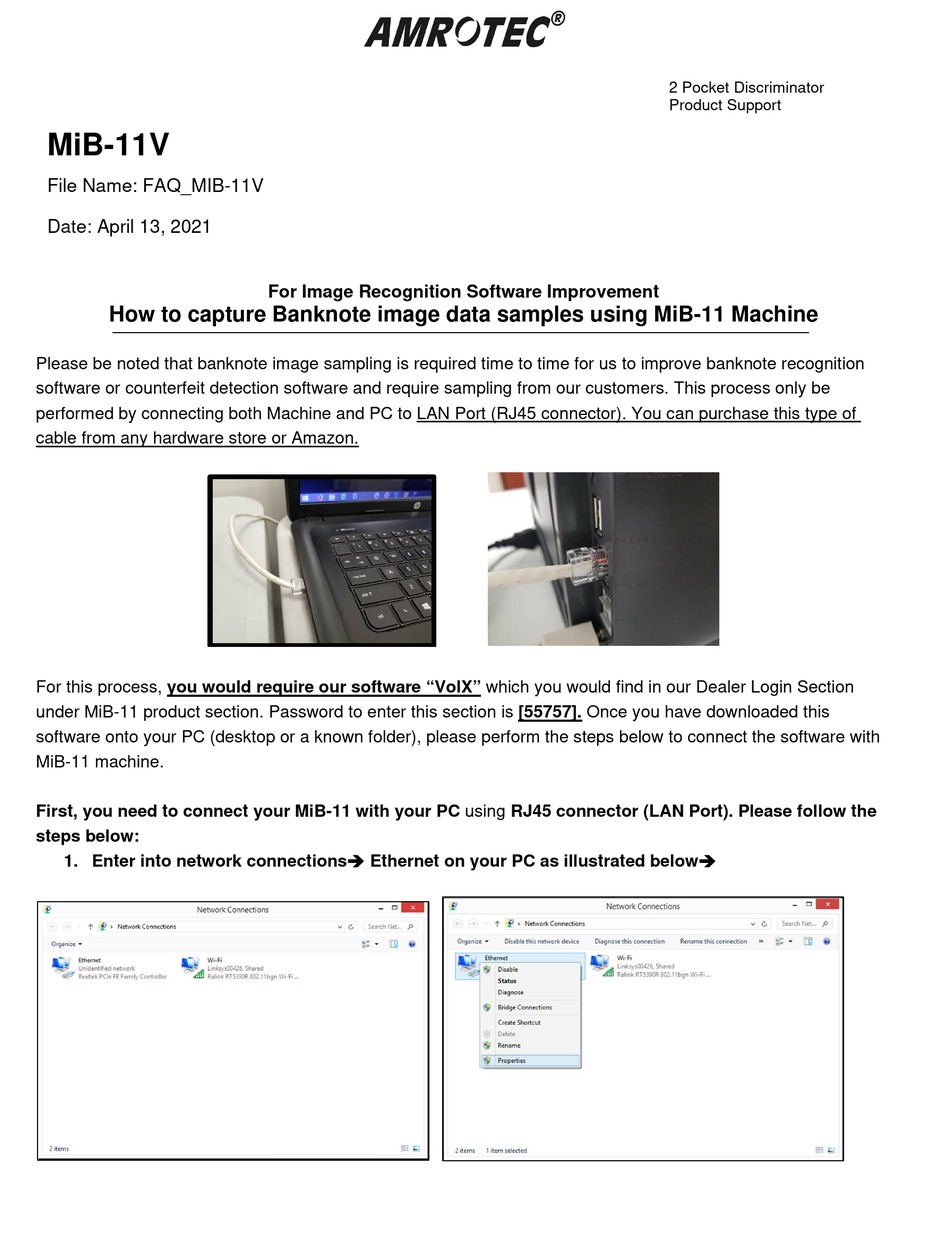

MiB-11V
File Name: FAQ_MIB-11V
Date: April 13, 2021

How to capture Banknote image data samples using MiB-11 Machine

Please be noted that banknote image sampling is required time to time for us to improve banknote recognition
software or counterfeit detection software and require sampling from our customers. This process only be
performed by connecting both Machine and PC to LAN Port (RJ45 connector). You can purchase this type of
cable from any hardware store or Amazon.
For this process, you would require our software "VolX" which you would find in our Dealer Login Section
under MiB-11 product section. Password to enter this section is [55757]. Once you have downloaded this
software onto your PC (desktop or a known folder), please perform the steps below to connect the software with
MiB-11 machine.
First, you need to connect your MiB-11 with your PC using RJ45 connector (LAN Port). Please follow the
steps below:
1. Enter into network connections Ethernet on your PC as illustrated below
For Image Recognition Software Improvement
2 Pocket Discriminator
Product Support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIB-11V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amrotec MIB-11V

Summary of Contents for Amrotec MIB-11V

  • Page 1 2 Pocket Discriminator Product Support MiB-11V File Name: FAQ_MIB-11V Date: April 13, 2021 For Image Recognition Software Improvement How to capture Banknote image data samples using MiB-11 Machine Please be noted that banknote image sampling is required time to time for us to improve banknote recognition software or counterfeit detection software and require sampling from our customers.
  • Page 2 2. Right click “Ethernet: Unidentified network” and click on “Properties” 3. Find and click “Internet protocol Version 4 (TCP/IPv4)” then click Properties...
  • Page 3 4. In “IP address”, you must enter the IP address of the machine and change the last set of numbers (eg. if machine IP address is 192.168.10.50 change to .192.168.10.70) a. To find machine IP address press 9[Menu] > 5.Interface > 4.IP address > 1.Machine IP address 5.
  • Page 4 This menu item is for downloading the rejected banknote images which are genuine banknotes. 1-4. Unfit Patterns in Fitness Mode  This selection does not apply to MIB-11V model and only reserve for MIB-11F (fitness) model. 1-5.1 STACKER MODE This menu item is used when developing of newly released / issue banknotes denominations or developing a new currency software.
  • Page 5 On the VOLX software on your PC: check IP Address on the machine and select same IP Address in VolX software as illustrated below: VolX 1.9 Software For IP selection matching with MiB-11v IP address shown on the MiB-11 3. Once IP address is selected on the Volx 1.9 Version software and machine is connected to the software, then, follow below steps: a) Create a folder in advanced on your desktop or C: where you can easily locate it after.
  • Page 6 Setting the folder for Downloading d) Once folder is selected, start counting those banknotes require for sampling. Follow the above instructions described on Step #1 and above. e) Once counting is completed and task is done, you can check the images that are saved on that folder as illustrated below.
