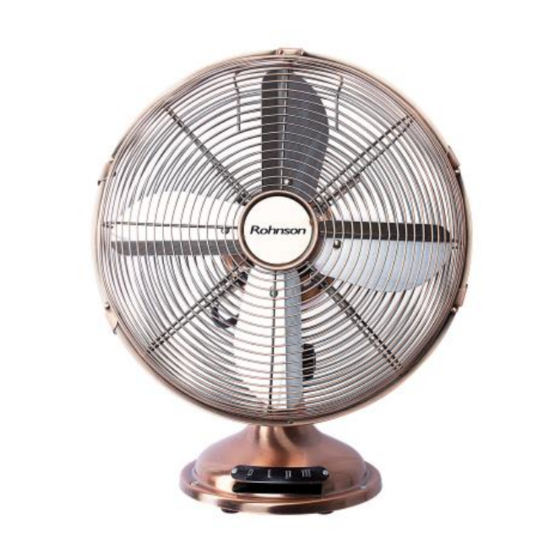

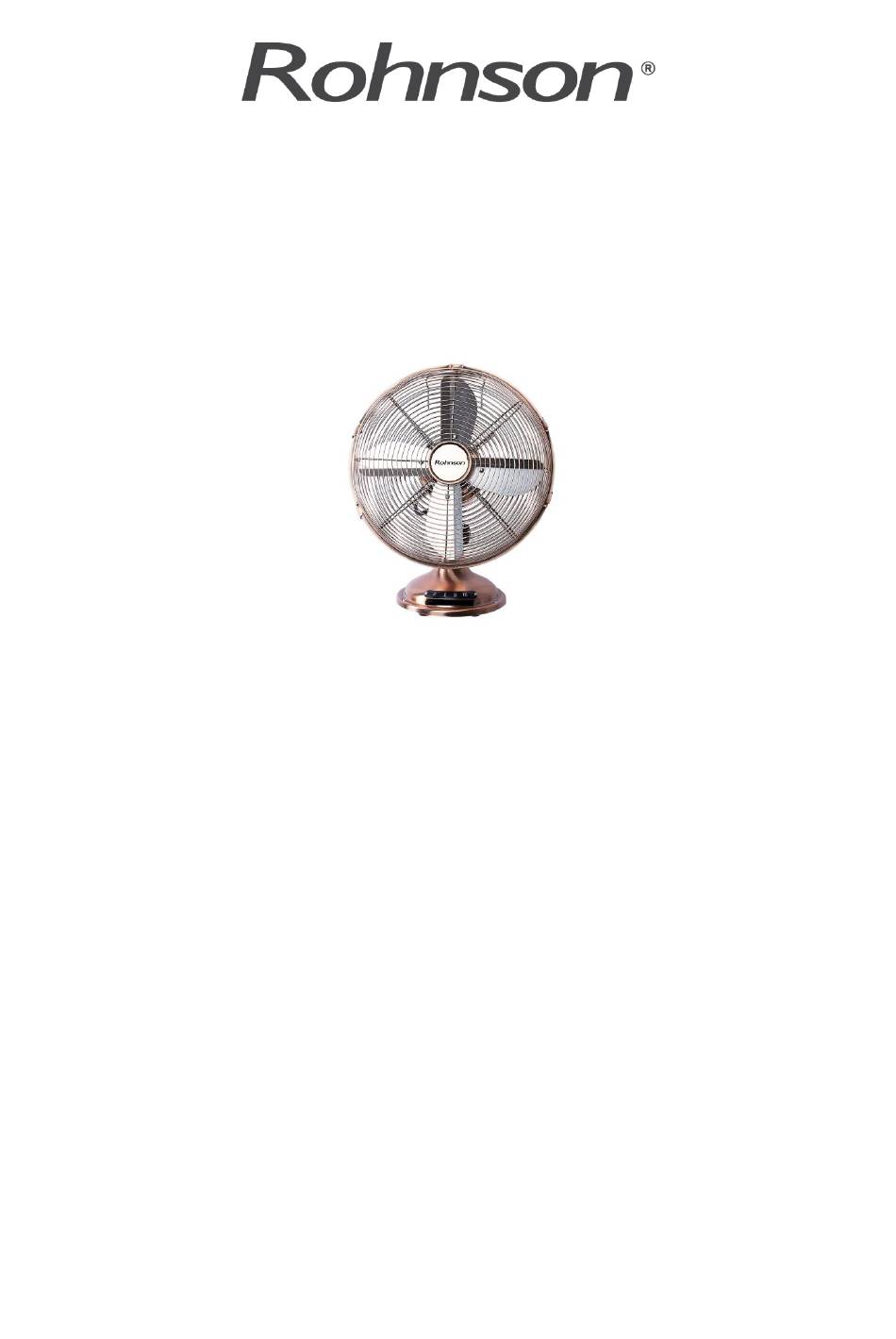

- Page 1 Metal Table Fan 30cm R-863 / R-864 / R-867 PLEASE READ INSTRUCTIONS CAREFULLY BEFORE OPERATING...
- Page 2 Sleek & modern high-velocity fan provides more powerful wind than ordinary plastic fans. Draws air off the floor and circulate through the entire room keeping room cool and breezy. Put near the windows and it helps exhaust hot indoor stuffy air and pulls in fresh outdoor air. PARTS DESCRIPTION Oscillation Button Motor Shaft...
- Page 3 ASSEMBLING BLADES AND GRILLES Place the rear guard (8) from the front on to the motor unit (3). Align grille (8) so that all four screw holes overlap and use the supplied screws to attach it to the motor unit (3). On to the shaft (2), place the fan blades (9) with the collar facing forward.
- Page 4 Operating Instructions: a) Ensure voltage used corresponds with the voltage indicated. b) Turn the speed control to selected speeds: 0(off) and speedsⅠ, Ⅱ, Ⅲ is Slow, Middle, Fast. c) Tilting angles-By pushing the tilt-guard, you can adjust the fan to any Pushing the fan head can tilt the fan.
- Page 5 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection center or to a dealer providing this service.
