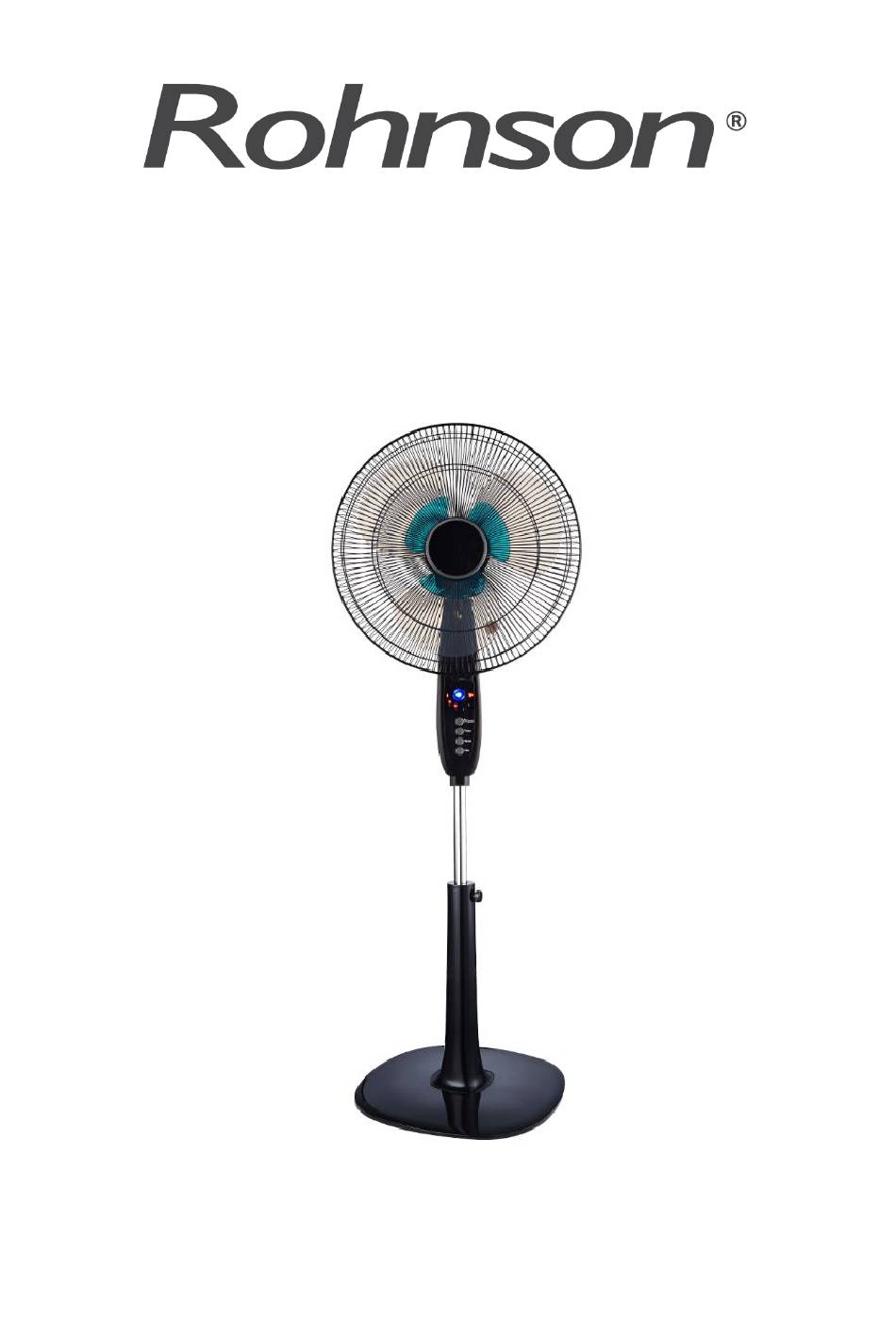

- Page 1 Stand fan with double blade and remote control Model: R-838 INSTRUCTION MANUAL...
- Page 2 IMPORTANT SAFEGUARDS This product is not intended for commercial use. Generally acknowledged accident prevention regulations and enclosed safety instructions must be observed. Only perform work described in these instructions for use. Any other use is improper. The manufacturer will not assume responsibility for damage resulting from such use.
- Page 3 power cable is damaged. • If the device is not in use make sure the plug is pulled out. • Make sure that the device is switched off before plugging in the mains cable. • Make sure that the device is switched off before unplugging it. •...
- Page 4 Structures: 1- Front grill 2- Plastic ring 3- Blade fixing nut 4- Second blade 5- Main blade 6- Grill connection nut 7- Back grill 8- Engine axle 9- Fan head...
- Page 5 10- Body 11- Screw 12- Airflow angle adjustment knob 13- Body connection screw 14- Height adjustment pipe 15- Locknut 16- Stand column 17- Base 18- Control panel 19- On/Off - Speed 20- Timer 21- Mode adjustment button 22- Oscillation control button 23- Remote control Assembly of the Base Attachment •...
- Page 6 Assembly of Grills and Blade - Remove blade fixing nut and grill connection nut. - Fix the rear grill and connection nut to the motor shaft, then tighten the nut to place back grill tightly - Place main fan blade to fit in the hub and channel on engine axle. Be sure fan blade is placed to the pin on engine axle.
- Page 7 • To lift or lower the height of the fan, loose the bracelet and lift or lower the lift pole to your desired height, then fasten bracelet tightly. CLEANING AND MAINTENANCE • Make sure whether your ventilator operates or not and the plug is disconnected from the outlet before starting the cleaning.
