Summary of Contents for Rohnson R-8803

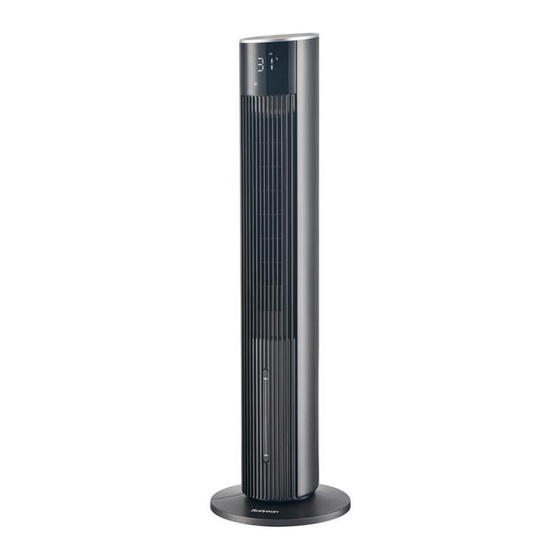

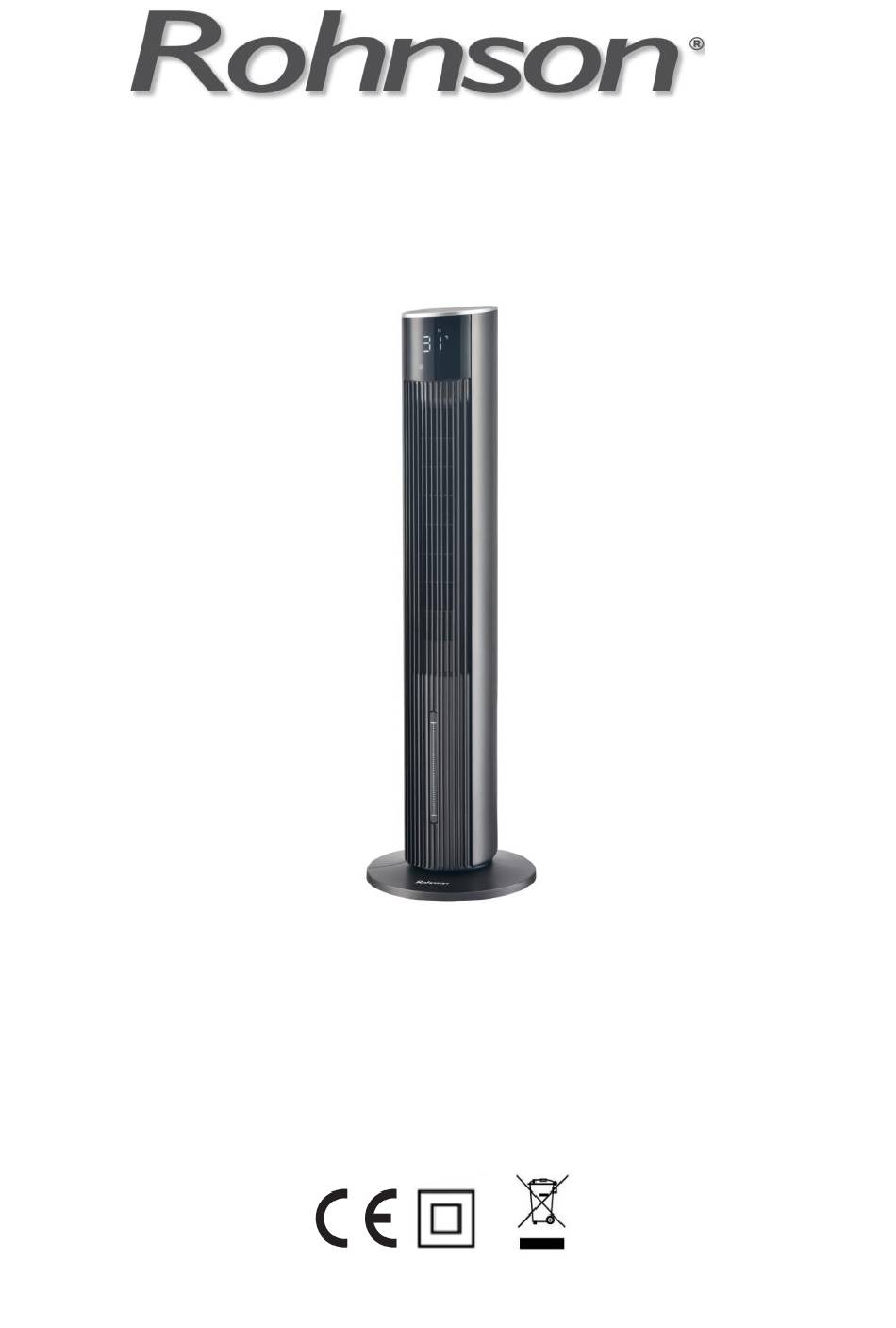

- Page 1 R-8803 R- 8803 Tower Fan with cooling 220-240V~50-60Hz 60W Thank you for buying a Rohnson Tower Fan. USER MANUAL...
-
Page 2: Important Safety Information
Warning! According to instruction: EN 60335-2-98:2003/A11:2019: • Be aware that high humidity levels may encourage the growth of biological organisms in the environment. • Do not permit the area around the Air Cooler to become damp or wet. If dampness occurs, turn the output of the Air Cooler down. If the Air Cooler output volume cannot be turned down, use the Air Cooler intermittently. - Page 3 Avoid using extension cord as the extension cord may overheat and cause a risk of fire. Do not pull the power cord to disconnect with power source. Always grasp the plug to pull out. Do not insert any objects into the FAN as it may cause an electric shock or injure or damage to the FAN.
-
Page 4: Controls And Components
to become damp. 20. Empty and clean the appliance before storage. Clean the appliance before next use. 21. The back housing shall not dismantle, removal will be dangerous . 22. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 Product discription: 1.Panel 2.Handle 3.Cable Case 4. Led Screen 5.Air Outlet 6.Air Inlet 7.Filter 8.Main Body 9.Lock of water tank 10.Water Scale 11.Water Tank 12.Handle of water tank 13.Base 14.Ice Box 1: Control panel： a: Power on/off button b: Child lock button c:Mode button d:Cooling button e: Timer button f: Oscillation button...
- Page 6 (Fig. 1) Fix the base on the fan body with four screws (included), with a screwdriver, wise it clockwise (Fig. 2). (Fig. 2) Cable Hook: Hanging the power cord at cable hook when the fan is not be used. (Fig. 3) (Fig.
- Page 7 Clean Water tank: Pull out the water tank to find water pump, then gently pinch the pressure plate of the water pump, and take out the water pump and clean the water tank directly (Fig. 6) Use the brush or tool to clean the water tank. Don’t clean transducer by any metal or stiffness material or scrape it to avoid any damage.
- Page 8 (Fig.4) (Fig.5)
-
Page 9: Remote Control
(Fig 6) REMOTE CONTROL 1. Included a button cell battery (the type of battery CR2025). (Note: Please take out the insulation film under the battery for first time use.)(Fig.7) The Remote Control Power button is labeled as such (Fig.8). All the functions performed with the Remote-Control work identically to the Manual Controls. - Page 10 (Fig. 7) (Fig. 8) (Fig. 9) (Fig. 10)
-
Page 11: Operation
OPERATION The FAN may be operated by the manual controls located on the FAN or by your remote control (shown in Fig. 8 & 9). 1. Place the FAN on a stable flat surface. Plug the cord set into a 220-240V~ electrical outlet. - Page 12 - CHILD Mode : Fan will auto. Set up timer at 3 hours and oscillation function will start. The fan will work at high speed for 15 minutes, and it will transfer to medium speed at 15 minutes, then it will transfer to low speed until it take off.
-
Page 13: Maintenance
is activated. : press ‘ ’ button to activate the child lock function. All 9. Child lock controls cannot be used. Press and hold for 3 seconds to cancel the child lock function and restore normal control. : Pressing the ‘ION’ button on remote control or pressing the 10. - Page 14 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection center or to a dealer providing this service.
