Summary of Contents for Rohnson R-860

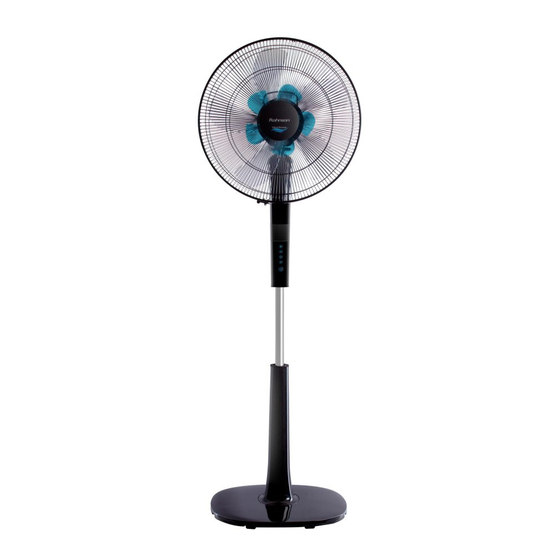

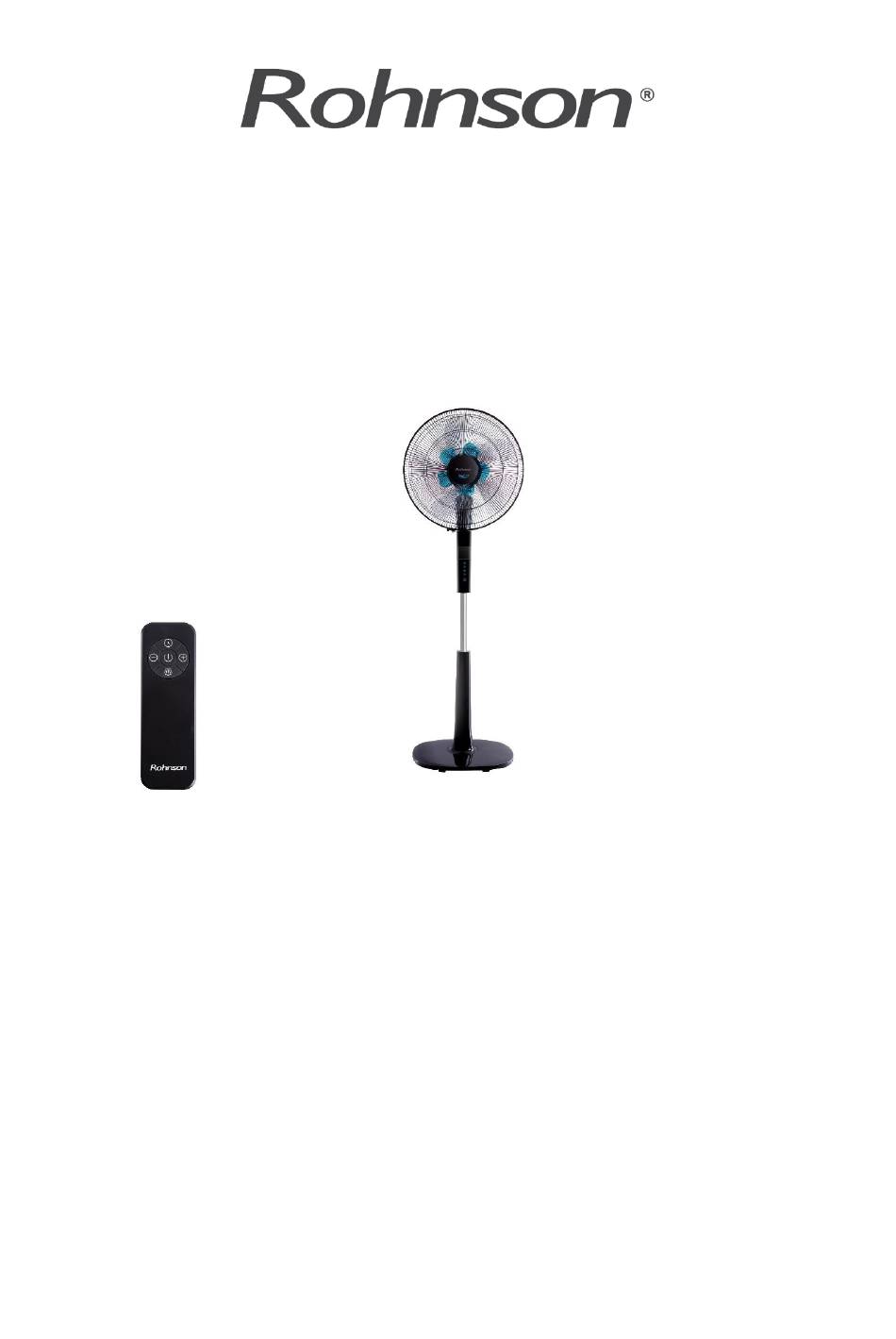

- Page 1 Stand fan with double blade and remote control Model: R-860 INSTRUCTION MANUAL...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 3 Structures: 1- Front grill 2- Circlip 3- Small blade 4- Fan blade 5- Plastic nut 6- Rear grill 7- Shaft 8- Motor 9- Fan body 10- Display window 11- Control part 12- Screw 13- Pole 14- Base 15- Base fixing nut...
- Page 4 Assembly instructions 1. Attach the base stand to the hole on the base. Unscrew and remove the base fixing nut from the base stand if is tightened to the base stand. 2. Position the base fixing nut on the other side of the base and firmly tighten it by turning clockwise.
- Page 5 Operating instructions Plug in the power adapter, after a "beep" tone, the fan is on standby. Remote controller 1. Timer 2. Speed increase 3. OSC 4. Speed decrease 5. On/Off “ ” On/Off key Press this button under standby mode, the fan starts at memorial speed which it worked last time.
-
Page 6: Control Panel
While the unit is in standby mode press the timer button once and the display will show up the selected time in hours. Press the same timer button to select the desired time after which you want the fan to start, the time can be selected from 1 to 24 hours. The fan will start to operate once the selected time is elapsed. - Page 7 2.Natural Mode: In this mode the fan will operate in a preset program which varies the speed of the fan giving a natural breeze effect. In natural mode, the user can select among the 4 speeds，it is shown on the display： 04,03,02,01.
-
Page 8: Troubleshooting
Tilt adjustment To adjust the air flow upward or downward, push the guards lightly to the desired direction. Height adjustment 1. To increase or decrease the height of the fan, loosen the extension tube locking nut and lift up or down the extension tube to the desired position. 2. - Page 9 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection center or to a dealer providing this service.
