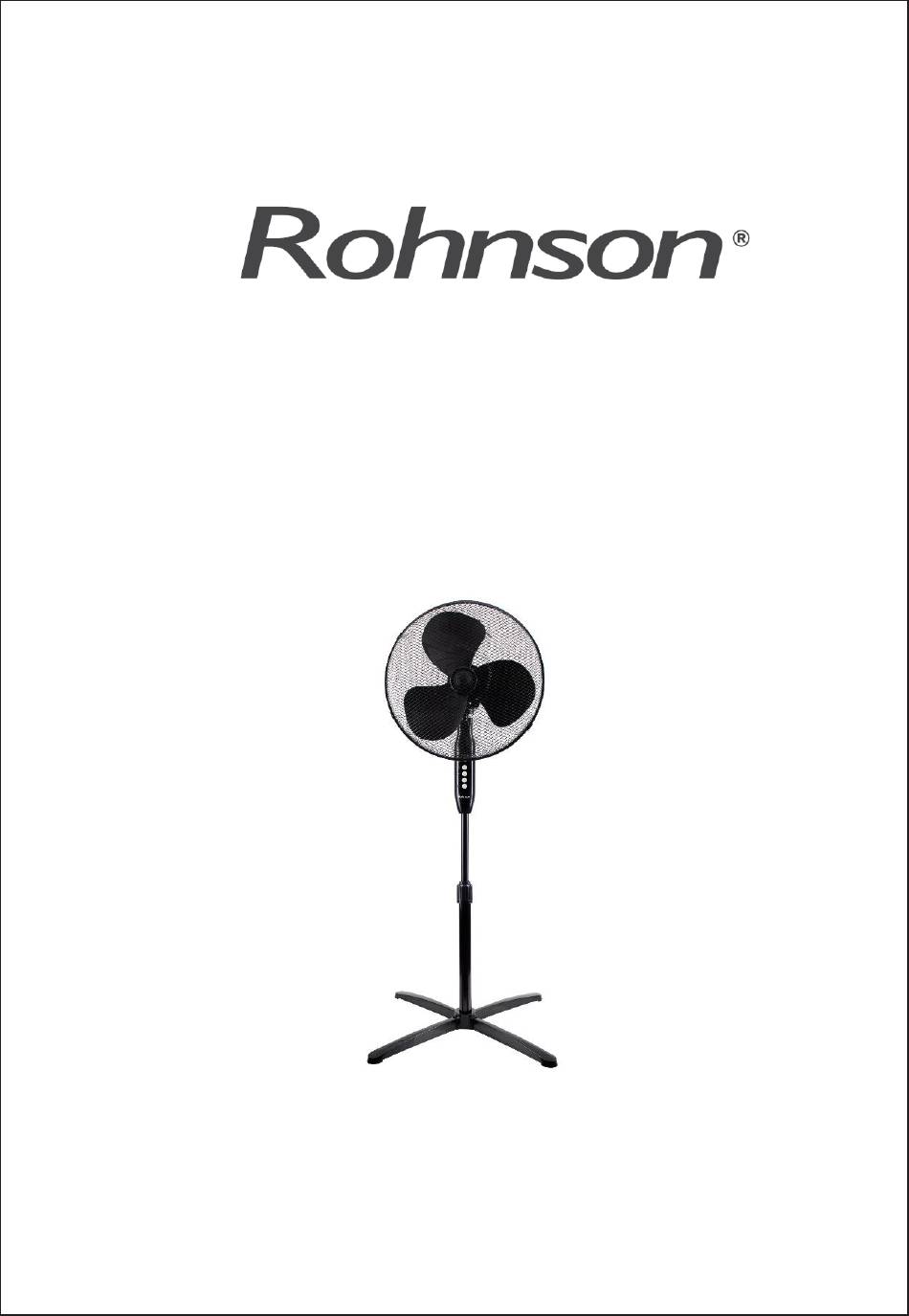

- Page 1 INSTRUCTION MANUAL STAND FAN R-854 40CM READ AND SAVE THESE INSTRUCTIONS Attention: Pictures in the IM are for reference only.
- Page 3 CAUTION Read Rules for Safe Operation and Instructions Carefully. WARNING If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 4 PARTS NAME Plastic nut Motor shaft Front grill Fan blade Motor housing Rear grill Tighten Loosen Internal Pole Spinner Fasten Height Extension Pole adjustment ring Stand Note: All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.
- Page 5 through hole Height adjustment ring Crossbase connector Pole assembly Stand Crossbase connector Thumb screw GRILL & FAN BLADE ASSEMBLY 1. Unscrew the spinner clockwise (or take the spinner out from the bag) and the plastic nut counterclockwise to remove both of them. Fix the rear grill to the motor then tighten the plastic nut again.
- Page 6 MAINTENANCE INSTRUCTION The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed. 1. Before cleaning and assembling, fan must be unplugged. 2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust.
