- Page 1 BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger BD/ED/FD (E2) Service Manual Version of chamber described in this service manual: Standard equipped BD, ED, FD with R3 Controller...
-
Page 2: Table Of Contents
Description of the Chamber BD, ED and FD ................3 Function............................4 BD (E2)..........................4 Flow Chart of the Heating System of a BD (E2) (Standard BD 115 (E2))........4 ED (E2)..........................5 Flow Chart of the Heating System of a ED (E2) (Standard ED 115 (E2))........5 FD (E2)..........................6... -
Page 3: Chamber Description

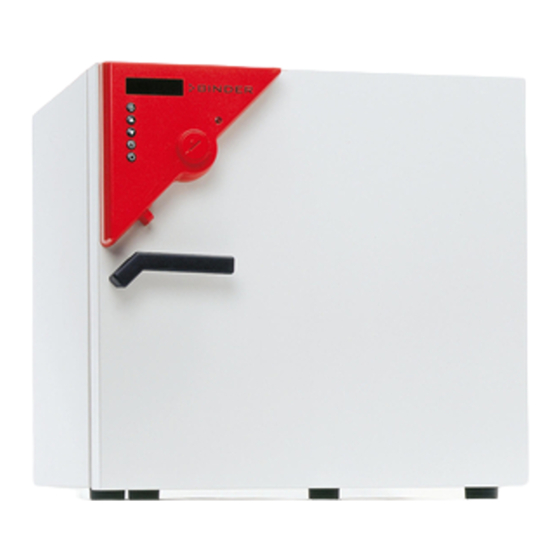

1 Chamber Description 1.1 BD (E2) The BD (E2) chamber was developed for microbiology. The chamber is equipped with a R3 controller and as an Option available with a RS422 Interface. The highest achievable temperature is 100°C. The BD (E2) Chamber is available in the sizes 53, 115, 240, 400 and 720. -
Page 4: Function
2 Function 2.1 BD (E2) The BD (E2) chamber gives the possibility to heat up the chamber to a maximum temperature of 100°C. The measuring of the temperature will be realized by a PT100 temperature probe which is placed directly in the inner of the chamber . -
Page 5: Ed (E2)
BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger 2.3 ED (E2) The ED (E2) chamber gives the possibility to heat up the chamber to a maximum temperature of 300°C. The measuring of the temperature will be realized by a PT100 temperature probe which is placed directly in the inner of the chamber . -
Page 6: Fd (E2)
BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger 2.5 FD (E2) The FD (E2) chamber gives the possibility to heat up the chamber to a maximum temperature of 300°C. The measuring of the temperature will be realized by a PT100 temperature probe which is placed directly in the inner of the chamber . -
Page 7: Pt100 Temperature Probe Resistance/Temperature Table
For Example: Your resistance measurement system shows you 114,380 Ω this corresponds to 37°C. 2.8 Description of the R3 controller Inputs and Outputs Power Supply Input Output Solid State Relay PT100 input Ground Output for fan (only FD) At BD and ED not in use RS422 Interface... -
Page 8: Trouble Shooting
LED lights • No data transfer to and from the Wrong chamber address is set at the controller APT-Com possible. The installation is correctly. (At BD with Interface) 3.2 ED Chamber Fault Description Fault Cause • Not possible to reach the The door doesn’t close completely. -
Page 9: Fd Chamber
• No data transfer to and from the Wrong chamber address is set at the controller APT-Com possible. The installation is correctly. (At FD with Interface) 3.4 APT-COM at BD, ED and FD Fault Description Fault Cause • No Function... -
Page 10: Most Common Service Works
BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger 4 Most common service works 4.1 Changing of the controller R3 You have to open the two screws at the top of the inner door. After that you can lift out the inner door, but be careful the temperature safety device is inside the door. -
Page 11: Changing Of The Fan At Fd (E2) Chamber
BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger 4.2 Changing of the fan at FD (E2) chamber You have to unscrew the two side-walls (1 + 2), the bottom (3) and the rear-wall (4) to reach the fan- wheel. - Page 12 BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger To take out the fan-motor with axis, you have to remove the rear-wall of the chamber. Tool: Screwdriver (Phillips-Screw) Now disconnect the connection-wires at the fan, if possible mark them for right connection when you put in the new fan.
-
Page 13: Calibration Procedure "One Point Calibration
BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger 4.3 Calibration Procedure “One Point Calibration” Press the Buttons for 5 sec. simultaneously. After the 5 sec. you’ll see C211 in the display. Don’t use this configuration for the One Point Calibration. - Page 14 BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger If you’ve done your settings press the Button to come back to the Standard Display with the actual Temperature. A electronic measuring- and display device for temperature which is traceable to a acknowledged standards/calibration institution (DKD , PTB for Germany) with valid calibration certificate is recommended.
-
Page 15: Change Display From °C (Celsius) To °F (Fahrenheit)
BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger 4.4 Change Display from °C (Celsius) to °F (Fahrenheit) Press the Button for at least 5 seconds The Display shows „unit“. Change the setting “C” with the Button into “F”... -
Page 16: Activation Or Deactivation Of 0.1 Steps At The Temperature Display
At the controller R3 it is possible to activate or deactivate the 0.1 step at the display. At BD chambers which could heat up to 100°C the function is activated. At ED and FD chambers the function is deactivated. Please note that the 0.1 steps is only displayed up to 99.9 °C, at 100°C the 0.1 step is deactivated automatically. - Page 17 BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger Step 2 – Changing of the parameter for the 0.1 degree display Press the Button for at least 5 seconds so that “unit” will be displayed Press the Button for at least 5 seconds again so that “C111”...
-
Page 18: Bd, Ed And Fd Connected To Apt-Com
BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger 5 BD, ED and FD connected to APT-COM 5.1 Communication Software APT-COM The units of size 400 and 720 are equipped as standard with an RS422 serial interface (option with size 53, 115 and 240), to which Binder’s... -
Page 19: Connection Of One Chamber Bd, Ed Or Fd
BD/ED/FD (E2) Service Manual State: 01/2002 Created: 06/2002 / Jochen Tussinger 5.3 Connection of one chamber BD, ED or FD 230V Chamber RS422 Connection Cable Converter with Adapter Cable PC with RS232 If you’ll connect more then one chambers, you need a plug-distributor between the chambers and the...
