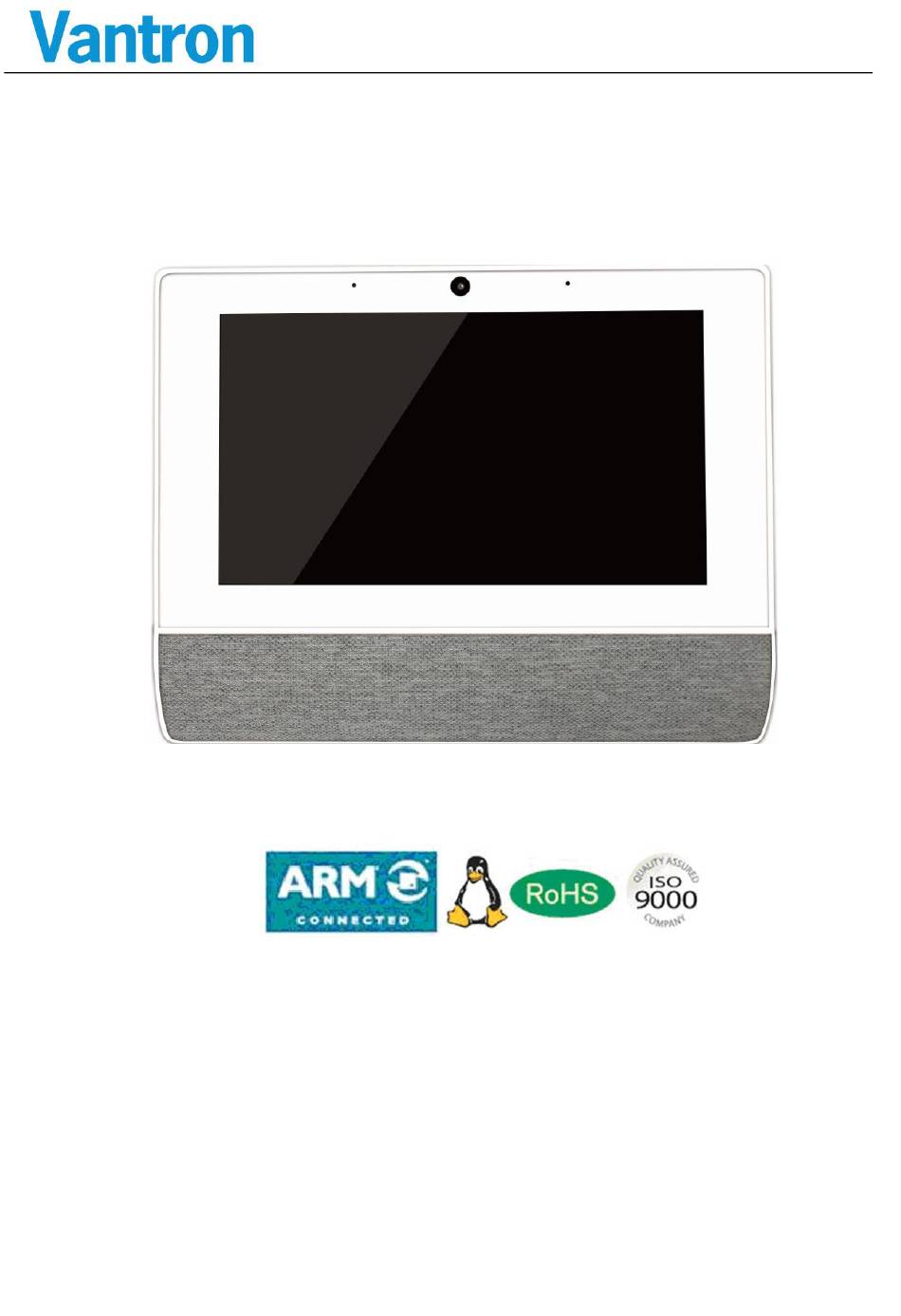

- Page 1 IQ Hubv1.1 IQ Hub UserManual Chengdu Vantron Technology, Ltd. All Rights Reserved...
-
Page 2: Table Of Contents
IQ Hub v1.0 Contents REVISION HISTORY....................................2 FOREWORD ....................................3 ....................................3 OPYRIGHT OTICE ........................................3 OTES ......................................4 TATEMENT ......................................4 ISCLAIMER .............................. 4 IMITATION OF IABILITY WARRANTY .................................... 4 AFETY NSTRUCTIONS ......................................5 RECAUTIONS ......................... 6 AFETY NSTRUCTIONS FOR... - Page 3 IQ Hub v1.0 ................................... 16 RIEF NTRODUCTION SAFETY INSTRUCTION................................17...
-
Page 4: Revision History
IQ Hub v1.1 Revision History Version Description Date v1.0 First release 2019/03/08 V1.1 edition 2019/12/05 2/ 22... -
Page 5: Foreword
Please contact our technical department for relevant operation solutions if there is any problem that cannot be solved according to this manual. Vantron reserves all rights of this manual, including the right to change the content, form, product features, and specifications contained herein at any time without prior notice. The latest version of this manual is at www.vantrontech.com.cn. -
Page 6: Statement
IQ Hub v1.1 1.3 Statement It is recommended to read and comply with this manual before operating IQ Hub which provides important guidance and helps decreasing the danger of injury, electric shock, fire, or any damage to the device. 1.4 Disclaimer Vantron assumes no legal liability of accidents resulting from failure of conforming to the safety instructions. -
Page 7: Precautions
IQ Hub v1.1 1.7 Precautions Pay attention to the product labels/safety instructions printed on silk screens. Do not try repairing this product unless declared in this manual. Keep away from heat source, such as heater, heat dissipater, or engine casing. Do not insert other items into the slot (if any) of this device. -
Page 8: Safety Instructions For Power Cables And Accessories
Clean with a damp cloth. Do not try cleaning exposed electronic components unless with a dust collector. Support for special fault: Power off and contact technical support personnel of Vantron in case of the following faults: The device is damaged. -
Page 9: Warnings, Cautions And Notes
IQ Hub v1.1 The temperature is excessively high. Fault is still not solved after the operation according to the manual. 1.9 Warnings, Cautions and Notes Warning!Warnings indicate conditions, which if not observed, can cause personal injury! Caution!Cautions are included to help you avoid damaging hardware or losing data. e.g. -
Page 10: Overview
IQ Hub v1.1 2 Overview 2.1 Introduction Thank you for choosing Vantron. It is our commitment to provide our valued customers with the embedded devices equipped with the state-of-the-art technology and the best product services. Tablet enables the interaction between operators/users and applications, connecting industrial control products such as wireless, transducer, battery inside, storage, etc. -
Page 11: Ordering Information
IQ Hub v1.1 2.2 Ordering Information 7’ TFT LCD 1024*600 RK-3368H, Octa-core 1.5GHz Speaker and MIC 3.7V/2600mAh battery CPA-G1A-UNA4 WIFI/BT Z-wave LTE-1 SRF Note: LTE modules cannot transmit with other wireless Function at the same time. -
Page 12: Iq Hubhardware Instructions
IQ Hub v1.1 3 IQ HubHardware Instructions 3.1 Product Appearance Front View Back View 10/ 22... -
Page 13: Specifications
IQ Hub v1.1 3.2 Specifications Processor RK-3368H , ARM Octa-core Cortex-A53, Quad Core CPU,1.5GHz 2GB LPDDR3 Memory Flash 16GB EMMC Flash 7" TFT LCD Resolution 1024*600 24bit Color Display Colors 16.7M Display Brightness 300cd/m View Angle 85U/85D, 85L/85R Touch Screen... -
Page 14: Interface Instructions
IQ Hub v1.1 DC Power Supply 12V,1.0A Dimensions 196.4x155x25.6mm Mechanical Weight 0.65 Kg Operating Temperature: 0℃ ~ +40℃ Temperature Storage:-30℃ ~ +70℃ Environment Condition Humidity 10-85%RH(Non-Condensation), operating and storage 3.3 Interface Instructions Bi-color LED Speaker Front View 12/ 22... -
Page 15: Dimension
IQ Hub v1.1 DC Jack Power/Sleep/ Wake button Buzzer Back View 3.4 Dimension Whole device Size: 196.4x155x25.6mm 3.5 Power/Sleep/Wake Button Power/Sleep/Wake Button When you are not using the panel, you can turn off the display by press button Lock tablet... -
Page 16: Interface Description
IQ Hub v1.1 3.6 Interface Description 3.6.1 Internal MIC with outstanding sensitivity and high SNR makes it very suitable for recording while suppressing the environment noise. WIFI and BT 3.6.2 The tablet supports 802.11 a/b/g/n/ac WiFi and BT 4.2. With a good performance internal antenna, both WIFI and BT can achieve better connectivity. -
Page 17: Packing List
IQ Hub v1.1 3.7 Packing List Part Description Quantity Remark Power adapter CPA-G1A-UNA4 1 PCS Table stand Wall mount bracket 15/ 22... -
Page 18: Software Instructions
IQ Hub v1.1 4 Software Instructions 4.1 Brief Introduction IQ Hub has been pre-loaded with Android image, so that the system can run Androidtool to flash the system image 16/ 22... - Page 19 Vantron intends to provide all necessary information to install and handle the IQ Hub in this manual. Because of the complexity of this product and its vario us uses, we do not guarantee that the given information is complete.
- Page 20 IQ Hub v1.1 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
- Page 21 IQ Hub v1.1 responsibility for the accuracy of any statements contained herein. Safety Precautions - Static Electricity Follow instructions below to protect yourself from harm and the products from damage: 1. Being sure you are at an ESD workstation, or grounded with an ESD strap before opening the top cover or installing/removing any unit accessible from the out- side.
- Page 22 Vantron reserves the right to make necessary changes to this manual without prior notice. No part of this manual may be reprinted or publicly released in forms of photocopy, tape, broadcast, e-document, etc.
- Page 23 changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
