  • Page 1 LEIT RC2ET Two-Way Weather Based Radio Remote Control Handset I N S T R U C T I O N M A N U A L...

  • Page 2: Table Of Contents

    Table of Contents A. Introduction ………………………………………………………………… 3 B. About the LEIT-2ET Weather Based Irrigation System …………………………… 3 C. Technical Assistance ………………………………………………………… 4 D. Copyright and Compliance …………………………………………………… 5 E. LEIT RC2ET Handset Features ………………………………………………… 6 1. System …………………………………………………………………… 8 2. Using the LEIT RC2ET Handset ……………………………………………… 9 2.0 Handset Main Menu ………………………………………………… 9 2.1 Radio Uplink Communication ……………………………………… 10 2.2 Language Selection ………………………………………………… 11 2.3 Setup ……………………………………………………………… 11 2.4 Help ……………………………………………………………… 13 2.5 Connecting to a LEIT-2ET via FIND …………………………………… 14 2.6 Turn Off Handset ……………………………………………………...

  • Page 3: Introduction

    All LEIT-2ET controller functions are controlled and reviewed by the LEIT RC2ET handset. After installation, no further visits to the controller are required. IMPORTANT: Communication between the LEIT RC2ET handset, the LEIT-2ET controllers, and the LEIT WWS or LEIT WWSE weather station is automatically limited to daylight hours when there is sufficient light energy. Longer bright light days will enable the user to communicate over longer parts of the day.

  • Page 4: Technical Assistance

    Technical Assistance Should you encounter any problem(s) with this product or if you do not understand its many features, please refer to this operating manual first. If further assistance is required, DIG offers the following customer support: Technical Service USA DIG’s Technical Service Team is available to answer questions from 8:00 AM to 5:00 PM (PST) Monday-Friday (except holidays) at 1-800-322-9146. Questions can be e-mailed to questions@digcorp.com or faxed to 760-727-0282. Specification documents and manuals are available for download at www.digcorp.com. Customer Assistance Outside USA Contact your local distributor.

  • Page 5: Copyright And Compliance

    Copyright and Compliance Copyright 2010 DIG Corporation. All rights reserved. LEIT RC2ET, LEIT-2ET, LEIT WWS and LEIT WWSE are each trademarks of DIG Corporation. Patent Pending. FCC, IC and CE certified, Australia and Hong Kong compliance To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter is installed to provide a separation distance of at least 8 inches (20 cm) from all persons (not including hands, wrist, feet and ankles) and must not be colocated or operating in conjunction with any other antenna or transmitter. This device is required to comply with FCC RF exposure requirements for mobile and fixed transmitting devices. This model transceiver generates and uses radio frequency energy. If not installed and used in accordance with the manufacturer’s instructions, it may cause interference to radio and television reception. CONTROLLER FCC ID: UJV-LEIT01 IC: 6694A-LEIT01 HANDSET FCC ID: UJV-LEIT02 IC: 6694A-LEIT02 WEATHER STATION FCC ID: UJV-LEIT03 IC: 6694A-LEIT03 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy. If not installed and used in accordance with the instructions, the remote may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • C onnect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult DIG technician for help. Warning: the user should make no field changes or modifications to the LEIT-2ET controller, LEIT RC2ET handset, LEIT WWS or LEIT WWSE weather station. All adjustments and changes must be made at DIG’s facility under the specific guidelines suggested in our instruction manual. Any tampering or modification to the equipment will void the users authority to operate the unit, render the equipment in violation of FCC part 15 and will void the warranty.

  • Page 6: Leit Rc2Et Handset Features

    LEIT RC2ET Features The LEIT RC2ET remote control handset is used to communicate with LEIT- 2ET weather based, wireless irrigation controllers. The user can program the handset with daily scheduled irrigation programs and detailed information on the site zone, such as; planting, soil type, planting type, plants density, percentage of slope, microclimate, irrigation method, irrigation efficiency, flow rate and spacing used. This information is downloaded to the LEIT-2ET controller, which uses it to determine the plants water loss and the total irrigation rate per day needed. With this information along with other factors, including depth of irrigation, allowable depletion and basic intake rate, the LEIT-2ET controller calculates system or zone run time with number of cycles per day. This calculated run time replaces or overrides the program duration that the user set originally. The controller performs the daily calculations needed at midnight to override or adjust the scheduled irrigation program specifically for each zone, to compensate for evapotranspiration (ET). This information can be reviewed in the Report Menu. • ET setting can be input to each valve when ET Setup is changed to active • Sensitivity of the ET setting can be optimized using the editing feature without changing any of the ET settings • Wind Stop setting can be programmed to shut off the system at wind speed from eight (8) to twenty-five (25) miles per hour (12.9-40 Km/h) • The Rain Off feature can be accessed either via the weather station in a range of 1/8” to 1” (3 mm to 25 mm), or via a rain sensor • ET features can be overridden at any time • Report Menu screen provides various function information on the controller operation and program. Current Status report provides controller time and date, station open or short circuit, controller power level, any feature or device activity, alerts, if ET is active, sensor(s) information and the average for 24 hour ET. Program Status report provides controller program changes made along with the handset ID that made the changes. History report provides total run time, total rain amount, and ET saved in both time and percent, for the last two (2) months...
  • Page 7 • On connection to the controller the handset can review the controller ID #, the controller descriptive address, software version, valves’ current status, alert flags, the last time of ET data received, along with date and how many times during the day the weather data was received if ET is active • Global Stop command turns off all valves with the same Client ID within radio range • Two (2) independent programs with four (4) start times per program • Watering durations from one (1) minute to five (5) hours, fifty-nine (59) minutes, in one (1) minute increments • Custom programming with seven (7) day calendar or intervals of one to thirty (1-30) days in odd/even or every day rotation utilizing a three-hundred- sixty-five (365) day calendar with leap year • Individual monthly water budgeting from 10-200% in 10% increments • Rain delay for up to ninety-nine (99) days with auto-restart • Current Status provides various function information on the controller • Monthly Off feature allows any month of the year to be inactive • Permanent Events Off feature allows any three (3) days of the year to be inactive by overriding any programs that are operating on these days • T he LEIT RC2ET handset can perform many functions, such as review status, check history reports, adjust budgeting, program rain delays and perform a manual run and test valves • Upload and change programs for up to ninety-nine (99) controllers • M ultilingual software in English, Spanish, Italian, French, German and Portuguese • The LEIT RC2ET handset has a two-way radio with operating range of up to 350’ (100 m) line of sight • The LEIT RC2ET handset utilizes RoHS compliant components • The LEIT RC2ET handset utilizes radio frequency in the ISM band 902-928 MHz (866 Hong Kong, 868 International) CE, IC, FCC certified, Australia and Hong Kong compliant • C LIENT ID enables the user to have a unique identity code for the handset and controllers; this is a security feature that locks out unauthorized users • Environmentally friendly; certified lead free, uses light as a source of energy...

  • Page 8: System

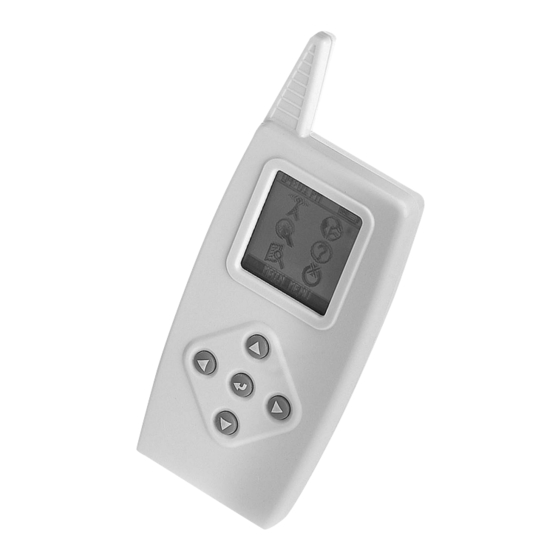

    System 1.0 Parts Identification 1. LCD Display 2. Programming Buttons 3. Antenna 4. Battery Socket Outlet 5. Battery Charger 1. LCD Display Displays the icon based applications stored in the handset. 2. Programming Buttons Use these five (5) buttons to program, modify, review and communicate with a LEIT-2 and LEIT-2ET controller. Use to raise (increase) the value of the selected parameter or to unlock the secure password and controller ID Use to lower (decrease) the value of the selected parameter Use to accept and/or select the desired programming mode Use to move the cursor to the right Use to move the cursor to the left 3. Antenna See FCC compliance. 4. Battery Socket Outlet Plug the battery charger into the battery socket. 5. Battery Charger Plug the battery charger into the wall to power the LEIT RC2ET.

  • Page 9: Using The Leit Rc2Et Handset

    30-851 is available, if needed. The LEIT RC2ET handset is ready for setup and communication. Using the LEIT RC2ET Handset After charging the handset, press to navigate through the initial screens. The initial screens will show the DIG logo, time/date, software version and the MAIN MENU. Check the bottom of display for menu title at any time. 2.0 Handset Main Menu (from left to right) The LEIT RC2ET handset MAIN MENU screen has six (6) icons, each used to set or select an option. The first option, RADIO UPLINK, is used to connect to a LEIT-2ET controller. Next, SETUP is used to set the time, contrast and ID number for the handset. In LANGUAGE, select one (1) of the six (6) languages available. HELP provides contact information if any problem with the system is encountered, and FIND allows the user to connect to the last ten (10) controllers, if any were connected previously. The final icon, TURN OFF, is used to turn off the handset. 10:00 SW V: 1.6 EE V: 1.1 10:00 AM...

  • Page 10: Radio Uplink Communication

    In order to connect to a LEIT-2ET controller, a few Setup steps must be implemented within the handset MAIN MENU screen. If setting the LEIT RC2ET handset for the first time, first make sure to set up the handset by selecting the SETUP icon (below RADIO UPLINK). In going through the steps, select the SET TIME AND DATE icon and set the time format (AM/PM or 24 hour) then, the time and date. In HANDSET SETUP, assign HANDSET ID and CLIENT ID for identification purposes for linking to a LEIT-2ET controller. After setup is complete, exit SETUP to the MAIN MENU. At this point the handset is ready for communication (see details of each step below). 2.1 Radio Uplink Communication RADIO UPLINK allows the LEIT RC2ET handset to link to any LEIT-2ET or LEIT-2 controllers in the area with the same CLIENT ID. To link to a LEIT-2ET controller that has been installed and configured for communication, select the RADIO UPLINK icon. Press and RADIO UPLINK appears. Press the again and CONTROL ID appears with the first digit blinking. Select the first digit using the or button, then press and repeat for the second digit. After selecting CONTROL ID press to connect to a LEIT-2ET controller. After connecting 10:00 to a LEIT-2ET controller, CONNECTED appears briefly, then CONTROL ID DESCRIPTION and CONTROLLER SOFTWARE VERSION appear. Press SW V: 1.6 again, and controller activity, if any, can be reviewed, including the last EE V: 1.1 10:00 AM MONDAY weather data received from the weather station. Press and CONTROLLER 7/13/2009 MENU appears.

  • Page 11: Language Selection

    ARE YOU SURE? CONNECTING CONNECTED CONTROL ID: XX DESCRIPTION 2.2 Language Selection RADIO UPLINK RADIO UPLINK YES / NO CONNECT CONNECT One of 6 languages can be selected: ENGLISH, FRENCH, ITALIAN, GERMAN, 10:00 10:00 10:00 10:00 PORTUGUESE or SPANISH. English is the default language. Press and select the LANGUAGE icon. Press to enter the LANGUAGE CONTROL ID: XX VALVES CLOSED LAST ET ACTIVITY screen. The current language is blinking. To change the language press or 09:24 08/27 DESCRIPTION...
  • Page 12 IMPORTANT: Current date/time must be updated from the handset to the controller(s). See page 23-24 for details. b. Setting HANDSET ID and CLIENT ID: In order to establish 2-way communication between the LEIT RC2ET handset and the LEIT-2ET controllers, a simple setup process using HANDSET SETUP must be completed. The HANDSET ID is used as an individual address to identify the handset if more then one handset is used (the permissible ID is 0-99). After assigning the HANDSET ID select and assign a CLIENT ID. CLIENT ID enables the user to have unique identity codes for the handsets as well as for the field controllers. This is a security feature that locks out unauthorized users (the permissible ID is any letter combination that follows this format of AAA- ZZZ with default CLIENT ID of AAA. 10:00 10:00 10:00 10:00 10:00 Press and navigate down to HANDSET SETUP. Press and enter 12-HOUR 10:00 AM...

  • Page 13: Help

    – the MAIN MENU screen. SETUP CONTRAST CONTRAST SETUP EXIT MAIN MENU 10:00 10:00 10:00 SETUP EXIT MAIN MENU 2.4 Help If help is needed, DIG’s contact information is listed under the HELP icon. To navigate to the HELP icon, press and . Press to enter HELP screen. DIG contact information is provided. 10:00 10:00 10:00 800-322-9146 760-727-0914 WWW.DIGCORP .COM MAIN MENU HELP HELP 10:00 10:00 10:00...

  • Page 14: Connecting To A Leit-2Et Via Find

    2.5 Connecting to a LEIT-2ET via FIND The FIND icon quickly connects to a LEIT-2ET controller that has been accessed with the handset previously. This option allows easy identification and connection to the last ten (10) controllers on the system that have been communicating with the handset. The FIND screen also provides an address or description (if entered in CONT. SETUP) making it easy to identify the controller location. Press to navigate down to FIND icon and press to enter the FIND screen. In the FIND screen, the last connected controller ID is blinking. To select another controller ID to connect to, press or and scroll through the ten (10) saved CONTROL IDs (if available). After the CONTROL ID has been 10:00 10:00 10:00 selected, press to connect. After linking to a LEIT-2ET controller, controller status information can be reviewed if available. Press to review until the 800-322-9146 760-727-0914 Controller Menu appears for programming and reviewing. WWW.DIGCORP .COM MAIN MENU HELP HELP 10:00 10:00 10:00 10:00 10:00 10:00...

  • Page 15: Initial Leit-2Et Connecting

    I nitial LEIT-2ET Connection In order to begin communication with a new LEIT-2ET controller using the handset, a series of initial setup steps must be undertaken. First, the user connects to the LEIT-2ET controller via CONTROL ID 00 DEFAULT SETUP. After connecting to a LEIT-2ET controller, the user must assign the controller a new CONTROL ID (recommended ID # 2-99). At this stage the user can also change the existing CLIENT ID of the controller (controller default CLIENT ID is AAA) as long as it is also changed on the handset after exiting the controller program. In addition a descriptive controller address or name can be assigned to the controller with up to fourteen (14) characters to uniquely identify the location of each LEIT-2ET controller on the system. 10:00 10:00 10:00 10:00 10:00 ARE YOU SURE? CONNECTING CONTROL ID: 00 NO DESCRIPTION MAIN MENU RADIO UPLINK RADIO UPLINK YES / NO CONNECT 10:00 10:00 10:00 10:00 10:00 CONNECTED UPLOADING...
  • Page 16 Step 1: Make sure the LEIT-2ET controller is out in bright light to harness light energy used to power the controller. It will take approximately thirty (30) minutes, or less, in direct sunlight. Do not connect sensor wires at this time. Wait until controller is charged and ready to be assigned an ID. Step 2: Splice the two (2) yellow or yellow and black sensor wires together using waterproof connectors. This splice will distinguish that the controller is ready to communicate with a LEIT RC2ET handset. Step 3: Connect via RADIO UPLINK screen: a. On the LEIT RC2ET handset’s MAIN MENU, press and highlight RADIO UPLINK icon. Press again, CONTROL ID: 00 DEFAULT SETUP with the first Ø blinking appears. Press again to connect. ARE YOU SURE? screen appears with RADIO UPLINK icon selected. Press again to connect, CONNECTED appears momentarily, then, CONTROL ID: 00, NO DESCRIPTION screen appears. Press again and CONTROL ID: 01, NO DESCRIPTION appears with Ø blinking. At this point the user can assign a new Controller ID. b. To assign a Controller ID, press or and enter a number (1-9) for the first digit. Press and repeat the steps with the second digit (we recommend changing the ID number to a number higher than 01). Next, assign description, name or address (recommended). The default is NO DESCRIPTION. Press and the first letter of NO DESCRIPTION is...

  • Page 17: Controller Menu

    LEIT-2ET controller instruction manual. MAIN MENU RADIO UPLINK RADIO UPLINK YES / NOTE: Where multiple LEIT-2ET controllers are installed within range of the LEIT RC2ET, make 10:00 10:00 10:00 10:00 sure to assign different CONTROLLER ID numbers, one at a time.

  • Page 18: Manual Run

    4.0 Manual Run The first option available in the controller menu is MANUAL RUN. MANUAL RUN is useful for checking the proper operation of stations (especially after installation), for applying a temporary program for a defined time period and for repeat testing of a selected valve using MANUAL TEST. To shut off all controllers in range with the same CLIENT ID for a specified number of days use GLOBAL STOP. MANUAL RUN has priority over a program and will suspend a program or valve watering schedule. Note that at the completion of MANUAL RUN, any programmed irrigation schedule reverts back to normal operation. Press and navigate to MANUAL RUN icon. Press to enter MANUAL RUN MENU screen. Use the same procedures to select other icons as needed. a. Manual Test Manual Test operates each valve by turning the first valve on and off as many times as desired, then repeats for the second valve, if needed. In the CONTROLLER MENU screen press and highlight MANUAL RUN icon. Press , MANUAL RUN MENU screen appears. Press and highlight MANUAL TEST icon. Press to connect. (If the controller is active, a screen will display program is running. In order to use manual test, the running program must be suspended). If the program is suspended, CONNECTING appears briefly, then CONNECTED and then, the MANUAL TEST screen with the valve number, the words TURN ON blinking and SKIP TO NEXT appears. Press to turn on valve #1, CONNECTING appears briefly, then CONNECTED, then UPDATE SUCCESSFUL and then Valve #1 with TURN ON blinking. To turn off Valve #1 press . After turning Valve #1 off, repeat the steps to turn valve #1 ON or use SKIP TO NEXT, to skip to Valve #2 and then to exit. Repeat the steps for each valve as needed. If the valve is not turned off via the handset, it will turn off automatically after 3 minutes.
  • Page 19 CONTROLLER MENU 10:00 10:00 10:00 10:00 10:00 UPLOADING CONNECTED TURN ON SKIP TO NEXT MANUAL TEST MANUAL RUN MANUAL TEST CONNECT CONNECT 10:00 10:00 10:00 10:00 10:00 UPDATE ARE YOU SURE? CONNECTING CONNECTED SUCCESSFUL TURN OFF SKIP TO NEXT CONNECT MANUAL TEST YES/NO CONNECT...
  • Page 20 TURN OFF SKIP TO NEXT CONNECT MANUAL TEST YES/NO CONNECT CONNECT 10:00 10:00 10:00 10:00 10:00 UPLOADING CONNECTED 00:00 00:00 MANUAL TEMP MANUAL RUN MANUAL TEMP CONNECT CONNECT 10:00 10:00 10:00 10:00 ARE YOU SURE? DOWNLOADING CONNECTED UPDATE SUCCESSFUL YES/NO CONNECT CONNECT CONNECT...

  • Page 21: Setting Or Changing A Program

    4.1 Setting or Changing a Program The Program feature allows the user to review, change or set a schedule with up to two (2) separate programs for each station. Each valve can be programmed with odd, even, or up to every thirty (30) days. Each program has up to four (4) individual start times per day with durations of up to five (5) hours and fifty-nine (59) minutes in one (1) minute increments for each valve. On each program the second valve can be attached to the first valve if hydraulic limitations are not exceeded. At the end of the program the handset also displays the next time a program will operate. and highlight the PROGRAM icon. In CONTROLLER MENU screen press Press to enter PROGRAM MENU screen. To program, press then and highlight PROGRAM A icon. Press to connect. After establishing communication, CONNECTED appears momentarily and then, SELECT DAYS screen and PROGRAM A appears with SELECT DAYS blinking. Use the programming steps below to make any adjustments, as needed. Repeat the steps for PROGRAM B or exit the PROGRAM MENU. SELECT DAYS: Set the day of the week. In each of the two programs the following options are available: MTWTFSS: Select specific day(s) of the week with a icon above the day. EVERY: Enables the stations to operate from once a day to once every 30 days. ODD: Every odd number of days. EVEN: Every even number of days. In SELECT DAYS screen, press or and select one of the options available. If ODD DAYS or EVEN DAYS are chosen, press to select. If cyclical days are required, press . The 01 appears blinking. Press...
  • Page 22 blink. Press and select Monday. A symbol appears blinking above M. To skip this day, press the again. Press to select (M) for Monday and to move to the next day. Press to repeat the steps for setting additional watering days. Press and the next screen appear with START TIME screen, PROGRAM A and OFF in start #1 blinking. START TIME: Up to four (4) start times are available, including AM or PM. To program the first start time, set the hour digit including AM or PM using or . To select the minute digit, press and repeat the steps of setting the minute. Press again and repeat the steps for setting start times 2, 3 and 4 or press and the DURATION screen appears with PROGRAM A and DURATION Valve #1 with the hour digit blinking. Set from one (1) minute to up to five (5) hours and fifty-nine (59) minutes in one (1) minute increments. Use the same steps to set duration for Valve #1 and Valve #2. In programming Valve #2, the user has the additional option of attaching Valve #2 to Valve #1 if hydraulic limitation is not exceeded. Using this feature both valves will open and close at the same time. To set the Valve #2 to operate with Valve #1 in a group, in Valve #2 press or until GROUP appears blinking. Press to select and a screen will appear with information on the NEXT SCHEDULED START TIME. Press to download the new information. The ARE YOU SURE? screen appears. Press to connect and if successful the UPDATE SUCCESSFUL message appears, then the PROGRAM MENU screen appears. To exit, select EXIT icon and press 10:00 10:00 10:00 10:00 10:00...

  • Page 23: Controller Setup Options

    CONTROLLER MENU PROGRAM PROGRAM MENU PROGRAM A CONNECT 10:00 10:00 10:00 10:00 10:00 PROGRAM: A PROGRAM: A PROGRAM: A PROGRAM: A CONNECTED 9:00 AM NEXT SCHEDULED 00:00 00:00 SELECT DAYS 10:00 AM START TIME X _ _ X X _ _ 11:00 AM 00:00 PM 00:00...
  • Page 24 10:00 10:00 10:00 10:00 10:00 ARE YOU SURE? DOWNLOADING 10:00 AM MONDAY 7/10/2006 SETUP MENU SET TIME / DATE SET TIME / DATE YES / NO CONNECT 10:00 10:00 2. Change the Controller ID, CLIENT ID and the Descriptive Address (This step may have been carried out when the handset and controller were CONNECTED UPDATE...
  • Page 25 CONTROL ID: CLIENT ID: SETUP MENU CONTL. SETUP CONNECT CONNECT CONTL. SETUP 10:00 10:00 10:00 10:00 10:00 10:00 10:00 10:00 10:00 10:00 ARE YOU SURE? DOWNLOADING CONNECTED UPDATE SUCCESSFUL HANDSET ID: 01 ARE YOU SURE? DOWNLOADING DESCRIPTION 10:00 AM CLIENT ID: MONDAY 7/10/2006 CONNECT...
  • Page 26 CONNECT CONNECT 10:00 10:00 10:00 10:00 10:00 4. Set Event Off UPLOADING CONNECTED CONTROL ID: The Event Off option is used to suspend all irrigation programs for specific CLIENT ID: days of the year. For example, during the holiday time, regularly scheduled SETUP MENU CONTL. SETUP CONNECT CONNECT CONTL. SETUP watering programs can be stopped. The Event Off feature allows the user 10:00 10:00 10:00 10:00 10:00 to pause irrigation for up to 3 days. Regularly scheduled programming will resume automatically after Event Off interval has expired. Event off will remain DOWNLOADING CONNECTED UPDATE ARE YOU SURE? SUCCESSFUL active for years, unless changed by the user.
  • Page 27 UPLOADING CONNECTED STOP FOR 00 DAYS 5. Set a Month Off SETUP MENU RAIN STOP RAIN STOP CONNECT RAIN STOP The Month Off feature is used to suspend all irrigation programs for any 10:00 10:00 10:00 10:00 specific month of the year. For example, during the month of December, ARE YOU SURE? DOWNLOADING CONNECTED UPDATE regularly scheduled watering programs can be stopped. Regularly scheduled SUCCESSFUL programming will resume its normal operations in the active months. In the CONTROLLER MENU screen, press and to highlight the SETUP YES / NO CONNECT CONNECT CONNECT...

  • Page 28: Report Menu Options

    FEB ACTIVE MAR ACTIVE APR ACTIVE SETUP MENU MONTH OFF CONNECT CONNECT MONTH OFF 6. Exit Setup Menu 10:00 10:00 10:00 10:00 10:00 In the SETUP MENU screen, press and to highlight the EXIT icon. ARE YOU SURE? DOWNLOADING UPDATE Press to exit SETUP MENU screen and return to CONTROLLER MENU. The MAY ACTIVE SEP ACTIVE SUCCESSFUL JUN ACTIVE OCT ACTIVE handset will turn off. If the handset is left on, it will turn off automatically in JUL ACTIVE...
  • Page 29 1. Program Status In the CONTROLLER MENU screen, press and highlight the REPORTS icon. Press to enter the REPORT MENU screen. In the REPORT MENU screen, press then to highlight the PROGRAM STATUS icon. Press to enter the PROGRAM STATUS screen. The handset will connect to the controller. After connection is established, the PROGRAM STATUS screen appears with the first program change. Then the VIEW CHANGES screen appears. Press to view the changes. The next few screens will show the changes and the handset that made the changes. Repeat the same steps to view other changes. When finished the REPORT MENU screen appears again. 10:00 10:00 10:00 10:00 10:00 UPLOADING CONTROLLER MENU REPORTS REPORT MENU PROGRAM STATUS CONNECT 10:00 10:00 10:00 10:00 10:00 PROGRAM: A CONNECTED VIEW CHANGE? PROGRAM A CHANGED BY SELECT DAYS...
  • Page 30 SELECT DAYS CHANGED HANDSET: XX X _ _ X X _ _ M T W T F S S CONNECT PROGRAM STATUS YES / NO SELECT DAYS CHANGED BY 10:00 10:00 10:00 10:00 10:00 UPLOADING CONTROLLER MENU REPORTS REPORT MENU CURRENT STATUS CONNECT 10:00...
  • Page 31 3. History In the CONTROLLER MENU screen, press to highlight the REPORTS icon. Press to enter the REPORT MENU screen, press to highlight IF ACTIVE IF ET ACTIVE the HISTORY icon. Press to enter the HISTORY screen. The handset is 10:00 10:00 10:00 10:00 10:00 connecting to the controller. After connection is established, the HISTORY screen appears with the TOTAL THIS MONTH for Valve #1 and #2. Press again to view the TOTAL LAST MONTH for Valve #1 and #2. Repeat the same RAIN SENSOR MANUAL RUN PROGRAM TEMP: 68F RAIN: 0.00 IN/HR ACTIVE ACTIVE ACTIVE HUMIDITY: 0% 100 %: SUNLIGHT steps to review rainfall information and water saving information if ET is WIND: 00 M/S ET: 0.02 IN/HR...
  • Page 32 XX:XX XX:XX XX:XX XX:XX CONNECT TOTAL THIS MONTH TOTAL LAST MONTH 4. Exit Controller Menu 10:00 10:00 In the CONTROLLER MENU screen, press or and highlight the CONTROLLER EXIT icon. Press to exit CONTROLLER MENU screen and the SAVING STATUS SAVING STATUS CONTROLLER MENU screen appears. The handset will turn off. If the handset WATER SAVED: 20% WATER SAVED: 20% is left on, it will turn off automatically in 10 minutes. TIME SAVED: XX.XX TIME SAVED: XX.XX TOTAL THIS MONTH TOTAL LAST MONTH 10:00...

  • Page 33: About The Leit Rc2Et Environment Features (Leit-2Et Only)

    About the LEIT RC2ET Environment Features Introduction Today, irrigation use can be optimized through the use of our weather based irrigation control system developed for landscape irrigation. This can be achieved by monitoring the soil, temperature, humidity, radiation, rainfall, wind, and environmental conditions at the irrigation site. Both the plants water requirements and the amount available to the plant roots can be measured or estimated through a variety of techniques. These techniques include the feel method, which is an estimate based on the user’s knowledge of the irrigation site, the more accurate method of utilizing tensiometers, or the use of weather sensors designed to monitor real time conditions including water demands influenced by the local environment, the irrigation method and the plant types. Water Requirements To simplify the relationships between plants, water requirements and the environment, the term evapotranspiration is often used. Originally established for agriculture, where irrigation requirements are well documented, evapotranspiration measures the loss of water for various crops planted by farmers. Evapotranspiration takes into consideration the loss of water from the plant surface, the evaporation of water from the soil and the water lost through transpiration during a specific time period. Historical values for many crop types have been recorded and are made available through agricultural extension services. Evapotranspiration (ET) Several methods have been developed to estimate crop ET. Most methods use weather data to provide an estimate of reference, or potential, evapotranspiration (ETo). Often this estimate of reference is converted to “actual” ET using a factor known as a crop coefficient (Kc). In landscape irrigation, reference evapotranspiration (ETo) is established for well-watered turf grass, however most landscape species do not have values established. The turf and landscape industry’s managers and users are not equipped to measure the plants’ water loss. The feel method is not practical due to the large variety of...
  • Page 34 BASED ON reference crop Radiation well watered Temperature grass Wind speed Humidity K c factor well watered crop optimal agronomic conditions Water Saving Knowledge of the environment, plants water requirements, and the tools to calculate how much water is available in the soil may help in reducing water use by increasing irrigation efficiency. By viewing the soil as a reservoir for the plant’s water, and calculating the daily water needs of the plant using various factors and landscape coefficients, we can determine approximately how long plants can survive on the water available in the soil. When the water in the soil is close to depletion, a timed irrigation in the proper amount can refill the soil profile, restarting the cycle.
  • Page 35 The Importance of Soil Texture in Setting ET Before programming the LEIT RC2-ET handset and using the new ET features we recommend that the user read about soil texture. Knowing the soil type is important in setting the proper configuration on the LEIT RC2-ET. Most users can determine the soil type by reviewing the following: A fine-textured soil is referred to as clay soil. Sandy soil is a coarse-textured soil. Numerous soil properties are influenced by texture, including drainage, water- holding capacity, aeration, susceptibility to erosion and organic matter content. The soil texture determines the rate at which water drains through saturated soil. Water moves more freely through sandy soils than it does through clay soils. Once field capacity is reached, soil texture also influences how much water is available to the plants. Clay soils have a greater water-holding capacity than sandy soils. In addition, well-drained soils typically have good soil aeration meaning that the soil contains air that is similar to atmospheric air, which is conducive to healthy root growth, and thus, to healthy plants. How to Determine Soil Texture and Type • Sandy soil: Feels gritty and if formed into a ball when moist, falls apart easily. • Loamy soil: Feels somewhat gritty, retains water easily and is easy to work with it. It has relatively even amounts of sand, silt, and clay. If formed into a ball when moist, will hold its shape, yet still will break apart easily when squeezed. • Clay soil: Forms large, hard clods, and cracks form on the surface. Clay soils feel sticky and are bendable when moist. A ribbon can be formed when moist by pinching soil between fingers and thumb. A longer ribbon formed before it breaks indicates a higher amount of clay.
  • Page 36 About the LEIT RC2-ET Environment Features (LEIT-2ET only) The ENVIRONMENT menu is used to activate and set the ET feature, adjust budgets, and set wind and rain gauge sensors. The ET MONITOR screens are used to input site information for each zone which is then downloaded to the LEIT-2ET controller. With the ET data received from the weather station the LEIT-2ET controller calculates the hourly and daily local microclimate and adjusts or overrides the daily scheduled irrigation program. ET Edit can be used to edit ET settings from 10% to 200%. The Budget feature is used to reflect seasonal changes by adjusting each month’s irrigation schedule by percentages from 10% to 200%. The Rain Gauge setting is used to select rainfall amounts from 1/8” to 1” (3 mm to 25 mm). This data, coupled with information provided by the weather station, will adjust or override the irrigation program. Wind Speed information provided by the weather station overrides irrigation when wind speeds ranging from 8 to 25 MPH (3.5 - 11.1 m/s) are reached. How DIG’s Weather Based System Works As daily ET accumulates, ET value, along with site information and microclimate coefficients are used to determine plant water requirements and allowable soil depletion rate. System run time is set and based upon the irrigation method along with application rate and site information water requirements. When ET is active, this calculated run time replaces or overrides the program duration that the user set originally. In activating ET the user enters detailed information on each site zone to the LEIT RC2ET handset. This information includes mature or new planting, soil type, plant type, plant density, slope, microclimate type, irrigation method, irrigation efficiency, flow rate and spacing if available. Based on the user input and the information collected hourly from the weather station sensors, the controller performs the daily calculations needed to override or adjust the scheduled irrigation program specifically for each zone, to compensate for...

  • Page 37: How To Program And Activate Et

    evapotranspiration (ET). The result can be reviewed in the REPORTS MENU, STATUS REPORT and HISTORY REPORT. NOTE: The controller can receive information from more than one weather station in the area if available. How to Program and Activate ET 1. Setting and Activating ET: Using the ET MONITOR feature in the ENVIRONMENT screen, the user can enter detailed site information to each zone (valve #) and download this information to the LEIT-2ET controller. The controller use the information received from the handset and the weather station to adjust the daily irrigation schedule. The effect on the daily scheduled irrigation programs based on weather data collected can be reviewed in the REPORTS MENU and HISTORY Report. Activating ET: Using this feature the user enters detailed information for each valve or site zone. Follow theses steps to configure each zone setting conditions using the handset ET MONITOR screens: Step 1: Select plant stage of life (example: mature) Step 2: Select soil type (example: clay) Step 3: Select plant type (example: mix planting) Step 4: Select plant density (example: 50-70%) Step 5: Select percentage of slope (example: 0 to 4%) Step 6: Select microclimate type (example: open space) Step 7: Select irrigation method (example: spray) Step 8: Select irrigation efficiency (example: 70%). This is the default setting that can be changed. Step 9: Select irrigation method flow rates (example: 1 GPM (3.8 L/M) Step 10: Select irrigation method spacing (example: 10’ (3 m)
  • Page 38 .1 GPH & up 1 ft. & up Full Shade Spray 70%* Rotor 80%* Dripline 90%* Micro sprinkler 70%* * Default setting can be adjusted to any specific distribution uniformity. ** The formulas assume that rotors and sprinklers are set for 360° coverage. If they are set of lower coverage, the Flow Rate must be adjusted upwards to the weighted average to compensate. For example: If 6 rotors are installed in a rectangular pattern with 4 operating with 90° coverage and 2 operating with 180° coverage, the Flow Rate (FR) that should be entered should be: ((FR90*4)*4 + (FR180*2)*2) / 6 = (20/6)*FR = 3.3 * FR Where FR90 and FR180 are the flow rates of the 90° rotors and 180° rotors repectively. NOTE: In the event an audit of the site soil condition cannot be performed prior to initial setting of the LEIT ET System, we recommend soaking the soil thoroughly to ensure the soil is wet as a reference point for the system from which the LEIT-2ET starts calculating the site ET. FINE-TUNING THE SYSTEM: We recommend monitoring both the plant health and the soil moisture level on a weekly basis. If the plants are showing signs of distress or the soil appears to be oversaturated, fine-tuning of the system can be accomplished utilizing the ET Edit feature. The system can be fine-tuned based on weather pattern, location and the ET zone setting. Either an upward or downward adjustment in percent can be made to adjust to the actual ET setting condition. Again, DIG strongly recommends a careful monitoring of the site for the first month of operation.
  • Page 39 2. Setting the controller to operate with the weather station and to compensate for evapotranspiration (ET): In the ENVIRONMENT Menu screen press and highlight ET MONITOR icon. Press again and the next screen appears with the valves number. Press , SELECT VALVE screen appears with valve 1 and 2. Press and select a valve. Press to connect, when connected, CONNECTED appear momentarily and then ET MONITOR screen appears with ET INACTIVE blinking. Press to change INACTIVE to ACTIVE. Press and ET MONITOR screen appears with NEW or MATURE blinking. Press or and select one of the plants appearance option. Next, select the soil type. Press to select SOIL TYPE. CLAY appears, blinking. Press or and select the soil type for the indicated valve, (refer to ‘How to Determine Soil Texture’ on page 35). After selecting the SOIL TYPE, press to move to the next screen and repeat the steps for selecting PLANT TYPE and PLANT DENSITY. In PLANT TYPE, select from MIX PLANTING to ANNUALS and in PLANT DENSITY select from 10-30% to plant density of 70-100%. After selecting the setting...
  • Page 40 10:00 10:00 10:00 10:00 10:00 LAST ET ACTIVITY 00:00 00/00 00 TIMES TODAY ALERT SELECT VALVE CONTROLLER MENU ENVIRONMENT ET MONITOR 10:00 10:00 10:00 10:00 10:00 UPLOADING CONNECTED ET ACTIVE PLANTING: PLANT TYPE: MATURE SHRUBS SOIL TYPE: PLANT DENSITY: CLAY 30-60% CONNECT CONNECT...
  • Page 41 ET MONITOR SELECT VALVE ET MONITOR ET MONITOR ET MONITOR 10:00 10:00 10:00 10:00 10:00 press to download the new information. ARE YOU SURE? screen will ARE YOU SURE? CONNECTED UPDATE DOWNLOADING FLOW RATE: SUCCESSFUL appear with YES. Press again to download the information. The UPDATE .5 GPH DRIP SPACING: SUCCESSFUL message appears confirming that the controller accepted the 1 FT new information and then, the ENVIRONMENT screen appears again. ET MONITOR YES / NO CONNECT CONNECT CONNECT...
  • Page 42 10:00 10:00 10:00 10:00 10:00 UPLOADING CONNECTED In the ENVIRONMENT menu screen highlight the RAIN GAUGE screen. Press again to connect. CONNECTED will appear momentarily and then the RAIN GAUGE screen appears with SET RAIN OFF: NOT ACTIVE, blinking. Press or CONTROLLER MENU ENVIRONMENT ET EDIT CONNECT CONNECT to select the rainfall value to shut off irrigation. 10:00 10:00 10:00 10:00 10:00 When finished, press to download the new information. ARE YOU SURE? CONNECTED UPDATE ARE YOU SURE? DOWNLOADING screen will appear with YES. Press again to download the information. The SUCCESSFUL ADJUST ET 100% UPDATE SUCCESSFUL message appears confirming that the controller accepted the new information and then the ENVIRONMENT screen appears again. CONNECT CONNECT ET EDIT...
  • Page 43 SUCCESSFUL ADJUST ET 100% ET EDIT CONNECT CONNECT CONNECT YES / NO In the ENVIRONMENT menu screen highlight the BUDGET icon. Press 10:00 10:00 10:00 10:00 10:00 again to enter the BUDGET screen. CONNECTED appears momentarily then, the BUDGET screen appears with the first 4 months of the year all set to 100% UPLOADING CONNECTED with JAN, 100% blinking. To increase or decrease the budget percentage (in increments of 10%), press or . Press and repeat the steps for the following month. Press to move to the next screen and repeat the steps. CONTROLLER MENU ENVIRONMENT RAIN SENSOR CONNECT CONNECT When finished, press to download the new information. ARE YOU SURE? 10:00 10:00 10:00 10:00 10:00...
  • Page 44 10:00 10:00 10:00 10:00 10:00 UPLOADING CONNECTED 6. Wind Speed Setup: Wind speed setting can be programmed to shut down the irrigation system at CONTROLLER MENU ENVIRONMENT BUDGET CONNECT CONNECT wind speeds from 8 to 25 miles per hour (3.5 - 11.1 m/s). 10:00 10:00 10:00 10:00 10:00 In the ENVIRONMENT menu screen navigate and highlight the WIND SENSOR ARE YOU SURE? DOWNLOADING icon. Press again to connect. CONNECTED will appear momentarily and 100% 100% 100% then the WIND SENSOR screen appears with SET WIND OFF: NOT ACTIVE, 100% 100% 100% 100% 100% 100% blinking. Press or to select the wind speed value to shut off irrigation.

  • Page 45: General Information For Handset And Controller

    5) The handset needs to be kept in a charged state. After 500-1,000 charge cycles the internal batteries may need replacement. IMPORTANT: Communication between the LEIT RC2ET handset and the LEIT-2ET controller is automatically limited to daylight hours between 8 AM to 5 PM, when there is sufficient light energy. Longer bright light days will enable the radio to operate automatically over...

  • Page 46: Programming Problems

    8. Make sure there is enough time between the programs and/or start times to meet your watering time in Budget (up to 200% possible). There is no communication between the handset and the controllers. Solution: 1) Check that the controller PVM (solar) panel is not covered. If it has been covered for an extended period, the controller time will reset. 8.1 The Password has been changed or forgotten Please call DIG Customer Service with the serial number of the controller and handset.

  • Page 47: Programming Quick Reference Chart

    PROGRAMMING QUICK REFERENCE CHART...

  • Page 48: Warranty

    In order to obtain performance under this warranty, the unit must be returned to the factory, along with proof of purchase indicating original date of purchase, shipping prepaid, addressed as follows: DIG CORPORATION, 1210 Activity Drive, Vista, CA 92081-8510. Repaired or replaced units will be shipped prepaid to the name and address supplied with the unit returned under warranty. Allow four weeks for repairs and shipping time. Repair of damaged units not other- wise within warranty may be refused or done at a reasonable cost or charge at the option of DIG CORPORATION. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. www.digcorp.com dig@digcorp.com 26-059 REVB 112713 1210 Activity Drive Printed in the USA Vista, CA 92081-8510, USA DIG is a Registered Service Mark of DIG Corp.
