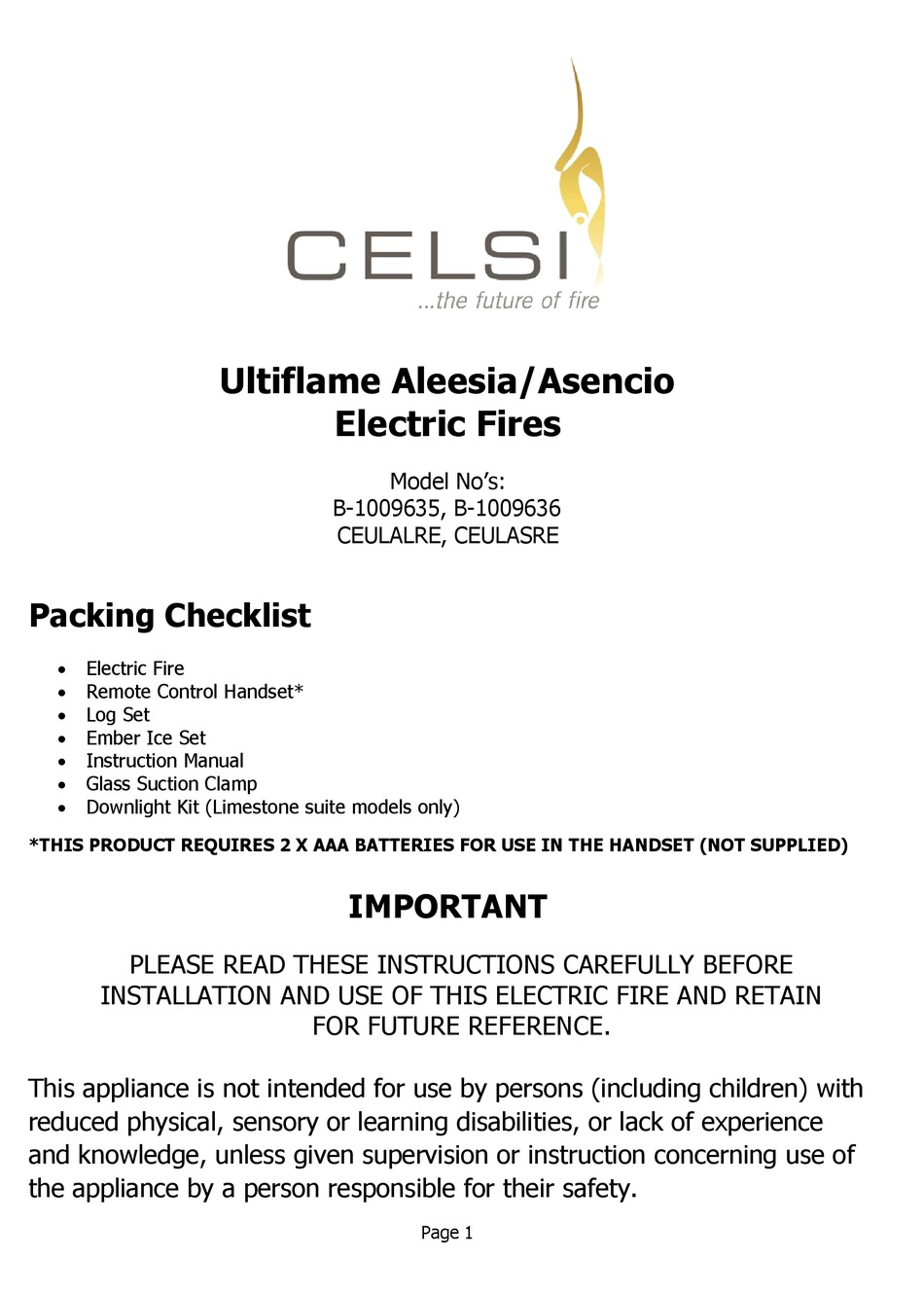

Packing Checklist
 Electric Fire
 Remote Control Handset*
 
 Log Set
 Ember Ice Set
 Instruction Manual
 Glass Suction Clamp
 Downlight Kit (Limestone suite models only)
*THIS PRODUCT REQUIRES 2 X AAA BATTERIES FOR USE IN THE HANDSET (NOT SUPPLIED)
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE
INSTALLATION AND USE OF THIS ELECTRIC FIRE AND RETAIN
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or learning disabilities, or lack of experience
and knowledge, unless given supervision or instruction concerning use of
the appliance by a person responsible for their safety.

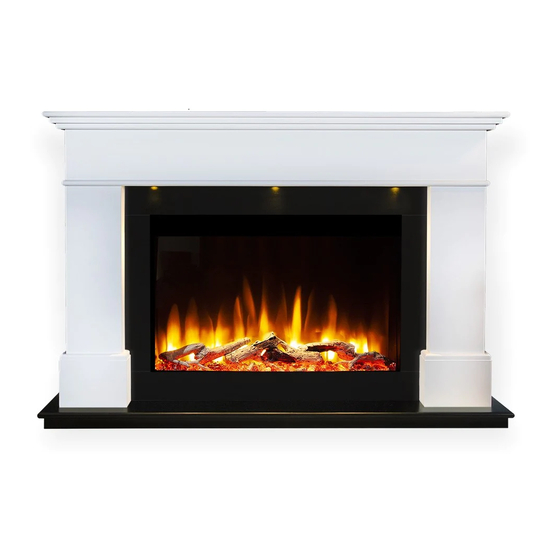

Ultiflame Aleesia/Asencio
Electric Fires
B-1009635, B-1009636
CEULALRE, CEULASRE
IMPORTANT
FOR FUTURE REFERENCE.
Model No's:
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultiflame Aleesia and is the answer not in the manual?

Questions and answers

Related Manuals for Celsi Ultiflame Aleesia

Summary of Contents for Celsi Ultiflame Aleesia

  • Page 1 Ultiflame Aleesia/Asencio Electric Fires Model No’s: B-1009635, B-1009636 CEULALRE, CEULASRE Packing Checklist  Electric Fire   Remote Control Handset*    Log Set   Ember Ice Set   Instruction Manual   Glass Suction Clamp ...

  • Page 2: Important Safety Advice

    IMPORTANT SAFETY ADVICE WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING IMPORTANT SAFETY ADVICE. DO NOT cover or obstruct the airflow to the front of the heater. This is to avoid over-heating of the product.
  • Page 3 Product Technical Data Sheet Supplier Name / Trademark CELSI Supplier Model Identifier B-1009635 ALEESIA, B-1009636 ASENCIO Voltage 230v AC 50HZ Fuse 13 Amp Nominal Heat Output (Measured) 1.6 kW Minimum Heat Output (Indicative) 0.8 kW Maximum Continuous Heat Output 1.6 kW Auxiliary Electricity Consumption at Nominal Heat Output 0.016 kW...

  • Page 4: Choosing A Suitable Location

    Unpacking Remove and discard the plastic bag. Be responsible when handling the packing materials. Keep the original packaging for future transportation and/or storage. Check all accessories are removed from the packaging before storing it away for future use. KEEP PLASTIC BAGS AWAY FROM CHILDREN! Choosing a suitable location This electric fire is designed to be fitted within an existing brick / masonry chimney breast which must be dry with the chimney capped off using a suitable chimney cap.

  • Page 5: Installation

    Installation Please refer to the relevant installation instructions applicable to the model fire purchased. Installation must be carried out by a qualified and competent person. The opening sizes required to install the fires are Asencio Aleesia H : 765mm H : 685mm W : 600mm W : 800mm D : 185mm...
  • Page 6 A false studded chimney breast can be built with a plastered finish to encase the fire The chimney wall can now be finished with plasterboard or an alternative facing material which terminates at the facing trim. The fire can be fitted direct into the chimney breast and plastered flush up to the facing trim Ultiflame Asencio &...
  • Page 7 INSTALLING THE “ASENCIO” SURROUND 1. Unpack the surround from the wooden crate, check all parts are present and carefully store the components. Contents of Asencio surround:- 1 off hearth panel 1 off R/H leg 1 off L/H leg 1 off R/H infill section 1 off L/H infill section 1 off bottom infill section 1 off top infill section...
  • Page 8 6. Fix the shelf top infill section and shelf infill into place again utilising the same procedure as for the legs, i.e. mark positions, drill holes to suit, remove brackets and secure brackets to wall with suitable fixings as detailed in Point 5. 7.
  • Page 9 INSTALLING THE “ALEESIA” SURROUND 1. Unpack the surround from the wooden crate, check all parts are present and carefully store the components. Contents of Aleesia surround:- 1 off hearth panel 1 off R/H leg 1 off L/H leg 1 off R/H infill section 1 off L/H infill section 1 off bottom infill section 1 off top infill section...
  • Page 10 2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part PVA). This will prevent staining penetrating through the stone. The hearth must be centred to the opening. If the fireplace is to be installed on a chimney breast ensure that the opening is also centred to the chimney breast.
  • Page 11 12. Fit shelf top section into place ensuring it is correctly centred, mark the position of holes for securing brackets on wall, remove shelf and drill wall and insert fixings in accordance with Point 5, these brackets can be recessed if required. 13.
  • Page 12 Front Glass Removal To gain access to the Log Bed base remove front glass panel as shown below. Place glass suction tool onto glass panel then remove 4 off side cheek fixing screws. Remove 2 off screws from top glass clamp, making sure that the glass panel does not fall forward. Glass Clamp Fixing Screws Glass Clamp...
  • Page 13 Laying the Log & Embers The Logs and the Ember Ice are packed in a box within the fire. Take care when unpacking the Logs and the Ember Ice. Scatter the Ember Ice over the Log Bed Base making sure the black and clear embers are mixed evenly.
  • Page 14 Ultiflame VR Asencio Log Chippings Total Logs = 5  x1 of log 1   x1 of log 2   x2 of log 3   x1 of log 4 Page 14...

  • Page 15: Operating The Fire

    Operating the Fire Manual Control This appliance can be operated manually using the controls situated on the underside of the upper canopy of the fire or by the included remote-control handset. ON / OFF Power Switch This switch is used to turn the mains supply to the appliance ON or OFF. When the switch is in the ON position an indicator light located in the centre of the screen will glow amber to indicate the appliance is switched on and in standby mode.

  • Page 16: Remote Control

    Remote Control Remove the battery / control panel cover by sliding completely down and insert 2 x AAA batteries ensuring the batteries are fitted correctly. Refit the cover by sliding back up to the original position. Please ensure old batteries are disposed of responsibly by contacting your local authority about recycling schemes.
  • Page 17 Smart Control functions The Smart Control panel reveals additional buttons to allow the following functions  Set the Time of day   Thermostatic temperature adjustment from 16 to 30°C   Set 7-day timer with up to 3 programmable periods per day ...
  • Page 18 To set Timer 2 & 3 or alter timer programme. 8. Repeatedly pressing the TIMER button will cycle through the 3 available timer programmes displaying the set parameters. To change or set an additional timer programme choose the Timer number required and press the SELECT button. 9.

  • Page 19: Maintenance Instructions

    IMPORTANT This appliance is fitted with an automatic thermal cut-out safety feature to reduce the risk of damage to appliance due to overheating. If the appliance overheats the heater element will cut out whilst the fan will still continue to run to allow the fire to cool down sufficiently. Once the appliance has cooled down the thermal cut- out will reset itself and switch the heater back on.

  • Page 20: Warranty

    Warranty Congratulations on the purchase of your electric fire. This fire by BFM Europe Ltd is guaranteed for 5 years from the date of purchase against faulty materials or workmanship. Please note the 5 year guarantee comprises of 24 months of parts and labour with an extended 36 months of parts only.
