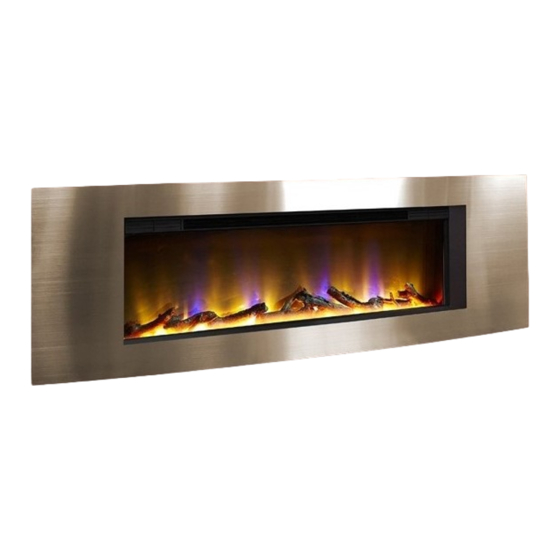

Electriflame VR 40" HOW Electric Fire
Packing Checklist
Electric Fire
•
Remote Control Handset*
•
Log Set
•
Ember Ice Set
•
Instruction Manual
•
Fascia
•
*THIS PRODUCT REQUIRES 2 X AAA BATTERIES FOR USE IN THE HANDSET (NOT SUPPLIED)
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE
INSTALLATION AND USE OF THIS ELECTRIC FIRE AND RETAIN FOR
Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3
years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its
intended normal operating position and they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or perform user maintenance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
learning disabilities, or lack of experience and knowledge, unless given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Part No:
B-1005974
IMPORTANT
FUTURE REFERENCE.
Page 1
Model No:
EFVR40RE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Celsi Electriflame VR EFVR40RE
Summary of Contents for Celsi Electriflame VR EFVR40RE
- Page 1 Electriflame VR 40” HOW Electric Fire Part No: Model No: B-1005974 EFVR40RE Packing Checklist Electric Fire • Remote Control Handset* • Log Set • Ember Ice Set • Instruction Manual • Fascia • *THIS PRODUCT REQUIRES 2 X AAA BATTERIES FOR USE IN THE HANDSET (NOT SUPPLIED) IMPORTANT PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND USE OF THIS ELECTRIC FIRE AND RETAIN FOR...
-
Page 2: Important Safety Advice
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. IMPORTANT SAFETY ADVICE WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING IMPORTANT SAFETY ADVICE. - Page 3 Product Technical Data Sheet Supplier Name / Trademark CELSI Supplier Model Identifier B-1005974, ELECTRIFLAME VR 40” HOW Voltage 230v AC 50HZ Fuse 13 Amp Nominal Heat Output (Measured) 1.6 kW Minimum Heat Output (Indicative) 0.8 kW Maximum Continuous Heat Output 1.6 kW...
-
Page 4: Choosing A Suitable Location
Unpacking Remove and discard the plastic bag. Be responsible when handling the packing materials. Keep the original packaging for future transportation and/or storage. Check all accessories are removed from the packaging before storing it away for future use. KEEP PLASTIC BAGS AWAY FROM CHILDREN! Choosing a suitable location This electric fire is designed to be fitted to a solid wall using the wall mounting bracket as supplied. -
Page 5: Wall Mounting
Wall Mounting Using a screwdriver remove the two screws that secure the wall mounting bracket to the top of the appliance and remove the wall mounting bracket and keep in a safe place Position the mounting bracket where the appliance is to be installed on the wall and ensure that the bracket is level. - Page 6 Laying the Log & Embers Remove the glass RH & LH trims which are held in place with 2 screws on each side. Whilst supporting the glass to prevent it from falling forward, remove the 2 additional screws holding the glass top trim in place and then carefully remove the glass and put in a safe place.
-
Page 7: Fitting The Trim
Fitting the Trim The trim is fitted to the fire by locating the trim brackets onto the location lugs of the side of the fire as shown below. (please refer to additional instructions included with the chosen trim) Page 7... -
Page 8: Operating The Fire
Operating the Fire Manual Control This appliance can be operated manually using the controls situated on the right-hand underside of the upper canopy or by the included remote-control handset. ON / OFF Power Switch This switch is used to turn the mains supply to the appliance ON or OFF. When the switch is in the ON position an indicator light located in the centre of the screen will glow amber to indicate the appliance is switched on and in standby mode. -
Page 9: Remote Control
Remote Control Remove the battery / control panel cover by sliding completely down and insert 2 x AAA batteries ensuring the batteries are fitted correctly. Refit the cover by sliding back up to the original position. Please ensure old batteries are disposed of responsibly by contacting your local authority about recycling schemes. - Page 10 Smart Control functions The Smart Control panel reveals additional buttons to allow the following functions Set the Time of day • Thermostatic temperature adjustment from 16 to 30°C • Set 7-day timer with up to 3 programmable periods per day •...
- Page 11 To set Timer 2 & 3 or alter timer programme. 8. Repeatedly pressing the TIMER button will cycle through the 3 available timer programmes displaying the set parameters. To change or set an additional timer programme choose the Timer number required and press the SELECT button. 9.
-
Page 12: Maintenance Instructions
This appliance is fitted with an automatic thermal cut-out safety feature to reduce the risk of damage to appliance due to overheating. If the appliance overheats the heater element will cut out whilst the fan will still continue to run to allow the fire to cool down sufficiently. Once the appliance has cooled down the thermal cut-out will reset itself and switch the heater back on. -
Page 13: Warranty
Warranty Congratulations on the purchase of your electric fire. This fire by BFM Europe Ltd is guaranteed for 5 years from the date of purchase against faulty materials or workmanship. Please note the 5 year guarantee comprises of 24 months of parts and labour with an extended 36 months of parts only. If your appliance is found to be defective within 24 months from the date of purchase, we or our authorized agent will repair the faulty component on site.
