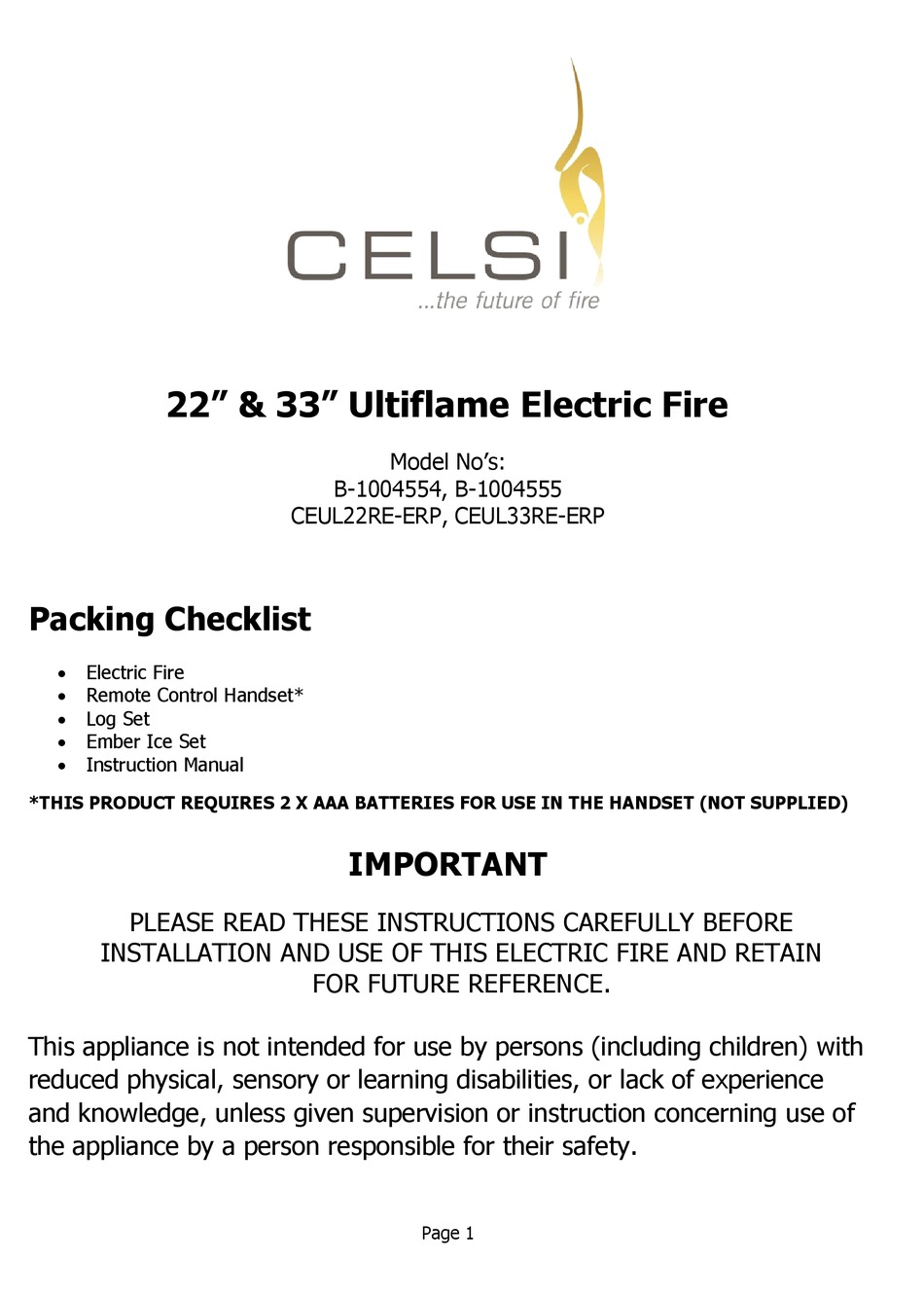

22” & 33” Ultiflame Electric Fire Model No’s: B-1004554, B-1004555 CEUL22RE-ERP, CEUL33RE-ERP Packing Checklist Electric Fire Remote Control Handset* Log Set Ember Ice Set Instruction Manual *THIS PRODUCT REQUIRES 2 X AAA BATTERIES FOR USE IN THE HANDSET (NOT SUPPLIED)
IMPORTANT SAFETY ADVICE WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING IMPORTANT SAFETY ADVICE. DO NOT cover or obstruct the airflow to the front of the heater. This is to avoid over-heating of the product.
Page 3
Product Technical Data Sheet Supplier Name / Trademark CELSI Supplier Model Identifier B-1004554, B-1004555 ULTIFLAME 22” & 33” Voltage 230v AC 50HZ Fuse 13 Amp Nominal Heat Output (Measured) 1.6 kW Minimum Heat Output (Indicative) 0.8 kW Maximum Continuous Heat Output 1.6 kW...
Unpacking Remove and discard the plastic bag. Be responsible when handling the packing materials. Keep the original packaging for future transportation and/or storage. Check all accessories are removed from the packaging before storing it away for future use. KEEP PLASTIC BAGS AWAY FROM CHILDREN! Choosing a suitable location This electric fire is designed to be fitted within an existing brick / masonry chimney breast which must be dry with the chimney capped off using a suitable chimney cap.
Installation Please refer to the relevant installation instructions applicable to the model fire purchased. Installation must be carried out by a qualified and competent person. The opening sizes required to install the fires are Ultiflame 22” Ultiflame 33” H : 650mm H : 605mm W : 610mm W : 890mm...
Page 6
Ultiflame 22” & 33” Wall Mounting The base of the fire opening must be solid, level and firmly fixed to safely support the weight of the fire. The fire is held in place using 4 suitable screws and fasteners in the 4 fixing holes on the sides of the appliance.
Page 7
Rennes, Avignon & Lille Models (22”) Fireplace opening for Pablo, Boticelli & Angelo Surrounds When fitting this fire into a surround the fireplace opening needs to be prepared at differing heights dependent upon which surround type is to be installed. Pablo Surround Fire opening to be 146mm from floor level...
Page 8
INSTALLING THE “PABLO” SURROUND 1. Unpack the surround from the wooden crate, check all parts are present and carefully store the components. Contents of Pablo surround:- 1 off hearth panel 1 off R/H leg 1 off L/H leg 1 off R/H infill section 1 off L/H infill section 1 off bottom infill section 1 off shelf...
Page 9
6. Fix the top infill and shelf infill into place again with suitable mastic adhesive. 7. Fit shelf into place ensuring it is correctly aligned with legs, mark the position of holes for securing brackets on wall, remove shelf and drill wall and insert fixings in accordance with Point 5, these brackets can be recessed if required.
Page 10
INSTALLING THE “BOTICELLI” SURROUND 1. Unpack the surround from the wooden crate, check all parts are present as per below and carefully store the components. Contents of Boticelli surround:- 1 off hearth panel 1 off R/H leg 1 off L/H leg 1 off R/H infill section 1 off L/H infill section 1 off bottom infill section...
Page 11
into light weight blockwork or friable aggregate blocks, the fixings shall be of the resin anchor type. 6. Fix the shelf top infill section and shelf infill into place again utilising the same procedure as for the legs, i.e. mark positions, drill holes to suit, remove brackets and secure brackets to wall with suitable fixings as detailed in Point 5.
Page 12
INSTALLING THE “ANGELO” SURROUND 1. Unpack the surround from the wooden crate, check all parts are present as per below and carefully store the components. Contents of Angelo surround:- 1 off hearth panel 1 off R/H leg 1 off L/H leg 1 off R/H infill section 1 off L/H infill section 1 off bottom infill section...
Page 13
5. Assess the chimney breast onto which the fire is to be installed and ensure that it is of sound construction and suitable for supporting the weight of the surround. Fixings used to secure the leg brackets to the masonry of the chimney breast shall be of expansive stainless steel or galvanised steel type masonry fixings for dense concrete blockwork or brickwork.
Page 14
Parada Illumia Elite & Avignon Elite Models (33”) Fireplace opening for Parada Illumia Elite & Avignon Elite Surrounds When fitting this fire into these surrounds the fireplace opening needs to be prepared at 103mm from the floor as shown below INSTALLING THE “PARADA ILLUMIA ELITE”...
Page 15
2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part PVA). This will prevent staining penetrating through the stone. The hearth must be centred to the opening. If the fireplace is to be installed on a chimney breast ensure that the opening is also centred to the chimney breast.
Page 16
12. Fit shelf top section into place ensuring it is correctly centred, mark the position of holes for securing brackets on wall, remove shelf and drill wall and insert fixings in accordance with Point 5, these brackets can be recessed if required. 13.
Page 17
INSTALLING THE “AVIGNON ELITE” SURROUND 1. Unpack the surround from the wooden crate, check all parts are present as per below and carefully store the components. Contents of Avignon surround:- 1 off hearth panel 1 off R/H leg 1 off L/H leg 1 off R/H infill section 1 off L/H infill section 1 off bottom infill section...
Page 18
5. Assess the chimney breast onto which the fire is to be installed and ensure that it is of sound construction and suitable for supporting the weight of the surround. Fixings used to secure the leg brackets to the masonry of the chimney breast shall be of expansive stainless steel or galvanised steel type masonry fixings for dense concrete blockwork or brickwork.
Page 19
Laying the Logs & Embers – 22” Models The Logs and the Ember Ice are packed in a box within the fire. Take care when unpacking the Logs and the Ember Ice. Scatter the Ember Ice over the Log Bed Base making sure the black and clear embers are mixed evenly.
Page 20
Laying the Logs & Embers – 33” Models The Logs and the Ember Ice are packed in a box within the fire. Take care when unpacking the Logs and the Ember Ice. Scatter the Ember Ice over the Log Bed Base making sure the black and clear embers are mixed evenly.
Operating the Fire Manual Control This appliance can be operated manually using the controls situated on the underside of the upper canopy of the fire or by the included remote-control handset. ON / OFF Power Switch This switch is used to turn the mains supply to the appliance ON or OFF. When the switch is in the ON position an indicator light located in the centre of the screen will glow amber to indicate the appliance is switched on and in standby mode.
Remote Control Remove the battery / control panel cover by sliding completely down and insert 2 x AAA batteries ensuring the batteries are fitted correctly. Refit the cover by sliding back up to the original position. Please ensure old batteries are disposed of responsibly by contacting your local authority about recycling schemes.
Smart Control functions The Smart Control panel reveals additional buttons to allow the following functions Set the Time of day Thermostatic temperature adjustment from 16 to 30°C Set 7-day timer with up to 3 programmable periods per day ...
To set Timer 2 & 3 or alter timer programme. 8. Repeatedly pressing the TIMER button will cycle through the 3 available timer programmes displaying the set parameters. To change or set an additional timer programme choose the Timer number required and press the SELECT button. 9.
IMPORTANT This appliance is fitted with an automatic thermal cut-out safety feature to reduce the risk of damage to appliance due to overheating. If the appliance overheats the heater element will cut out whilst the fan will still continue to run to allow the fire to cool down sufficiently. Once the appliance has cooled down the thermal cut- out will reset itself and switch the heater back on.
Warranty Congratulations on the purchase of your electric fire. This fire by BFM Europe Ltd is guaranteed for 5 years from the date of purchase against faulty materials or workmanship. Please note the 5 year guarantee comprises of 24 months of parts and labour with an extended 36 months of parts only.
