Table of Contents

Wall Hung Electric Fires
Packing Check list
1 off
Package 1
1 off
1 off
1 off
2 off
1 off
1 off
Package 2
THIS INSTRUCTION BOOKLET MUST BE LEFT WITH THE USER
"Electriflame"
Electric fire
Wall fixing plate
Decorative light kit - optional
Remote control handset
AAA batteries
Instructions manual
Fascia

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Electriflame and is the answer not in the manual?

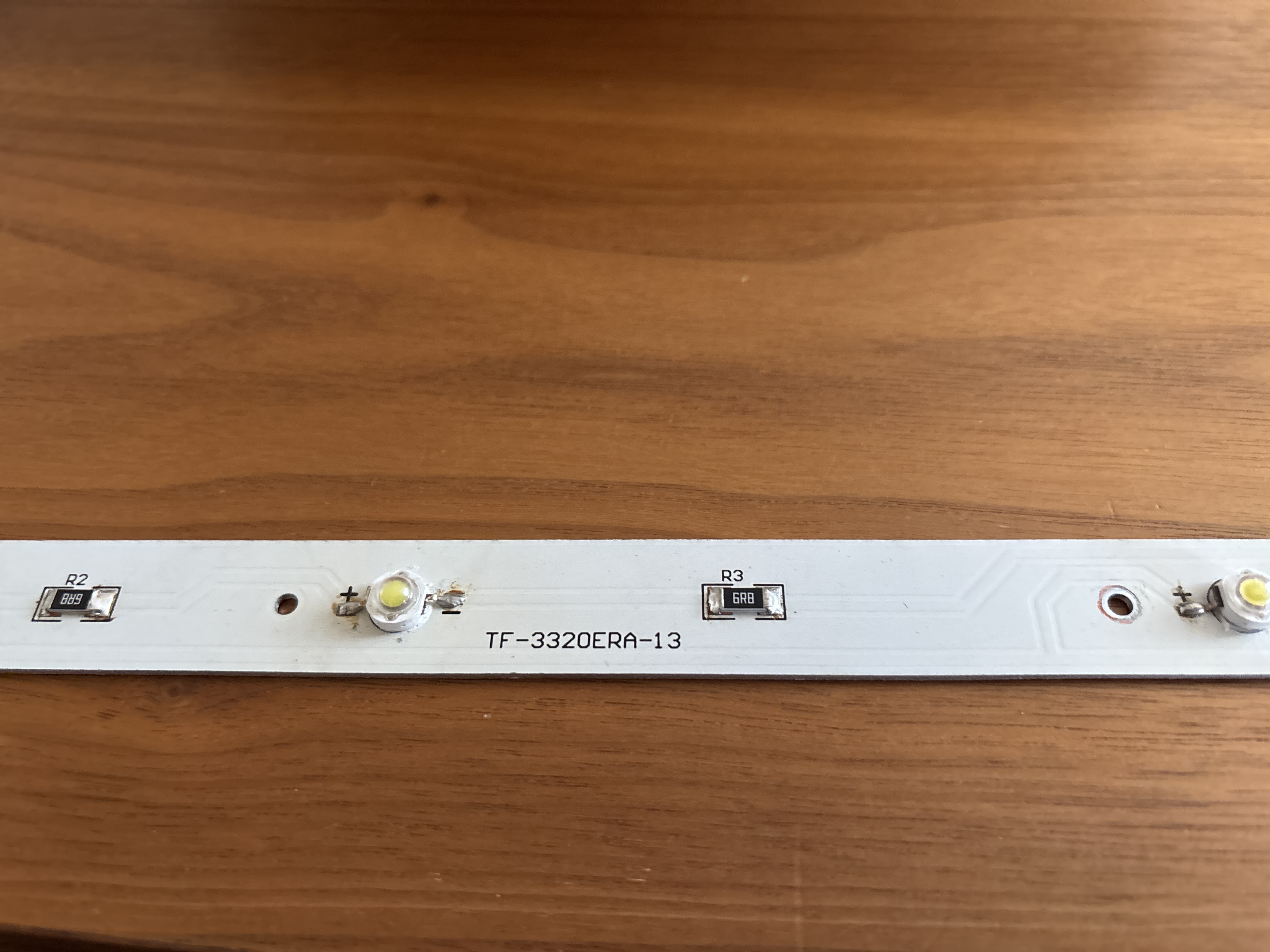

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Celsi Electriflame

Summary of Contents for Celsi Electriflame

  • Page 1 "Electriflame" Wall Hung Electric Fires Packing Check list 1 off Electric fire Package 1 1 off Wall fixing plate 1 off Decorative light kit - optional 1 off Remote control handset 2 off AAA batteries 1 off Instructions manual 1 off...

  • Page 2: Installation Instructions

    2. Mark the central line of the fire on to the horizontal line 3. When the Celsi Electriflame product is unpacked unscrew the four transit screws holding the fixing plate to the back of the fire. Place the Fixing Plate supplied to the horizontal line and line up the central “V”...
  • Page 3 7. If a firm fixing is not achieved it may be necessary to install extra support to the studding. It is most important that the fixings are firm and solid and that the structure is capable of taking the load. Plasterboard fixings are not recommended. 8.
  • Page 4 C. Electrical Work THIS PRODUCT MUST BE EARTHED 1. A mains electrical point must be sited close to the fire. Ensure it is in reach of fires mains flex and plug. Always ensure that it is possible to remove the fire at a later date, if required. DO NOT INSTALL THE FIRE WHERE THE HEATER IS DIRECTLY ABOVE THE PLUG SOCKET.
  • Page 5 D. Fixing The Facia 1. On each side of the fire there are one locating stud on the upper part of the side and one screw hole on the lower part of the side (Figure 5). 2. On the back of the facia there are two brackets which hook over these studs. 3.
  • Page 6 OPERATING INSTRUCTIONS Please read these instructions carefully before attempting to use the appliance and retain for future use. 1. When the fire in operation certain areas will get hot. Caution must be taken to avoid being burned. 2. The fire must not be switched on if volatile vapors are present in the room 3.

  • Page 7: Warranty

    Remote Control Prior to use the remote control handset requires that the insertion of 2 off AAA batteries, as supplied. (Figure 8) Remove the cover on the rear of the remote handset by sliding backwards. Install the batteries as shown and then slide the cover back into the original position. To enable the remote control to function the power to the fire must be switched on.

  • Page 8: Technical Specification

    TECHNICAL SPECIFICATION Model Small Large Dimensions of fire only 650mm x 450mm x 100mm 850mm x 450mm x 100mm Dimension of fascia Sizes vary - see sales literature Power supply 220V - 230V AC 50HZ 220V - 230V AC 50HZ General power 23W to 1500W 28W to 1500W...

Table of Contents
