  • Page 1 Quick Start Guide Simrad CS90 Fish finding sonar TECHNOLOGY FOR SUSTAINABLE FISHERIES www.simrad.com...
  • Page 3 Simrad CS90. Caution You must never start CS90 transmissions (pinging) when the ship is in dry dock. The transducers may be damaged if they transmit in open air. All end-user manuals provided for operation and installation of your Simrad CS90 can be downloaded from our website.
  • Page 4 Support information If you require maintenance or repair, contact your local dealer. You can also contact us using the following address: simrad.support@simrad.com. If you need information about our other products, visit https: //www.simrad.com.

  • Page 5: Table Of Contents

    GETTING STARTED ..............14 Operating Panel description....................15 Starting normal operation ..................... 18 Turning on the CS90 for normal use ................18 Getting to know the user interface ................20 Getting to know presentation modes and views ............22 Selecting Normal mode to start "pinging"..............26 Adjusting the radius of the search area ...............
  • Page 6 Simrad CS90 Visual Objects menu ......................59 Cosmetics menu ........................62 Shortcut menus ........................64 445947/A...

  • Page 7: About This Manual

    Target audience This manual is intended for all inexperienced and new users of the Simrad CS90. We assume that you are familiar with the basic acoustic principles of sound in water. We also expect that you have some experience with sonar operation.

  • Page 8: Simrad Cs90

    Before you turn on the CS90, make sure that you have sufficient water depth to lower the transducer! Caution You must never turn on the CS90 when the ship is in dry dock. The transducer may be damaged if it transmits in open air. 445947/A...
  • Page 9 Note If you turn off the CS90 by means of the on/off switch on the Processor Unit you may damage the software and the interface settings used to communicate with external devices. Manual operation of the hull unit In the event of improper operation, the powerful electric motor on the hull unit may cause serious damage to the equipment and/or injury to personnel.
  • Page 10 Simrad CS90 Quick Start Guide Rules for transducer handling A transducer must always be handled as a delicate instrument. Incorrect actions may damage the transducer beyond repair. A physical blow to the transducer face may easily damage one or more elements. Observe these transducer handling rules: •...

  • Page 11: System Description

    Simrad CS90 System description The Simrad CS90 is an omnidirectional high frequency fish finding sonar. Display (The second display is optional.) Processor Unit Operating Panel Transceiver Unit Hull Unit Hoist motor Motor Control Unit Transducer A choice of hull units is available for the CS90 Fish Finding Sonar.

  • Page 12: General Safety Rules

    Safety is important. The safety precautions must be followed at all times during installation and maintenance work. WARNING The CS90 operates on 115 VAC and/or 230 VAC at 50/60 Hz. This voltage is lethal! You must never work alone on high-voltage equipment! The hull unit is powered by a 3-phase high voltage.

  • Page 13: Support Information

    Simrad CS90 Support information If you need technical support for your Simrad CS90 you must contact your local dealer, or one of our support departments. A list of all our offices and dealers is provided on our website. You can also contact our main support office in Norway.
  • Page 14 Simrad CS90 Quick Start Guide • : Kongsberg Underwater Technology Inc / Simrad Fisheries Company name • : 19210 33rd Ave W, Suite A, Lynnwood, WA 98036, USA Address • : +1 425 712 1136 Telephone • : +1 425 712 1193 Telefax •...
  • Page 15 Simrad CS90 China • : Kongsberg Maritime China Ltd Company name • : 555 Chuanqiao Road, China (Shanghai) Pilot Free Trade Zone, 201206, China Address • : +86-21-3127-9888 Telephone • : +86-21-3127-9555 Telefax • https://www.simrad.com Website • simrad.china@simrad.com E-mail address...

  • Page 16: Getting Started

    Simrad CS90 Quick Start Guide Getting started Topics Operating Panel description, page 15 Starting normal operation, page 18 Basic operating procedures, page 36 445947/A...

  • Page 17: Operating Panel Description

    • Before you turn on the CS90, make sure that you have sufficient water depth to lower the transducer! • You must never turn on the CS90 when the ship is in dry dock. The transducer may be damaged if it transmits in open air.

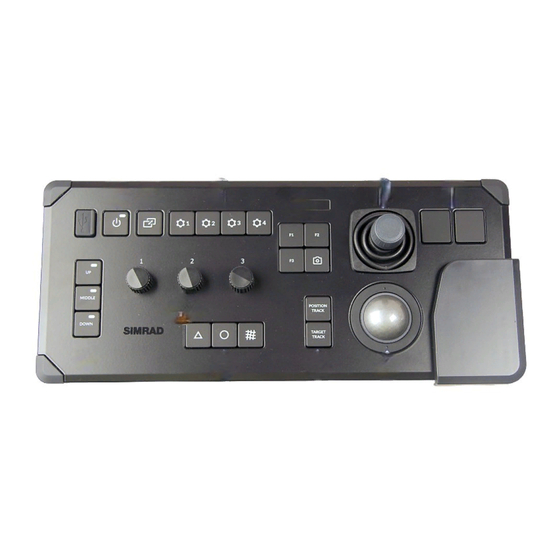

  • Page 18 Button Options function to each button on the Operating Panel. : Press this button to make a copy of the current CS90 presentation. You Screen Capture can choose either a single screen capture or a sequence with multiple screen captures.
  • Page 19 Trackball Note The CS90 supports two different operating panels. These are referred to as "Mk1" and "Mk2". In this publication all descriptions and references are related to "Mk2". Before you can change the settings related to a view, you must click inside the view to activate it.

  • Page 20: Starting Normal Operation

    Turning off the CS90, page 35 Turning on the CS90 for normal use In order to use the CS90, you must first turn it on. To turn on the CS90 use the Power button on the Operating Panel. The CS90 program starts automatically when the Processor Unit is turned on.
  • Page 21 Main Operation The icon is flashing to indicate that even if the CS90 is turned on, "pinging" is disabled. The CS90 is in Normal mode, but is set to Off to prevent transmissions. TX Power This is for safety reasons.

  • Page 22: Getting To Know The User Interface

    By default, the CS90 presentation covers the entire screen. Context All echoes offered by the CS90 are shown in rectangular views. Each view has a specific purpose, and it can be set up with independent operational settings. Combinations of these views are organized in presentation modes, which you can select on the bottom bar.
  • Page 23 Move the cursor to the top bar, and investigate the functions provided. The CS90 top bar is located at the top of the display presentation and stretches from the far left to the far right. The top bar gives you fast access to key functionality and navigational information.

  • Page 24: Getting To Know Presentation Modes And Views

    Move the cursor to the bottom of the CS90 presentation. The bottom bar is located at the bottom of the CS90 presentation and stretches from the far left to the far right. It allows you to choose presentation mode (view combinations).
  • Page 25 • Catch • Echogram • Plane With the various beams provided by the CS90, it may be difficult to understand the concept. How do these beams "behave" in the water? By means of a graphic presentation, the Beam dialog box attempts to give you a better understanding of how the acoustic Visualization beams are transmitted into the water.
  • Page 26 Cosmetics At the bottom of the CS90 presentation, select a suitable presentation mode, and activate the Vertical view. The view shows you a "vertical slice" of the echo data. The slice is made at the current bearing.
  • Page 27 Fishing Gear Setup side to Port or Starboard. At the bottom of the CS90 presentation, select a suitable presentation mode, and activate the Catch view. Use the information in the Catch view to monitor the progress of the purse seine operation.

  • Page 28: Selecting Normal Mode To Start "Pinging

    Related topics Starting normal operation, page 18 Selecting Normal mode to start "pinging" In order to transmit ("ping") you must set the CS90 to Normal operating mode. This is the default mode when the CS90 is turned on. Context function controls the operating mode of the CS90. You can set it to Normal, Operation Replay or Inactive.
  • Page 29 Getting started Caution You must never start CS90 transmissions (pinging) when the ship is in dry dock. The transducer may be damaged if it transmits in open air. Once started, the CS90 transmissions are controlled by the Transmission Mode functions.

  • Page 30: Adjusting The Radius Of The Search Area

    On the CS90, this is referred to as range. Context setting defines how "far" you wish the CS90 to detect echoes. In other words, you Range specify the horizontal or vertical distance from the vessel to the outer edge of the search area.

  • Page 31: Adjusting The Echo Sensitivity

    Adjusting the echo sensitivity Some echoes are weak while others are stronger. To compensate for this it is often necessary to adjust the sensitivity of the CS90. This adjustment is commonly referred to as gain. Context You can compare this gain setting with the volume control on your car radio. When the gain is increased, the echoes will appear stronger.
  • Page 32 Each switch can be assigned a function related to range, gain or bearing. Investigate the functionality provided on the page. This page Operating Panel is located in the dialog box. Installation Optionally: Observe the menu. Main Its default location is on the right side of the CS90 presentation. 445947/A...

  • Page 33: Changing The Vertical Angle Of The Sonar Beams

    Release the mouse button when requested value is shown. Select the middle of the button to open it. If you have a keyboard connected to the CS90, you can type the requested value. Open the button and select...
  • Page 34 Once again you can activate the RCG function to improve the reading. With the various beams provided by the CS90, it may be difficult to understand the concept. How do these beams "behave" in the water? By means of a graphic presentation, the...

  • Page 35: Adjusting The Horizontal Direction Of The Sonar Beam

    Related topics Starting normal operation, page 18 Adjusting the horizontal direction of the sonar beam The Horizontal view in the CS90 presentation covers the entire Omni sector For the other views you must define the horizontal direction of the beam. Context In the Horizontal view the current bearing is shown with a continuous line pointing out from the vessel position.
  • Page 36 In a Horizontal view, select the bearing line and drag it sideways. Optionally: Observe the menu. Main Its default location is on the right side of the CS90 presentation. Select Bearing Make the necessary adjustment. Select [+] or [-] to choose the requested setting.

  • Page 37: Turning Off The Cs90

    Power Off Power the Operating Panel. You must never turn off the CS90 by means of the on/off switch on the Processor Unit. Context When you do not use the CS90, turn off the display and the Processor Unit.

  • Page 38: Basic Operating Procedures

    Context With a few exceptions, the chosen language will also be used for all other text on the CS90. The CS90 help may not be available for the language you choose. If your language is not supported, the English help is provided.

  • Page 39: Selecting Operating Frequency For Minimum Noise

    We recommend that you do this test twice. First, do the test with all other hydroacoustic systems (echo sounders, ADCP, sonars) turned off. Second, do the test with normal operating conditions. This allows you to see how the other hydroacoustic systems affect the CS90 operation. Procedure On the...

  • Page 40: Hiding The Menu System When You Do Not Need It

    To hide the menu, select on the top bar. Menu When the menu is hidden, it is temporarily shown on the left or right side of the CS90 presentation if you move the cursor to that position. To retrieve the menu, select one more time.

  • Page 41: Saving Single Or Sequential Screen Captures

    Getting started Saving single or sequential screen captures While using the CS90 you may wish to make a screen capture to save an instantaneous copy of the current presentation. Each screen capture you make is saved in format on the .jpg...

  • Page 42: Saving The Current User Settings

    You can use different settings to create as many user profiles as you like, and give them any name. All the settings you have chosen using functions and dialog boxes in the CS90 user interface are saved.

  • Page 43: Defining The Ping (Transmission) Modes

    Getting started Defining the ping (transmission) modes You can easily control how often the CS90 shall transmit acoustic energy (a ping) into the water. You can disable the transmission altogether, set it to operate as fast as possible, or select a time interval.
  • Page 44 Drag the cursor sideways to increase or decrease the value. Release the mouse button when requested value is shown. to Single Ping. Transmission Mode The CS90 transmits (pings) only when you select the symbol on the right side of the button. Related topics Basic operating procedures, page 36...

  • Page 45: Menu System

    Menu system Menu system Topics About the menus and menu buttons, page 44 Using the “smart” menu buttons, page 44 Main menu, page 45 Operation menu, page 47 Display menu, page 48 Setup menu, page 50 Active menu, page 52 Objects menu, page 55 Visual Objects menu, page 59 Cosmetics menu, page 62...

  • Page 46: About The Menus And Menu Buttons

    When the menu is hidden, it is temporarily shown on the Menu left or right side of the CS90 presentation if you move the cursor to that position. Using the “smart” menu buttons Each menu provided by the CS90 contains several menu buttons. Each button shows the purpose of the button.

  • Page 47: Main Menu

    It offers the most common Main functions for efficient use of the CS90. Unless you hide the entire menu system, the Main menu is visible at all times, even if you close the secondary menus.
  • Page 48 CS90 presentations. Gain By adjusting the gain you can control how much amplification the CS90 applies to the received echoes. The setting is by default only applied to currently selected echogram. It is identified with a thick border.

  • Page 49: Operation Menu

    The icon Operation is flashing to indicate that even if the CS90 is turned on, "pinging" is disabled. When the CS90 is turned on, is by default set to Off. This is a safety precautions to prevent Tx Power inadvertent transmissions when the vessel is in dry dock.

  • Page 50: Display Menu

    "cosmetic" elements in the CS90 Cosmetics presentation on or off. The majority of the functions are on/off buttons to enable or disable "cosmetic" elements in the CS90 presentation. This function is not available in all the views. Cosmetics menu, page 62...
  • Page 51 This will provide a filtering effect that removes the weakest echoes. • Screen Brightness The intensity of the light given off by the CS90 presentation can be adjusted. You can use this function to increase or decrease the light from the screen to match the ambient light. •...

  • Page 52: Setup Menu

    An invisible area - the tracking area - is created as an acquisition area. In order for the CS90 to find and lock on the intended target, it needs to be kept within this tracking area. If the intended target falls outside the area, the tracking can not be started.
  • Page 53 • Language You may prefer to use the CS90 with a user interface in your own language. A selection of languages is provided. The function allows you to select the language to be Language used in the CS90 presentations, menus and dialog boxes.

  • Page 54: Active Menu

    (Time Variable Gain) compensates for the loss of acoustic energy due to geometric spread and absorption. • Ping-Ping Filter analyses the historical information from previous consecutive pings Ping-Ping Filter in order to remove unwanted noise and false echoes from the CS90 presentation. 445947/A...
  • Page 55 Continuous Wave (CW) pings. • Horizontal TX Sector The CS90 transmits in a swath with maximum horizontal opening angle Omni. By means of the function, you can change this opening angle to 30, 60, 90, Horizontal Tx Sector 120, 180 degrees plus Omni.
  • Page 56 Information Pane Options The CS90 offers several information panes to provide additional and detailed data from the CS90 presentation. The information panes are opened and closed using the buttons on the top bar. Several of the information panes are fitted with a button.

  • Page 57: Objects Menu

    - in spite of its name and location - not a menu at all. This "menu" opens Objects a small view to monitor and control the objects you have defined in the CS90 presentation. Each object is identified with a visual marker.
  • Page 58 Delete Select to delete all the markers you have selected in the objects list. Each Delete marker is removed both from the list and from the CS90 presentation. Select to add a new marker manually. The dialog box opens to New Marker accept position and depth information.
  • Page 59 Menu system Control buttons In the object list, select the object line to activate the control buttons for that particular object. Priority One marker can be given priority status to identify the object as the most important target or position. Select to give Priority the currently selected object a priority...
  • Page 60 Simrad CS90 Quick Start Guide Comment A text field at the bottom of the menu allows you to type comments. You can Objects only do this if you have computer keyboard connected to your Processor Unit. Insert Relative Position Select to insert object information into the comment field.
  • Page 61 Only specific functions of particular interest are explained with brief descriptions. The choices in the this menu depends on which view in the CS90 presentation that is currently "active". The menu may therefore change from one view to another. The screen capture may not show you all the menu choices.
  • Page 62 Minute Markers In order to maintain a visual presentation of your vessel’s previous movements, you can draw these with a line. This line is drawn after the vessel symbol in the CS90 presentation, and visualizes your past movements. The function adds Minute Markers markers to the line to indicate the travelled distance for each minute.
  • Page 63 The length of the line reflects its speed. For this function to work, a sea current meter must be connected to the CS90. The use of an ADCP (Acoustic Doppler Current Profiler) is recommended.
  • Page 64 The majority of the choices provided by this menu are self-explanatory. Only specific functions of particular interest are explained with brief descriptions. The choices in the this menu depends on which view in the CS90 presentation that is currently "active". The menu may therefore change from one view to another. The screen capture may not show you all the menu choices.
  • Page 65 Menu system • Compass Cards Activate to place evenly spaced compass markers on the outer range ring Compass Cards in horizontal views. The compass markers rotate based in the inputs from a navigation sensor. An update takes place when the vessel heading changes more than 1 degree. •...
  • Page 66 If relevant, you can further classify the object as a target. The phrase target is used to identify an echo in the CS90 presentation that you wish to act upon. The echo may be from a material item, a shallow, reef or rock, or from fish, fish schools or mammals.
  • Page 67 Place Own Ship Marker in the CS90 presentation. The own ship marker is now regarded as an object. All information about the object is shown in the menu listed as "OSM".
  • Page 68 Simrad CS90 Quick Start Guide • Place Ruler Place the cursor over the first echo. Right-click to open the shortcut menu, then select . The ruler starts wherever you place the cursor, and ends when you release Place Ruler the button. The length and relative bearing of the ruler is displayed next to it. Once a ruler has been established you can not make changes to it.
  • Page 69 Delete Own Ship Marker function online information ........... 5 description ..........65 purpose of this manual ........5 Delete Ruler function registered trademark SIMRAD ......5 description ..........66 registered trademarks........5 description suggestions ........... 5 Bottom Profile function ........59 target audience ..........
  • Page 70 Simrad CS90 Quick Start Guide important reminder .......... 7 adjusting ............ 30 documents general safety rules ........... 10 download from website ........5 download documents from website ........5 www.simrad.com ..........5 handling drawing transducers ............ 8 system diagram..........9 help support offices ..........11...
  • Page 71 Index switch off ............. 7 description ..........60 transducer handling.......... 8 mode when not in use..........7 defining the transmission (ping) modes....41 when you are docking your vessel......7 information high voltage..........10 online ............5 normal operating mode support ............11 selecting .............
  • Page 72 Simrad CS90 Quick Start Guide Place Circle Marker function Reset Ship Centre function description ..........65 description ..........66 Place Marker Continuous function rules description ..........65 safety ............10 Place Marker function transducer handling.......... 8 description ..........64 Place Own Ship Marker function description ..........
  • Page 73 5 download documents ........5 support when not in use if something breaks down ........7 important reminder .......... 7 support information..........11 www.simrad.com switch document downloads ........5 off ............35 on ............18 switch off important reminder .......... 7...
