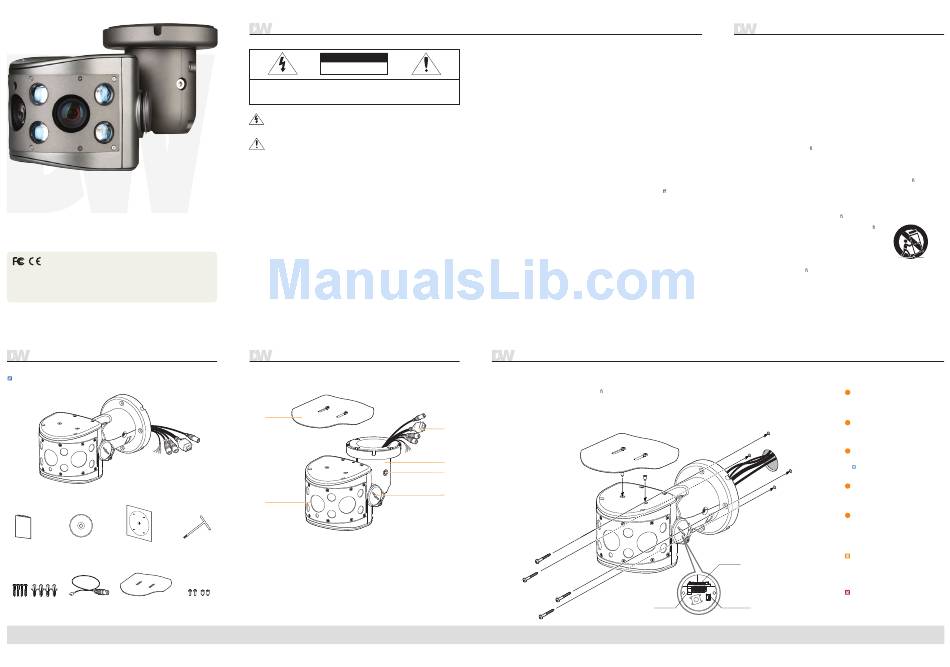

Digital Watchdog DWC-PB2M4TIR Quick Start Manual

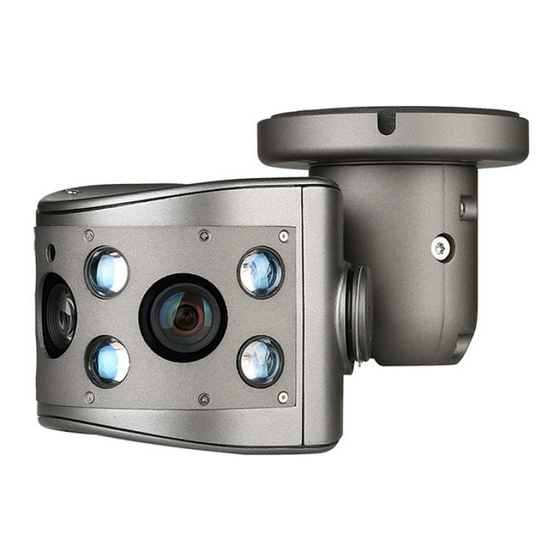

MEGApix® PANO 2.1MP 180° Camera
DWC-PB2M4TIR
Quick Start Guide
Ver. 1.0 / 2014.11
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the userwill be required to correct the interferenece at his own
expense.
To disconnect power from the mains, pull out the mains cord plug. When install the product, ensure that the plug is easily
accessible.
Product & Accessories
Please check if all the camera and accessories are included in the package.
Cables
Camera
Quick Start Guide Manual CD Template Sheet
Screw & Plastic Anchor-4pcs 2nd BNC Output Cable Sunshield Sunshield Screws
TEL: (866) 446-3595
www.Digital-Watchdog.com / technicalsupport@dwcc.tv
Technical Support Hours: Monday-Friday 9:00AM to 8:00PM EST
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric shock is present within
this unit.
This exclamation point symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING
To prevent damage which may result in fire or electric shock hazard, do not expose this
appliance to rain or moisture.
WARNING
1. Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may
cause abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle. Insecure connection may
cause fire.
5. When installing the camera, fasten it securely and firmly. A falling camera may cause
personal injury.
6. Do not place conductive objects (e.g. screw drivers, coins, metal things, etc.) or
containers filled with water on top of the camera. Doing so may cause personal injury
due to fire, electric shock, or falling objects.
Part Name
Sunshield
Lens
T-Wrench
2 0 1 5 0 31 6
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or
electric shock.
8. If any unusual smells or smoke come from the unit, stop using the product. In such case,
immediately disconnect the power source and contact the service center. Continued
use in such a condition may cause fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center. Never
disassemble or modify this product in any way.
10. When cleaning, do not spray water directly onto parts of the product. Doing so may
cause fire or electric shock.
CAUTION
1. Do not drop objects on the product or apply strong shock to it. Keep away from a
location subject to excessive vibrationor magnetic interference.
2. Do not install in a location subject to high temperature low temperature or high
humidity. Doing so may cause fire or electric shock.
3. If you want to relocate the already installed product, be sure to turn o the power and
then move or reinstall it.
4. Remove the power plug from the outlet when then there is a lightning. Neglecting to
do so may cause fire or damage to the product.
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this
may damage the image sensor.
8. Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
9. The Mains plug is used as a disconnect device and shall stay readily operable at any
time.
Installation
Before installing your camera, read the following carefully.
1. The mounting surface must withold at least ve time the weight of the camera.
2. Do not let any cables get caught or the electric cver be damaged during installation.
Cables
Ball Neck Bracket
Pan/Tilt stoper screw
Con Cap
Important Safety Instructions
WARNING
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, or other
apparatus (including ampli ers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug does not t into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories speci ed by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table speci ed
by the manufacturer, or sold with the apparatus.
13. Unplug this apparatus when a cart is used. Use caution
when moving the cart/apparatus combination to avoid
injury from tip-over.
14. Refer all servicing to quali ed service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
SD Card Slot
Reset Button Test Video Output
1 Using the Mounting Template or the
camera itself, mark and drill the
mounting holes.
Pass cables through and connect the
2
cables respectively. See the section
'Cabling' for more information.
Secure the camera to the wall/ceiling
3
using the provided screws.
Before securing the camera to the mounting
surface, slightly loosen the Pan/Tilt stoper screw.
Using the secondary BNC output,
4
check the camera's view and adjust as
needed during installation.
Attach the Sunsheild to the bottom case
5
by using Sunshield Screws.
Reset to the Factory Default
Press the reset button for 5 seconds to
return the camera's settings to their
factory default.
Warning:
Pressing the 'Reset' button will result
in loss of all setting data. If needed,
make a note for further installation.
