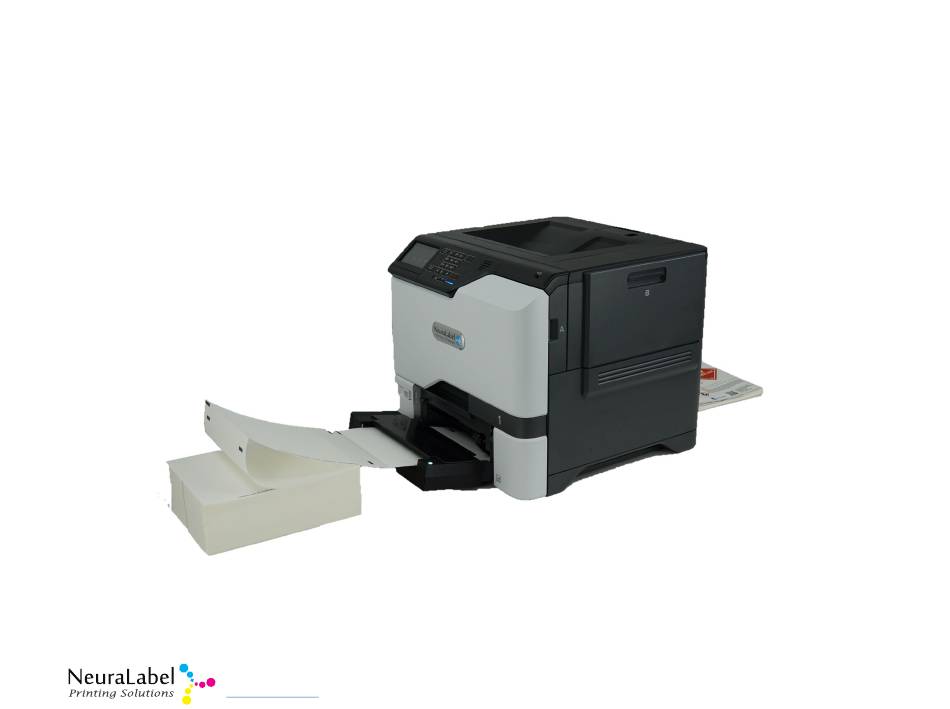

- Page 1 NeuraLabel 550e Setup and Quick Start Guide for use with Fanfold GHS Drum Labels August 2020 www.neuralabel.com Page 1...
- Page 2 • Step 1: Printer Setup • Step 2: Feeder Setup • Step 3: Power Up the System • Step 4: Load Media • Step 5: Print and Calibrate • Printing Tips & Troubleshooting • Firmware and Contact Information www.neuralabel.com Page 2...
- Page 3 Unpacking the Printer and Feeder Remove printer from box. Lift from box with two people. Remove feeder from box and set aside. Continuous Feeder Attachment Print Engine Power Cord Starter Toner www.neuralabel.com Page 3...
-
Page 4: Step 1: Printer Setup
Plug in the power cord to the back of the printer and directly to a wall outlet. Plug in network or USB to the back of the printer. Open printer side door B. Unpack starter toner and place in printer. Close printer door. Door B www.neuralabel.com Page 4... -
Page 5: Step 2: Feeder Setup
Make sure it attaches squarely to the printer. Attach the feeder round “barrel” connector to the round connector at the back of the printer just above the printer’s power port. Continuous Feeder Attachment Feeder Barrel Connector NOTE: The Feeder is powered by the printer. www.neuralabel.com Page 5... -
Page 6: Step 3: Power Up The System
Press the power button near the printer operator panel. The printer and the attached feeder will boot up. This will take about one minute. • The printer operator panel displays the NeuraLabel logo and then the home screen. • The feeder LED flashes its version number. -
Page 7: Step 4: Load Media
Media should be far enough away from the feeder so that it easily unfolds. unlocked locked Media may be place on a surface lower than the printer, such as a table or even the floor. www.neuralabel.com Page 7 Page 7... - Page 8 As media exits the printer, it will self fold at the printer exit. (Letter and Legal size.) The 550e auto-calibrates; that is, it fits the form to a specific media. It must be given an initial label run for the procedure to correctly take place.
-
Page 9: Contact Information
Engine and Feeder Version is accessible via the printer operator panel or web server. Settings->Reports->Device->Device Information Engine and Feeder are updated through the printer’s web server Settings->Device->Update Firmware All available Firmware Updates are found at NeuraLabel.com/setup/550e Contact Information • www.neuralabel.com •...
