- Page 1 NeuraLabel 600e Roll Unit Installation and Quick Start Guide...
-
Page 3: What's In The Box
What’s In The Box* Reference A Rewinder Baseplate B Unwinder Baseplate C Unwinder D Rewinder Front Guide Rear Guide G Tower Alignment Screw H Pan Head Screw Countersunk Screw AC Power Adapter K Washer Washer x4 *Note: You should receive a total of three boxes. -
Page 4: You Will Also Need

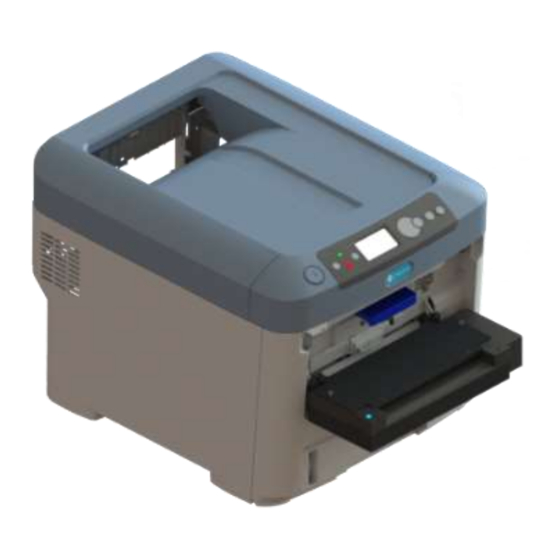

You Will Also Need NeuraLabel 600e CFA (Continuous Feeder Attachment) NeuraLabel 600e Printer 600e Power Cable Philips Screw Driver 5 Foot (1.5M) Sturdy Table near Network and 3 Power Outlets... - Page 5 Before You Begin If a NeuraLabel 600e Printer and CFA are already installed: Power off the NeuraLabel 600e using the shutdown menu on the printer and turn the power switch to off. Unplug the power cable from the printer.
-
Page 6: Baseplate Assembly
Baseplate Assembly For this step, you will need parts A, B, E, F, H (x4), I (x4), and a Philips screw driver. Figure 2 Figure 1 Align the Unwinder and Rewinder Baseplates on a flat stable surface, as shown in Figure 1. Align the Front and Rear Guides with the screw holes on the baseplates, as shown in Figure 2. - Page 7 Unwinder and Rewinder Placement For this step you will need parts C, D, G (x4) and K (x4). Rewinder Unwinder Figure 3 Align Unwinder and Rewinder with baseplate and Tower Alignment Screws, as shown in Figure 3.
-
Page 8: Printer Placement

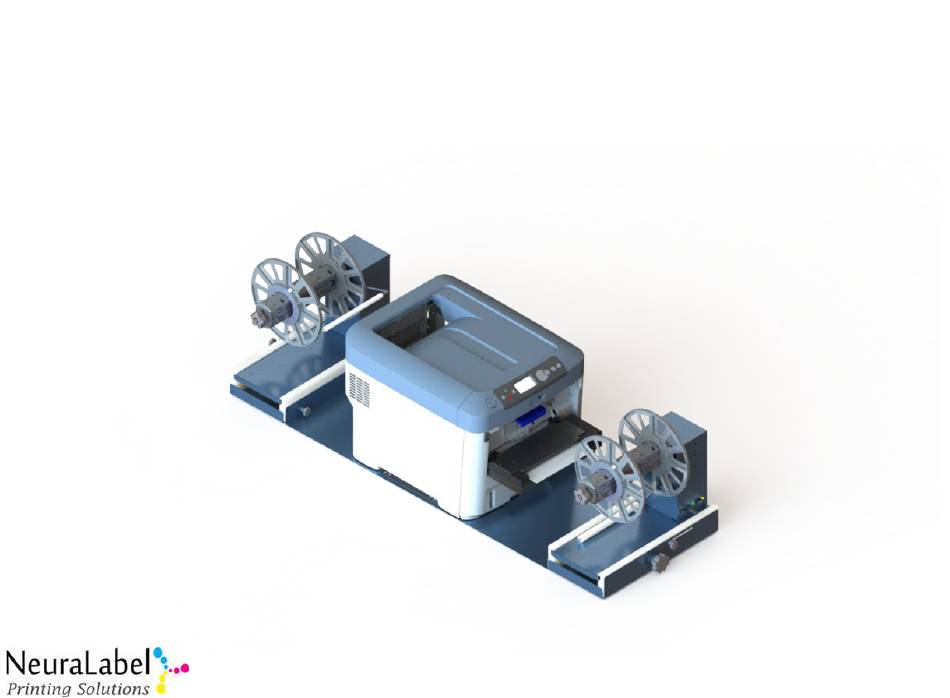

Figure 5 Figure 4 Use two people to place the NeuraLabel 600e Printer on the NeuraLabel 600e Roll Unit, as shown in Figure 4. Figure 5 shows the proper placement of the NeuraLabel 600e printer. Note that the assembled system requires about 60 inches of clearance. - Page 9 Figure 6 The NeuraLabel 600e CFA hooks onto the mounting hardware of the NeuraLabel 600e printer. The left hook on the NeuraLabel 600e CFA fits in between the alignment hooks on the mounting hardware. Refer to Figure 6 for detail.
- Page 10 Connect CFA to Printer Figure 7 Caution! Ensure that the Printer power is OFF before plugging in your CFA.
- Page 11 Connect AC Adapters to Unwinder and Rewinder For this step, you will need part J. Figure 8...
- Page 12 Connect Printer to Power Figure 9 You may now power on the NeuraLabel 600e Printer and Roll Unit. Caution! Do not unplug CFA while the printer is on. Doing so may damage your printer.
- Page 13 Figure 11 Loosen Unwinder Hub by rotating knob Slide Flange off Unwinder Hub. counterclockwise. Figure 13 Figure 12 Slide on Rolled Media and Flange. Retighten Unwinder Hub. *The 600e Roll to Roll System is compatible with up to 11” Diameter Rolls.
- Page 14 Set up Rewinder with Core Figure 14 Figure 15 Loosen Rewinder Hub by rotating knob Slide Flange off Rewinder Hub. counterclockwise. Figure 17 Figure 16 Slide on Core and Flange. Retighten Rewinder Hub. Warning: Cores come in many sizes. Ensure media fits easily on core before tightening.
- Page 15 Load Media into CFA Figure 19 Figure 18 Weave Media underneath Load Media into the CFA. Unwinder Tension Arm. Note: Holding Tension arm at highest position stops the rotation and allows for easy media loading.
- Page 16 Adjust Unwinder position Figure 20 Adjust Unwinder position to center paper path in CFA as needed. Rewinder position can be adjusted in this same manner.
- Page 17 Adjust Rewinder Arm to “Ready” Position Figure 22 Figure 21 Default Position Ready Position...
- Page 18 Prepare Rewinder Core Figure 23 Place double-sided tape at top of Rewinder Flange as shown. Or use single-sided tape when attaching media.
- Page 19 Please make sure Roll Units are turned on and review the following instructions before starting your print.
- Page 20 Paste Printed Media to Rewinder Core Figure 24 As media comes out of printer, weave under Rewinder Tension Arm and press to tape on core. Or tape down with single-sided tape.
- Page 21 Release Rewinder Tension Arm Figure 25 As soon as media is secure, release Rewinder Tension Arm from Ready Position so that it falls onto the media. You will see the rewinder turn. Adjust Rewinder position if needed (see page 15).
-
Page 22: Technical Support
Technical Support Contact NeuraLabel Printing Solutions for further help. • 1-281-240-2525 X16 • support@neuralabel.com...
