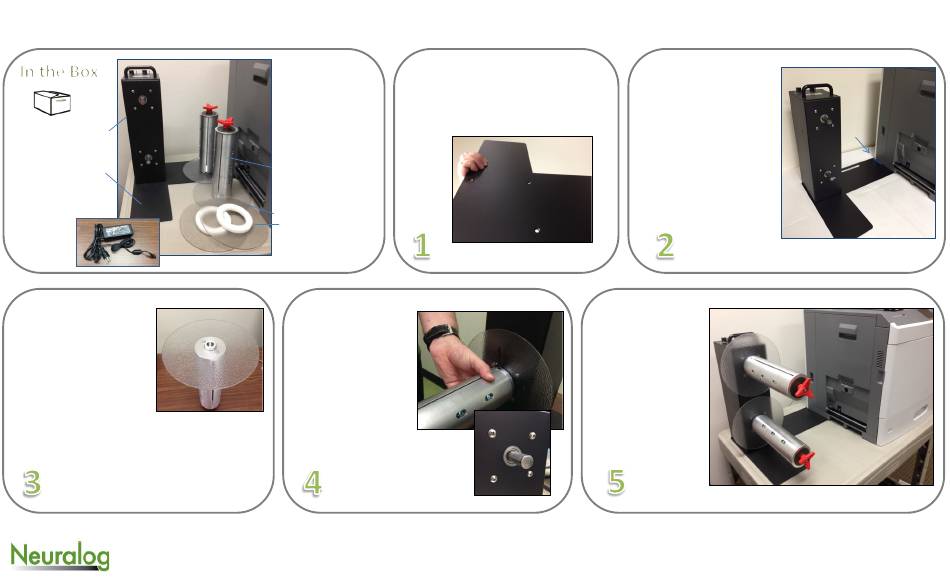

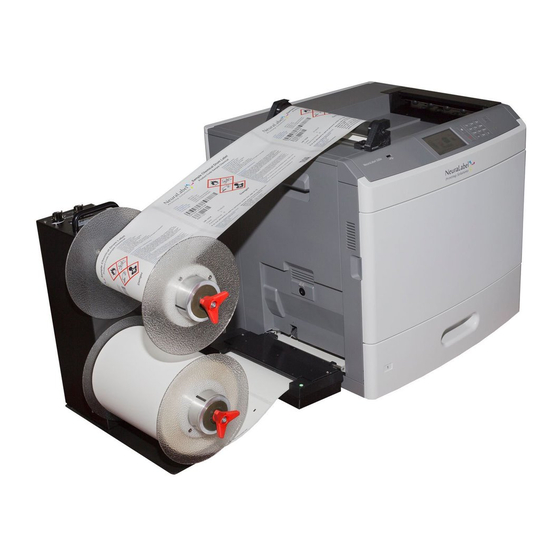

NeuraLabel 500e Accessories – Roll to Roll Setup
Rewind Unit
L-Base Plate
with 4 screws
Power Supply
& Adapter
Attach disk without the
guide to the spindle
with two screws.
Screws are pre-installed
in each spindle.
Repeat with other
spindle.
Smooth side of the
disk faces in and will
touch the media.
4800 Sugar Grove Blvd., Suite 200 ~ Stafford, Texas 77477 ~ 1-800-364-8728 ~ 1-281-240-2525 ~ www.neuralog.com
Attach L-Base Plate to
Tools:
Rewind Unit with 4
Allen Key (provided)
Phillips screws (provided)
Phillips screwdriver
and set upright.
(not supplied)
Spindles with
built-in Chucks (2)
Lower Disks(2)
Upper Disks
with Guide(2)
Attach the spindles,
lower one first.
Align set screw to
flat surface on
motor shaft.
Use the Allen Key to
lock the set screw in
place.
Slide the Rewind Unit
with Base under the
printer. Align printer
to blue tape. This
takes 2 people.
The back feet on the
bottom of the printer
will align into two
holes in the base
plate.
Do the same for
the upper spindle.
Make sure both
spindles are
securely fastened
to the Rewind Unit
blue
tape
