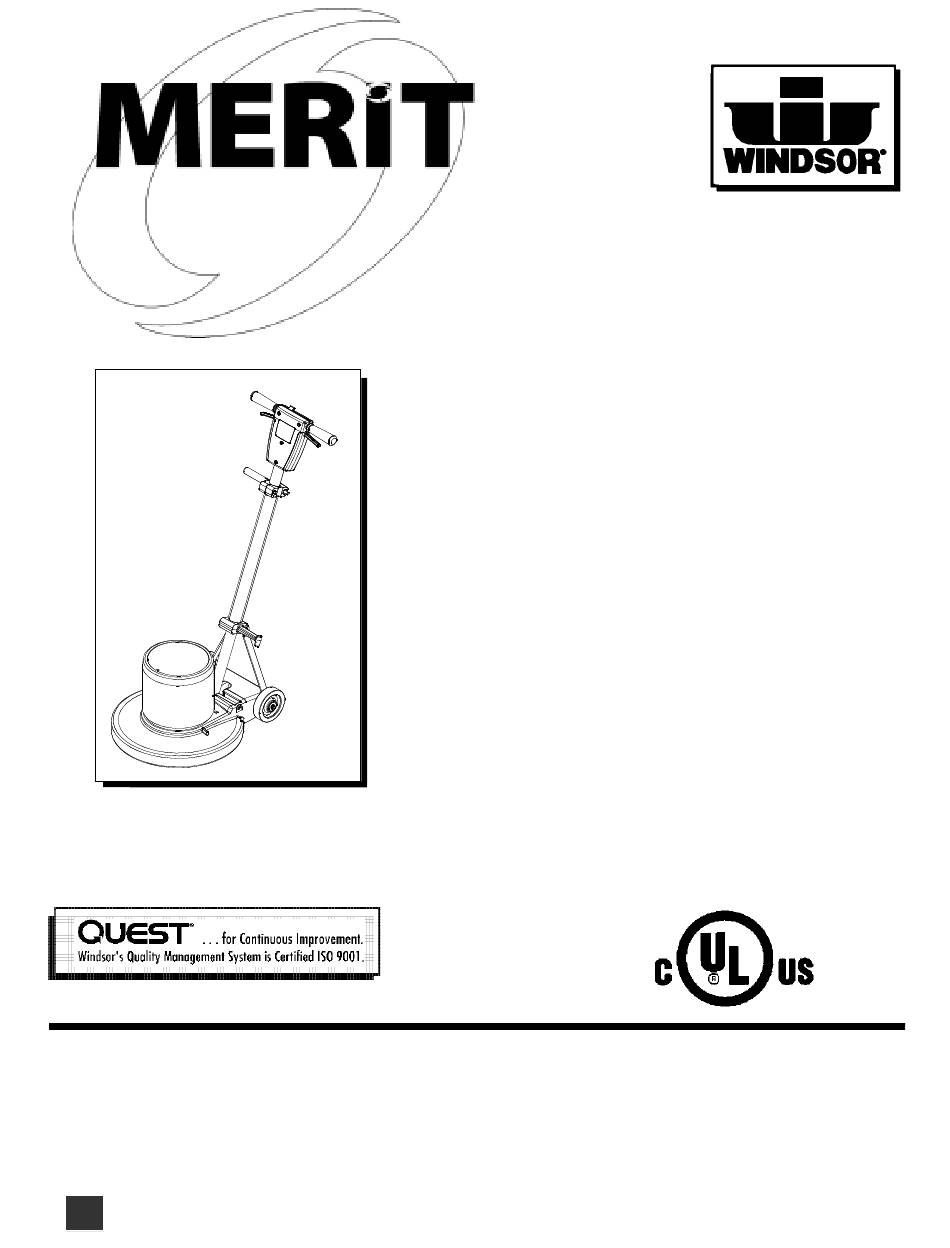

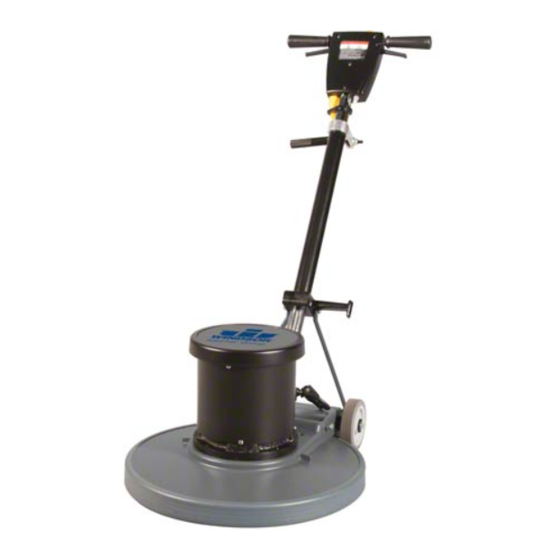

- Page 1 FLOOR POLISHER Operating Instructions (ENG) MODELS: MP13 MP17X MP15 MP20X UL APPROVAL MP17 MPDS DOES NOT MP20 APPLY TO MPDS. Read these instructions before using the machine MERIT POLISHER 98769 09/18/00...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING: To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual. -
Page 3: Hazard Intensity Level
In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. MERIT POLISHER 98769 12/06/99... -
Page 4: Grounding Instructions
GROUNDING INSTRUCTIONS THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: In the USA this machine operates on a one 15 amp nominal 120V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors. -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS ITEM DIMENSION/CAPACITY Construction Heavy-duty die cast aluminum deck with heavy-duty rubber bumper, tubular steel adjustable handle with die cast aluminum handle housing Motor MP13, MP15, MP17, MP20 1.25 hp MP17X, MP20X, MPDS 1.75 hp Brush/Pad speed MP13, MP15, MP17, MP20, MP17X, MP20X 175 rpm MPDS 175/300 rpm... -
Page 6: Handle Installation
HANDLE INSTALLATION 38291 HANDLE ASSEMBLY HANDLE RECEPTACLE MOTOR PLUG DECK ASSEMBLY The machine is shipped with handle unassembled. Follow these steps for installation: 3. Remove bolt, nut and washers (items 4, 5 and 6) from lower block on handle assembly. Attach 1. -
Page 7: Operation
OPERATION CONTROLS 4. Push the safety lock forward, unlocking the 1. Safety Lock – Prevents unintended operation of switch levers. the machine. 5. With the safety lock forward, squeeze one or 2. Switch Levers – Turns machine on/off. both of the switch levers, turning the machine on. -
Page 8: Maintenance
MAINTENANCE SCRUB BRUSHES FINISHED FLOORS NOTE: All original equipment brushes are equipped Nylon Polish is the softest brush. It will gently clean with “Perform Alert ”. This feature will tell the finished tile or terrazzo floors without removing floor operator when it is time to replace the scrub finish or floor material. -
Page 9: Machine Troubleshooting
MACHINE TROUBLESHOOTING PROBLEM CAUSE SOLUTION Machine will not run Circuit breaker tripped in Check and reset building. Power switch failure Test switch for continuity and replace if necessary. Tripped circuit breaker Reset Faulty power cord Replace Fuse in motor is blown Replace CAUTION: To reduce the risk of electrical shock,... -
Page 10: Brush/Pad Driver Group
BRUSH/PAD DRIVER GROUP 2A-W MERIT POLISHER 98769 12/06/99... - Page 11 BRUSH/PAD DRIVER GROUP SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 02216 PAD DRIVER, 13" MERIT 02396 PAD DRIVER, 15" MERIT 02218 PAD DRIVER, 17" MERIT 02219 PAD DRIVER, 20" MERIT 02232 BRUSH, 13" NYL.POL. W/CLT.PLT 02233 BRUSH, 13" NYL.SCRUB W/CLT.PLT 02234 BRUSH, 13"...
-
Page 12: Frame Group
FRAME GROUP MOTOR ASM SEE PG 3-5 21 13 MERIT POLISHER 98769 04/20/00... - Page 13 FRAME GROUP SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 03111 AXLE, MAIN POLISHER 14341 BUMPER, EXTRUSION 30.5" 14371 BUMPER, EXTRUSION 37.3" 14372 BUMPER, EXTRUSION 43.8" 14373 BUMPER, EXTRUSION 53.4" 57276 NUT, PUSH FLAT RD .51D 23206 CORDSET, 14/3 X 47", SJT, BLK 27871 CAP, EXTRUSION OPEN...
-
Page 14: Motor Group
MOTOR GROUP MP17X, MP20X MP13, MP15, MP17, MP20 MPDS MERIT POLISHER 98769 09/18/00... - Page 15 MOTOR GROUP SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 27884 COVER, MOTOR, 1.0 HP 500209 LABEL, MERIT MAIN 53243 MOTOR, 115V 1.0 HP 175RPM 70702 SCR, M5 X .8 X 15MM FHMS BLK 53244 MOTOR, 115V 1.5 HP 175RPM W/ COVER 500215 LABEL, MERIT DELUXE MAIN 27892...
-
Page 16: Handle Group
HANDLE GROUP MERIT POLISHER 98769 05/22/00... - Page 17 HANDLE GROUP SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 14344 BAR, HANDLE ADJUST 140393 BLOCK, HANDLE MOUNT 36196 GRIP, POLISHER HANDLE 41363 HOUSING, POLISHER HANDLE REAR 41366 HOUSING, POLISHER HANDLE FRONT 51326 LOCK, SAFETY 51327 LEVER, SWITCH 57274 NUT, M6X1 HEX BLK 57275 NUT, M10X1.5 HEX NYLOK PLTD 500194...
-
Page 18: Wiring Group
WIRING GROUP MERIT POLISHER 98769 12/06/99... - Page 19 WIRING GROUP SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 20054 CLAMP, 3/8 NYLON UL/CSA 23167 CORD SET, 14/3 STO X 50' YLW 23206 CORDSET, 14/3 X 47", SJT, BLK 57069 NUT, ORG WIRE (2-5 18G/2-14G) 70688 SCR, M3.5 X 30 HHTF TYPE B 70689 SCR, M4.8 X 10 HHTF TYPE B 72123...
-
Page 20: Wiring Diagram / Notes
WIRING DIAGRAM / NOTES NOTES: MERIT POLISHER 98769 12/06/99 3-11... -
Page 21: Suggested Spare Parts
SUGGESTED SPARE PARTS SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 87202 WASHER / BEARING 73990 SPRING 73993 SPRING 72123 SWITCH 14344 HANDLE, ADJ BAR 66334 PIN, HANDLE ADJ 67430 ROD, HANDLE ADJ 34378 FUSE, MP 34379 FUSE HOLDER, MP 27352 COUPLING, MTR/GEAR BOX PLSHER MERIT POLISHER 98769 09/18/00 3-12...
