Summary of Contents for Windsor MB2000

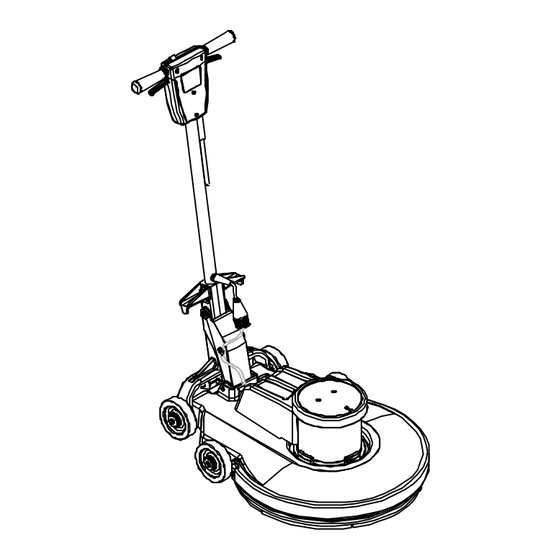

- Page 1 HIGH SPEED BURNISHER Operating Instructions (ENG) MODELS: MB2000 Read these instructions before using the machine 98883 03/17/04...
- Page 2 MACHINE DATA LOG/OVERVIEW MODEL______________________________ DATE OF PURCHASE ________________ SERIAL NUMBER____________________ YOUR DEALER Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ For the name and address of your dealer contact: Windsor Industries Phone Number: _________________________________________________________________________________________ MB2000 98883 05/04/01...
-
Page 3: Table Of Contents
Handle Installation..........3-2 Operation............3-3 Pad Driver Installation........3-3 MAINTENANCE Machine Troubleshooting.......4-1 Wiring Diagram/Notes ........4-2 GROUP PARTS LIST Deck Group............5-1 Handle Group..........5-3 Lower Handle Group........5-5 Motor Group...........5-7 Pad Driver Group...........5-9 Wiring Group..........5-11 Suggested Spare Parts........ 5-13 Warranty ............5-14 MB2000 98883 05/04/01... -
Page 4: How To Use This Manual
SERIAL NO. FROM – column indicates Parts may be ordered from authorized Windsor the first machine the part number is dealers. When placing an order for parts, the applicable to. When the machine design... -
Page 5: Important Safety Instructions
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not pull/run machine over cord. Keep cord away from heated surfaces. Connect to a properly grounded outlet. See Grounding Instructions. SAVE THESE INSTRUCTIONS MB2000 98883 05/04/01... -
Page 6: Hazard Intensity Level
Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. MB2000 98883 05/04/01... -
Page 7: Grounding Instructions
Whenever the adaptor is used, it must be held in place by a metal screw. MB2000 98883 05/04/01... -
Page 8: Technical Specifications
1.5” [ 3,8 cm] tubular steel, self adjusting handle consistently maintains full contact with the floor, and easy to use thumb activated safety lock. Dimensions (L x W x H) 32” [81,3 cm] X 23.9” [60,2 cm] X 48.4” [122,9 cm] MB2000 98883 05/04/01... -
Page 9: Handle Installation
Tighten bolt (item 3) and nut (item 1) nut (item 1) from deck assembly (29245). until the handle can not twist in the mount bracket (45-50 foot pounds). 5. Check handle for movement up and down. 6. Plug cord into handle cord receptacle. MB2000 98883 07/20/01... -
Page 10: Operation
5. With the safety lock forward, squeeze one or both of the switch levers, turning the machine on. (These levers can be operated independently of each other). The safety lock will not re-engage until both levers are released. MB2000 98883 07/19/01... -
Page 11: Machine Troubleshooting
Test circuit for continuity. Replace circuit breaker if necessary. Pad not centered Re-center pad. Damaged or unevenly worn Replace pad. Do not rest Excessive vibration pad. machine on pad when not in use. Damaged pad driver. Replace. MB2000 98883 05/04/01... -
Page 12: Wiring Diagram/Notes
WIRING DIAGRAM / NOTES MB2000 98883 05/04/01... - Page 13 THIS PAGE LEFT BLANK INTENTIONALLY MB2000 98883 05/04/01...
-
Page 14: Deck Group
DECK GROUP MB2000 98883 07/20/01... - Page 15 WASHER, M6 FLAT BLK 140423 BUMPER, EXTRUSION 29244BLU DECK, 20 IN BURNISHER, BLUE 70738 SCR, M5 X .8MM X 10 MM PPHMS BLK 67463 RETAINER, CORD 57220 NUT, M6 X 1 HEX NYLOCK PLTD 27871 CAP EXTRUSION 140449 BUMPER, RUBBER MB2000 98883 07/20/01...
-
Page 16: Handle Group
HANDLE GROUP MB2000 98883 05/04/01... - Page 17 SCR, M4.8 X 10 HHTF TYPE B 78473 TUBE HANDLE 23209 CORDSET, 14/3 X 38 IN, SJT, BLK 14407 BOOT, TWIST LOCK 730012 STRAIN RELIEF, 14/3 STRAIGHT 730021 SPACER, POLISHER HANDLE 41366 HOUSING, POLISHER HANDLE FRONT 70687 SCR, M6 X 50 SHCS BLK MB2000 98883 05/04/01...
-
Page 18: Lower Handle Group
LOWER HANDLE GROUP MB2000 98883 05/07/02... - Page 19 70069 SCR, 3/8-16 X 3 HHCS GR5 140419 BRACKET, HANDLE MOUNT 70262 SCR, M8 X 20 HHMS PLTD 87054 WASHER, M8 FLAT DIN125A PLT 05157 AXLE, REAR 70733 SCR, M6 X 30 SHCS PLTD 730053 STRIKER, LATCH MB2000 98883 05/07/02...
-
Page 20: Motor Group
MOTOR GROUP MB2000 98883 05/04/01... - Page 21 MOTOR GROUP SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 500421 LABEL, MB2000 MAIN 70702 SCR, M5 X .8 X15MM BLK 27884 COVER, MOTOR 1.25HP 53256 MOTOR, 115VOLT 1.75HP 2000RPM MOTOR COMPONENTS (NOT SHOWN) SERIAL NO. PART NO. DESCRIPTION NOTES: FROM...
-
Page 22: Pad Driver Group
PAD/DRIVER GROUP MB2000 98883 05/04/01... - Page 23 51353 LOCK, PAD DRIVER BLUE 730065 SHROUD, ASM. 20 IN BURNISHER INCLUDES ITEM 12 48082 KEY, 3/16 SQ X 11/16 LG CRS 70736 SET SCR, M8 X 20MM CUP PT 730074 BRUSH, STRIP (PACKAGE OF 6) MB2000 98883 05/04/01 5-10...
-
Page 24: Wiring Group
WIRING GROUP MB2000 98883 05/04/01 5-11... - Page 25 CORD SET, 14/3 STO X 75' YLW 57069 NUT, ORG WIRE (2-5 18G/2-14G) 87208 WASHER, M5 SHAKEPROOF PLTD 70689 SCR, M4.8 X 10 HHTF TYPE B 23207 CORDSET, 14/3 X 48", SJT, BLK 20005 CLAMP, 5/16 NYLON MB2000 98883 05/04/01 5-12...
-
Page 26: Suggested Spare Parts
BRUSH SET MP MOTOR (PKG OF 4) 34378 FUSE 34379 FUSE HOLDER 09135 BEARING, MOTOR 51353 LOCK, PAD DRIVER BLUE 140441 BAG, DUST (PACKAGE OF 10 BAGS) 140420 BLOCK, SPRING COMPRESSION 730074 BRUSH, STRIP (PACKAGE OF 6) 5-13 MB2000 98883 05/07/02...
