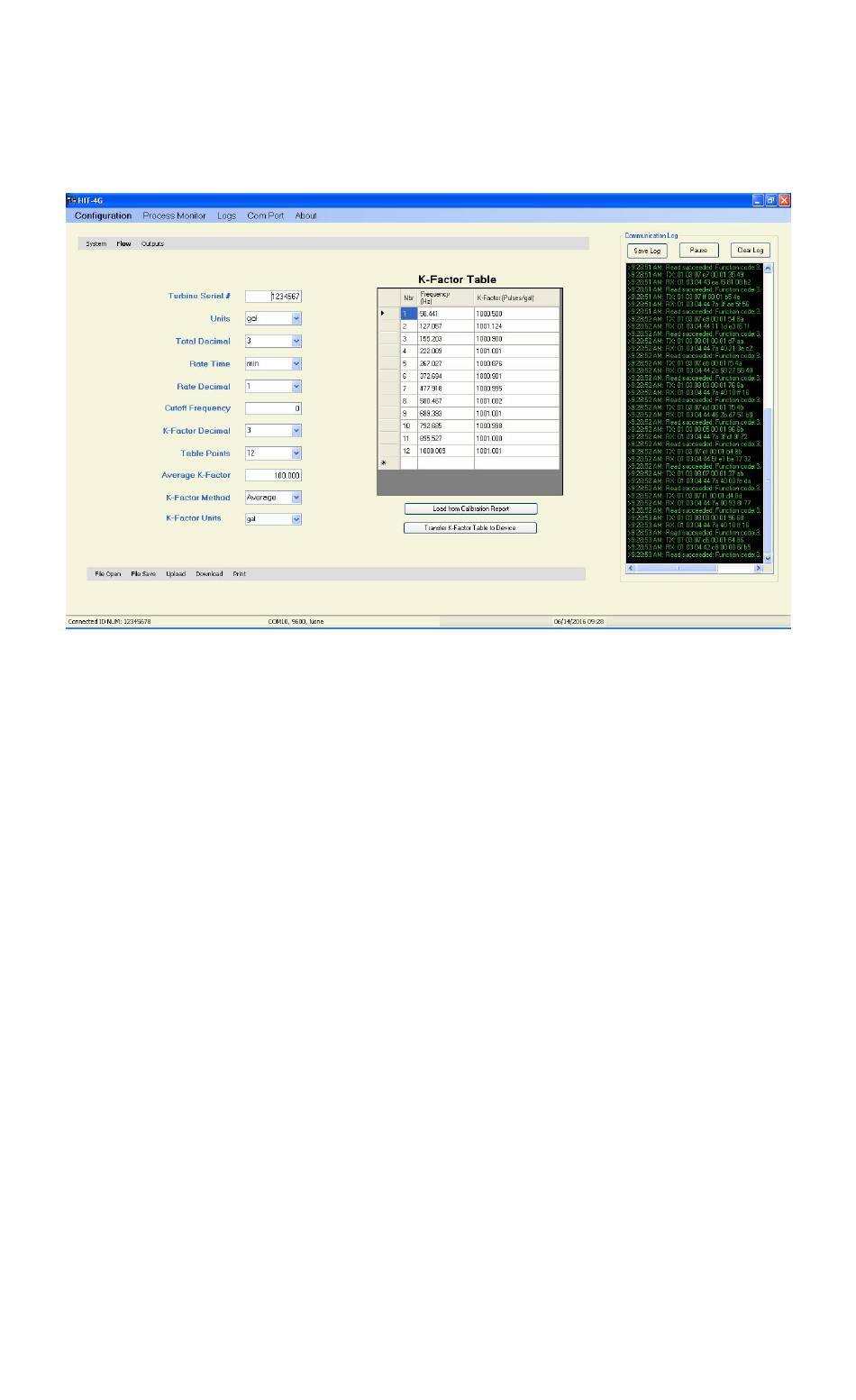

Flow Settings Page
The Flow Configuration screen is used to configure all parameters related
to the flowmeter calibration.
Turbine Serial #:
Numeric entry of Flowmeter serial number. Valid entries
0000000 to 9999999
Units:
Units of measure for flow. Select Gal, BBL, L, LB, KG, ACF,
ACFx1000, SCF, SCFx1000, M3 and NM3.
Total Decimal:
Sets location of the Total decimal point. Select 0, 1, 2 or 3.
Rate Time:
Selects the flow rate time base. Select sec, min, hour or day.
Rate Decimal:
Sets location of the Rate decimal point. Select 0, 1, 2 or 3.
Cutoff Frequency:
The frequency cutoff threshold in Hz. The HIT-4 will ignore
an input frequency that is below this user entered value. Valid
entries are 0.000 to 100.000.
K-Factor Decimal:
Sets location of the K-Factor decimal point. Select 0, 1, 2 or 3.
