3.5
Temperature and Pressure Inputs
HIT-4L provides inputs for temperature and pressure using an add-on
printed circuit board PCA193. SW1 on PCA193 must be properly set
according to the type of input being used.

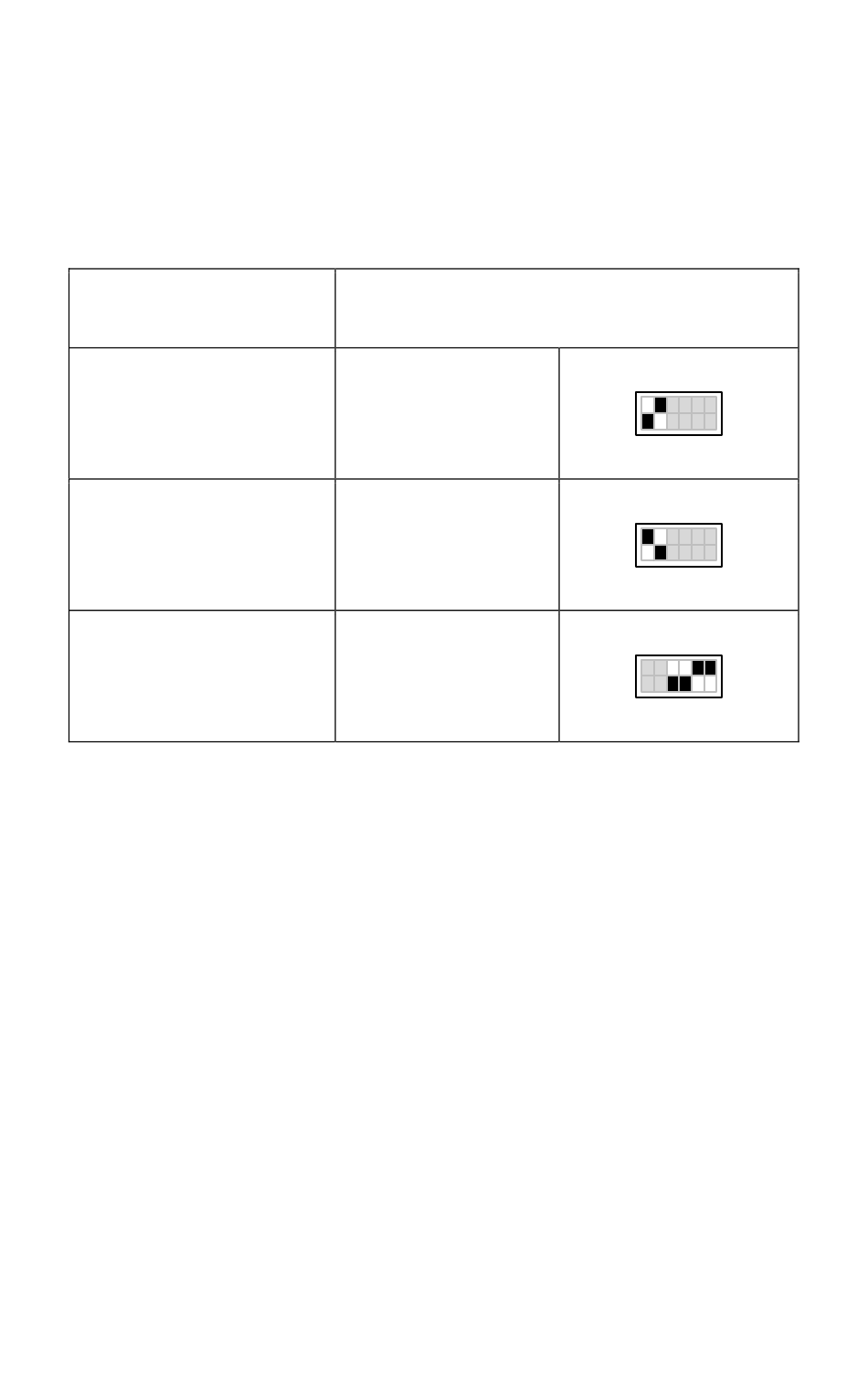

INPUT OPTION
Temperature Transmitter
RTD
Pressure Transmitter
HIT-4L
PCA193
SW-1 SETTINGS
2 - ON
1 - OFF
1 - ON
2 - OFF
5, 6 - ON
3, 4 - OFF
Installation 23
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
HP-329
