18 Installation
DC+
DC-
Analog
TB1
Flow+
Flow-
TB2
SW1
Hoffer Flow Controls
1 2 3 4 5 6

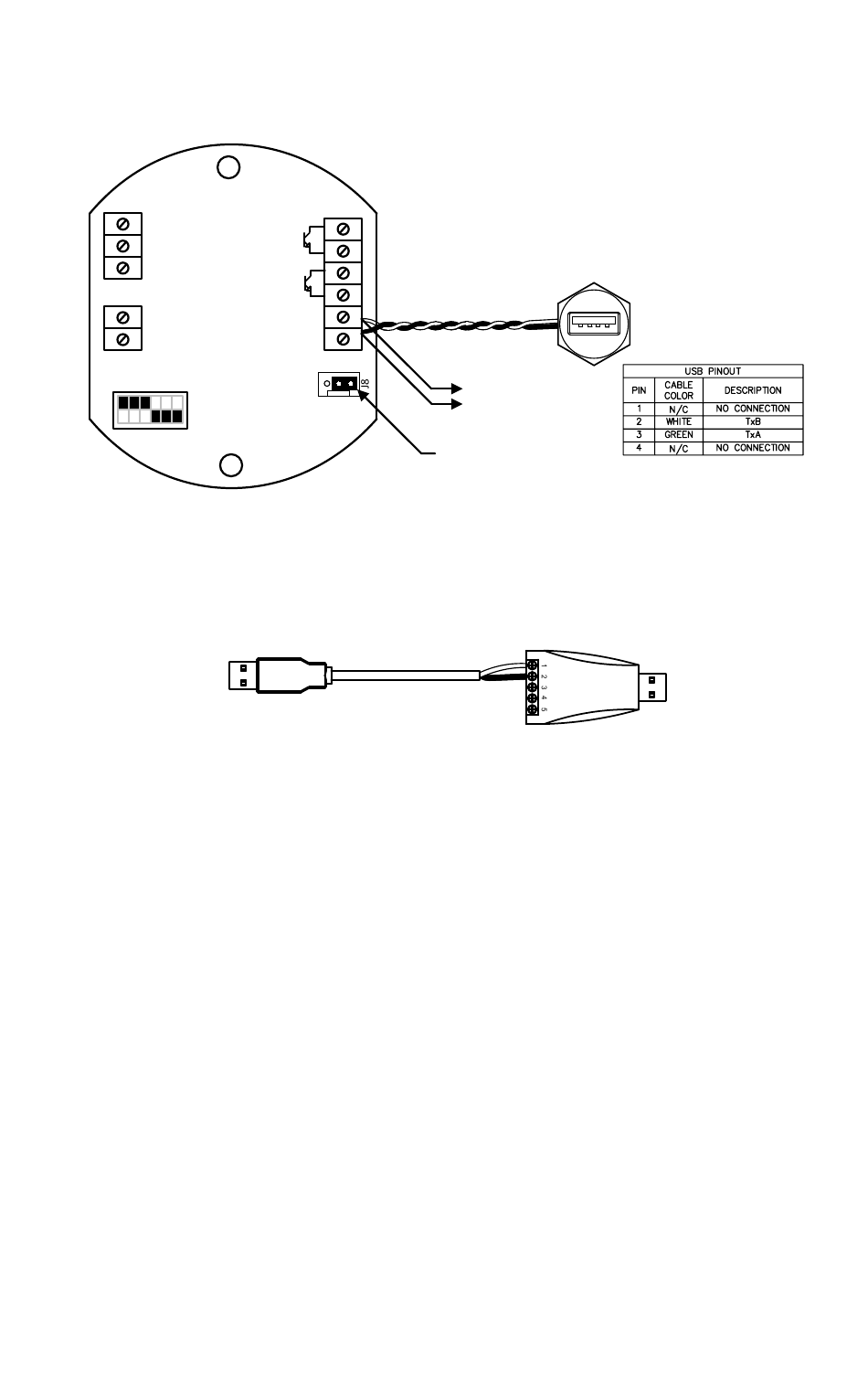

RS485 Communications Port Wiring
TO HIT-4 USB
STYLE CONNECTOR
RS485 PORT
Communication Kit P/N: 800-0483
HP-329
Tx A
Tx B
TB3
PCA192
1 2 3 4
TO USER
RS485 PORT
ENSURE JUMPER J8
IS INSTALLED AS SHOWN
RS485 TO USB
CONVERTER
OPTIONAL USB STYLE
CONNECTOR RS485 PORT
(NEMA 4 ENCL ONLY)
TO PERSONAL COMPUTER OR
LAPTOP USB CONNECTOR
PORT
HIT-4L
