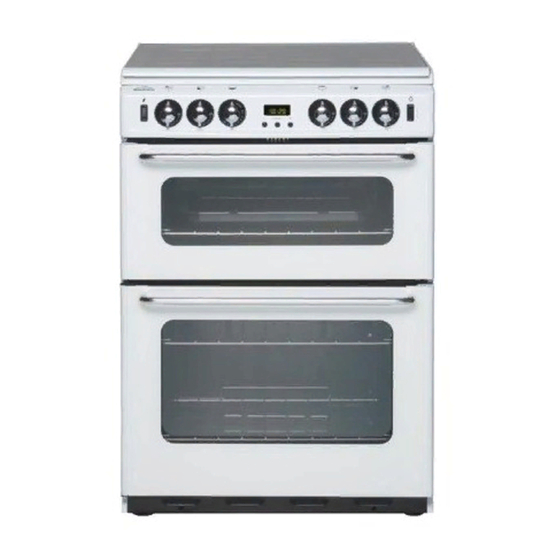

- Page 1 600SIDODLa Freestanding Gas Double Oven & Grill with Automatic Programmer For Natural Gas Models & LP Gas Models User & Installation Instructions...
- Page 2 If you smell gas: - Do not try to light any appliance. - Do not touch any electrical switch. - Call the Gas Emergency Helpline at TRANSCO on: 0800 111999 The Gas Consumer Council (GCC) is an independent organisation which protects the interests of gas users.
-
Page 3: Table Of Contents
Technical Data ........30 Stoves Customer Care ........32 Please keep this handbook for future reference, or for anyone else who may use the appliance. -
Page 4: User's Section
INTRODUCTION Thank you for choosing a British Gas & Electrical connection built appliance by Stoves Please refer to installation instructions We hope that the following information for the Gas & Electrical Safety Regulations will help you to familiarise yourself and the Ventilation Requirements. - Page 5 INTRODUCTION Glass door panels Ventilation To meet the relevant Standards of The use of a gas cooking appliance Domestic cooking appliances, all the results in the production of heat and glass panels on this appliance are moisture in the room in which it is toughened to meet the fragmentation installed.
- Page 6 INTRODUCTION Moving the cooker Environmental Protection Do not attempt to move the cooker by Stoves Limited is committed to protecting pulling on the doors or handles. Open the environment and operates an the door and grasp the frame of the...
-
Page 7: Be Safe - Not Sorry
BE SAFE - NOT SORRY When you are cooking, keep • Do not use aluminium foil to cover children away from the vicinity the grill pan, or put items wrapped of the appliance. in foil under the grill as this creates a fire hazard. -
Page 8: Using The Hob
USING THE HOB Ignition Pans Push in and turn the selected control For optimum safety and performance, we knob anticlockwise to the ‘full on’ position recommend the use of flat bottomed pans and press the ignition switch, or hold with a base diameter of minimum 100mm a lighted match or taper to the burner, (4”) and maximum 250mm (10”). - Page 9 USING THE HOB To save gas The fold down lid • Use the size of pan most suited to Caution: Glass lids may shatter when the size of the burner - ie; larger heated. Turn off all the burners before pans on the larger burners, smaller shutting the lid.
-
Page 10: Using The Grill
USING THE GRILL Caution: Accessible parts may Preheating be hot when the grill is used - best cooked results, young children should be kept recommend that you preheat the away. grill for about 3 minutes. Important: The top oven / grill door Shelf positions must be fully open when the grill is used. - Page 11 USING THE GRILL Detachable grill pan handle Grill pan trivet Place the handle over the edge of the Food for grilling should be placed grill pan. The handle should be within the area defined by the kinks in removed from the pan during grilling, the trivet wires.
-
Page 12: Using The Ovens
USING THE OVENS When you are cooking keep Using the top oven children away from the vicinity of the oven. Ignition Push in and turn the top oven control Notes: knob anticlockwise to the ‘ ’ FULL ON As part of the cooking process, hot air position - Gas Mark 9 - and press the is expelled through a vent at the top of ignition switch until the burner lights. - Page 13 USING THE OVENS Preheating Zones of heat Always preheat the top oven f o r The temperature at the centre of the 15 minutes. However, if the main oven corresponds with the selected gas oven is being used at the same time, mark and is slightly higher towards the then preheating may not be necessary.
-
Page 14: Oven Furniture
USING THE OVENS Oven furniture Baking guide hints The gas mark settings and times given in the top baking guides are based on Baking tray and roasting tins dishes made with block margarine. If tub For best cooked results and even margarine is used, it may be necessary browning, the maximum size baking to reduce the gas mark setting. -
Page 15: Top Oven Baking Guide
USING THE OVENS Top oven baking guide Dish Recommended Suggested Approximate gas mark shelf cooking time position (preheated oven) Scones top - middle 10 - 15 mins Meringues “S” slow setting bottom 2 - 3 hours Cakes Small cakes middle 15 - 25 mins Whisked sponge middle... -
Page 16: Main Oven Baking Guide
USING THE OVENS Main oven baking guide Dish Recommended Suggested Approximate gas mark shelf cooking time position (preheated oven) Scones middle - top 8 - 15 mins Meringues “S” slow set bottom 2 - 3 hours Cakes Small cakes middle - top 15 - 25 mins Whisked sponge middle - top... -
Page 17: Traditional Fruit Cakes
USING THE OVENS Traditional fruit cakes Roast turkey It should be remembered that ovens Roasting turkey involves cooking two can vary over time, therefore cooking different types of meat - the delicate times can vary, making it difficult to be light breast meat, which must not be precise when baking fruit cakes. -
Page 18: Roasting Guide
USING THE OVENS Roasting guide Notes: The times given in the roasting guide • When cooking stuffed meat or are only approximate, because the poultry calculate the cooking time size and age of the bird will influence from the total weight of the meat cooking times as will the shape of a plus the stuffing. -
Page 19: Automatic Cooking
USING THE OVEN Automatic cooking Do not The automatic cooking facility is • Warm food should never be controlled by the programmer (see placed in the oven if there is a ‘Programmer / Clock’ section) and allows delay period. complete meals or individual dishes to •... - Page 20 AUTOMATIC COOKING Important: Hints for automatic cooking Food is more susceptible to the growth • Food is placed in a cold oven so of food poisoning organisms in warm you will need to add about conditions. If the weather is hot, either 10 - 15 minutes onto the cooking take care to ensure that food is not left time to allow for the oven to reach...
-
Page 21: Programmer / Clock
PROGRAMMER / CLOCK The Programmer Buttons Manual operation minute minder cook time ready time minus plus To set the programmer to manual To set the “Time of Day” operation at any time (cancelling any automatic setting), press the cook time a n d ready time buttons simultaneously. - Page 22 PROGRAMMER / CLOCK Semi-automatic cooking ( e x a m p l e ) 1. A (Auto) symbol appears. You have started cooking a meal or dish in the oven, and want to set the time for the oven to switch off. Press the cook time button, then use the p l u s and m i n u s buttons to set the display to show the length of cooking...
- Page 23 PROGRAMMER / CLOCK Fully automatic cooking ( e x a m p l e ) 5. A (Auto) symbol appears. For use when a delayed start time is required. You want to set the length of cooking t i m e, and the time for the oven to switch o f f.
- Page 24 PROGRAMMER / CLOCK The oven will automatically switch off 9. A (Auto) symbol will flash. at 18.00 hours (6.00 pm) and the alarm will sound (9). To switch off the alarm press the minute minder button (10). When the oven has switched off, return the oven control knob to the “off”...
-
Page 25: Cleaning
CLEANING C a u t i o n : Any cleaning agent Burner caps and heads used incorrectly may damage Important: Allow burners to cool the appliance. before cleaning. Always let the cooker cool Caution: Hotplate burners can be before cleaning. damaged by soaking, automatic Some cooking operations generate dishwashers (or dishwasher powders... - Page 26 CLEANING Easy care surfaces Glass parts MAIN OVEN SIDES AND BACK GLASS DOOR PANELS LID GLASS We recommend that the appliance is Do not use abrasives or polishes as cleaned after open roasting, and also they will scratch and damage the glass. after roasting at temperatures higher Use a mild cream cleaner - eg;...
-
Page 27: Installation Instructions
INSTALLATION INSTRUCTIONS Before start: Please read For installation in countries other than the instructions. Planning your installation will UK, the appliance must be connected in save you time and effort. accordance with all local gas and electri- cal regulations. Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the Ventilation Requirements... - Page 28 INSTALLATION INSTRUCTIONS Whilst every care is taken to eliminate Clearances burrs and raw edges from this product, No shelf or overhang or cooker hood please take care when handling - we should be closer than a minimum of recommend the use of protective 650mm, but check with cooker hood gloves during installation.
- Page 29 INSTALLATION INSTRUCTIONS Stability bracket 4. Fix the bracket to the floor. If the cooker is fitted with a flexible Measure from F L O O R L E V E L connection, a stability bracket should in the back of ENGAGEMENT EDGE be fitted to engage in the back of the the cooker and add 3mm.
- Page 30 INSTALLATION INSTRUCTIONS Connect to the electricity supply As the colours of the wires in the mains lead for the appliance may Warning: This appliance must be not correspond with the coloured earthed. markings identifying the terminals in The flexible mains lead is supplied your plug, proceed as follows: connected to a BS 1363 fused plug, 1.
- Page 31 INSTALLATION INSTRUCTIONS Connect to the gas supply Commissioning The inlet to the cooker is ” BSP ⁄ Burner aeration internal situated at the rear right corner. All burners have fixed aeration and no Fit the bayonet connection. This should adjustment is possible. be located so as to ensure that the flexible connector hose does not kink.
-
Page 32: Technical Data
TECHNICAL DATA Data badge - Lower part of front frame Hob - Burners have burner heads and caps which are removable for cleaning. Type of gas Concealed electrodes to each burner. This cooker must only be used with Natural Gas only, as specified on the appliance Ovens - Oven burners are sheet steel, data badge. -
Page 34: Stoves Customer Care
Serial No Please ensure you have the above details (Model No and Serial No) to hand when calling Stoves Customer Care. They are essential to booking your call. Outside the UK and Northern Ireland, refer to your local supplier. STOVES LIMITED... - Page 36 08 25237 02 © 7.2005...
