Swisher T2066 Assembly Operation Service And Adjustment Repair Parts

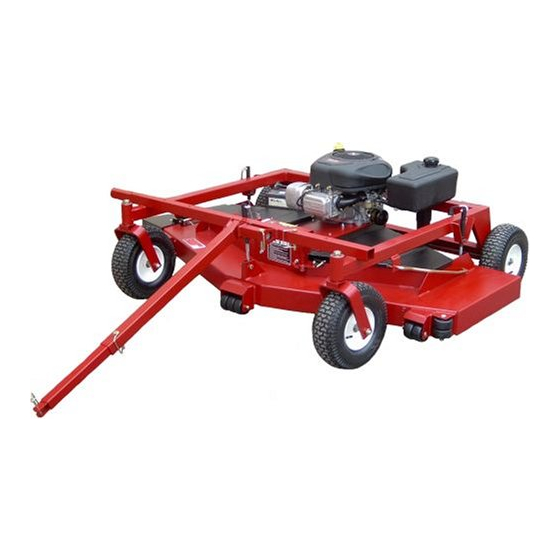

66” finish cut trailmower
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.swisherinc.com
OWNER'S
MANUAL
STARTING SERIAL #:
L112-016001
MODEL NO.
T2066
T2066-CA
T2066A
T2066A-CA
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
REV 12-016
1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093
Manufacturing quality lawn care equipment since 1945
12542
66" FINISH CUT
TRAILMOWER
Assembly
Operation
Service and Adjustment
Repair Parts
PHONE 660-747-8183 FAX 660-747-8650
Made In The
USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T2066 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swisher T2066

Summary of Contents for Swisher T2066

  • Page 1 OWNER’S MANUAL STARTING SERIAL #: L112-016001 MODEL NO. 66” FINISH CUT T2066 T2066-CA TRAILMOWER T2066A T2066A-CA IMPORTANT Assembly Read and follow all Safety Precautions Operation and Instructions before operating this Service and Adjustment equipment. REV 12-016 Repair Parts Made In The...

  • Page 2: Limited Warranty

    Should you have any questions concerning this warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. Read this manual completely. This machine can amputate hands, feet, and throw objects.
  • Page 4 For model year 2006 the EECS on your mower includes the liquid fuel lines, fuel line connectors, and fuel line clamps. Where a warrantable condition exists, Swisher will repair at no cost to you.

  • Page 5: Safety Decals

    SAFETY DECALS Replace decals immediately if damaged.Order by part number from Swisher OD11- No step Decal OD45- Warning Decal OD55- Triangle Danger Decal OD33- Speed Decal OD43- Flying Debris Decal OD29- Danger Decal...
  • Page 6 REQUIRED ASSEMBLY FRONT WHEEL CASTER ASSEMBLY 1. Remove single nut and washers from caster shaft. 2. Place one washer on the shaft of the caster/wheel sub-assembly. 3. Slide same shaft through the bearing/frame with wheel towards the ground. 4. Place the other washer on the shaft; it should be resting on the top bearing. 5.

  • Page 7: Intended Use

    STARTING THE ENGINE See engine manufacturer’s instructions for the type and amount of oil and fuel used. TrailMowers with electric start engines will need a battery (sold separately). Swisher recommends using a standard “U 1 R” lawn & garden battery.

  • Page 8: Starting To Mow

    • Make sure the tow vehicle parking brake is set, mower is level, and blades are disengaged. • Check spark plug wire, oil, and fuel. • Check all electrical connections (See Schematics). • Make sure toggle switch is turned “ON” and the red tether is properly attached. •...

  • Page 9: General Troubleshooting

    ALTERNATIVE STOPPING METHOD • Bring vehicle to complete stop, shut off engine, and set parking brake. • Disengage blade engage lever (6008). • Manually shut toggle and key switches to their “OFF” positions. • Always remember to remove keys to avoid irresponsible usage. TRANSPORTING MOWER •...

  • Page 10: Mower Maintenance

    MOWER MAINTENANCE GENERAL RECOMMENDATIONS The warranty on this Trailmower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain unit as instructed in this manual. Some adjustments will need to be made periodically to maintain your unit properly. All adjustments in this manual should be checked at least once each season.
  • Page 11 Item # Description Part # FRAME DETAIL Tongue Hitch 661* Solid Stock Hitch 661A* Bushing 10579 Safety Hitch Pin 3/4 - 16 Nyloc Nut NB122 Caster Fork 665TC Washer NB195 Wheel Spacer 663L 5/8 - 11 2 Way Lock Nut NB595 Wheel/Tire/Bearing F4157WK...
  • Page 12 MOWER DECK DETAIL BELT IDLER DETAIL Item # Description Part # Belt Cover 12523TK Grass Chute 9902TK Chute Bracket 6030TK Anti-Scalp Roller AS001 Deck 12520* Torsion Spring 166X34 Sway Bar Left 3665 Sway Bar Right 3664 Deck Idler 6055 3/8 - 16 X 1 1/4 Bolt NB618 Spacer 6040Z...
  • Page 13 MOTOR BASE DETAIL Slide plastic tube snug against toggle switch. Item No. Description Part # Heat Shield 6052TK Throttle 686N Toggle Switch 685SP Control Console 10737* Ignition Switch 3623 Motorbase 12521* Belt Guide 14869 Belt Guide 6000 Top Idler Assembly 10735 IDLER DETAIL 5/16 - 18 Nyloc Nut...

  • Page 14: Engine Detail

    ENGINE DETAIL* Item # Description Part # UPPER SPACER 689L 5-1/2'' ENGINE PULLY 1/4/ X 1'' KEY STOCK 9031 LOWER SPACER 689S 3/8 BELLEVILLE WASHER FLAT WASHER TR150W 3/8-24 X 1BOLT [BRIGGS ] NB452N 7/16-20 X 1 BLOT [TECUMSEH ] NB238N 5/16-18 X 1-3/4 BOLT NB515...

  • Page 15: Wiring Schematics

    WIRING SCHEMATICS...

  • Page 16: How To Order Repair Parts

    The model number for the engine will be found on the top of the blower fan housing. All mower parts listed herein may be ordered directly from Swisher or your nearest Swisher dealer. T2066 All engine parts may be ordered from the nearest dealer of the...

This manual is also suitable for:

T2066-caT2066aT2066a-ca

Table of Contents
