www.swisherinc.com

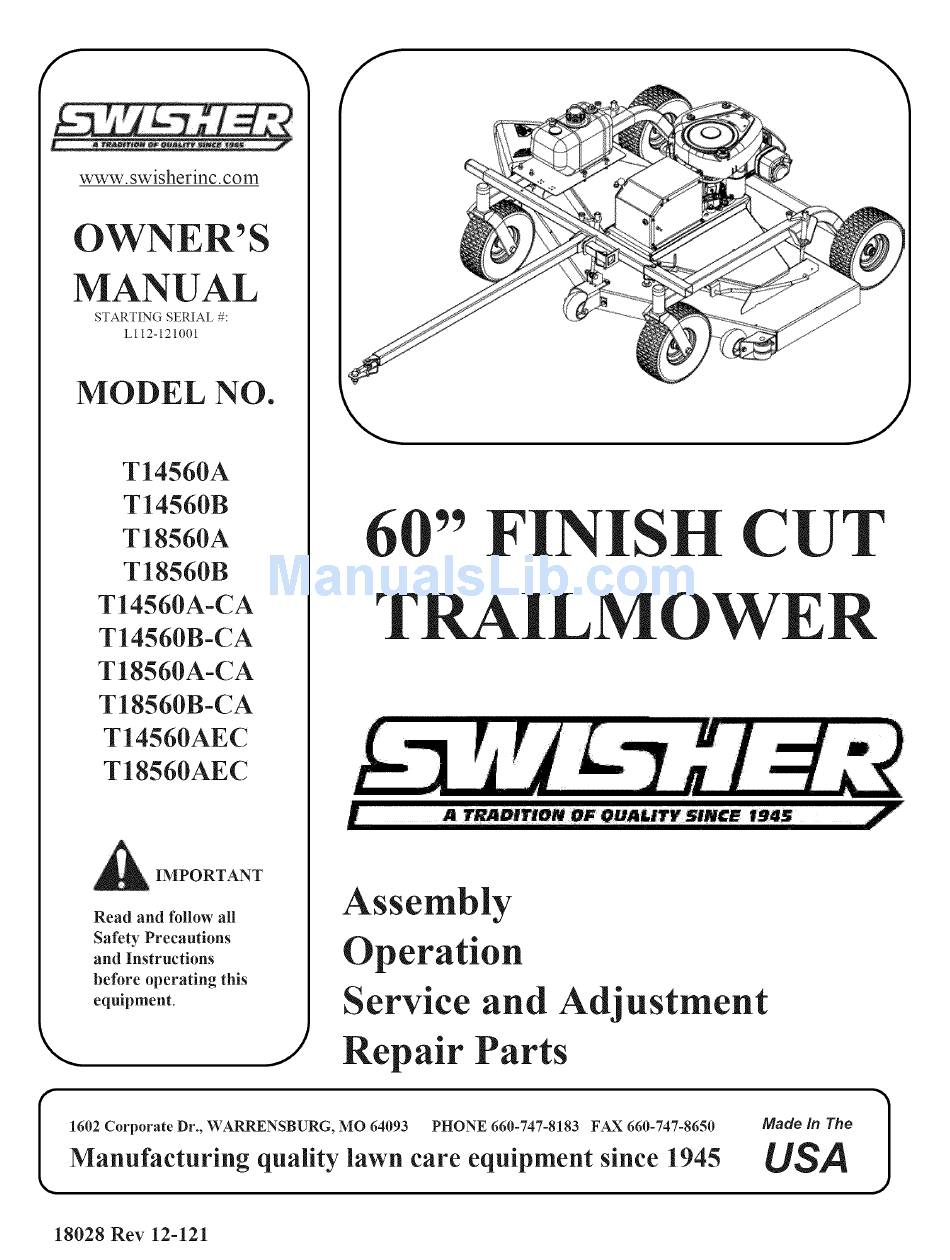

OWNER'S
MANUAL
STARTING
SERIAL
#:
LI I2-121001
MODEL
NO.
T14560A
T14560B
T18560A
T18560B
T14560A-CA
T14560B-CA
T18560A-CA
T18560B-CA
T14560AEC
T18560AEC
_IMPORTANT
Read and follow all
Safety Precautions
and Instructions
before operating
this
equipment.
J
60" FINISH
CUT
TRAILMOWER
A T_OITION
OF OUALIT¥
SINCE
194S
,f
Assembly
Operation
Service and Adjustment
Repair Parts
1602 Corporate
Dr., WARRENSBURG,
MO 64093
PHONE
660-747-8183
FAX 660-747-8650
Manufacturing
quality lawn care equipment since 1945
Made In The
USA
18028
Rev
12-121
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swisher T14560A
Summary of Contents for Swisher T14560A
- Page 1 OWNER'S MANUAL STARTING SERIAL LI I2-121001 MODEL T14560A T14560B 60" FINISH T18560A T18560B TRAILMOWER T14560A-CA T14560B-CA T18560A-CA T18560B-CA T14560AEC T18560AEC A T_OITION OF OUALIT¥ SINCE 194S _IMPORTANT Assembly Read and follow all Safety Precautions Operation and Instructions before operating...
- Page 2 Any engine service difficulty is the responsibility of the engine manufacturer and in no way is Swisher or its agents responsible for the engine warranty. The Briggs & Stratton Engine Service Hot-Line is 1-800- 233-3723. 2) Commercial The warranty...
- Page 3 SAFETY PRECAUTIONS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message follows and be alert to the possibility of personal injury. Read this manual completely. This machine can amputate hands, feet, and throw objects.
- Page 4 For model year 2006 the EECS on your mower includes the liquid fuel lines, fuel line connectors, and fuel line clamps. Where a warrantable condition exists, Swisher will repair at no cost to you. Expenses covered under warranty include diagnosis, parts, and labor.
- Page 5 SAFETY DECALS Replace decals inmlediately if damaged. Order by part number from Swisher. OD 11- No step Decal OD45- Warning Decal OD55- Triangle Danger Decal OD33- Speed Decal OD43- Flying Debris Decal OD29- Danger Decal...
- Page 6 REQUIRED ASSEMBLY FRONT WHEEL CASTER ASSEMBLY Remove single nut and washers from caster shaft. Place one washer on the shaft of the caster/wheel sub-assembly. Slide same shaft through the bearing/flame with wheel towards the ground. Place the other washer on the shaft; it should be resting on the top bearing.
- Page 7 TrailMowers with electric start engines will need a battery (sold separately). Swisher recommends using a standard "U 1 R" lawn & garden battery. • Engine must be level to accurately...
- Page 8 Make sure the tow vehicle parking brake is set, mower is level, and blades are disengaged. Check spark plug wire, oil, and fuel. Check all electrical connections (See Schematics). Make sure toggle switch is turned "ON" and the red tether is properly attached.
- Page 9 ALTERNATIVE STOPPING METHOD ,, Bring vehicleto completestop,shutoff engine,andsetparkingbrake. ,, Disengage bladeengage lever(17611). ,, Manuallyshuttoggleandkey switchesto their "OFF" positions. ,, Alwaysremember to removekeysto avoid irresponsible usage. TRANSPORTING MOWER Stop mower properly. Place mower deck in its highest position. If transporting unattached from tow vehicle, then remove spark plug wire and place where it cannot contact the spark plug.
- Page 10 MOWER MAINTENANCE GENERAL RECOMMENDATIONS The warranty on this Trailmower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain unit as instructed in this manual. Some adjustments will need to be made periodically to maintain your unit properly.
- Page 11 FRAME ASSEMBLY i ITEM# QTY. PART NO DESCRIPTION ITEM # QTY. PART NO. DESCRIPTION 3664 Pin - 1/8" X 1" Cotter Bar - Right Sway NB126 3665 Bar - Left Sway T2PB Bushing - Plastic 17600TC Weldment -T60 Frame NB178 Washer - 5/8 ID X ] OD ] 0 GA F4157WK Washer-5/8...
- Page 12 CENTER BLADE DRIVER DETAIL ITEM# QTY. PART NO. DESCRIPTION 9057TK Housing-Bearing NB690 Bolt - Serrtd Flange 1/4-20 X 3/4 Gr 5 Bearing 9054 Shaft - Center 5.75" NB179 Washer-3/41DX1 1/4OD18Ga B98W Washer - Flat 3/4 ID X 1 3/40D 6114 Pulley- 5.50"...
- Page 13 ITEM PART NO DESCRIPTION See Motor Base Detail See Safetv Switch Bracket Detail MOWER DECK DETAIL See Outer Blade Driver Detail See Center Blade Driver Detail See Grass Chute & Sprinq Detail See Enplaple Lever Detail See Idler Detail T2PB Bushinq - Plastic AS001 Roller - Anti-Scalp...
- Page 14 MOTOR BASE DETAIL Slide plastic tube snug Against toggle switch. Item # 24 Item # 26 Battery shown is for representation only PARTS NOT SHOWN 18057 Harness - Wiring, Briggs ( 13-20 hp) Battery (BCI Group # : U 1R) BCSR Cable - Battery...
- Page 15 Engage Lever Detail Height Adjust Handle Detail Safety Switch & Bracket Detail ITEM# QTY, PART# DESCRIPTION IITEM# QTY, PART# DESCRIPTION ITEM# QTY, PART# DESCRIPTION NB199 Bolt- 3/8-16X5HCCGR5ZP 18390TK Mount - Switch Safety -17N1TK*Tube- Height Adjust NB280 Nut - 2 Way Lock 3/8-16 ZY ES214"...
- Page 16 The model number for the engine will be found on the top of MODEL the blower fan housing. All mower parts listed herein may be ordered directly from Swisher or your nearest Swisher dealer. All engine parts may be ordered from the nearest dealer of the T14560A engine supplied with your mower.
