OWNER'S
MANUAL
SERIAL NUMBER:
02-287001
MODEL NO.
T11044
RK10544
T1144HSP
T8544SPB
T10544BSPB
T12544CHB
IMPORTANT
Read and follow all Safety
Precautions and
Instructions before
operating this equipment.
Rev.2.27.2003
1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093
Manufacturing quality lawn care equipment since 1945
ONT442003

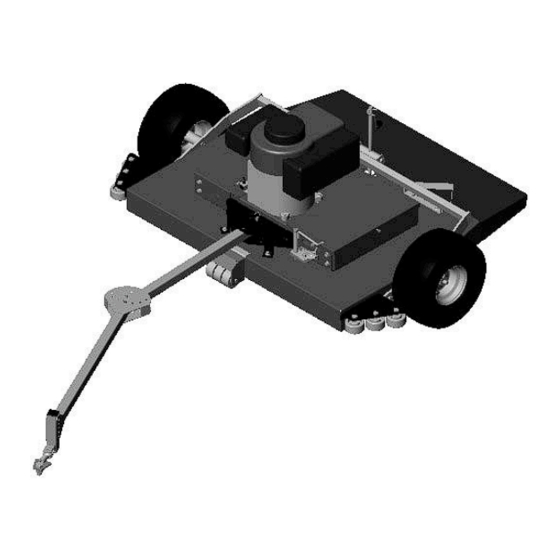

44" FINISH CUT
TRAILMOWER
Assembly
Operation
Service and Adjustment
Repair Parts
FAX 660-747-8650
PHONE 660-747-8183
Made In The
USA
Advertisement
Table of Contents
Related Manuals for Swisher T11044
Summary of Contents for Swisher T11044
- Page 1 OWNER’S MANUAL SERIAL NUMBER: 02-287001 MODEL NO. T11044 RK10544 T1144HSP T8544SPB T10544BSPB 44” FINISH CUT T12544CHB TRAILMOWER IMPORTANT Assembly Read and follow all Safety Precautions and Operation Instructions before Service and Adjustment operating this equipment. Repair Parts Rev.2.27.2003 1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093...
-
Page 2: Limited Warranty
Should you have any questions concerning this warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. Read this manual completely. This machine can amputate hands, feet, and throw objects. - Page 4 • Turn off the blades when not mowing. Before leaving the machine, turn off the blades and stop the engine. • Watch for traffic when operating near or crossing roadways. • Do not operate the mower if it has been dropped or damaged in any manner or if the mower vibrates excessively.
-
Page 5: Safety Decals
SAFETY DECALS Replace decal immediately if damaged. Order by part number from Swisher Mower and Machine Co. Inc. OD33-Speed Decal TrailMower Serial # OD55-Triangle Danger Decal (All four deck corners) OD99127-44" Deck White Decal (Not Pictured) OD99127-44" Deck White Decal... - Page 6 OPERATING YOUR TRAILMOWER The operation of any mower can produce foreign objects to be thrown into the eyes, resulting in severe eye damage. Always wear certified safety glasses or wide-vision safety goggles over spectacles before staring any cutting machine and while operating such a machine. The operation of any cutter produces sound waves that are damaging to the human ear.
-
Page 7: Starting The Engine
See engine manufacturer’s recommendations for the type and amount of oil and fuel used. Trail Mowers equipped with an electric start engine will need a battery (sold separately). Swisher recommends using a standard “12N12A” battery. • Make sure the tow vehicle parking brake is set, mower is level, and blades are disengaged. -
Page 8: Starting To Mow
When offsetting the mower do so to the side opposite the discharge of the tow vehicle. • Swisher recommends if the tow vehicle is equipped with a mid-mount mower to overlap the cut approximately 6”. This may vary depending on mowing terrain, obstacles, and/or tow vehicle. -
Page 9: General Troubleshooting
SUGGESTED MOWING PRACTICES • Operate mower engine at full throttle to assure the best cutting performance and maximum material discharge. • Allow wet grass to dry. Wet grass will clump and collect under the mowing deck. • Mowing should be started with tow vehicle in low gear and increased only as safe mowing conditions permit. -
Page 10: Mower Maintenance
MOWER MAINTENANCE GENERAL RECOMMENDATIONS The warranty on this TrailMower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain unit as instructed in this manual. Some adjustments will need to be made periodically to maintain your unit properly. All adjustments in this manual should be checked at least once each season. -
Page 11: Repair Parts
BLADE CARE AND SERVICE For best results cutter blades must be kept sharp. The blades can be sharpened with a few strokes of a file or grinding wheel. Do not attempt to sharpen blades while they are on the cutter. Disconnect spark plug wire before servicing unit. Important: Replace blades that have been damaged or deeply nicked. - Page 12 BALL LOCK PINS FRONT LEFT RIGHT Left offset shown REAR FIGURE ONE Slide plastic tube snug against toggle switch. FIGURE TWO (FIGURE FIVE FOR DETAILS)
-
Page 13: Wiring Configurations
WH44RCH PULL START W/ B&S ENGINE 4598 BLADE ENGAGE CABLE 9074 12 VOLT MODELS BATTERY (12N12A) RECOMMENDED SOLD SEPARATELY SOLENOID 9043 BATTERY CABLE - POSITIVE BCSR BATTERY CABLE - NEGATIVE EXTRAS VELCRO STRAPS 7033 SWISHER DECAL OD99116 44" DECAL OD99119... - Page 14 SEE DETAILS T-HANDLE OPTION SEE DETAIL FIGURE FOUR SINGLE POINT HEIGHT ADJUST ITEM # DESCRIPTION PART # ITEM # DESCRIPTION PART # BELT COVER 4524* RIGHT ROLLER BRACKET 4016TK MOTOR BASE 4517* ANTI-SCALP ROLLER 1/2" AS003 1/4 BOLT NB114 1/2 NUT NB121 HEIGHT ADJUSTER 5/16 BOLT...
-
Page 15: Blade Set-Up
FIGURE SIX BLADE SET-UP FIGURE FIVE ENGINE SET-UP ITEM # DESCRIPTION PART # ITEM # DESCRIPTION PART # ENGINE NOT AVAILABLE 3/4 NUT NB175 UPPER BELLEVILLE AS155 5/16 BOLT NB253 BLADE PULLEY B4104 5/16 NUT NB170 THIN WASHER NB179 TOGGLE BRACKET 4483TK BLADE DRIVER 9018... - Page 16 SEE FIG. NINE FIGURE SEVEN FIGURE EIGHT T-HANDLE OPTION STANDARD ENGAGE T-HANDLE LEVER 4462TK ITEM # DESCRIPTION PART # COTTER PIN NB597 ENGAGE STANDOFF 4547TK 1/4 NUT NB180 5/16 Spade Bolt NB260 1/2 BOLT NB155 WASHER NB274 ENGAGE LINK 4461TK ENGAGE LEVER 4548TK HANDLE KNOB...
-
Page 17: Tension Assembly
ITEM # DESCRIPTION PART # 3/8 NUT NB280 WASHER NB272 IDLER PULLEY B527 IDLER FINGER 4592 5/16 BOLT NB501 IDLER SPRING 4422 5/16 NUT NB170 BRAKE LINK 4532 3/8 BOLT NB107 5/16 SPADE BOLT NB260 EYE BOLT V139EB 5/16-18 BOLT NB210Z 3/8 NUT NB182... - Page 18 Note: Eye Bolt for left brake only. FIGURE ELEVEN BRAKE CONFIGURATION ITEM # DESCRIPTION PART # 1/4-20 NYLOCK NB180 10-24 KEP NUT NB172 BRAKE PAD 9039 EYE BOLT V139EB 10-24 BOLT NB703 BRAKE ARM 4588TK 5/16 BOLT NB596 5/16 NUT NB170...
-
Page 20: How To Order Repair Parts
All TrailMower parts listed herein may be ordered directly RK10544 from Swisher Mower & Machine Co. Inc., your nearest Swisher dealer, or from our website. www.swisherinc.com T1144HSP All engine parts may be ordered from the nearest dealer of the...
