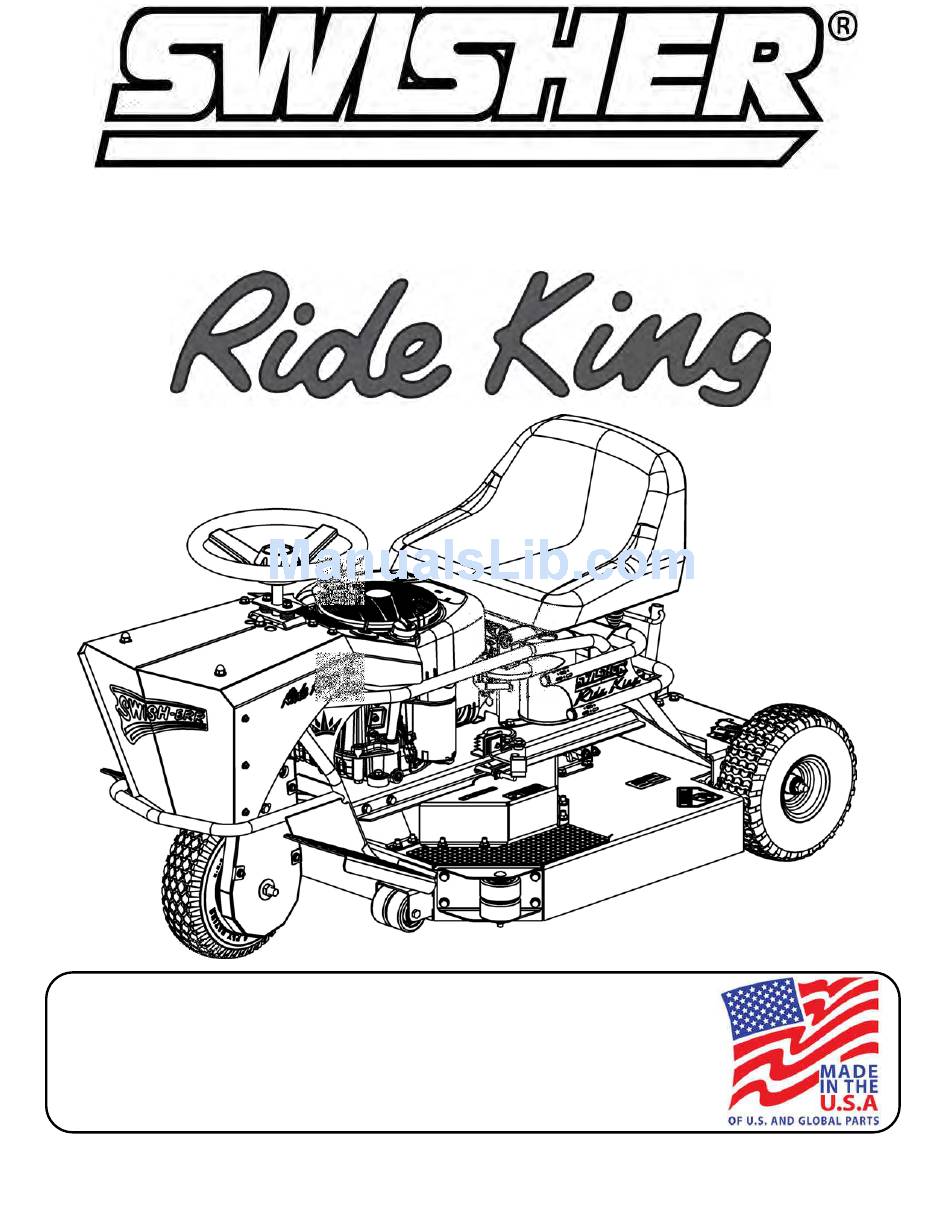

TWR10532BS, TWR10532BS-CA
10.5 HP (Briggs & Stratton) – 32" Deck
SWISHER ACQUISITION INC.
1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093
PHONE: 660-747-8183 FAX: 660-747-8650
TOLL FREE: 1-800-222-8183
Manufacturing quality lawn care equipment since 1945,
Celebrating over 70 years of innovation
OWNER'S MANUAL
STARTING SERIAL # L116-315001
20877 REV 16-315

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWR10532BS and is the answer not in the manual?

Questions and answers

Related Manuals for Swisher TWR10532BS

Summary of Contents for Swisher TWR10532BS

  • Page 1 TWR10532BS, TWR10532BS-CA 10.5 HP (Briggs & Stratton) – 32” Deck SWISHER ACQUISITION INC. 1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093 PHONE: 660-747-8183 FAX: 660-747-8650 TOLL FREE: 1-800-222-8183 Manufacturing quality lawn care equipment since 1945, Celebrating over 70 years of innovation OWNER’S MANUAL...

  • Page 2: Limited Warranty

    1-800-222-8183. The model number, serial number, date of purchase and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS LIMIT ED W ARRANT Y OPERAT ION & FEAT URES T ABLE OF CONT ENT S Features INT RODUCT ION Starting General Grass Height of Cut Before Operating Deck Adjustment Uncrating & Assembly Drive Wheel Detent SYMBOLS & DECALS Steering SAFET Y INST RUCT IONS Fuel Shut-Off Valves...

  • Page 4: Introduction

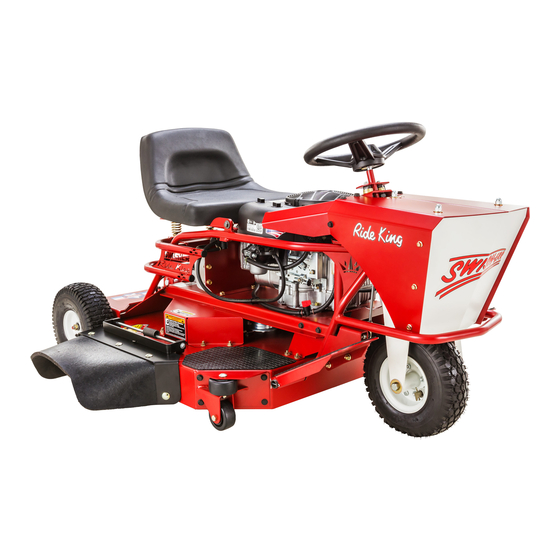

    INTRODUCTION Congratulations! Thank you for purchasing a Swisher Three Wheel Rider. This machine is built for the greatest efficiency in smaller residential settings and is perfect for saving on storage space. Innovative 360° turning drive wheel coupled with a worm style gearbox contributes to the machine’s performance and maneuverability.

  • Page 5: Before Operating

    INTRODUCTION Uncrating & Assembly: Tools Required: • Tire pressure gauge • Nail bar or claw hammer • Wire snips To remove the mower from the crate: Dispose of top and side panels of the crate. Remove loose parts and packing material. Cut any banding or strapping that may be holding the mower to the crate.

  • Page 6: Symbols & Decals

    SYMBOLS & DECALS 21011 - Warning Decal Operator Must Be Seated Decal - OD73 Flying Debris Decal - OD43 Notice Do Not Alter Wiring Decal - OD74 No Step Decal - OD11 Triangle Danger Decal - OD55 Serial # ID Tag EPA / CARB Certification Decal...

  • Page 7: Safety Instructions

    SAFETY INSTRUCTIONS These instructions are for your safety. Read them carefully. This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. General Use: Read all instructions in this operator’s manual and on the machine NOTE:...

  • Page 8: Slope Operation

    SAFETY INSTRUCTIONS Children: Serious accidents may occur if you fail to be on guard for Remember: children in the area of the machine. Children are often attracted to the machine and mowing work. The operator is responsible for Never assume that children will stay put where you last saw avoiding dangers or accidents.

  • Page 9: Safety Instructions

    SAFETY INSTRUCTIONS General Use Continued… Mowing Safety: WARNING – Gasoline is highly flammable. • Store fuel in containers specifically designed for this purpose. • Refuel outdoors only and do not smoke while refueling. • Add fuel before starting the engine. Never remove the cap of the fuel tank or add gasoline while the engine is running or when the engine is hot.

  • Page 10: Cust Omer Responsibilit

    CUSTOMER RESPONSIBILITIES Operator Presence System: Be sure to check that the operator presence and interlock systems are working properly before each use. If your mower does not function as described, repair the problem immediately. The engine should not start unless the drive pedal is disengaged, the blade lever is disengaged (forward) and the operator is in the seat.
  • Page 11 CHARGING TIPS To avoid a battery explosion, never attempt to charge a frozen battery. Warning: Gel and AGM (Absorbed Glass Mat) batteries require a voltage-limited charger. Charging a Gel or AGM battery on a typical shop charger, even one time, may greatly shorten its life.

  • Page 12: V-Belts 1

    CUSTOMER RESPONSIBILITIES V-Belts: Check V-belts for deterioration and wear before each use and replace if necessary. Replace belts if they begin to slip from wear. SEE SPECIFICATION for belt part numbers and SERVICE section of this manual for instructions on how to replace the belt. Engine: REFER TO YOUR ENGINE OWNERS MANUAL.

  • Page 13: Maintenance Schedule 1

    CUSTOMER RESPONSIBILITIES Maintenance Schedule Before Before Each 8 Hours 25 Hours 50 Hours 100 Hours Season Storage Check Brake Pad Operation Check Tire Pressure Check Operator Presence Check for Loose Fasteners Sharpen/Replace Mower Blades Check Battery Clean Battery & Terminals Check Belts Check Engine Oil Change Engine Oil...

  • Page 14: Operat Ion & Feat Ures 1

    OPERATION & FEATURES Fuel Tank – 2 Qt. Steering Wheel – Used to control the direction of the machine. Battery Tiltable Steering Wheel Adjustment Discharge Chute – Directs debris Blade Engage Lever – Used to engage or Rear Hitch Mount disengage the deck blades.

  • Page 15: Starting 1

    OPERATION & FEATURES KEY SWITCH Power Off position Mow-in-reverse position – will NOT shut off engine when mowing in a generally rearward direction. Engine Run position – Engine WILL shut off if mowing in a generally rearward direction. Engine Start position NOTE: If you have never used a tractor or zero turn mower before, refer to the Operation Controls section of this manual before attempting to operate one for the first time.

  • Page 16: Deck Adjustment 1

    OPERATION Grass Height & Cutting Suggestions: Do not attempt to cut wet grass. The average lawn should be cut to 2 ½” during the cool season and to over 3” during the hot months. For healthier and better looking lawns, mow often and after moderate growth. As a rule, never cut more than 1/3 of the total grass blade length.

  • Page 17: Steering 1

    Right Fuel Shut-Off Valves The Swisher Three Wheel Rider is equipped with a fuel shut-off valve. It is located located near the front right corner of the engine. It is good practice to turn the valve to the “OFF” position during transport or storage. This can help prevent from engine flooding and also help extend the life of engine components.

  • Page 18: Service & Adjustments

    SERVICE & ADJUSTMENTS Jackshaft Belt Routing & Replacement For replacement belt part number refer to Replacement Parts Quick Reference Chart in this manual. Removal 1. Engine-to-Jackshaft belt 2. Engine pulley Disconnect spark plug wire. 3. Jackshaft pulley Make sure machine is on level ground. 4.

  • Page 19: Deck Belt Replacement 1

    SERVICE & ADJUSTMENTS Deck Belt Routing & Replacement For replacement belt part number refer to Replacement Parts Quick Reference Chart in this manual. Removal 1. Engine-to-Deck belt 2. Deck pulleys Disconnect spark plug wire. 3. Engine pulley Make sure machine is on level ground 4.

  • Page 20: Drive Belt Replacement

    SERVICE & ADJUSTMENTS Drive Belt Routing & Replacement For replacement belt part number refer to Replacement Parts Quick Reference Chart in this manual. Removal Disconnect spark plug wire. Drive belt Make sure machine is on level ground. Jackshaft pulley Remove hood. Drive pulley Make sure the drive pedal is disengaged.

  • Page 21: Wiring Harness

    WIRING HARNESS WIRING HARNESS P/N 20858...

  • Page 22: Parts Breakdown

    PARTS BREAKDOWN...

  • Page 23: Part S Breakdow N

    PARTS BREAKDOWN I TEM # PART # DESCRI PTI ON I TEM # PART # DESCRI PTI ON 20709* Weldment - Main Frame Ride King NB275 Washer - SAE Flat 5/16 ZY 20717 Tire/Wheel - 11 x 4.00 - 4, Turf Tread NB181 Nut - Nyloc 5/16-18 ZY T30V...

  • Page 24: Parts Breakdown

    PARTS BREAKDOWN...
  • Page 25 PARTS BREAKDOWN ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION 20709* Weldment - Main Frame Ride King 10502 Bolt - Carriage 3/8- 16 X 1 3/4 GR5 ZY A124B Bushing - Flanged (Up/Low) Ea. NB215 Nut - Hex 5/16- 24 ZY Grade 2 20716* Weldment - Steering Wheel Tilt NB159...
  • Page 26 PARTS BREAKDOWN...
  • Page 27 PARTS BREAKDOWN ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION 20739* Weldment - 32" Deck 20788 Rubber - Grass Chute, 3/8" 19924* Housing - Cast Iron Blade Driver 20789* Plate - Grass Chute Support Bearing 20294 Nut - 1/4-20 2-Way Lock ZClear B4104* Pulley - Blade 4 1/2"...
  • Page 28 PARTS BREAKDOWN...
  • Page 29 PARTS BREAKDOWN ITEM # PART # DESCRIPTION 20797Z Weldment - Drive Sprocket/Hub ZP AS010 Bearing - (1) 1616ZZ (TR150, T137) TR150W Washer - .531IDX1 1/2ODX.062(Ht Trtd)ZY NB156 Bolt - 1/2-13 X 7-1/2 HCC GR5 ZP NB121 Nut - Jam Lock, 1/2-13 2-Way Gr A NB275 Washer - SAE Flat 5/16 ZY NB503...
  • Page 30 PARTS BREAKDOWN ITEM # PART # DESCRIPTION 20718 Pulley - Stacked, Engine to Deck NB170 Nut - Serr Flange 5/16-18 ZY Case Hrd Engine - B&S 10.5 HP NB254 Nut - Serr Flange, 1/4-20 Grade 5 ZY NB710 Screw - 10-24 X 1 1/2 MSC Unslot Hex ZY NB172 Nut - Kep 10-24 ZY Washer - Bellev ille 7/16 X 1 1/4...

  • Page 31: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE CORRECTION Out of fuel. Fill fuel tank. Engine Will Engine flooded. Wait several minutes before attempting to Not Start restart. Bad spark plug. Replace spark plug. Dirty air filter. Clean or replace air filter. Dirty fuel filter. Replace fuel filter.

  • Page 32: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE CORRECTION Cutting too much grass / too fast. Raise deck height / reduce speed. Loss of Buildup of grass, leaves and trash under Clean underside of mower deck. Power deck. Clean or replace air filter. Dirty air filter. Check oil level/change oil.

  • Page 33: Mower Identification

    All mower parts listed herein may be ordered and may void the warranty. Swisher directly from Swisher or your nearest Swisher disclaims liability for any claims or damages, dealer. All engine parts may be ordered from...

  • Page 34: Replacement Parts

    REPLACEMENT PARTS Quick Reference Swisher Part # Part Description 20846 Belt - Wrapped, 34.5" 37X129 Belt - 30" Drive 18638 Belt – Deck Idler, ½ x 54 20710 Tire & Wheel - 4.10/3.50-5 w/ Pin Drive 20717 Tire/Wheel - 11 x 4.00 - 4, Turf Tread...

  • Page 36: Swisher History

    Neighbors noticed his new invention and began asking him to make more. Today, over 65 years later, Swisher is still producing innovative lawn and garden and ATV/UTV equipment designed to give us all more “relaxing in the shade” time.
