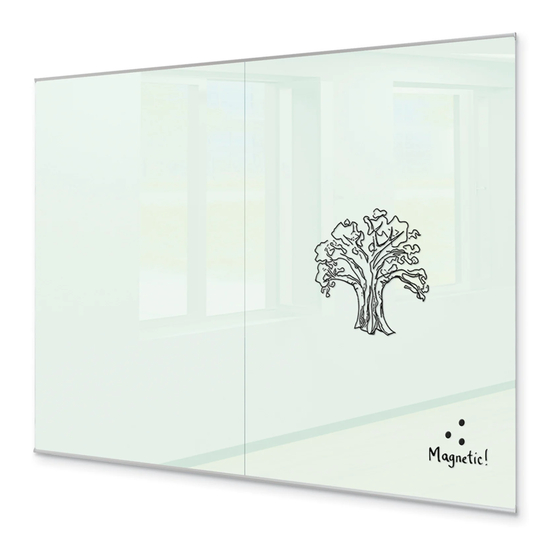

Unity Glass Wall -
Classroom Series
ASSEMBLY INSTRUCTIONS
INSTRUCCIONES DE ENSEMBLAJE
INSTRUCTIONS DE MONTAGE
DO NOT THROW AWAY!
NO LA TIRE
NE PAS JETER
UPDATED AS OF: 10/08/2019
1 of 12
