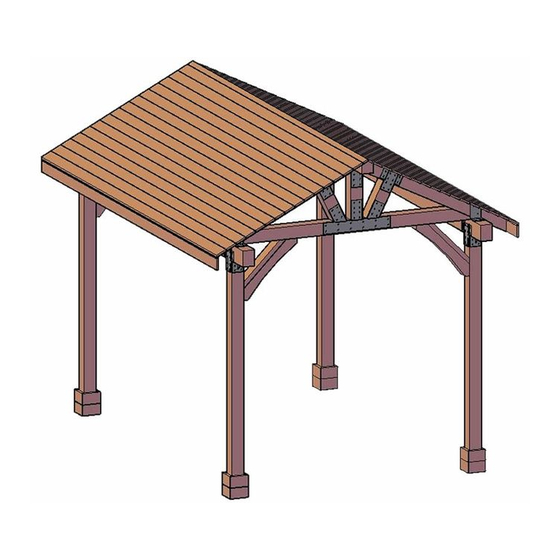

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE THICK TIMBER TOLEDO WOOD PAVILION...
- Page 2 P| 1 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 3 P| 2 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 4 P| 3 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 5 P| 4 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 6 P| 5 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 7 (1) in the saddle of the anchor bases (13). Drill a ø ¼´´ hole in the post prior to anchoring to facilitate the ratcheting of the hardware. After that, use a 5/16´´ X 3´´ lag bolts (A) to attach each post to the its respective anchor base (13). 5/16´´ X 3´´ Lag Bolts P| 6 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 8 Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 3 ½´´ Lag Bolts 3/8´´ X 3 ½´´ Lag Bolts 3/8´´ X 10 ½´´ Bolts Interior Side Exterior Side Exterior Side P| 7 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 9 Each part has a series of numbers that indicate where to attach the part with the corresponding number. Exterior Side Exterior Side Interior Side 3/8´´ X 8 ½´´ Bolts 3/8´´ X 3 ½´´ Lag Bolts 3/8´´ X 3 ½´´ Lag Bolts P| 8 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 10 3/8´´ x 12´´ lag bolts (H), as shown below. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 10´´ Bolts 3/8´´ X 14´´ Bolts 3/8´´ X 6´´ Lag Bolts 3/8´´ X 12´´ Lag Bolts P| 9 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 11 Step 7: Attach the T-Supports for the beam (3F) to the Parts B & C with 3/8´´ x 8 ½´´ Bolts (D) and 3/8´´ x 3 ½´´ lag bolts (B). 3/8´´ X 8 ½´´ Bolts 3/8´´ X 3 ½´´ Lag Bolts 3/8´´ X 3 ½´´ Lag Bolts Interior Side Exterior Side Exterior Side P| 10 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 12 Step 8: Attach the T-Supports (3G) to the Parts B & D with 3/8´´ x 8 ½´´ Bolts (D) and 3/8´´ x 3 ½´´ lag bolts (B). 3/8´´ X 8 ½´´ Bolts 3/8´´ X 3 ½´´ Lag Bolts 3/8´´ X 3 ½´´ Lag Bolts Interior Side Exterior Side Exterior Side P| 11 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 13 3/8´´ x 20´´ bolts (J) to attach to the posts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 14´´ Bolts 3/8´´ X 16´´ Bolts 3/8´´ X 14´´ Bolts 3/8´´ X 20´´ Bolts P| 12 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 14 Step 12: Attach the Beams (6) to the Triangles with 3/8´´ x 6´´ Lag bolts (G). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 6´´ Lag Bolts 3/8´´ X 6´´ Lag Bolts P| 13 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 15 Step 14: Use 2´´ deck screws (M) to attach the roof boards (8) to the rafters. Put the boards from the bottom to the top. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 2´´ Deck Screws P| 14 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 16 Step 16: Use 3´´ deck screws (N) to attach the Roof fascia’s-B (10) to the Rafters. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 15 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 17 Step 18: Finally, use 3´´ deck screws (N) to attach the boots (11) to the posts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 16 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 18 This completes the Pavilion assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 17 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 19 HOW TO REMOVE THE ELECTRICAL WIRING TRIM FROM THE POST? Step 1: First remove the deck screws to remove the boots of the post. Don´t add the lag bolt over the trim piece initially. Step 2: Remove the Knee Brace. P| 18 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
- Page 20 Step 3: Remove the Angle-A. Angle-A Step 4: Finally, remove the trim. Note: The dimensions of the trim are standard, adjust if necessary. P| 19 THE THICK TIMBER TOLEDO WOOD PAVILION www.ForeverRedwood.com...
