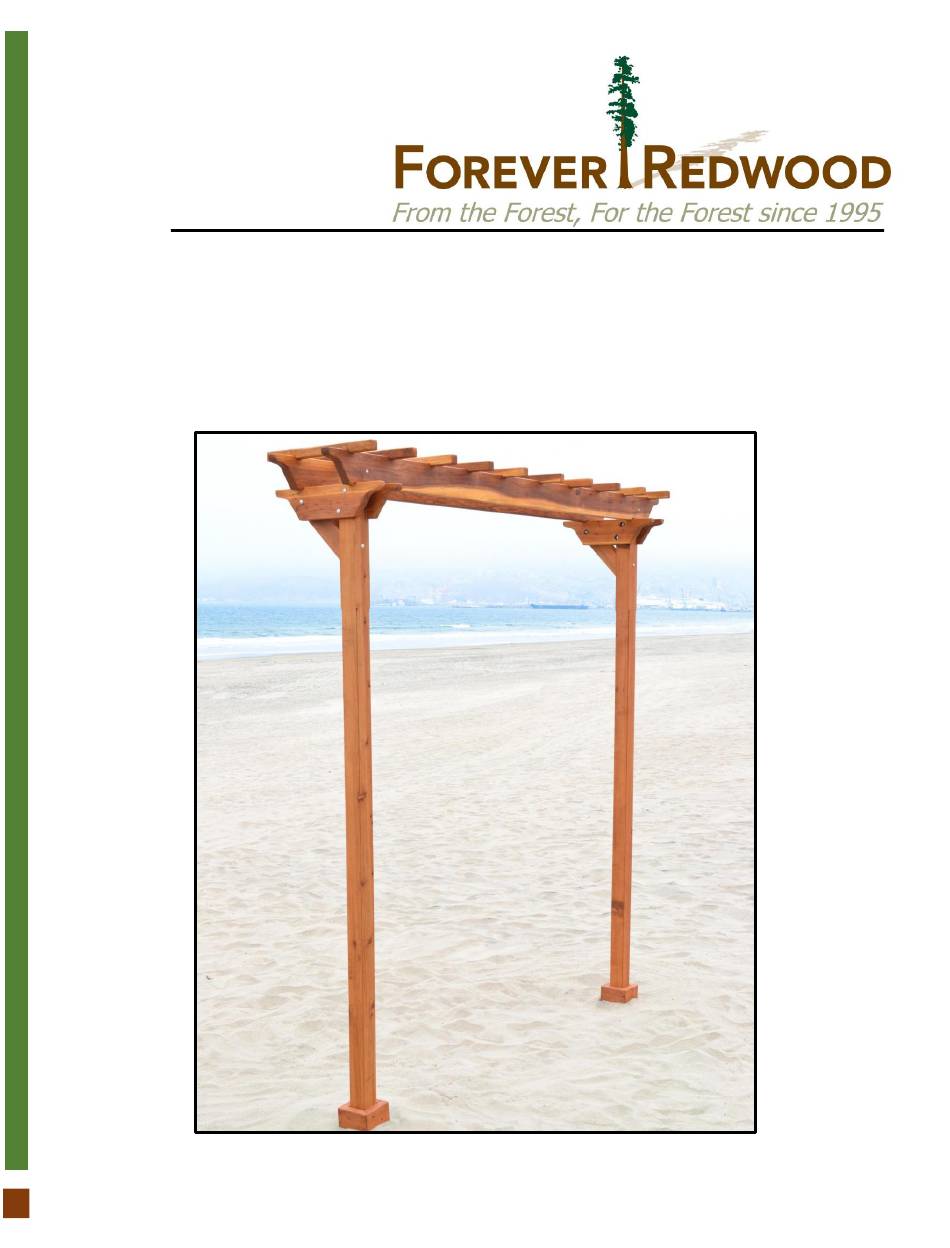

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE TWO-POST WOOD ARBOR...
- Page 2 P| 1 TWO-POST WOOD ARBOR www.ForeverRedwood.com...
- Page 3 P| 2 TWO-POST WOOD ARBOR www.ForeverRedwood.com...
- Page 4 P| 3 TWO-POST WOOD ARBOR www.ForeverRedwood.com...
- Page 5 NOTE: In order to know where the post needs to be placed, check the numbers on them. If the post is not marked, then place the single Supports on the ground to locate the markings for each post position and clearly set your bearings. (“Don´t attach yet, only place them on the ground to begin with”).
- Page 6 Step 2: Attach the supports (2) to the posts with 5/16´´ x 6´´ bolts (C). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16´´ X 6´´ Bolts Step 3: Attach the knee braces (3) to the supports with 5/16´´ x 6´´ bolts (C) and to the post with 3/8´´ x 6 ½´´ bolts (D). Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 7 Step 4: Use 5/16´´ x 4 ½´´ bolts (E) to attach a rafter (4) to each posts. After that, attach to the supports with 3´´ deck screws (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16´´...
- Page 8 Step 6: Use 3´´ deck screws (F) to attach the slats (5) to the rafters. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws Step 7: Finally, use 3´´ deck screws (F) to attach the boots (6) to the post. Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 9 This completes the Arbor assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 8 TWO-POST WOOD ARBOR www.ForeverRedwood.com...
