Forever Redwood THICK TIMBER TOLEDO WOOD PAVILIONS Assembly Instructions Manual

Advertisement

Quick Links

866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design
Department; 7am – 7pm Pacific Time, Monday-Saturday
ASSEMBLY INSTRUCTIONS FOR THE
THICK TIMBER TOLEDO WOOD PAVILIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the THICK TIMBER TOLEDO WOOD PAVILIONS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Forever Redwood THICK TIMBER TOLEDO WOOD PAVILIONS

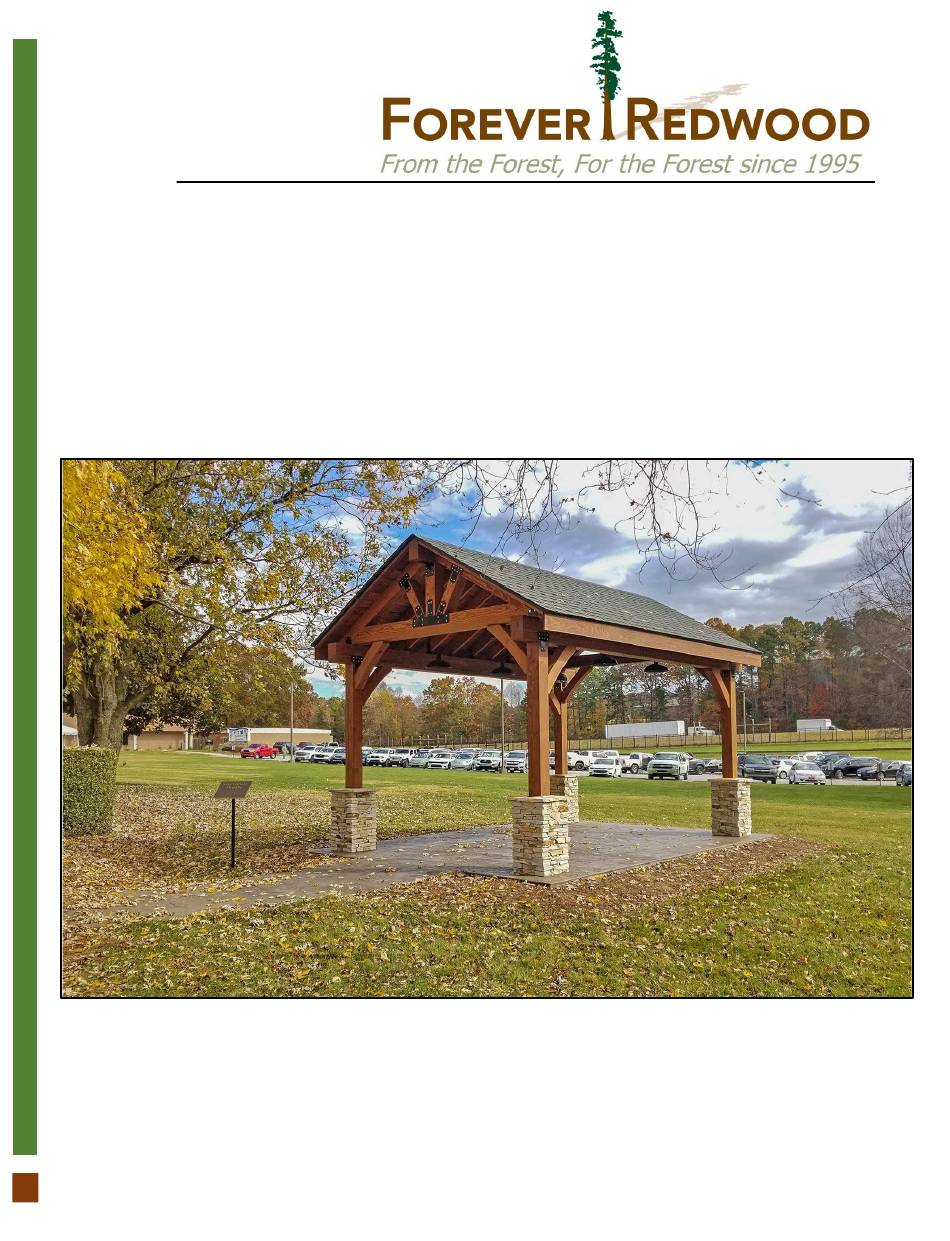

  • Page 1 866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE THICK TIMBER TOLEDO WOOD PAVILIONS...
  • Page 2 NOTE: Assembly is best done by two people. To assemble your product, you need a Hammer, a Ratch or a wrench and if required a Drill. Required Tools (Are not included in your hardware packing). PROCESS TO INSTALL THE HARDWARE PROVIDED. To install the bolts.
  • Page 3 To install the lag bolts. Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratch with the necessary socket. Use the washers only for the Wood Pieces. To install the deck screws.
  • Page 4 CONTENT OF BOXES Description Drawing Posts Supports Roof trusses (They are unarmed) T-Support for the roof trusses T-Support for the Beam Ridge Beam Main Knee Braces Secondary Knee Braces Rafters Roof Boards Roof trims Fascias T-Supports L-plaques Metal Bases-A/B High wind anchor bases Boots Note: Part numbers in the Content of Boxes Table are for reference only.
  • Page 5: Hardware List

    HARDWARE LIST Description Drawing 5/16” x 3” Lag Bolts 3/8” X 3” Lag Bolts 3/8” x 6” Lag bolts 3/8” x 2 ½” lag bolts 3/8’’ x 4” Lag Bolts 3/8” X 8” bolts 3/8” x 6 ½” Bolts 3/8’’ x 11” bolts 3/8’’...
  • Page 6 DESCRIPCION Posts Supports Roof trusses T-Support for the roof trusses T-Support for the Beam Ridge Beam Main Knee Braces Secondary Knee Braces Rafters Roof Boards Roof trims Fascias T-Supports L-plaques Metal Bases-A/B High wind anchor bases Boots P| 5 DEL NORTE OUTDOOR KITCHEN PAVILION www.ForeverRedwood.com...
  • Page 7 Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. P| 6 DEL NORTE OUTDOOR KITCHEN PAVILION www.ForeverRedwood.com...
  • Page 8 NOTE: In order to know where the post needs to be placed, check the numbers on them. If the post is not marked, then place the single Supports on the ground to locate the markings for each post position and clearly set your bearings. (“Don´t attach yet, only place them on the ground to begin with”).
  • Page 9 Step 3: Attach the L-Plaques (14) to the posts and to the Supports-A (2) with 3/8” x 6” Lag bolts (LB3) and 3/8” x 3” Lag bolts (LB2). Step 4: Attach the Exterior T-Supports for the roof trusses (4) and T-Supports for the beam (5) to the king post and to the tie beam with 3/8”...
  • Page 10 Step 5: Attach the main knee braces (7) to the supports with 3/8’’ x 11” bolts (BL3) and to the posts with 3/8’’ x 12” bolts (BL4). Check the marked on each main knee braces and place as drawings shown. Step 6: Attach the metal plaques-A&B (15) to the supports with 3/8”...
  • Page 11 Step 7: Attach the Metal Base-A (15) to the central roof trusses with 3/8” x 6 ½” Bolts (BL2). Check the marked on each roof trusses and place as drawings shown. Step 8: Attach the secondary knee braces (8) to the roof trusses with 3/8’’ x 11” bolts (BL3) and to the posts with 3/8’’ x 12” bolts (BL4).
  • Page 12 Step 9: Attach the ridge beam (6) to the roof trusses with 3/8’’ x 4” Lag Bolts (LB5) and to the T-Supports for the beam (5) with 3/8” x 2 ½” lag bolts (LB4). Check the marked on each ridge beam and place as drawings shown. Step 10: Use 5/16´´...
  • Page 13 Step 11: Use 3/8’’ x 4” Lag Bolts (LB5) to attach the rafters (9) to the ridge beam (6) and to the supports with 2 ½” deck screws (DS1). Check the marked on each rafter and place as drawings shown. (F-1 at F-18). F-18 Step 12: Use 1 5/8”...
  • Page 14 Step 13: Use 2 ½” deck screws (DS1) to attach the roof trims (11) to the roof boards. Check the marked on each roof trim and place as drawings shown. Step 14: Use 2 ½” deck screws (DS1) to attach the fascias (12) to the rafters. Check the marked on each fascias and place as drawings shown.
  • Page 15 Step 15: Finally, attach the boots (17) to the post whit 2 ½” deck screws (DS1). This completes the Pavilion assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 14 DEL NORTE OUTDOOR KITCHEN PAVILION www.ForeverRedwood.com...
