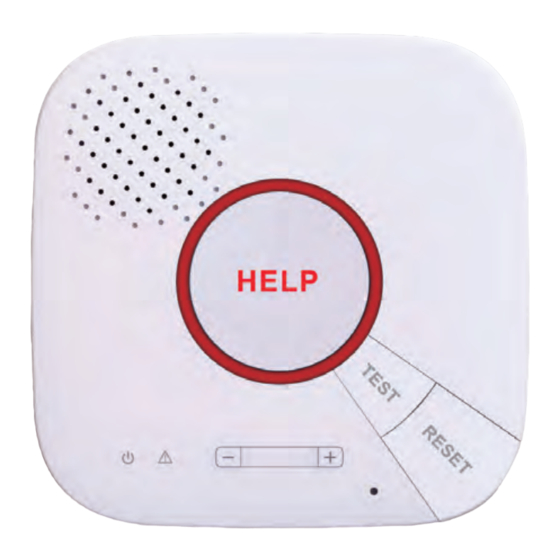

CTC-1052-QT-DT35AW
User Manual
Dec 18, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTC-1052-QT-DT35AW and is the answer not in the manual?

Questions and answers

Related Manuals for Climax CTC-1052-QT-DT35AW

Summary of Contents for Climax CTC-1052-QT-DT35AW

  • Page 1 CTC-1052-QT-DT35AW User Manual Dec 18, 2020...

  • Page 2: Table Of Contents

    4.1.2. Dial in Twice (Ring Count Disable) ......................5 4.2. Programming Your 1052-QT-DT35AW ________________________________________6 4.3. SMS Remote Programming ________________________________________________17 4.3.1 CTC-1052-QT-DT35AW SMS Remote Programming Command Table ............18 4.4 PC Programming Mode ____________________________________________________22 4.4.1 Function Tabs ..............................25 4.4.2 Profile ................................. 35 5.
  • Page 3 5.1.3. CTC-1052-QT-DT35AW Low Battery......................38 5.1.4. CTC-1052-QT-DT35AW Battery Disconnection ..................38 5.1.5. Devices Low Battery ............................. 39 5.1.6. Automatic Check-in Report = Periodic Test Call ................... 39 5.1.7. Mobility Timer ..............................39 5.1.8. Country Code ..............................39 5.1.9. Temperature ..............................40 5.2.

  • Page 4: Application Overview

    Monitoring Center. 3. RESET BUTTON — Press once in normal mode to reset mobility timer. (see command 44). — Before CTC-1052-QT-DT35AW dials out for alarm reporting, press once to cancel the alarm reporting. 10. Power Button — During or at-the-end of conversation, —...

  • Page 5: The Power Supply

    11. DC Jack 1.3. Insert SIM Card — DC switching power connection CTC-1052-QT-DT35AW Panel features built-in Cellular network communication facility to report to the Monitoring Station. 12. Programming Telephone Jack — The programming cable (QT cable A) needs to be plugged into this jack ...

  • Page 6: Programming Cable And Local Firmware Update Cable

    SMS Editor The Control Panel requires main power and  CTC-1052-QT-DT35AW compatible with a constant cellular network reception. Climax’s SMS Editor, which is designed to The Control Panel should easily facilitate SMS remote programming via a PC.  accessible. This tool allows you to program the panel easily...

  • Page 7: Learn-In The Devices

    There are three methods to learn in devices: CTC-1052-QT-DT35AW. When pressed, command learning, local learning, and using the CTC-1052-QT-DT35AW will emit one Device ID. The system can learn a total of 20 beep sound initially, and then emit a double sensors.

  • Page 8: Remove The Devices

    Please refer to 4.4 PC Programming Mode By using Command 41, you can set the number 4.4.1.5 Device for detailed instructions. of rings for CTC-1052-QT-DT35AW to answer (00-Rings is set as factory default). Step 1. Dial CTC-1052-QT-DT35AW and wait 3.2. Local Removing for CTC-1052-QT-DT35AW to answer.

  • Page 9: Programming Your 1052-Qt-Dt35Aw

    Step 5. Enter (#) to terminate the Command CC # DTMF Function # DTMF Operation. Selection Step 6. CTC-1052-QT-DT35AW will emit a short beep, indicating successful programming. 1. CC = 2-digit DTMF Command The maximum interval between key strokes is 2 minutes. Otherwise, commands will be ignored 2.
  • Page 10 Caller ID(s), CTC-1052- can hear one beep from the telephone QT-DT35AW will auto-answer the call speaker that indicates the programming is without checking access code or any button successful. press. If you hear CTC-1052-QT-DT35AW emit  beep instead, that means CTC-1052-QT-DT35AW will...
  • Page 11 GPRS1 # command #5 and/or #6. GPRS2 #  When multiple Tel. numbers selected, CTC-1052-QT-DT35AW will & 2 Tel. #s (12) always dial in respective programmed & 3 Tel. #s (13) order.
  • Page 12 Active setting(s). button of WTR, PB, or Fall Sensor, or the Help Button on CTC-1052-QT-DT35AW.  If Speech Method is selected: The time-out period for the incoming call is ...
  • Page 13 Command 35 Command 38 Silent Mode Follow-On & Call-Back Function CTC-1052-QT-DT35AW can be selected to  operate in Silent Mode. This will mute all Function Selection Result normal operation warning beeps, guard time tone and key tone.
  • Page 14 (default is 1111) and the (#) key entry within (00) 15 seconds. When the correct Access Code is received, (01) - (32) CTC-1052-QT-DT35AW will then open a Factory Default is (00) Rings.  Full-Duplex Communication to allow the Call Recipient to speak to CTC-1052-QT- <NOTE>...
  • Page 15 Monitoring Center.   Periodic Test Call will only function with When CTC-1052-QT-DT35AW is in idle telephone numbers assigned to SMS mode, press and hold the Learn Button reporting method in Command 20-24. for 15 seconds, until you hear a long beep.
  • Page 16 <NOTE> (20) Beep  Whenever programming mode  Factory default is set as (0) English. accessed, CTC-1052-QT-DT35AW will reset the Off-Set timer. Command 54 Command 49 Fall Sensor Sensitivity Supervision This command is used to set Fall Sensor  ...
  • Page 17 Alarm Reporting threshold. Sensitivity Level 1 (Lowest)  When CO2 concentration value reaches or exceeds the Alarm Reporting threshold, Sensitivity Level 2 CTC-1052-QT-DT35AW will report CO2 Sensitivity Level 3 Alarm to CMS. Sensitivity Level 4 Function Sensitivity Level 5 Result...
  • Page 18  This command is used to set the Guard Command 35 is set as Enable. Time Delay time for fall sensor.  This function will be disabled if alarm  CTC-1052-QT-DT35AW activation is made from a Silent programmed delay alarm reporting Device (learnt using Command #93).
  • Page 19 CTC-1052-QT-DT35AW will successful. emit a long beep and automatically returns to Programming mode. Factory default is (0), Any DTMF.  Step 3: CTC-1052-QT-DT35AW will emit 2 Function Selection Result beeps to indicate that Silent Pendant is learnt-in successfully. Any DTMF ...

  • Page 20: Sms Remote Programming

    Step 1: Use your handset and go into the SMS return to Programming mode. edit screen. Step 3: CTC-1052-QT-DT35AW will emit 2 Step 2: Enter the SMS keyword (default is beeps to indicate the device is PROG).

  • Page 21: Ctc-1052-Qt-Dt35Aw Sms Remote Programming Command Table

    4.3.1 CTC-1052-QT-DT35AW Remote Programming Command Table  If the SMS Keyword is set as PROG, and Access Code is set as 1111 (factory default). CORRESPON- DING DTMF COMMAND EXAMPLE & USAGE ITEM DEFAULT CHARACTER COMMANDS PROG 1111 KEYWD:IPOG Keyword KEYWD...
  • Page 22 CORRESPON- DING DTMF COMMAND EXAMPLE & USAGE ITEM DEFAULT CHARACTER COMMANDS Reporting PROG 1111 FMAT2:0 method for FMAT2 To set the reporting method for Telephone number 2 3=Speech Telephone 3=Speech, 4=SMS CID number 2 Reporting PROG 1111 FMAT3:0 method for FMAT3 To set the reporting method for Telephone number 3 3=Speech...
  • Page 23 CORRESPON- DING DTMF COMMAND EXAMPLE & USAGE ITEM DEFAULT CHARACTER COMMANDS PROG 1111 SUPPR:0 To set the supervision timer Supervision SUPPR 0=Disable, 1=4 Days, 2=5 Days, 3=6 Days 0 = Disable 4=7 Days, 5=8 Days, 6=9 Days, 7=10 Days PROG 1111 LANGU:0 To set voice prompt language.
  • Page 24 CORRESPON- DING DTMF COMMAND EXAMPLE & USAGE ITEM DEFAULT CHARACTER COMMANDS PROG 1111 GPASS:65536 Password GPASS To set/change the password password Input 1 to 5 digits Reset to factory FTSET PROG 1111 FTSET:YyS default PROG 1111 DEVDL:SCMD Delete To delete devices learnt into the panel. DEVDL Device SCMD:...

  • Page 25: Pc Programming Mode

    Step 3. Connect the PC Programming cable to the USB Extension Cable. Step 4. Connect the USB Extension Cable to the USB port on your computer. See Figure 1 for connection diagram between medical panel and computer. See Figure 2 for CTC-1052-QT-DT35AW connection jack locations. Figure 1 Figure 2 Installing The USB Driver Step 5.
  • Page 26 USB port. To download 1052-QT-DT35A-Tool programming software, open your browser and type below URL in the address bar: https://www.climax.com.tw/climax-download-1052qt- dt35aw.html. Step 7. 1052-QT-DT35A-Tool is a portable application and requires no installation. Simply unzip the file to a desired folder and double-click “1052-QT-DT35A-Tool” to execute the programming tool.
  • Page 27 Step 8. Select the COM port generated for CTC-1052-QT-DT35AW after installing the USB Driver (the USB port connected to CTC-1052-QT-DT35AW), enter the password (default 1111), and then click “Open”. A “Read All command success!” message will pop up. Click “OK”, and the current 1052- Step 9.

  • Page 28: Function Tabs

    4.4.1 Function Tabs To program the CTC-1052-QT-DT35AW Control Panel, click on different function tabs to see and edit CTC-1052-QT-DT35AW functions. 4.4.1.1 Report The “Report” tab allows the user to configure report settings. 21# - 24# Reporting Method [Tel. Number 1-4]: - You can program the Alarm reporting method for each Tel.
  • Page 29  APN Name for GPRS: Enter the name of an access point for GPRS. Please inquire your SIM card service provider for your APN.  User Name: User name is offered by your SIM card service provider. Please inquire your service provider for your GPRS username.
  • Page 30 - When disabled, CTC-1052-QT-DT35AW will operate silent for an incoming call. - When enabled, CTC-1052-QT-DT35AW will sound a ring tone as an audio alert for an incoming call. The user can answer the incoming call by pressing the HELP BUTTON or Pendant Button.
  • Page 31 37# AC Fault Report: - When set to ON, CTC-1052-QT-DT35AW will send a Fault Report after a continuous one hour of AC Fault condition is detected. - When set to OFF, CTC-1052-QT-DT35AW will not send an AC fault report.
  • Page 32 0-23 hours, and 0-59 mins). Whenever programming mode is accessed, CTC-1052-QT- DT35AW will reset the Periodic Test Call timer. - Whe this function is disabled (0 day, 0 hour, 0 min), CTC-1052-QT-DT35AW will not make periodic test calls. 44# Mobility Timer: - This function monitors user movement around the premises and sends an inactivity report to the Monitoring Center if the user fails to reset the inactivity timer.
  • Page 33 20 sensors. All learnt-in devices will be assigned to zone 1-20 sequentially. 93# Learn-In Silent Device: - This is used for learning in silent devices. When CTC-1052-QT-DT35AW receives the alarm signal from a Silent Device, it will not sound any warning beeps during Reporting and Guard time period.
  • Page 34 Learning can only be completed within the signal reception range of CTC-1052-QT- DT35AW. If no signal is received within 20 sec, a “Learning Fail” message will pop up, and CTC-1052-QT-DT35AW will automatically return to Programming mode.  Adding a Device for a second time is prohibited unless it is removed from the system first.
  • Page 35 80# Remove All Device Click “Remove” to remove all devices from CTC-1052-QT-DT35AW. A message “Remove All Device command success!” will pop up. 81# Remove Zone 1 Device Click “Remove” to remove zone 1 device from CTC-1052-QT-DT35AW. A message “Remove Zone 1 Device command success!” will pop up.
  • Page 36 - When an incoming call matches with any of the programmed Caller ID(s), CTC-1052-QT- DT35AW will auto-answer the call without checking access code or any button press. - CTC-1052-QT-DT35AW will match the numbers starting from the last digit, and verify 10 digits at the most.
  • Page 37 55# High Temperature Reporting: - Set the High Temperature Reporting threshold in degrees Fahrenheit. (32°F ~ 212 °F) - Factory Default is 95°F. 56# Low Temperature Reporting: - Set the Low Temperature Reporting threshold in degrees Fahrenheit. (32°F ~ 212 °F) - Factory Default is 47°F.

  • Page 38: Profile

    Adjust Brightness Color: - Input the brightness color level (1, 2, 3). - 1: low, 2: normal, 3: high 4.4.2 Profile The Profile function allows you to create and edit different setting profiles which can be easily accessed in the future for quick programming. Current Setting After reading the configuration of CTC-1052-QT, the Profile scroll down bar will now display “Current Setting”...
  • Page 39 After editing the settings, click “Save Profile” to save the profile settings. A pop-up window will indicate the profile has saved. You can use this profile in the future to apply the same setting to other CTC-1052-QT. Save Profile As After editing the settings of a profile, you can make a copy of the current profile with a different name by clicking “Save Profile As”.
  • Page 40 Select a profile and click on “Delete Profile”. A pop-up window will ask you to confirm the selection: Select “Yes” to delete the profile, or “No” to return to the previous page. Profile Backup & Transfer The profiles that you created and saved are stored as text files in the “Profile” folder under the directory where the 1052-QT-Tool files are extracted in your local computer.

  • Page 41: Operation

    “Power restored.” communication type:  If the AC Power failure lasts for an hour, DTMF (1) to TALK ONLY CTC-1052-QT-DT35AW will send an AC Enter DTMF (2) to open TWO-WAY Failure report to the Monitoring Center. VOICE COMMUNICATION ...

  • Page 42: Devices Low Battery

     When the battery disconnection lasts for  When the Mobility timer is not reset after 30 10-15 minutes, CTC-1052-QT-DT35AW will minutes, CTC-1052-QT-DT35AW will send report to the Monitoring Center and the a Mobility Timer Expired report to the GREEN LED will flash slowly.

  • Page 43: Temperature

    Time Delay will reported temperature drops under 95°F/35°C, the immediately. CTC-1052-QT-DT35AW will panel will send High Temperature Restore play voice prompt “Fire Alarm,” “Carbon report to CMS. Monoxide Alarm,” “Water Leak Alarm” to inform the user of the alarm at hand.

  • Page 44: Confirmation Voice Prompt

    fall detection (of a Fall Sensor) has its  IP Address: Central Monitoring Station server IP. Please refer to 4.3.1 1052-QT- timer (programmed using Command 66). The CTC-1052-QT- DT35AW SMS Remote Programming DT35AW will play voice prompt “A fall Table on how to set CMS IP Address(es) has been detected,”...

  • Page 45: Speech Reporting Method

    Access Code (default is 1111) and the (#) 5.2.3. Speech Reporting Method key entry within 12 seconds. Upon receiving the correct Access Code  If Speech Reporting Method is selected, and the (#) key, CTC-1052-QT-DT35AW after dialing, CTC-1052-QT-DT35AW will will then open Full-Duplex...

  • Page 46: Report Sequence

    for up to 15 times in total. <NOTE> If more than 1 report destinations are set to  Speech Reporting made under Silent a report method (e.g. GPRS), the panel will Mode or using a Silent Device will consider report method automatically be switched to Listen-in, successful if reporting to one of the...

  • Page 47: Walk Test (Range Test)

    Step 2. Within 5 seconds, press Pendant inactivity. button. Step 3. CTC-1052-QT-DT35AW will emit a 5.3.2. In Walk Test Mode short beep, voice prompt “Global Test”, and report to Monitoring Walk Test Mode is only applicable to Smoke Center.

  • Page 48: Factory Reset

    CMS. The message composition for CID Event code is in the form: ACCT MT QXYZ GG C 5.6 Factory Reset CTC-1052-QT-DT35AW will clear And is explained in the following table: programmed parameters following...
  • Page 49 Low on Battery, the Green LED flashes 302 - Panel Low battery  every 2 seconds  When CTC-1052-QT-DT35AW is under 601 – Manual trigger Test Report  Low Battery status, the Green LED  When the Test Button is pressed, test flashes every 2 seconds.
  • Page 50 641 - Mobility   When CTC-1052-QT-DT35AW makes Mobility Timer Expired reporting. <NOTE>  This event code will be sent with a fixed zone number of 071...

  • Page 51: Ctc-1052-Qt-Dt35Aw Programming Command Table

    6.2. CTC-1052-QT-DT35AW Programming Command Table TERM DTMF DTMF DTMF COMMAND OPERATION CHARACTER DEFAULT NATO COMMANDS To Set Caller ID (201-220) Enter: Caller ID Sequence + * + Caller ID Note: Caller ID Sequence: 201-220 Null Symbol: * Caller ID: maximum 20 digits...
  • Page 52 DTMF DTMF TERMI- DTMF COMMAND OPERATION DEFAULT CHARACTER NATOR COMMANDS Test Call: DDHHMM DD:00-07=0-7 Day(s) HH= 00-23=0-23 Hour(s) Disable MM=00-59=0-59 Min(s) 000000= Disable Mobility time Mobility time 00= Disable, 01 - 36= 1 - 36 Hours disable Two-Way Period, 01=1 min, 02=2mins, 03=3mins, 04=4mins, 5 minutes 05=5mins, 06=6mins, 07=7mins, 08=8mins, 09=9mins, 10=10mins.

  • Page 53: Ctc-1052-Qt-Dt35Aw Voice Prompts

    6.3. CTC-1052-QT-DT35AW Voice Prompts The Control Panel plays voice prompts on important occasions to report its condition or remind you to take a specific action. Information on voice prompts is provided in the chart below. Voice Prompt Condition Played once after long pressing (6 seconds) the Learn Button on the Release the Button Control Panel to enter learning mode.
  • Page 54 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
