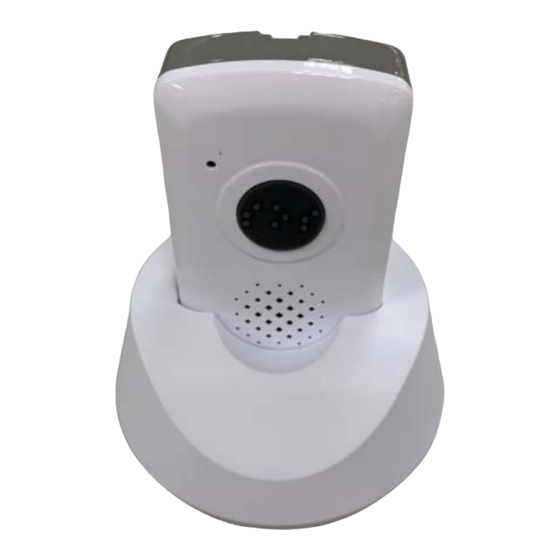

Mobile Lite-R23
Cellular Emergency Alarm System
Installer's Guide
4 Feb 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobile Lite-R23 and is the answer not in the manual?

Questions and answers

Linda S Vincent
July 18, 2025

What color button should be present when fully charged

0

Related Manuals for Climax Mobile Lite-R23

Summary of Contents for Climax Mobile Lite-R23

  • Page 1 Mobile Lite-R23 Cellular Emergency Alarm System Installer’s Guide 4 Feb 2021...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ........................1 -R23 ......................... 1 1.1. OBILE ......................1 1.2. ’ S IN THE SYSTEM OVERVIEW ......................2 ....................... 2 2.1. DENTIFYING THE ARTS ........................3 2.2. OWER UPPLY GETTING STARTED – SETTING UP MOBILE LITE ............4 ................
  • Page 3 Speech Reporting Method ..................33 6.5.3. Report Sequence ....................... 34 6.5.4........................36 6.6. LEEP .................... 36 6.7. HECK EVICE NFORMATION ............37 6.8. SAGE ECOMMENDATION FOR ETECTION ......................... 38 6.9. OICE ROMPTS APPENDIX ......................... 41 ............41 7.1. SMS R EMOTE ROGRAMMING OMMANDS...

  • Page 4: Introduction

    1. Introduction 1.1. Mobile Lite-R23 Coming in a slimmer case design, Mobile Lite-R23 is a light, portable and richly featured cellular medical alarm with GPS positioning, Wi-Fi positioning, GeoFencing and mobile network that protect you wherever you go. The built -in fall sensor will raise an alarm call when a fall has been detected.

  • Page 5: System Overview

    2. System Overview 2.1. Identifying the Parts Button/LED/Compon Behavior Function/Indication 1. Microphone 2. Top LED (Green) Charging 1 flash every 5 seconds Normal Operation Top LED (Red) 1 Flash every 3 seconds Low Battery When Mobile Lite is charging, the Red LED will not indicate the battery status.

  • Page 6: Power Supply

    Charging & Programming Cradle (CT-6S) Charging & Programming Contact Plates 2. Micro-USB jack 2.2. Power Supply Mobile Lite is powered by rechargeable battery. The typical charging time  is 4 hours. As the battery may not be 100% charged when you get your Mobile Lite, ...

  • Page 7: Getting Started - Setting Up Mobile Lite

    3. Getting Started – Setting up Mobile Lite 3.1. Mobile Lite Lanyard and Attachment Attachmet Removal Attachment Hook the the lanyard onto the  Press the button to release the  Mobile Lite unit. hook and remove the lanyard. Put the lanyard around the neck ...

  • Page 8: Mobile Lite Belt Clip And Attachment

    3.2. Mobile Lite Belt Clip and Attachment Attachment Removal Hook the the belt clip onto the  Press the button to  Mobile Lite unit. release the hook and remove the belt clip. Use the clip to attach the  Mobile Lite to the user’s waistband or belt.

  • Page 9: Charging Mobile Lite

    Step 1. Place Mobile Lite into the CT-6S Cradle. Please make sure that the Charging Contact Plates of both Mobile Lite and the cradle are in contact with each other. The Mobile Lite-R23 can also be inserted into the Cradle without removing the belt clip. Picture B.

  • Page 10: Hardware Installation (For Pc Programming)

    3.4. Hardware Installation (For PC Programming) Programming Micro-USB Cable For programming via connecting Mobile Lite to CT-6S and then connecting to computer, a special Programming Micro-USB Cable is required. The USB end of programming cable is larger than the regular cable. Always use the Programming micro USB cable for connecting CT-6S to computer.
  • Page 11 Step 2. Insert the cradle end of the Programming Micro-USB Cable into the Micro-USB jack as shown in the picture: Step 3. Insert the programming end of the Programming Micro-USB Cable into a computer USB port as shown in the picture below: <...

  • Page 12: Software Installation (For Pc Programming)

    3.5. Software Installation (For PC Programming) 3.5.1. Installing USB Driver Mobile Lite can be programmed via USB port connection of a computer using the PC Programming Tool software (using the Programming Cable). If the computer cannot recognize the USB connection, please try installing the USB driver as instructed below.

  • Page 13: Programming Mobile Lite

    4. Programming Mobile Lite Mobile Lite can be programmed by using a PC Programming Tool. 4.1. PC Programming Tool (Installers Only) For system setting programming with PC Programming Tool software via USB port, follow instruction below. Step 1. Execute the programming tool: The following configuration screen will be opened.
  • Page 14 Lite). Baud rate: 115200  Data: 8  Parity: None  Stop: 1  FlowCtrl: None  Step 3. Read Configuration To start configuring Mobile Lite settings, click on “Open”. A Read configuration success message will pop up, click “OK” to proceed: The current Mobile Lite setting will be displayed.

  • Page 15: Sms Program

    4.1.1. SMS Program This tab allows the user to program SMS Keyword (15 characters max.) and Access Code 1 (4-8 digits) which are used for SMS Programming feature. Enter the information and click “Write” to complete programming. Please note that SMS Keyword is case-sensitive. For detail information, please refer to 4.2. SMS Programming.

  • Page 16: Report Setting

    4.1.3. Report Setting The “Report” tab allows the user to configure report settings. Mobile Lite reports over 3 media: IP (Mobile Network), Speech channel, and SMS message. 5 Report Indexes are available for setting: 4 programmable settings are available per Report Index: 1.
  • Page 17 JSON udi: Please input the device UDI (Unique Device Identifier) for JSON Report. Maximum of 15 numeric characters or alphanumeric letters. Speech reporting and SMS Text Report Format: PhoneNumber  Example: 0912345678 Speech Reporting: When activated, Mobile Lite will dial to the telephone number and open two-way voice communication directly.
  • Page 18 information and a location link. Group The Reporting Group determines the sequence of reporting. One Report Index can only be assigned to one Group. Reporting within a Group: If there are multiple Report Indexes programmed within a Group: Mobile Lite will report according to the numeric order (e.g. 1 > 2 > 3, etc.) ...
  • Page 19 If Group 1 is successful, Mobile Lite will still report to Group 3. If reporting to Group 3 is successful, Mobile Lite will terminate reporting. If reporting to Group 3 is unsuccessful (going through all the Report Indexes within the group for 3 times), Mobile Lite will also terminate reporting.
  • Page 20 Below are the SMS Text messages sent to user according to the condition  of the Mobile Lite. SMS text table: Mobile Lite Condition SMS Text format Low battery status Mobile Lite Low Battery Battery voltage restored Mobile Lite Battery Restored Wakes up time Mobile Lite Periodic Test When help is sent by pressing the Mobile Lite’s Button, in which according...

  • Page 21: Setting

    4.1.4. Setting The Setting tab allows you to program general configuration for Mobile Lite. Click “Write” when you have completed all settings to confirm. Guard Time:  When the Active Button on Mobile Lite is pressed, the device will  play voice prompt “Initiating Help”...
  • Page 22 Adjust the speaker volume of Mobile Lite from a scale of 1-5, where  1 = minimum speaker volume 5 = maximum speaker volume Test Mode timeout  Select a time limit (1-10 minutes) for Test Mode.  After the Mobile Lite enters Test Mode, if the Active Button is not ...

  • Page 23: Telemetry Log

    4.1.5. Telemetry Log The Telemetry log tab logs the Mobile Lite’s detailed cellular connection history. 4.1.6. System Log The system log tab logs the Mobile Lite’s detailed system operation history.

  • Page 24: Device

    4.1.7. Device Click on the “Device” tab for Device settings where you can view device zone, type, add or remove devices. For learning new device(s), please use local learning mode or use the PC Programming Tool. Add Sensor: Depends on the supplier, a Sensor ID of the device may be labeled (usually on the back of the device).

  • Page 25: Miscellaneous

    4.1.8. Miscellaneous Click on the “Misc.” tab to program miscellaneous options: Signal Strength  Click on the Signal Strength button to obtain GSM signal strength.  The IMEI number of GSM module will be displayed on the right side of GSM signal strength. Reboot Device ...

  • Page 26: Firmware

    4.1.9. Firmware To update the firmware of Mobile Lite: Step 1. Click “Firmware”. Step 2. Select the firmware update speed from the drop down menu. The shorter the time, the faster the update speed; however some computer may not be able to support high update speed and doing so may crash the computer.

  • Page 27: Sms Remote Programming

    4.2. SMS Remote Programming Step 1. Enter the SMS screen on your mobile phone or smartphone. Step 2. Enter the programming command (see the SMS remote programming commands tables below). Step 3. Enter a colon (:). Step 4. Enter SMS Keyword (default is PROG). Step 5.

  • Page 28: Local Rf Device Management

    5. Local RF Device Management Mobile Lite can learn up to 20 RF devices which can be used to activate Mobile Lite to make emergency report. Entering Learning Mode Press the Info Button of Mobile Lite for 6 seconds. At the 6 second Mobile Lite will emit one beep and play voice prompt “Release for device pairing or continue to hold for next option.

  • Page 29: Operation

    6. Operation 6.1. Answering Incoming Calls Mobile Lite will ring when there is an incoming call.  Press Mobile Lite Active Button to pick up the call.  If the number of the incoming call matches any of the Caller ID, Mobile ...

  • Page 30: Gps/Wi-Fi Locate Function

    6.3. GPS/Wi-Fi Locate Function Mobile Lite location info can be acquired in 3 ways.  1. Activate an alarm When an alarm is activated, Mobile Lite will also report its location info along with the alarm event. (For IP & SMS Reporting) During two-way communication following a successful IP report, Mobile Lite location info will be updated every minute, and reported via the previously successful IP channel.

  • Page 31: Alarm Activation

    press the Help Button to connect to the test center.” Step 3. Press the Help Button once to continue with the Test. If no action is taken, Mobile Lite will come out of test mode in programmed period. 6.5. Alarm Activation When an alarm is activated by pressing the Active Button of Mobile Lite or ...
  • Page 32 expired. This function is only used when a fall is detected, if the Active Button on  Mobile Lite or the Active Button of the learnt-in Fall Sensor is pressed to activate alarm, normal guard time is used instead. Confirmation Voice Prompt After guard time expires, Mobile Lite will summon help based on the ...

  • Page 34: Alarm Report Procedure

    6.5.1. Alarm Report Procedure Mobile Lite will regularly scan for nearby Wi-Fi hotspots, other wireless access points and store the data according set time interval. If Wi-Fi data cannot be obtained, Mobile Lite will check GPS location instead. When Mobile Lite button is pressed and alarm is activated, it will begin to check last position while acquiring new Location and count down Guard Time.

  • Page 35: Callback Mode

    If new position is acquired under two-way communication following a successful IP report, Mobile Lite makes report via the successful IP channel with location coordinates. During the two-way communication (of either a speech report or a callback call), Mobile Lite will keep updating location and making report every minute.

  • Page 36: Speech Reporting Method

    Enter (1) for talk-only mode. Enter (2) for two-way voice communication. Enter (3) for listen-in only mode. Enter (9) to hang up. Put the handset back to the base cradle to end the call. Press and hold the Active Button of Mobile Lite for 5 seconds, or press Active Button of RF device (WTR, Fall Sensor or PB) once to end the call.

  • Page 37: Report Sequence

    If the call recipient needs more talk time, he can press any key except for  (9) to reset the communication time to its preset duration. If no DTMF command is pressed during the speech period, the call will  automatically hang up and be recorded as an unsuccessful report.
  • Page 38 Reporting behavior depends on the event type:  Emergency Events:  When reporting to the first group is successful, Reporting is regarded as successful. Mobile Lite will still report to the next group until all groups have been tried to complete the reporting cycle.

  • Page 39: Sleep Mode

    reports and will not retry if report failed. For example, if Groups 1 and 3 are programmed for “Status” reports: Group 1 > Group 3 > Stops reporting 6.6. Sleep Mode Mobile Lite can enter Sleep Mode to conserve power. While under normal operation mode, press the Info Button for 9 seconds to enter Sleep Mode.

  • Page 40: Usage Recommendation For Fall Detection

    6.8. Usage Recommendation for Fall Detection When the fall detection function is enabled for Mobile Lite, please wear the unit on the neck and let it hang in fornt of the chest, so that Fall Sensor can be effectively triggered. Please do not wear the Mobile Lite on your belt, place it in your bag, or hide it inside coat pocket, which may lead to difficult trigger or non-detection of fall.

  • Page 41: Voice Prompts

    6.9. Voice Prompts Mobile Lite will play voice prompts according to different conditions. Below is a quick reference chart of all the voice prompts of Mobile Lite and the conditions under which they are played. Voice Prompt Condition Initiating Help Plays when the Active Button (Help Button) is pressed to trigger emergency alarm Fall Detected...
  • Page 42 Voice Prompt Condition Release to power off deivce Plays along with a beep when the Info button is pressed and held for 9 seconds Entering Test Mode, press the Help Plays after the Info Button is pressed and held Button to connect to the test center for 3 seconds and then released to enter the Test Mode.
  • Page 43 Voice Prompt Condition Cellular signal poor, battery level very Plays when pressing the Info Button once low, charge your device immediately shortly and released, and there is 1 signal bar or less and the battery level is below 10% Device ready Plays once when the device succcefully starts 4G/LTE connection after power on Device Error...

  • Page 44: Appendix

    7. Appendix 7.1. SMS Remote Programming Commands Table Item Command Example & Usage Default Cellular RSTG RSTG:PROG,1111 Module To reset Cellular Module Reset GPRS APN, APN:PROG,1111,internet,, APN: Internet username & To set GPRS APN, username and password (31 characters max. for Username and password APN, 31 characters max.
  • Page 45 Item Command Example & Usage Default Adjust SPKVL SPKVL:PROG,1111,3 Speaker Adjusts speaker volume of Mobile Lite Volume Parameter: 1-5 speaker volume 1 = minimum 5 = maximum Set Caller ID CALID CALID:PROG,1111,1,0227942014 Parameter 1: Select Caller ID: 1 = ID #1, 2 = ID #2 Parameter 2: Caller ID number: Enter a number up to 15 digit long Remote FWUG...
  • Page 46 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
